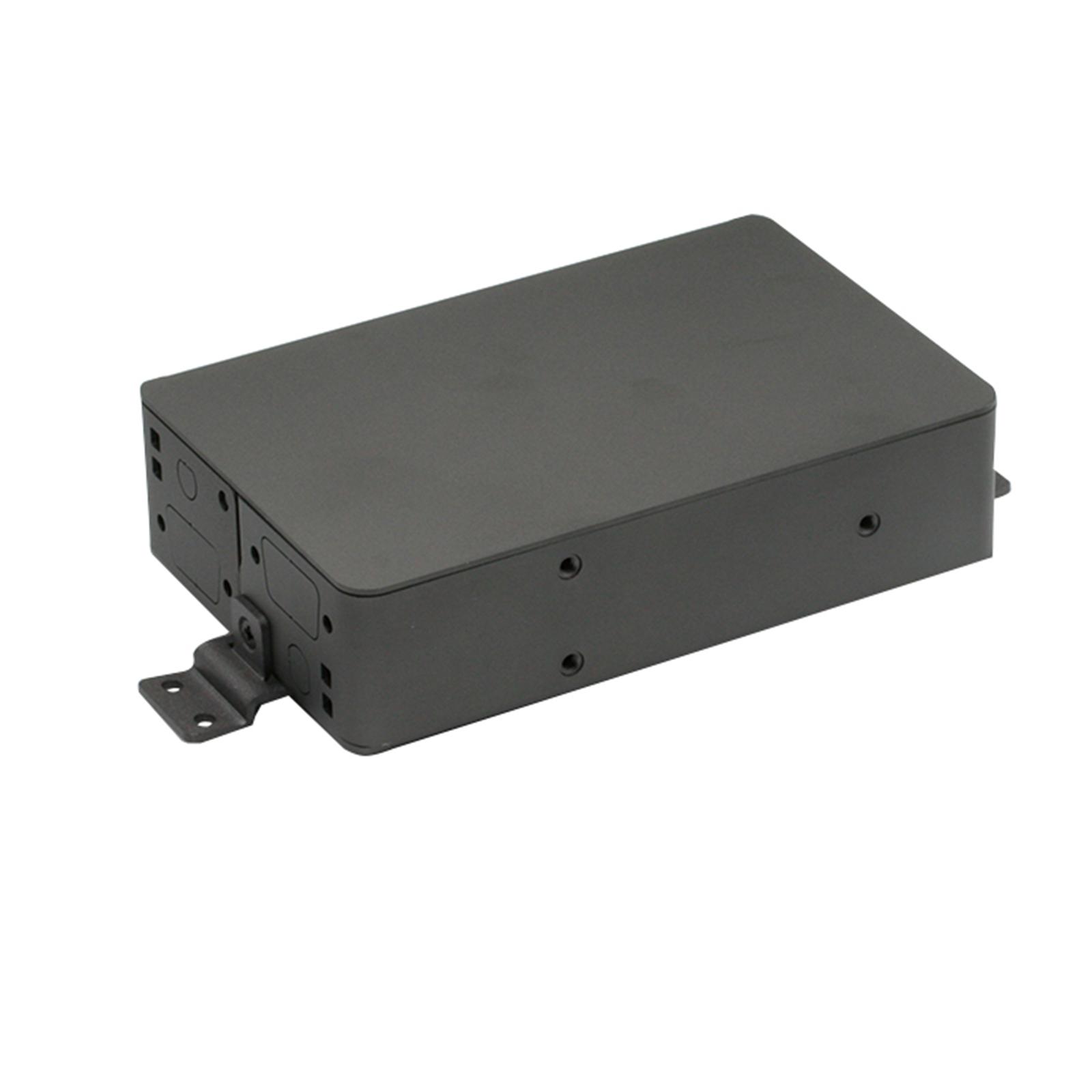

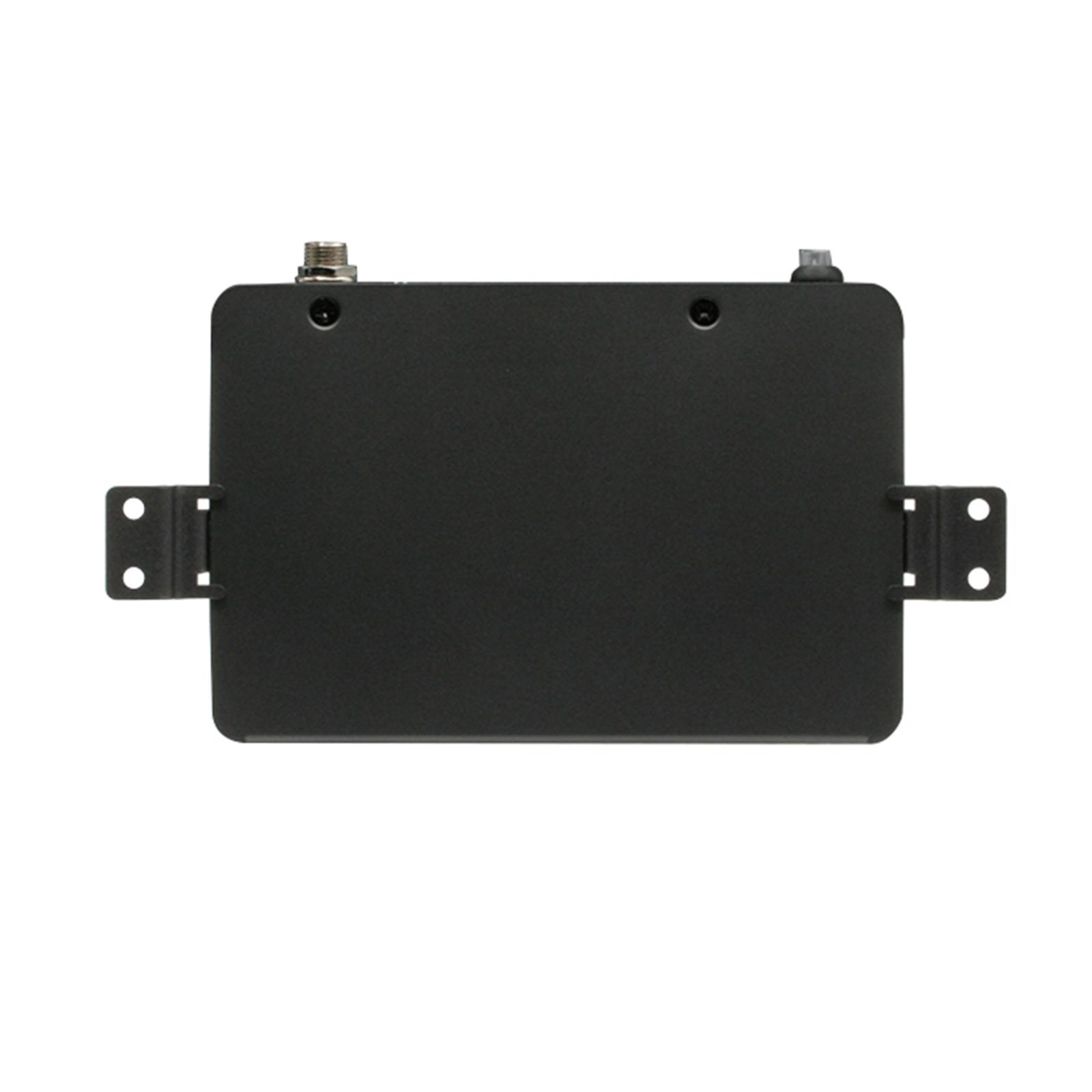

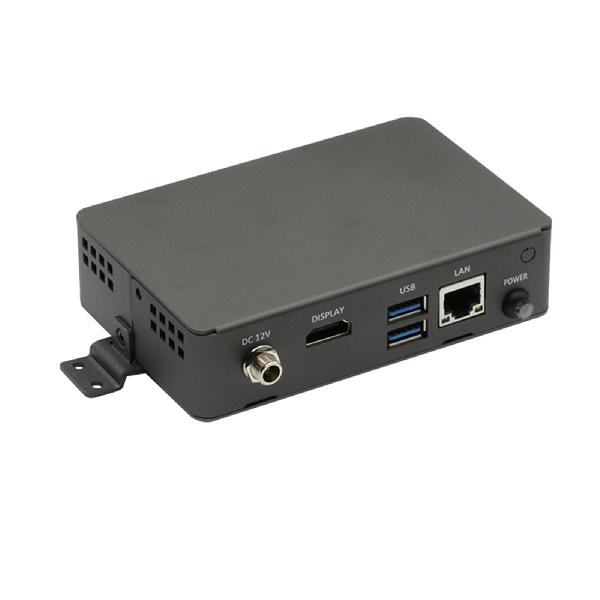

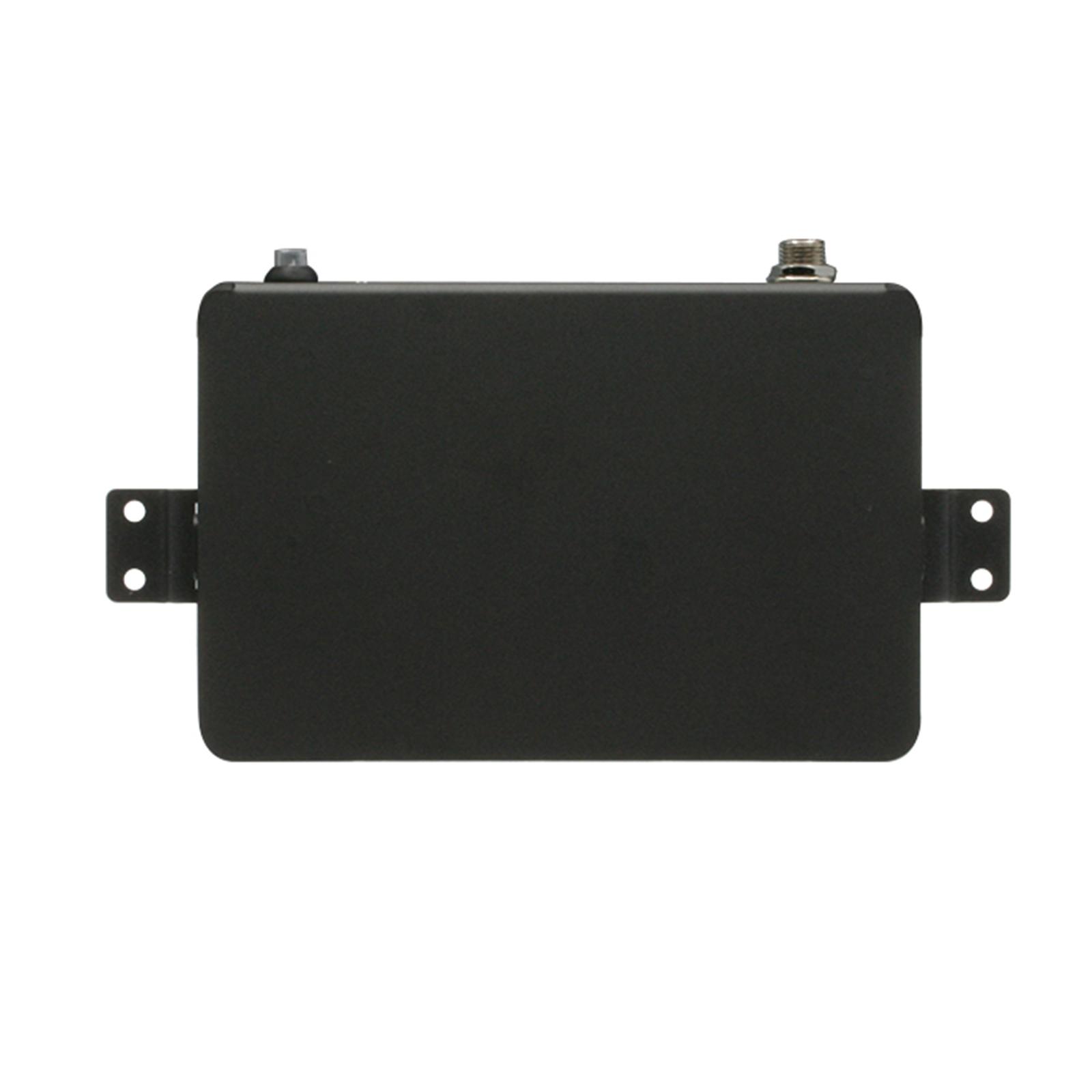

Pico-ITX Embedded Barebone Kit with Intel® Atom™ Processor SoC
SYSTEM | |
| FORM FACTOR | Pico-ITX |
| PROCESSOR | Intel® Pentium® N4200 (4C. 1.1 GHz, up to 2.5 GHz, TDP 6W) Intel® Celeron® N3350 (2C. 1.1 GHz, up to 2.4 GHz, TDP 6W) *Wait for E3900 series in 2019 within ATRF according |
| SYSTEM MEMORY | DDR3L, memory down, up to 4GB |
| CHIPSET | Intel® SoC |
| ETHERNET | Realtek 8111G x 1 10/100/1000Mbps, RJ-45 x 1 |
| BIOS | AMI BIOS |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| EXPANSION INTERFACE | M.2 2230 E key (For WIFI/BT Module) |
| POWER REQUIREMENT | Normal: +12V |
| POWER SUPPLY TYPE | Lockable |
| POWER CONSUMPTION | N4200 @ 4GB DRAM/eMMC 32GB, 12V @1.1A (Full Loading) |
| SYSTEM SIZE | W/O heat sink: 4.8" x 3.15" x 1.18" (122 x 80 x 30 mm) W/ heat sink: 4.8" x 3.15" x 1.73" (122 x 80 x 44 mm) |
| GROSS WEIGHT | W/O heat sink: 0.4 lb (165g) W/ heat sink: 0.89 lb (407g) |
| OPERATING TEMPERATURE | 32°F~ 122°F (0°C ~ 50°C), 0.5 m/s airflow |
| STORAGE TEMPERATURE | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 110,000 |
DISPLAY | |
| CHIPSET | Intel® SoC |
| VIDEO OUTPUT | HDMI 1.4 |
| TOUCH | — |
I/O | |
| STORAGE/SSD | M.2 2280 x 1 (B-Key) eMMC 32GB, up to 128GB (optional) |
| USB PORT | USB 3.2 Gen 1 x 2 (Rear IO) USB2.0 x 2 (Internal option) |
| SERIAL PORT | Optional |
| AUDIO | Optional |
| EXPANSION SLOT | RS-232 x 1, RS-232422/485 x 1 (Optional) |
| CERTIFICATION | |
| CERTIFICATION | CE, FCC |
