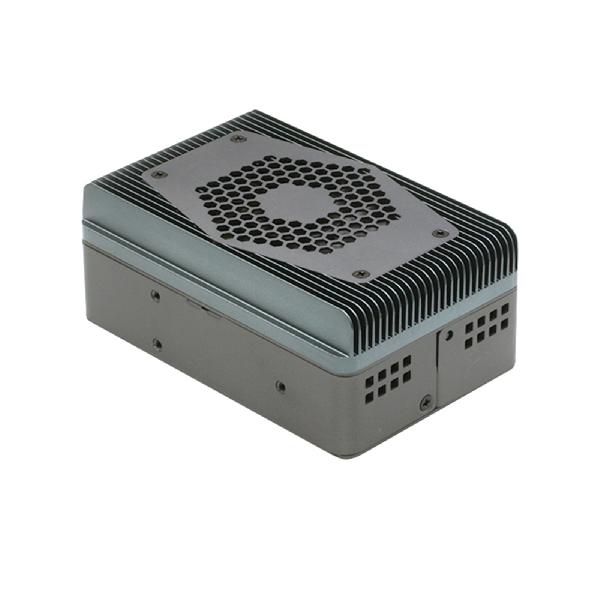

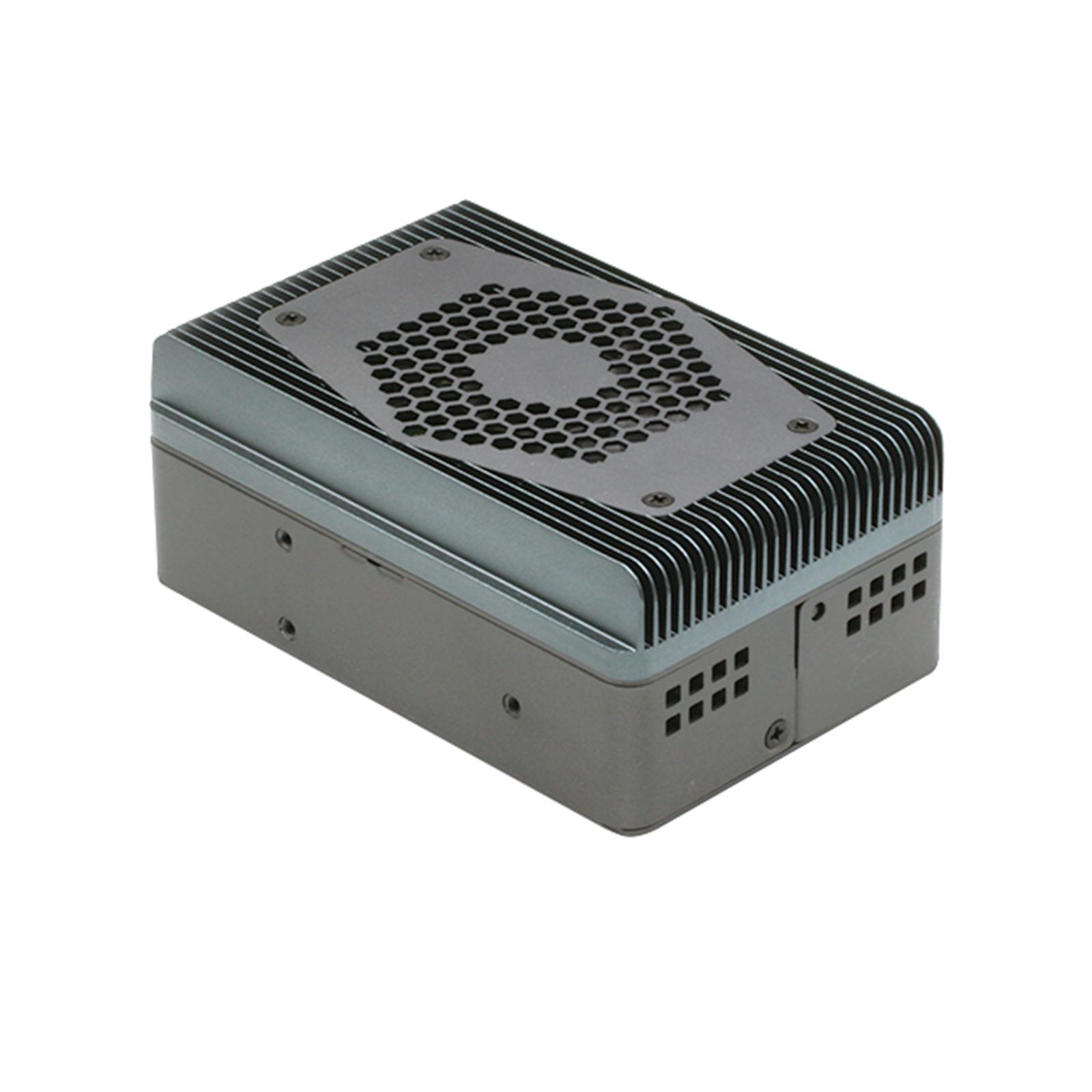

Pico-ITX TurnKit with 7th Generation Intel® Core™ i7/i5/i3/Celeron® U-Series Processor SoC
SYSTEM | |
| FORM FACTOR | Pico-ITX |
| PROCESSOR | 7th Gen Intel® Core™ i processor U series |
| SYSTEM MEMORY | DDR4 SODIMM Slot x 1,Up to 16 GB |
| CHIPSET | Intel® SoC |
| ETHERNET | Realtek 8111G Gigabit Ethernet 10/100/1000Base, RJ-45 x 2 |
| BIOS | AMI BIOS |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Level |
| EXPANSION INTERFACE | M.2 2230 E key (For WIFI/BT Module) |
| POWER REQUIREMENT | Normal: +12V |
| POWER SUPPLY TYPE | Lockable |
| POWER CONSUMPTION | I7-7600 @ DDR4 16GB, 12V@2.3A |
| SYSTEM SIZE | 4.8" x 3.15" x 2" (122 x 72 x 50 mm) |
| GROSS WEIGHT | 0.88 lb (0.4 kg) |
| OPERATING TEMPERATURE | 32°F~ 122°F (0°C ~ 50°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 163,000 |
DISPLAY | |
| CHIPSET | Intel® SoC |
| VIDEO OUTPUT | HDMI 1.4 |
| TOUCH | — |

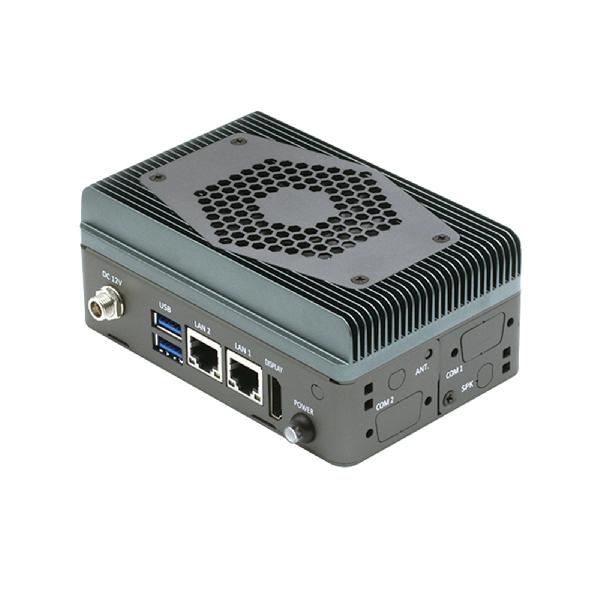

I/O | |
| STORAGE/SSD | M.2 2242 B key |
| USB PORT | USB 3.2 Gen 1 x 2 (Rear IO) |
| SERIAL PORT | Optional |
| AUDIO | — |
| EXPANSION SLOT | RS-232 x 1, RS-232422/485 x1 (Optional) |
| CERTIFICATION | |
| CERTIFICATION | CE, FCC |
