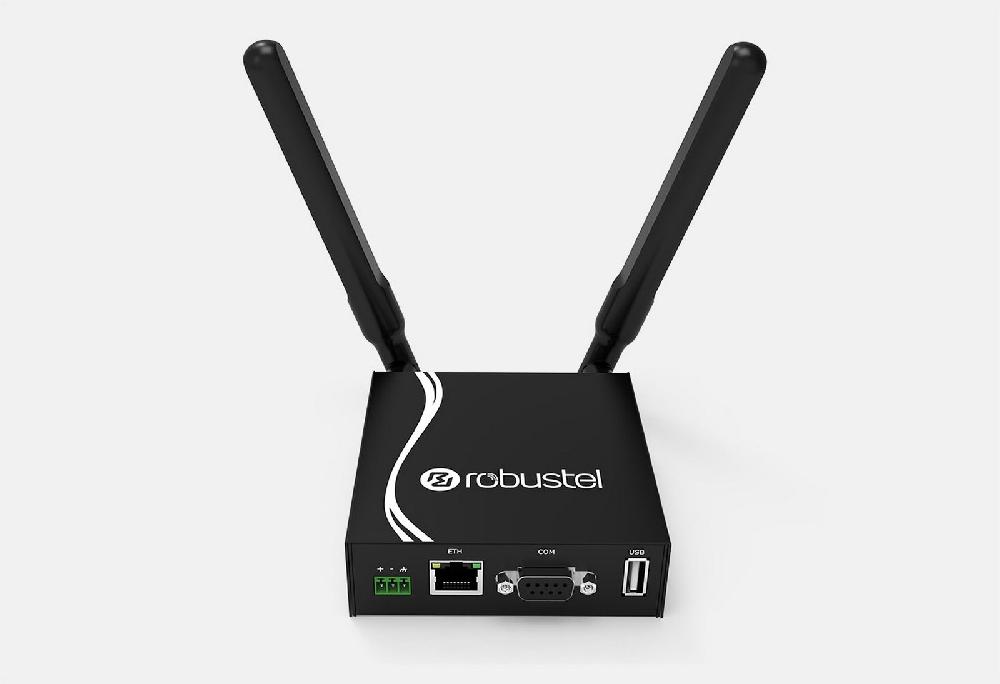

R3000 Lite

Home  >   Robustel  >   INDUSTRIAL CELLULAR ROUTERS  >

Industrial Dual SIM Cellular VPN Router. A cost effective, industrial-grade VPN gateway designed for cost-sensitive M2M applications.

Product Feature

  • Dual SIM redundancy for persistent 2G/3G/4G cellular network connections
  • RobustOS + SDK + App
  • IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
  • Management and maintenance via Web/CLI/SMS/SNMP/RCMS
  • Robust industrial design (9 to 36V DC, desktop or wall mounting or DIN rail mounting)

INTRODUCTION

The Robustel Industrial Dual SIM Cellular VPN Router (R3000 Lite) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.

R3000 Lite is a powerful router developed from RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with a very good user experience. Meanwhile, Robustel offers a Software Development Kit (SDK) for partners and customers to allow additional customization by using C, Python or Java. It also provides rich Apps to meet fragmented IoT market demands.

Robustel is a leading global industrial IoT/M2M hardware and solution provider. Since its establishment in 2010 in Guangzhou, China, Robustel has been focusing on designing and manufacturing industrial cellular routers, gateways, modems, cloud platforms and E2E solutions. In order to support global business in more than 100+ countries and regions, Robustel has set up local offices in Germany, Australia, the Netherlands, Japan and Hong Kong.

Cellular Interface

Number of ports2 (MAIN + AUX)
ConnectorSMA-K
SIM2 (3 V & 1.8 V)
StandardsGSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD
LTE/TDD LTE

Ethernet Interface

Number of ports1 x 10/100 Mbps LAN port
Magnet isolation protection1.5 KV

Serial Interfaces

Number of ports1 x RS-232 and 1 x RS-485
ConnectorDB9, female
ESD protection±15 KV
Baud rate300 bps to 230400 bps

Others

Reset button1 x RST
Expansion1 x USB 2.0 host up to 480 Mbps
LED indicators1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI
Built-inRTC, Watchdog, Timer

Software(Basic features of RobustOS)

Network protocolsPPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2,
DDNS, etc.
VPN tunnelIPsec, OpenVPN, GRE
FirewallDMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
ManagementWeb, CLI, SMS
Serial portTransparent, TCP Client/Server, UDP, Modbus RTU Gateway

App Center

AppsL2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, SNMP, Language, RobustLink
*Request on demand. For more Apps please visit www.robustel.com.

Power Supply and Consumption

Power supply interface3.5 mm terminal block
Input voltage9 to 36 VDC
Power consumptionIdle: 100 mA @ 12 V
 Data link: 400 mA (peak) @ 12 V

Physical Characteristics

Ingress protectionIP30
Housing & WeightMetal, 305g
Dimension105 mm x 98 mm x 29.5 mm
InstallationDesktop or wall mounting or 35 mm DIN railmounting
Approvals
RegulatoryCE, FCC, PTCRB, RCM, IMDA, EAC, ICASA
CarrierTelefonica, AT&T, Verizon
Application

IEC 61000-4-12(Electromagnetic Compatibility– Oscillatory Waves Immunity Test)

IEC 61000-4-18(Electromagnetic compatibility– Damped Oscillatory Wave Immunity Test)

EnvironmentalRoHS, WEEE
EMIEN 55032: 2012/AC: 2013 (CE & RE) Class B
EMS

IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3

IEC 61000-4-3 (RS) Level 2

IEC 61000-4-4 (EFT) Level 2

IEC 61000-4-5 (Surge) Level 3

IEC 61000-4-6 (CS) Level 2

Name Type Version Release Date
R3000 Lite Datasheet Datasheet V2.1 23 July 2020

R3000-L3H

Router Type HSDPA router
Antenna Number 1
Air Interface GSM/GPRS/EDGE/HSDPA
Frequency Bands
4G -
3G B1/B8
2G B2/B3/B5/B8
Operating Environment -40 to +75 °C/5 to 95% RH
Storage Environment -40 to +85 °C/5 to 95% RH

R3000-L3P

Router Type HSPA+ router
Antenna Number 2
Air Interface GSM/GPRS/EDGE/HSDPA/HSUPA/ HSPA+
Frequency Bands
4G -
3G B1/B2/B4(AWS)/B5/B8/B19
2G B2/B3/B5/B8
Operating Environment -40 to +75 °C/5 to 95% RH
Storage Environment -40 to +85 °C/5 to 95% RH

R3000-L4L

Router Type LTE router
Antenna Number 2
Air Interface GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/ HSPA+/DC-HSPA+/TD-SCDMA/ CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Frequency Bands
4G Global: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/ B19/B20/B25/B26/B28, B38/B39/B40/B41 AU: B1/B2/B3/B4/B5/B7/B8/B28, B40 US: B2/B4/B5/B13/B17 EMEA: B1/B3/B7/B8/B20/B28A JP: B1/B3/B8/B18/B19/B26, B41
3G Global: WCDMA B1/B2/B4/B5/B6/B8/B19, B34/B39 AU: WCDMA B1/B8 US: HSPA+ B2/B5 EMEA: WCDMA B1/B8 JP: WCDMA B1/B6/B8/B19
2G EMEA: B3/B8 Global/AU: B2/B3/B5/B8
Operating Environment -40 to +75 °C/5 to 95% RH
Storage Environment -40 to +85 °C/5 to 95% RH
