R3000

Home  >   Robustel  >   INDUSTRIAL CELLULAR ROUTERS  >

Dual SIM Industrial Cellular VPN Router. Versatile, easy-to-deploy, rugged and reliable VPN gateway designed for harsh environment, providing seamless, secure, fast wireless connectivity to M2M/IoT applications.

Product Feature

  • The feature Link Manager supporting WWAN1, WWAN2, Ethernet WAN, WLAN WAN link backup and ICMP detection
  • The option Backup Mode supporting cold,warm and load balancing
  • Supports IPv6
  • RobustOS + SDK + App
  • IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
  • Management and maintenance via Web/CLI/SNMP/RCMS
  • Robust industrial design (9 to 60V DC, desktop or wall mounting or DIN rail mounting)

INTRODUCTION

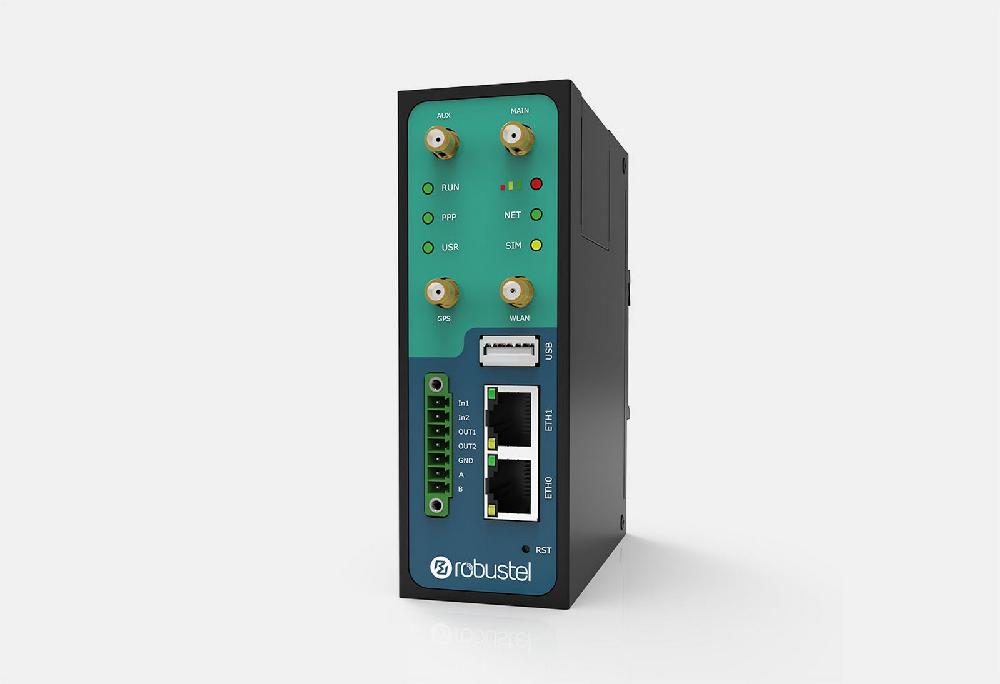

The Robustel Industrial Dual SIM Cellular VPN Router (R3000) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.

R3000 is a powerful router developed from RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with a very good user experience. Meanwhile, Robustel offers a Software Development Kit (SDK) for partners and customers to allow additional customization by using C, Python or Java. It also provides rich Apps to meet fragmented IoT market demands.

Robustel is a leading global industrial IoT/M2M hardware and solution provider. Since its establishment in 2010 in Guangzhou, China, Robustel has been focusing on designing and manufacturing industrial cellular routers, gateways, modems, cloud platforms and E2E solutions. In order to support global business in more than 100+ countries and regions, Robustel has set up local offices in Germany, Australia, the Netherlands, the UK, Japan and Hong Kong.

Cellular Interface

Number of antennas2 (MAIN + AUX)
ConnectorSMA-K
SIM2 (3 V & 1.8 V)

Ethernet Interface

Number of ports2 x 10/100 Mbps, 2 LANs or 1 LAN + 1 WAN
Magnet isolation protection1.5 KV

Wi-Fi Interface (Optional)

Number of antennas1
ConnectorRP-SMA-K
Standards802.11a/b/g/n, supporting AP and Client modes
Frequency bands2.4 GHz
5 GHz
SecurityOpen, WPA, WEP
EncryptionAES, TKIP, WEP64
Data speedUp to 150 Mbps

GPS/GLONASS Interface (Optional)

Number of antennas1
ConnectorSMA female with 50 ohms impedance
Tracking sensitivityGPS: greater than -148 dBm
GLONASS: greater than -140 dBm
Horizontal positionGPS: 2.5 m
accuracyGLONASS: 4.0 m
ProtocolNMEA-0183 V2.3

Serial Interfaces

Number of ports

1 x RS-232 + 1 x RS-485
or 2 x RS-232 or 2 x RS-485

Optional hardware is 2 x RS-485 or 2 x RS-232

Connector7-pin 3.5 mm female socket with lock
ESD protection±15 KV
Baud rate300bps to 230400bps

DI/DO

Type

2 x DI (dry contact) + 2 x DO (wet contact),

4 x DI, 4 x DO, 3 x DI + 1 x DO or 3 x DO + 1 x DI

Connector7-pin 3.5 mm female socket with lock
Isolation3KVDC or 2KVrms
Absolute maximum VDC“V+” +5V DC (DI), 30V DC (DO)
Absolute maximum ADC300 mA

Others

Reset button1 x RST
SD1 x Micro SD interface
Expansion1 x USB 2.0 host up to 480 Mbps
LED indicators1 x RUN, 1 x PPP, 1 x USR, 1 x RSSI, 1 x NET,1 x SIM
Built-inRTC, Watchdog, Timer

Software(Basic features of RobustOS)

Network protocolsPPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, DMZ, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPs, DNS, ARP, QoS,
SNTP, Telnet, VLAN, SSH2, etc.
VPN tunnelIIPsec, OpenVPN, GRE
FirewallDMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
ManagementWeb, CLI, SMS
Serial portTransparent, DNP3 Transparent, TCP Client/Server, UDP, Modbus RTU Gateway

App Center

Apps

L2TP, PPTP, DMVPN, VRRP, QoS,

Language, RCMS

*Request on demand. For more Apps please visit www.robustel.com.

Power Supply and Consumption

Connector3-pin 5 mm female socket with lock
Input voltage9 to 60 VDC
Power consumption

Idle: 100 mA@12 V

Data link: 400 mA (peak) @12 V

Physical Characteristics

Ingress protectionIP30
Housing & WeightMetal, 570 g
Dimension125 x 104 x 43.5 mm
InstallationDesktop, wall mounting and 35 mm DIN rail mounting
Approvals
RegulatoryCE, NBTC, FCC, RCM, PTCRB, GCF, IC, IMDA, EAC, Anatel, UL, CB, ICASA
CarrierAT&T, Rogers, Vodafone
Application

C1D2, E-mark (Vehicle), IEC 61000-4-12

(Electromagnetic Compatibility – Oscillatory Waves Immunity Test)

EnvironmentalRoHS 2.0, WEEE
EMIEN 55032: 2012/AC: 2013 (CE & RE) Class B
EMS

IEC 61000-4-2 (ESD) Level 4

IEC 61000-4-4 (EFT) Level 2

IEC 61000-4-5 (Surge) Level 3

IEC 61000-4-6 (CS) Level 2

IEC 61000-4-3 (RS) Level 4

IEC 61000-4-4 (EFT) Level 4

IEC 61000-4-5 (Surge) Level 3

IEC 61000-4-6 (CS) Level 2

IEC 61000-4-8 (M/S) Level 4

Name Type Version Release Date
R3000 Datasheet Datasheet V3.2.4 23 July 2020

R3000-3P

Router Type HSPA+ Router
Air Interface GSM/GPRS/EDGE/HSDPA/ HSUPA/HSPA+
Frequency Bands
4G* -
3G B1/B2/B4(AWS)/B5/B8/B19
2G B2/B3/B5/B8
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH

R3000-4L

Router Type LTE Router
Air Interface GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/ TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Frequency Bands
4G* Global: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/ B28, B38/B39/B40/B41 AU: B1/B2/B3/B4/B5/B7/B8/B28, B40 EMEA: B1/B3/B5/B7/B8/B20, B38/B40/B41 CN: B1/B3/B5/B8, B38/B39/B40/B41
3G Global: B1/B2/B4/B5/B6/B8/B19, B34/B39 AU: B1/B8 EMEA: B1/B5/B8 CN: B1/B5/B8, B34/B39, BC0
2G CN/EMEA: B3/B8 AU/Global: B2/B3/B5/B8
Operating Temperature -40 to +75°C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH

R3000-NU

Router Type Wireline Router
Air Interface -
Frequency Bands
4G* -
3G -
2G -
Operating Temperature -40 to +75°C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH
