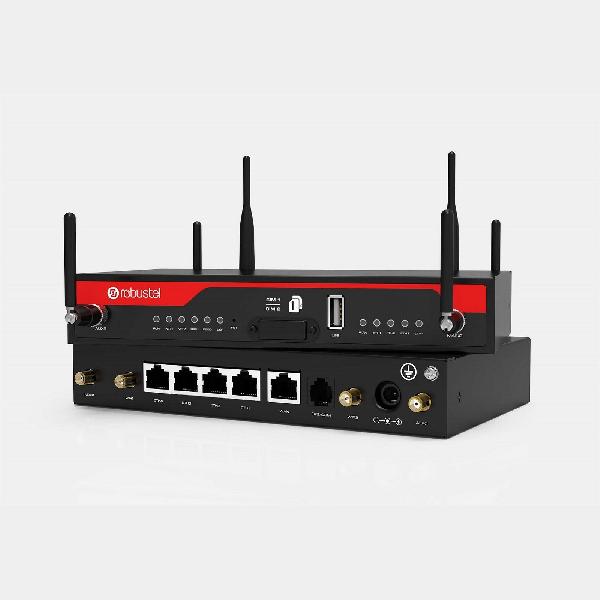

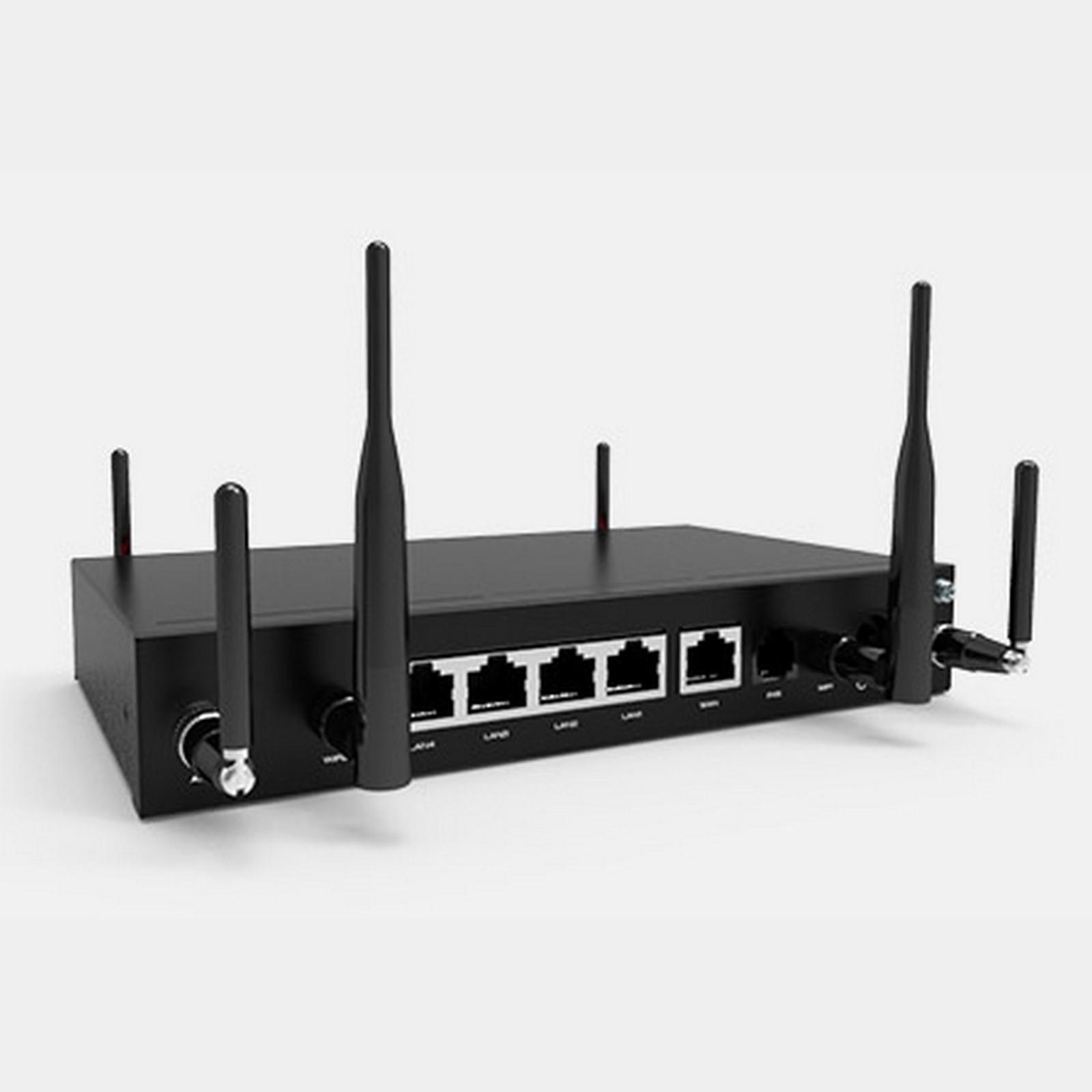

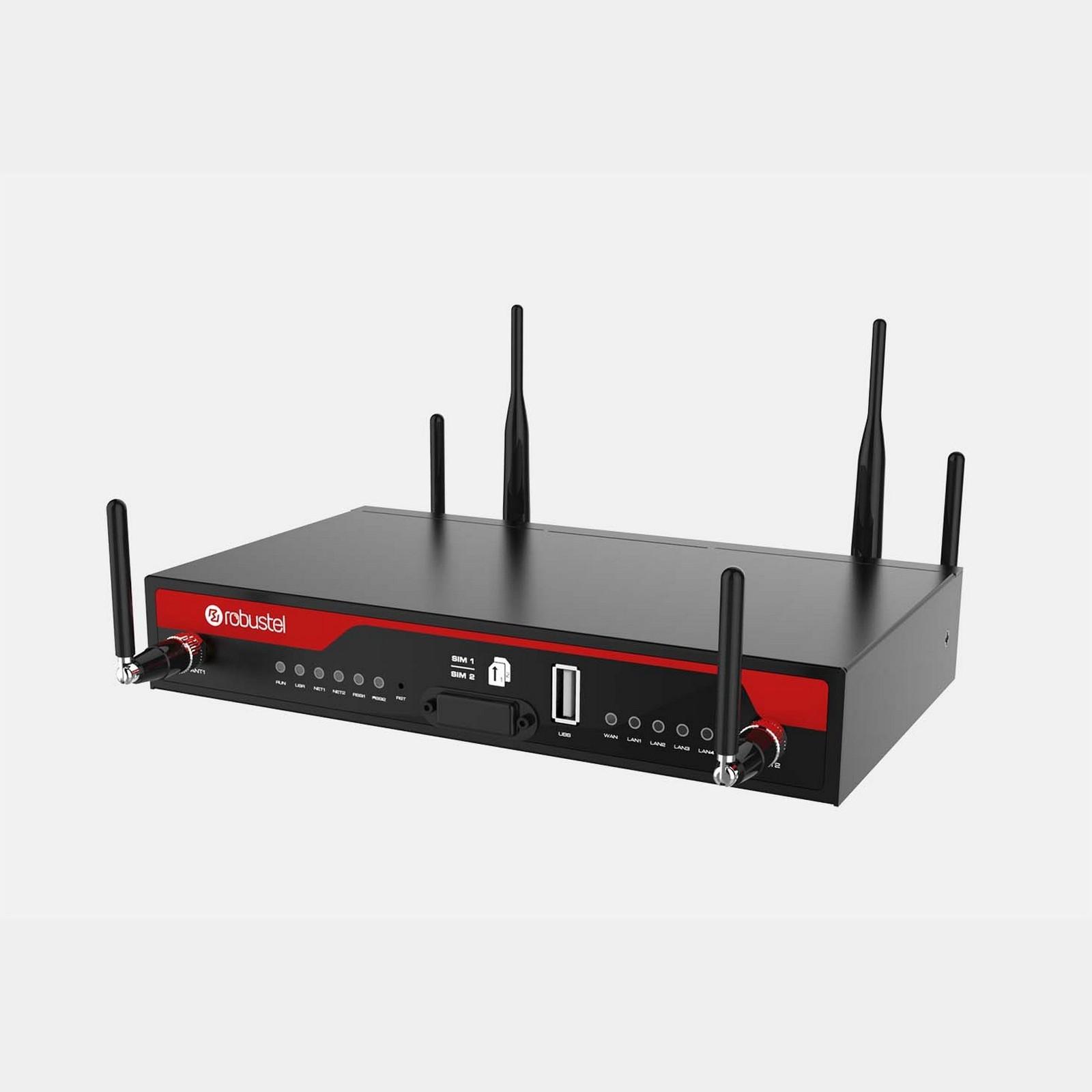

Industrial Dual Module Cellular VPN Router with Voice. Industrial grade, high performance, agile deployment, high security and easy management with RCMS, for branch offices and retail stores.

Product Feature

  • Voice call/RS-232/RS-485 (choose one only) shared across an RJ-11 port
  • Voice call and data transmission being used simultaneously, depending upon your ISP network
  • Supports GSM and VoLTE(optional) for voice traffic
  • Embedded dual module supporting two SIM cards online simultaneously
  • The feature Link Manager supporting configuration of Cellular WAN, Ethernet WAN, WiFi link backup and ICMP detection
  • WAN port supporting PD feature – compatible with 802.3at.
  • RobustOS + SDK + App
  • IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
  • Management and maintenance via Web/CLI/SMS
  • SNMP/RobustLink Cloud
  • Robust industrial design (9 to 36V DC, desktop or wall mounting or DIN rail mounting)

INTRODUCTION

The Robustel Industrial Dual Module Cellular VPN Router with Voice (R2000 Ent) provides fast and reliable Internet connectivity, enhanced voice capabilities – making it perfect to respond to and manage any device, anytime and anywhere.

R2000 Ent is a powerful router developed from RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with a very good user experience. Meanwhile, Robustel offers a Software Development Kit (SDK) for partners and customers to allow additional customization by using C, Python or Java. It also provides rich Apps to meet fragmented IoT market demands.

Robustel is a leading global industrial IoT/M2M hardware and solution provider. Since its establishment in 2010 in Guangzhou, China, Robustel has been focusing on designing and manufacturing industrial cellular routers, gateways, modems, cloud platforms and E2E solutions. In order to support global business in more than 100+ countries and regions, Robustel has set up local offices in Germany, Australia, the Netherlands, the UK, Japan and Hong Kong.

Cellular Interface

Number of ports4 (MAIN1 + AUX1 + MAIN2 + AUX2)
ConnectorSMA-K
SIM2 (3 V & 1.8 V)
StandardsGSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD
LTE/TDD LTE

Ethernet Interface

Number of ports4 x LAN + 1 x WAN (10/100 Mbps)
WAN portSupports 802.3 at PD feature (optional)
Magnet isolation protection4 KV

WLAN Interface

Number of ports2 (WiFi1 + WiFi2)
ConnectorRP-SMA-K
Standards802.11 b/g/n, supporting AP and Client mode
Frequency bands2.412 – 2.484 GHz (2.4 GHz ISM band)
SecurityWEP, WPA, WPA2
Encryption64/128 AES, TKIP
Data speed2*2 MIMO, up to 300 Mbps

RF output power

(+/-1 dBm)

802.11b 19 dBm, 802.11g 19 dBm
802.11n (20 MHz) 18 dBm
802.11n (40 MHz) 17 dBm

Receiving sensitivity

(+/-1 dBm)

802.11b -93 dBm, 802.11g -90 dBm
802.11n (20 MHz) -88 dBm
802.11n (40 MHz) -85 dBm

Voice Interface

Number of ports1 x Voice call(only SIM1 support)
ConnectorRJ11 (also be used for landline telephone’s
power supply)
StandardsITU Q.512 (SLIC)
ITU K.20 (overcurrent and overvoltage protection)
Subscriber line interface circuit (SLIC)Ring voltage: 40 to 90 Vpk configurable
Ring frequency: 20 to 25 Hz
Ring waveform: sine wave
Maximum ringer load: 5 ringer equivalence numbers (RENs)
On-hook voltage (tip/ring): -46 to -56V
Off-hook current: 18 to 20 mA
Terminating impedance: configurable

Device Interface

Serial port1 x RS-232/RS-485 with an RJ-11 interface
USB host1 x USB 2.0 port up to 480 Mbps

Others

Reset button1 x RST
LED indicators1 x RUN, 1 x NET1, 1 x NET2, 1 x RSSI1, 1 x RSSI2,
 1 x USR
 5 x LINK of Ethernet interface, including ETH1,
 ETH2, ETH3, ETH4 and WAN

Software(Basic features of RobustOS)

Network protocolsPPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP,
HTTPs, DNS, ARP, RIP, OSPF, NTP, SMTP, Telnet,
VLAN, SSH2, etc.
VPN tunnelIPsec, OpenVPN, GRE
FirewallDMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
ManagementWeb, CLI, SMS
Serial portTransparent, TCP server/client, UDP,
Modbus RTU Gateway

App center(Apps of RobustOS)

AppsL2TP、PPTP、DMVPN、RobustVPN、DDNS、VRRP、QoS、Captive Portal、WLAN Multi AP、SNMP、
Language、RobustLink
*Request on demand. For more Apps please visit www.robustel.com.

Power Supply and Consumption

Connector2.1 mm DC Jack socket
Input voltage 9 to 36V DC
Power consumptionIdle: 350 mA@12 V
Data link: 500 mA (peak) @12 V
PD featureWAN port support
Input voltage 48 to 57V DC
*It is not recommended to use DC power supply and PD power supply

Physical Characteristics

Industry Protection LevelIP30
Housing & WeightMetal, 695 g
Dimension193 x 113 x 32 mm
InstallationDesktop or wall mounting or 35 mm DIN rail mounting
Approvals
RegulatoryCE
EnvironmentalRoHS 2.0, WEEE
Name Type Version Release Date
R2000 Ent Datasheet Datasheet V1.1.1 24 July 2020

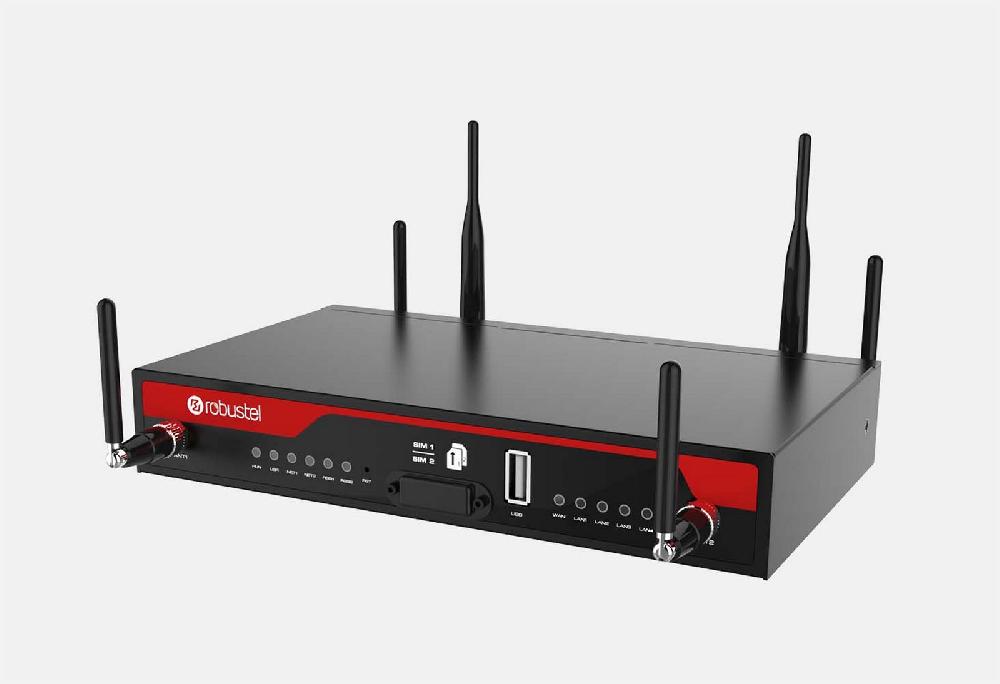

R2000-E4L1

Module Number Single module
Antenna Number 2
Air Interface GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Frequency Bands
4G* EMEA:B1/B3/B5/B7/B8/B20; B38/B40/B41 AU: B1/B2/B3/B4/B5/B7/B8/B28;B40 CN:B1/B3/B5/B8; B38/B39/B40/B41
3G EMEA: B1/B5/B8 AU: B1/B2/B5/B8 CN: B1/B5/B8; B34/B39; BC0
2G EMEA: B3/B8 AU: B2/B3/B5/B8 CN: B3/B8
Operating Temperature -25 to +70 °C
Storage Temperature -40 to +85 °C
Relative humidity 5 to 95% RH

R2000-E4L2

Module Number Dual module
Antenna Number 4
Air Interface GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Frequency Bands
4G* EMEA:B1/B3/B5/B7/B8/B20; B38/B40/B41 AU: B1/B2/B3/B4/B5/B7/B8/B28;B40 CN:B1/B3/B5/B8; B38/B39/B40/B41
3G EMEA: B1/B5/B8 AU: B1/B2/B5/B8 CN: B1/B5/B8; B34/B39; BC0
2G EMEA: B3/B8 AU: B2/B3/B5/B8 CN: B3/B8
Operating Temperature -25 to +70 °C
Storage Temperature -40 to +85 °C
Relative humidity 5 to 95% RH
