R3000 LG-OG

Home  >   Robustel  >     >

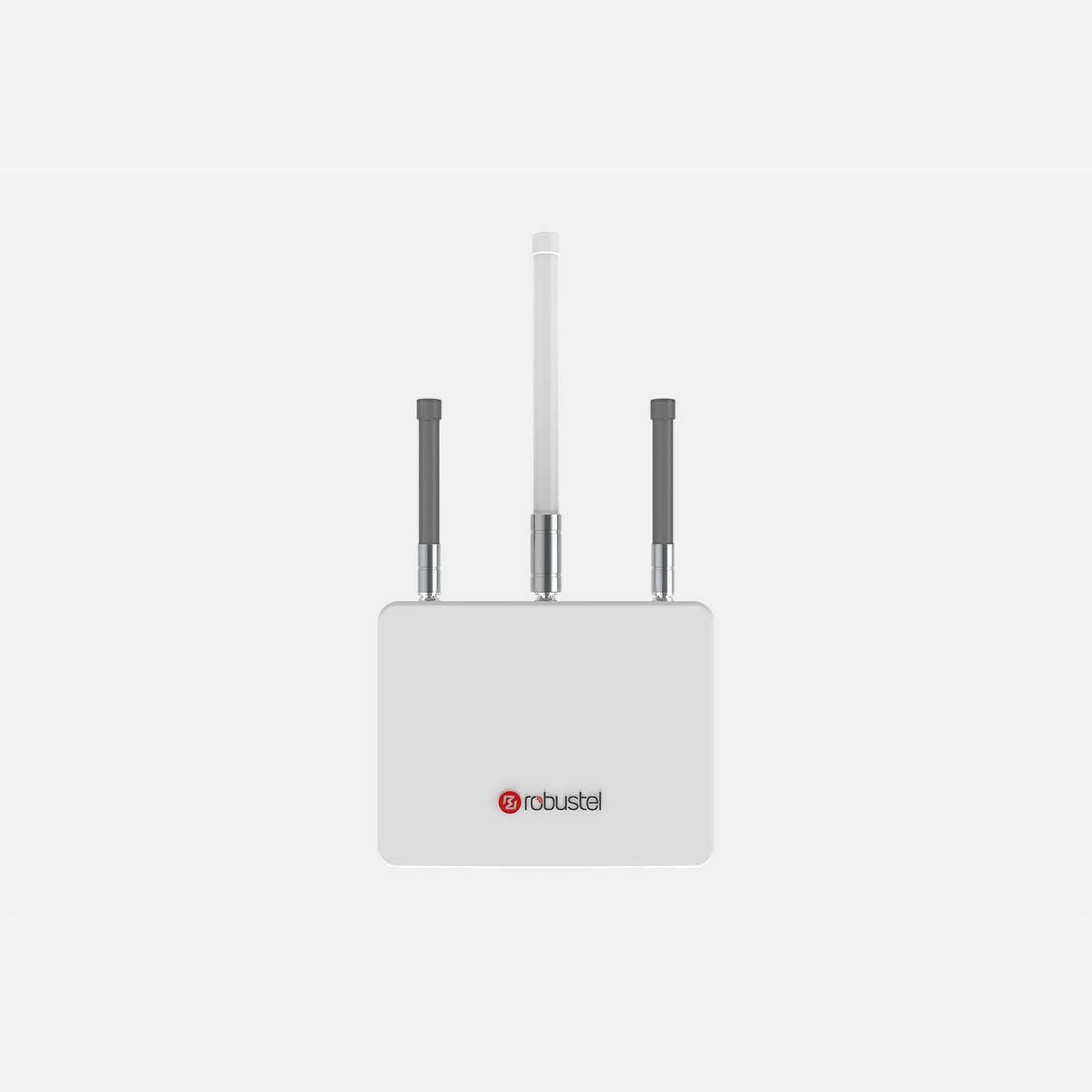

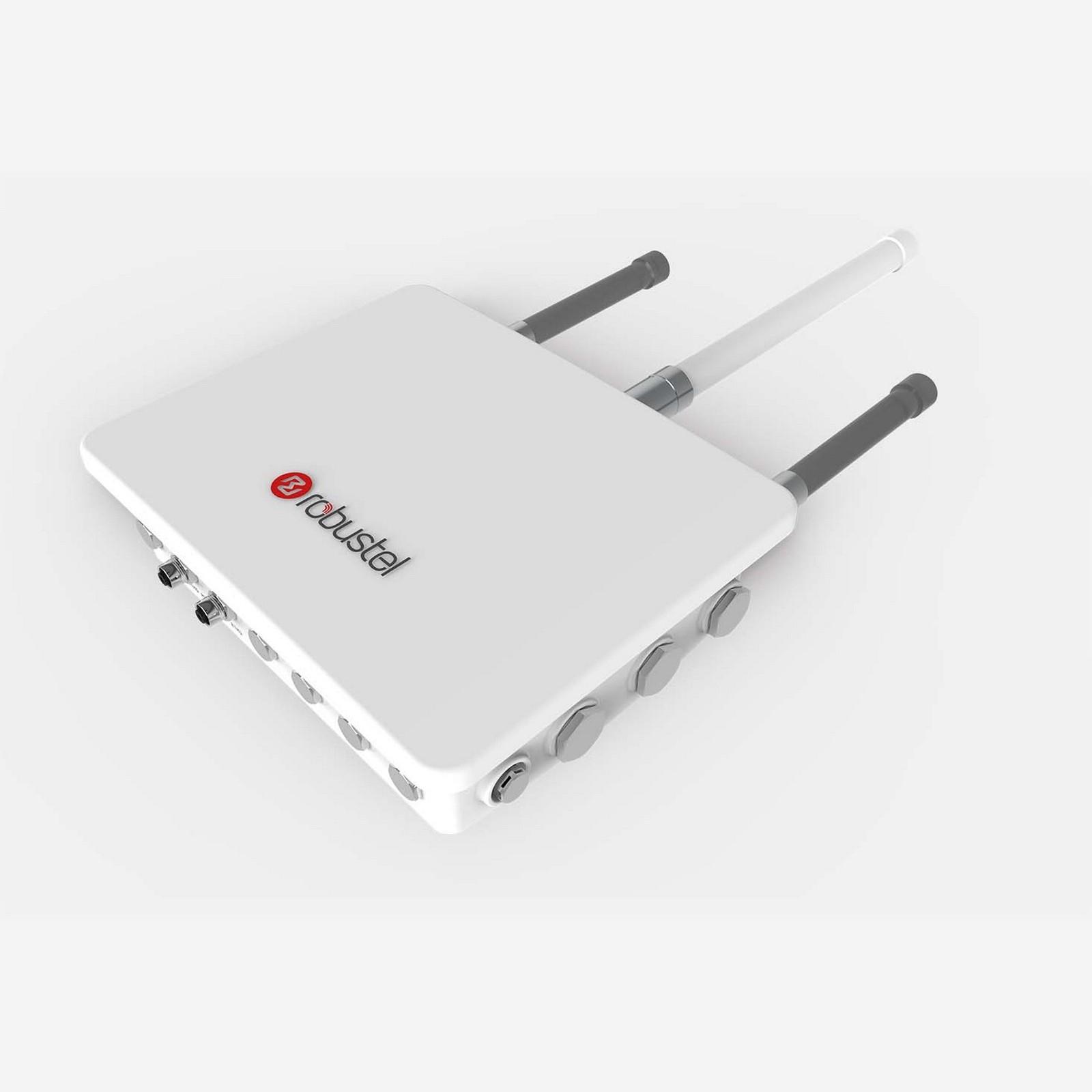

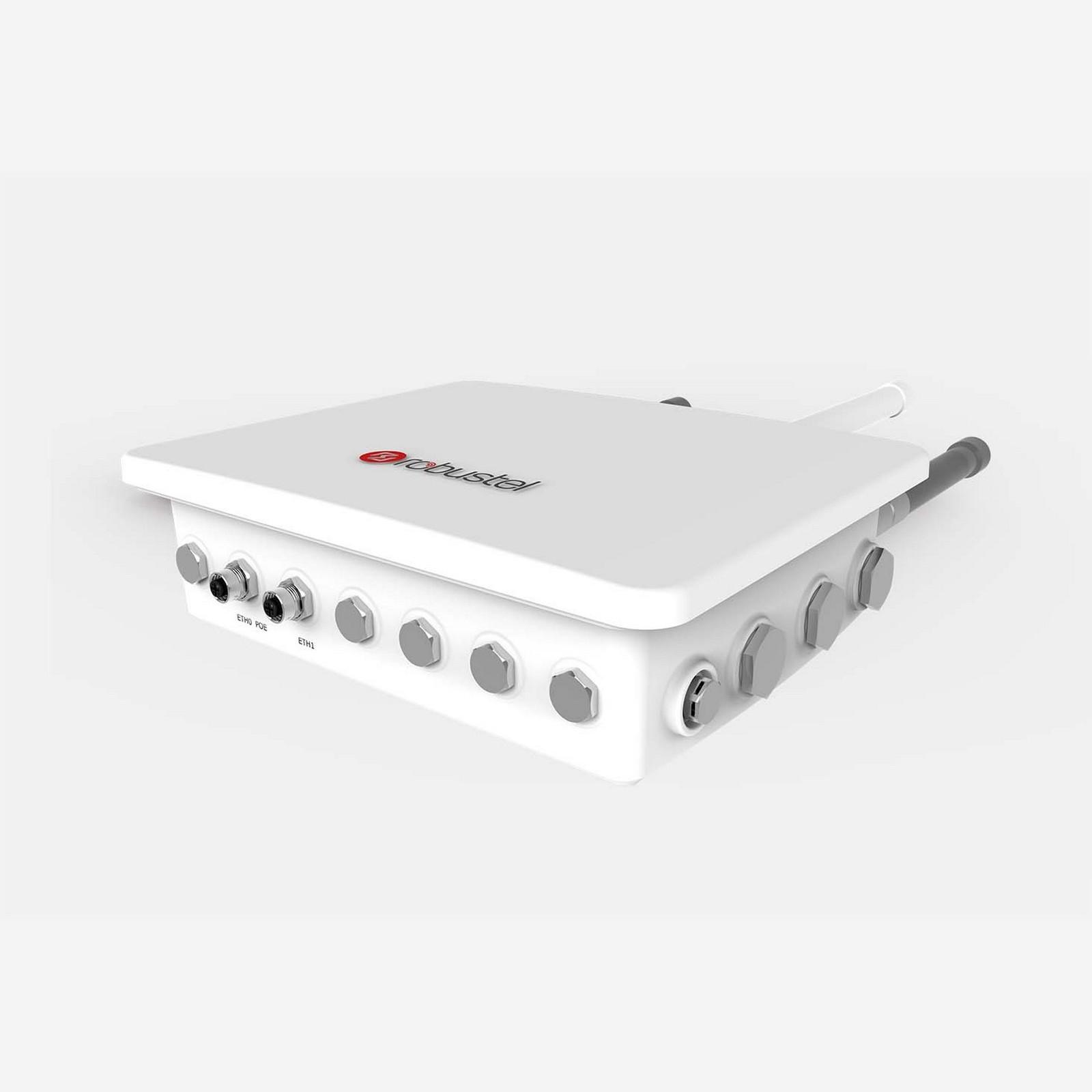

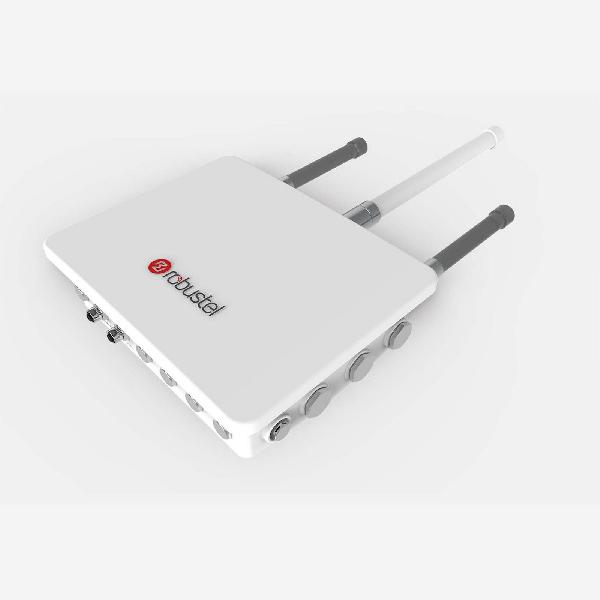

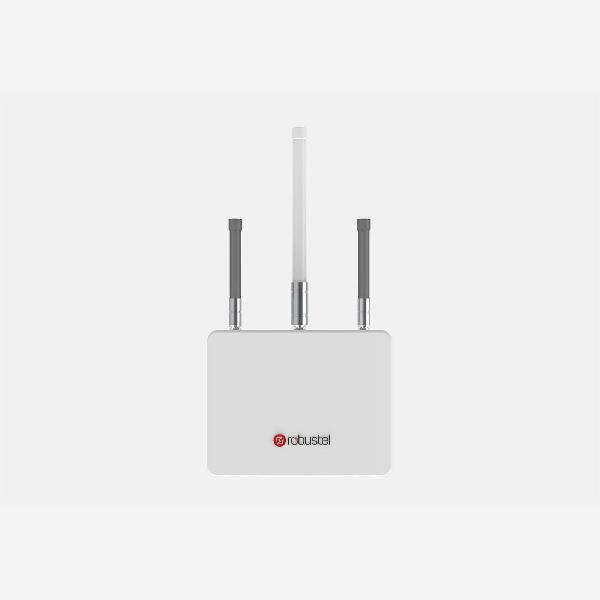

Robustel R3000 LG-OG is an IP67 outdoor LoRaWAN gateway, integrated with LoRaWAN wireless communication technology and cellular network technology, to provide users with wireless long-distance data transmission services.

Product Feature

  • Supports global LoRaWAN ISM frequency bands
  • Compatible with LoRaWAN and private protocols
  • Compatible with any LoRaWAN Network Server
  • Up to 8 channels supports receive data simultaneously
  • RobustOS Operating System with extensive SDK
  • Backhaul option supports 3G, 4G and Ethernet
  • Supports dual SIM + Smart Roaming for high availability cellular Comms IP67 ingress protection ithstanding water, dust and other extreme weather conditions
  • PoE power – single cable installation
  • Easy wall or pole mounting options

INTRODUCTION

Robustel R3000 LG-OG is an IP67 outdoor LoRaWAN gateway with a myriad of advanced features not usually found on such devices. Unique features include:

Smart Roaming – Unique network selection algorithm for intelligent network selection when using 3G/4G backhaul with roaming SIMs – gives highest possible resilience

RobustVPN – make easy inbound connections to Robustel Gateways on ANY SIM or on any broadband connection. No fixed IP of DynDNS services required

Built-in LNS – Optional built-in LoRaWAN Network Server for applications that require local processing of network data – minimizes network traffic The R3000LG-OG is based on Robustel’s best-selling router, the R3000. With many tens of thousands being sold annually, Robustel can achieve economies of scale on the R3000 series as a whole that many peers in the IoT market cannot reach. For this reason, Robustel can offer a very stable, industrial designed outdoor LoRa gateway at very attractive prices. All of the latest models support Global LTE (4G) communications by virtue of the adoption of the latest Global cellular module technology.

LoRa Interface
Number of antennas1
ConnectorM16, female
Standards

863-870 MHz (Europe)

470-510 MHz (China)

915-927 MHz (Australia)

902-928 MHz (North America)

920-928 MHz (Japan)

Max transmitted power+24.5 dBm
Max sensitivity-142 dBm
Reception capacity

Supports 8 channels, and each channel can receive data simultaneously

Supports 1 MHz bandwidth demodulation

Communication range15 km

Cellular Interface
Number of antennas2 (MAIN + AUX)
ConnectorM16, female
SIM2 (3 V & 1.8 V)
Standards2G/3G/4G

Ethernet Interface
Number of ports2 x 10/100 Mbps
ConnectorM12, 4Pin&8Pin

GPS Interface
Number of antennas1
ConnectorSMA-K with 50 ohms impedance (inside)
Acquisition sensitivityGPS: greater than -148 dBm
Horizontal position accuracy

GPS: 5 m




Software (Basic features of RobustOS)
LoRaWAN protocolsV1.0 Class A/Class C and V1.0.2 Class A/Class C
Network protocolsPPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
VPN tunnelIPsec, OpenVPN, GRE
FirewallDMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
ManagementWeb, CLI, SMS


App Center (Available Apps for RobustOS)



Apps*lm_csq, Preferred PLMN, RCMS, LoRiot, L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language
*Request on demand. For more Apps please visit www.robustel.com.

Power Supply and Consumption
Input voltagePoE IEEE 802.3af/at Class A/B, 36V-48V
Power consumption

Idle: 4W

Data link: 12W (peak)


Physical Characteristics
Ingress protectionIP67
Housing & WeightPlastic, 3070 g
Dimensions310 x 245 x 93.4 mm
InstallationsWall mounting and pole mounting


Approvals



RegulatoryCE , RCM, FCC
EnvironmentalRoHS 2.0, WEE



OPTIONAL ACCESSORIES INFORMATION

PNNameSpecifications
E003100Fiberglass-reinforced Cellular Antenna200mm, 800-2700MHz,3/4.5dBi
E003144N-male fiberglass-reinforced plastic LoRa antenna (868/915)Φ25×360±5mm,860~930MHz, 2dBi
E003145N-male fiberglass-reinforced plastic LoRa antenna (470)Φ18×435±10mm,470~510 MHz, 2dBi
E005079M12 4-PIN power supply connectorplastic material, female head plug, 4-PIN, IP67, for making power cable
E0050054-PIN M12 to RJ45 Ethernet CableLength: 2 meters, Black, Wire diameter: 0.5mm
E0050078-PIN M12 to RJ45 Ethernet CableLength: 2 meters, Black, Wire diameter: 0.5mm, for POE
E005150M12-4PIN male Connectorplastic material, male head plug, 4-PIN, IP67, for making Ethernet cable
E005151M12-8PIN male Connectorplastic material, male head plug, 8-PIN, IP67, for making POE Ethernet cable
E015109Wall Mounting KitDimensions: 240*175*1.5 mm, Material:    Aluminum Plate
E00503250~120 mm Pole Mounting Kit50~120 mm Diameter Adjustable, 0.6 mm Thickness, 12 mm Width, Material: Stainless Steel
E005033100~230 mm Pole Mounting Kit100~230 mm Diameter Adjustable, 0.6 mm Thickness, 12 mm Width,Material: Stainless Steel
E005034200~300 mm Pole Mounting Kit200~300 mm Diameter Adjustable, 0.6 mm Thickness, 12 mm Width,Material: Stainless Steel



Name Type Version Release Date
R3000 LG-OG Datasheet Datasheet V1.0 29 July 2020

R3000LG-OG-868

LoraWAN Network 868MHz
Cellular Air Interface GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/ TD-SCDMA/FDD LTE/TDD LTE
Frequency Bands
4G* Global:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28; B38/B39/B40/B41
3G Global: B1/B2/B4/B5/B6/B8/B19
2G Global: B2/B3/B5/B8
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH

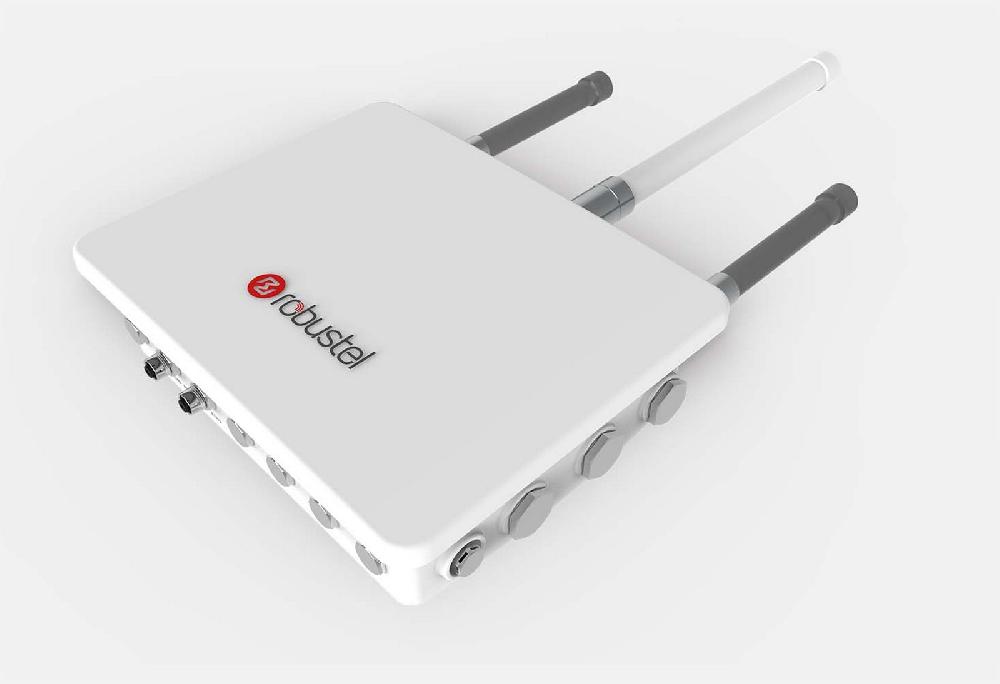

R3000LG-OG-915

LoraWAN Network 915MHz
Cellular Air Interface GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/ TD-SCDMA/FDD LTE/TDD LTE
Frequency Bands
4G* Global:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28; B38/B39/B40/B41
3G Global: B1/B2/B4/B5/B6/B8/B19
2G Global: B2/B3/B5/B8
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH

R3000LG-OG-470

LoraWAN Network 470MHz
Cellular Air Interface GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/ TD-SCDMA/FDD LTE/TDD LTE
Frequency Bands
4G* Global:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28; B38/B39/B40/B41
3G Global: B1/B2/B4/B5/B6/B8/B19
2G Global: B2/B3/B5/B8
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH
