R3000 LG

Home  >   Robustel  >     >

Industrial LoRaWAN Gateway. It allows access to various types of LoRa application nodes, and supports wired Ethernet and wireless 4G/3G/2G access to the cloud platform.

Product Feature

  • Supporting global LoRaWAN frequency bands
  • Compatible with LoRaWAN and private protocols
  • Compatible with any LoRaWAN cloud server
  • Up to 8 channels supporting receive data simultaneously
  • Supporting Packet Forwarder Version 2.2.1 and Packet Forwarder Protocol Version 1
  • RobustOS + SDK
  • TPH6700 Housing optional

INTRODUCTION

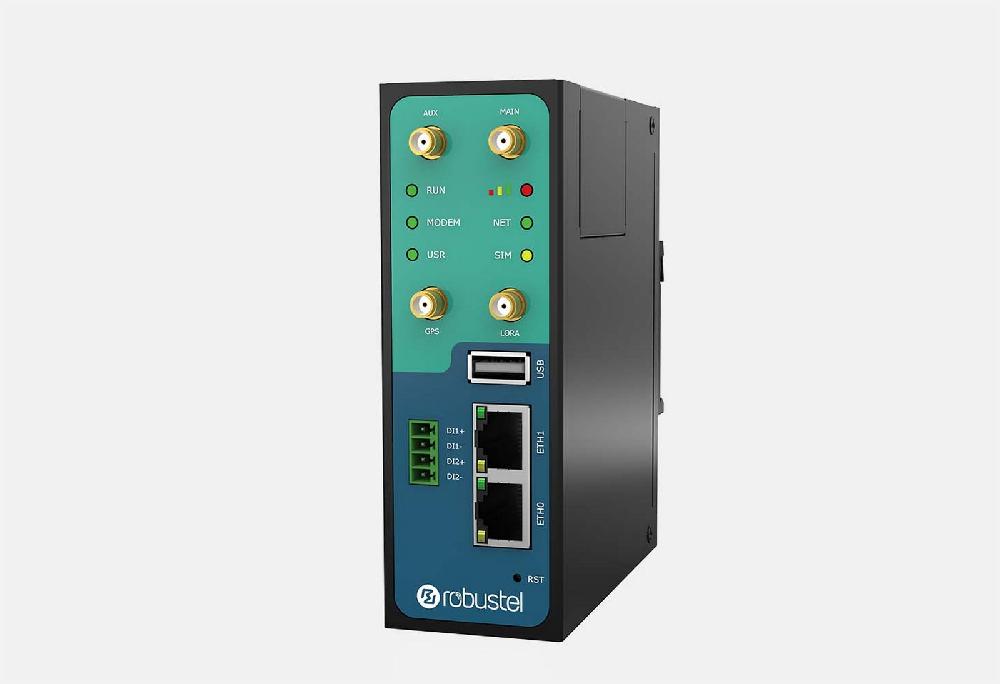

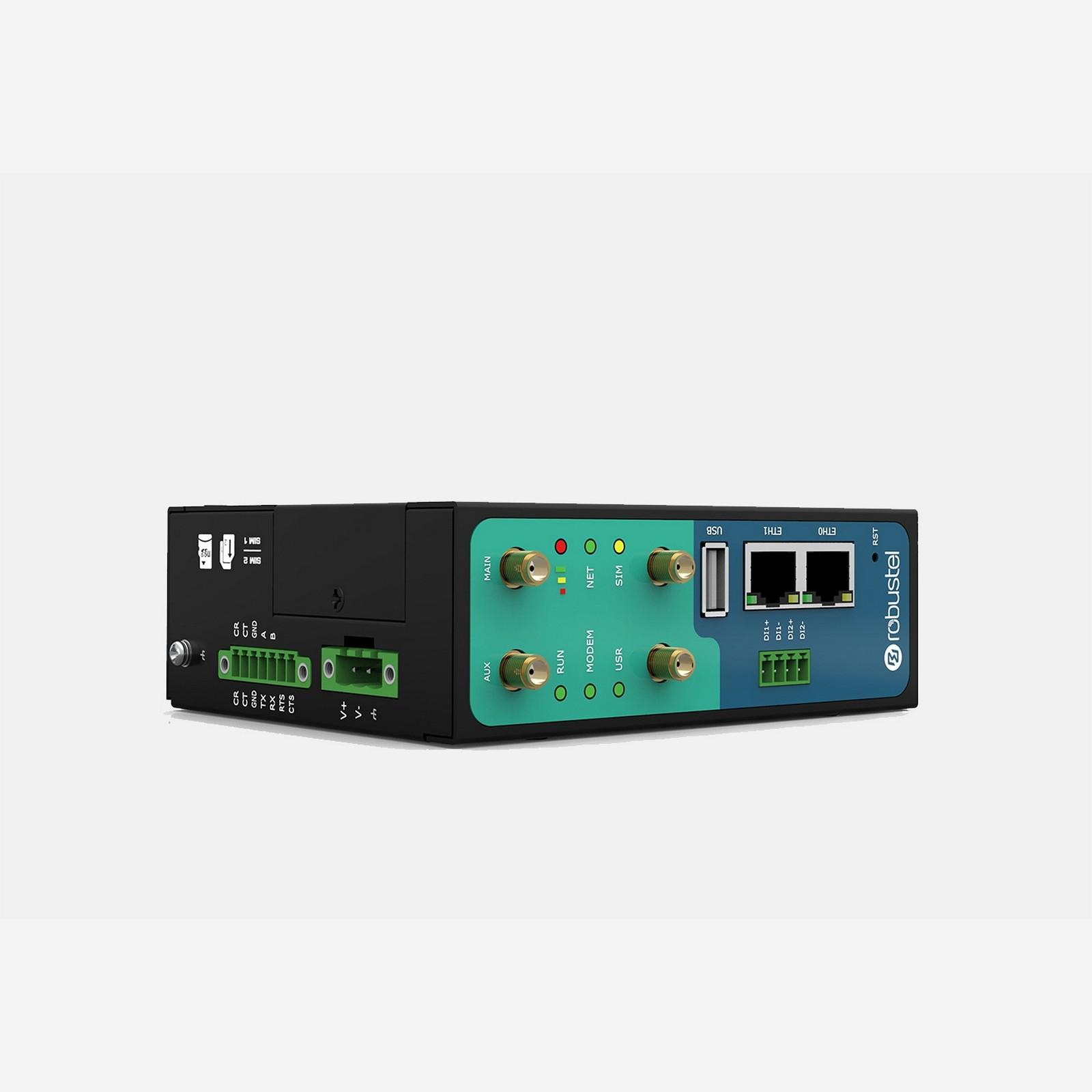

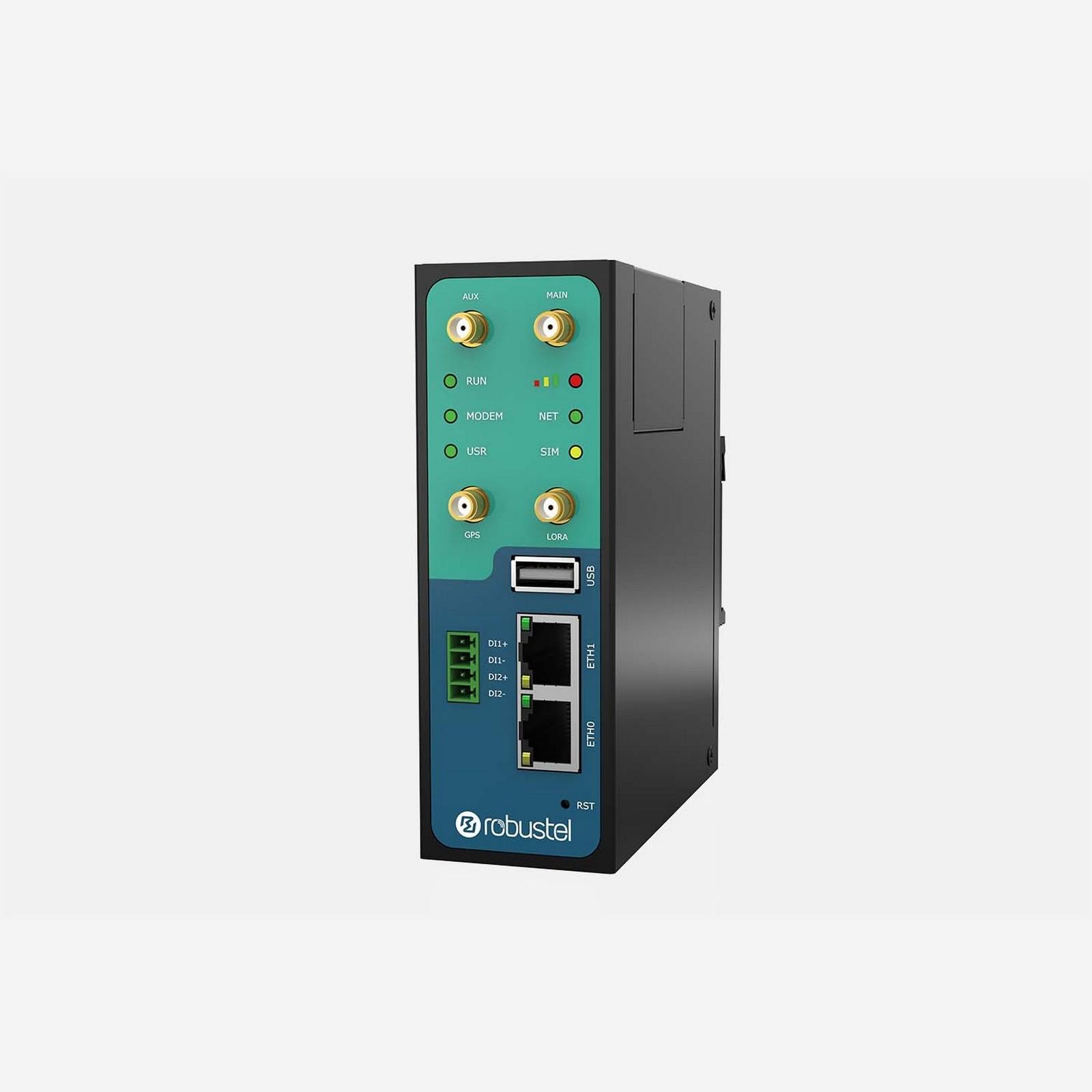

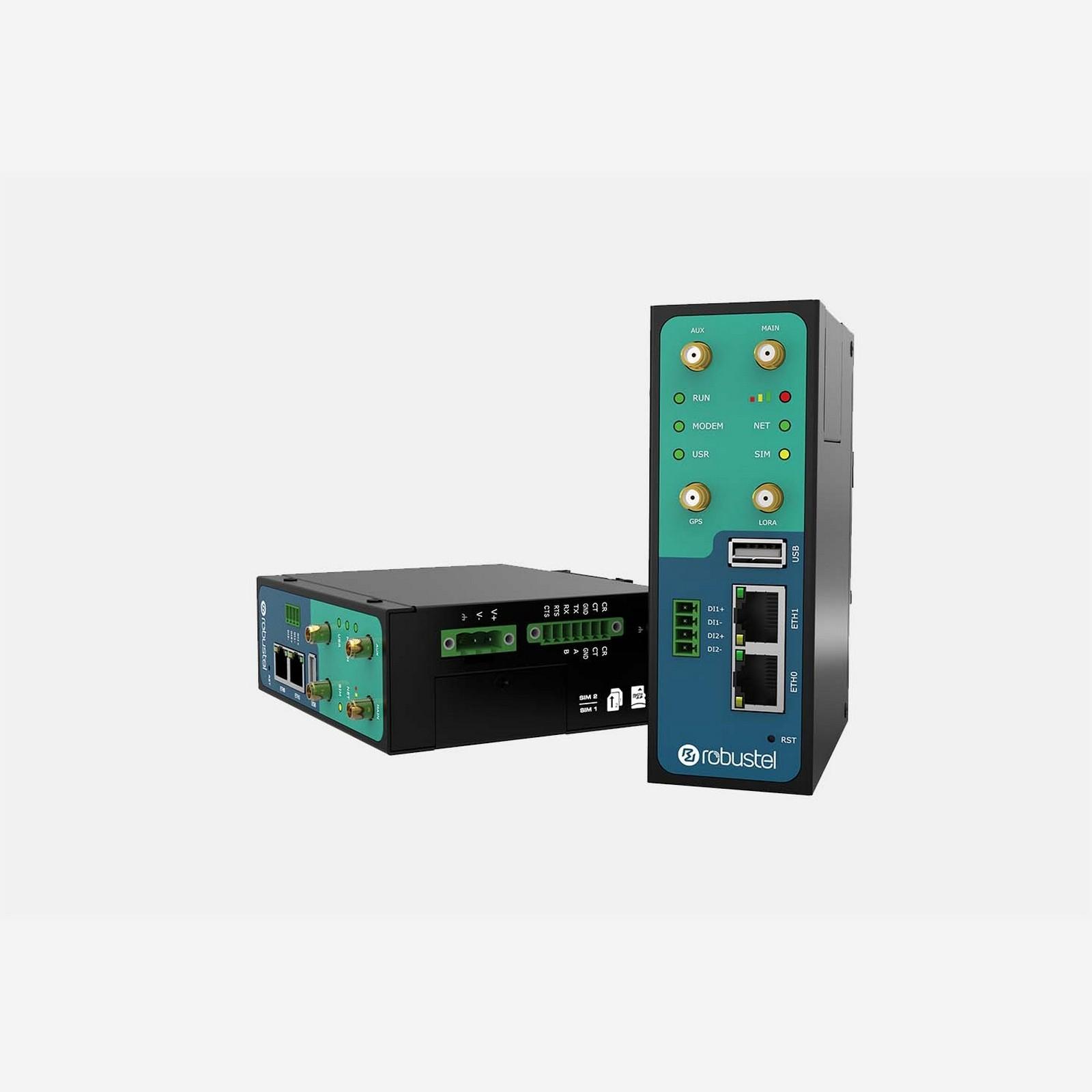

Robustel R3000 LG is an industrial-grade LoRaWAN gateway, integrated with LoRaWAN wireless communication technology and cellular network technology, to provide users with wireless long-distance data transmission services. R3000 LG allows access to various types of LoRa application nodes, and supports wired Ethernet and wireless 4G/3G/2G access to the cloud platform, mainly for LoRaWAN data transmission between LoRa node and cloud platform.
LPWAN technology is a type of RF Technology designed for low cost and mostly battery operated end devices and sensors. LoRaWAN is a MAC level protocol that uses LoRa Radio Technology as its physical layer. One can create both public and private networks with LoRaWAN. The LoRa Alliance has created a fully open LoRaWAN standard allowing the creation of star based LPWAN networks where end devices and sensors communicate with gateways connected to a cloud based (or on premise) LoRaWAN Network server. All communications are fully 128-bit AES encrypted, bidirectional and end devices can register onto the network over the air.

LoRa Interface
Number of antennas1
ConnectorSMA-K with 50 ohms impedance
Standards433-434 MHz (Europe)
863-870 MHz (Europe)
470-510 MHz (China)
915-927 MHz (Australia)
902-928 MHz (North America)
920-928 MHz (Japan)
Transmitted power+24.5 dBm
Sensitivity-142 dBm
Reception capacitySupporting 8 channels, and each channel can receive data simultaneously
Supporting 1 MHz bandwidth demodulation
Communication range15 km
Cellular Interface
Number of antennas2 (MAIN + AUX)
ConnectorSMA-K
SIM2 (3 V & 1.8 V)
Standards2G/3G/4G
Ethernet Interface
Number of ports2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN
Magnet isolation protection1.5 KV
GPS/GLONASS Interface (Optional)
Number of antennas1
ConnectorSMA-K with 50 ohms impedance
Acquisition sensitivityGPS: greater than -148 dBm
GLONASS: greater than -145 dBm
Horizontal position accuracyGPS: 2.5 m
GLONASS: 2.6 m
ProtocolNMEA-0183 v4.10
Serial Interface
Number of ports1 x RS-232 or 1 x RS-485
Connector7-pin 3.5 mm female socket with lock
Baud rate300 bps to 230400 bps
Parametric form8E1, 8O1, 8N1, 8N2, 7E2, 7O2, 7N2, 7E1
RS-232TxD, RxD, RTS, CTS, GND
RS-485Data+ (A), Data- (B)
Digital Input
Number of ports2 x DI (dry contact)
Connector4-pin 3.5 mm female socket
Isolation3KVDC or 2KVrms
Absolute maximum VDC“V+” +5V DC (DI)
Absolute maximum ADC300 mA
Others
Reset button1 x RST
SD1 x Micro SD interface
Expansion1 x USB 2.0 host up to 480 Mbps
CLI1 x CLI interface
LED indicators1 x RUN, 1 x MODEM, 1 x USR, 1 x RSSI, 1 x NET,
1 x SIM
Built-inRTC, Watchdog, Timer
Software (Basic features of RobustOS)
LoRaWAN protocolsV1.0 Class A/Class C and V1.0.2 Class A/Class C
Network protocolsPPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP,
RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
VPN tunnelIPsec, OpenVPN, GRE
FirewallDMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping,
Access Control
ManagementWeb, CLI, SMS
Serial portTransparent, TCP Client/Server, UDP,
Modbus RTU Gateway
App Center (Available Apps for RobustOS)
Apps*lm_csq, Preferred PLMN, RCMS, LoRiot, L2TP, PPTP, DMVPN,
RobustVPN, VRRP, QoS, SNMP, Language
*Request on demand. For more Apps please visit www.robustel.com.
Power Supply and Consumption
Connector3-pin 5 mm female socket with lock
Input voltage9 to 60V DC
Power consumptionIdle: 100 mA@12 V
Data link: 400 mA (peak) @12 V
Physical Characteristics
Ingress protectionIP30
Housing & WeightMetal, 570 g
Dimensions125 x 104 x 43.5 mm
InstallationsDesktop, wall mounting and 35 mm DIN rail mounting
Approvals
RegulatoryCE , RCM,FCC, ICASA
EnvironmentalRoHS2.0, WEEE
EMIEN 55032: 2012/AC: 2013 (CE&RE) Class B
EMS

IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3

IEC 61000-4-3 (RS) Level 2

IEC 61000-4-4 (EFT) Level 2

IEC 61000-4-5 (Surge) Level 3

IEC 61000-4-6 (CS) Level 2



Name Type Version Release Date
R3000 LG Datasheet Datasheet V1.1.3 29 July 2020

R3000-LG4LA

Gateway Type LTE Gateway
Serial Port Type RS-232
Air Interface GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/ TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Frequency Bands
4G* Global:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28; B38/B39/B40/B41 NA: B2/B4/B12
3G Global: B1/B2/B4/B5/B6/B8/B19 NA: B2/B4/B5
2G Global: B2/B3/B5/B8
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH

R3000-LG4LB

Gateway Type LTE Gateway
Serial Port Type RS-485
Air Interface GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/ TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Frequency Bands
4G* Global:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28; B38/B39/B40/B41 NA: B2/B4/B12
3G Global: B1/B2/B4/B5/B6/B8/B19 NA: B2/B4/B5
2G Global: B2/B3/B5/B8
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH

R3000-LGNUA

Gateway Type -
Serial Port Type RS-232
Air Interface -
Frequency Bands
4G* -
3G -
2G -
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH

R3000-LGNUB

Gateway Type -
Serial Port Type RS-485
Air Interface -
Frequency Bands
4G* -
3G -
2G -
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH
