TPH6700

Home  >   Robustel  >     >

IP67 PC/ABS Housing. Combining a powerful device and a robust enclosure together in a single unit, providing high-protection for the use of the whole equipment.

Product Feature

  • IP67 ingress protection withstanding water, dust and other extreme weather conditions
  • Standards for the housing-Performance requirement for high and low temperature
  • Aging-resistance level (UL746C)
  • Flame-retardant level (grade 2 of UL746C)
  • Standard requirement for environment protection
  • Up to 24 hours rechargeable battery for endurance (R2000/R3000 Lite)
  • Including built-in DC input
  • Supporting external solar energy (new energy) input
  • Applicable to the majority of Robustel’s products
  • Various interfaces meeting the different scenarios
  • Easy wall or pole mounting options

INTRODUCTION

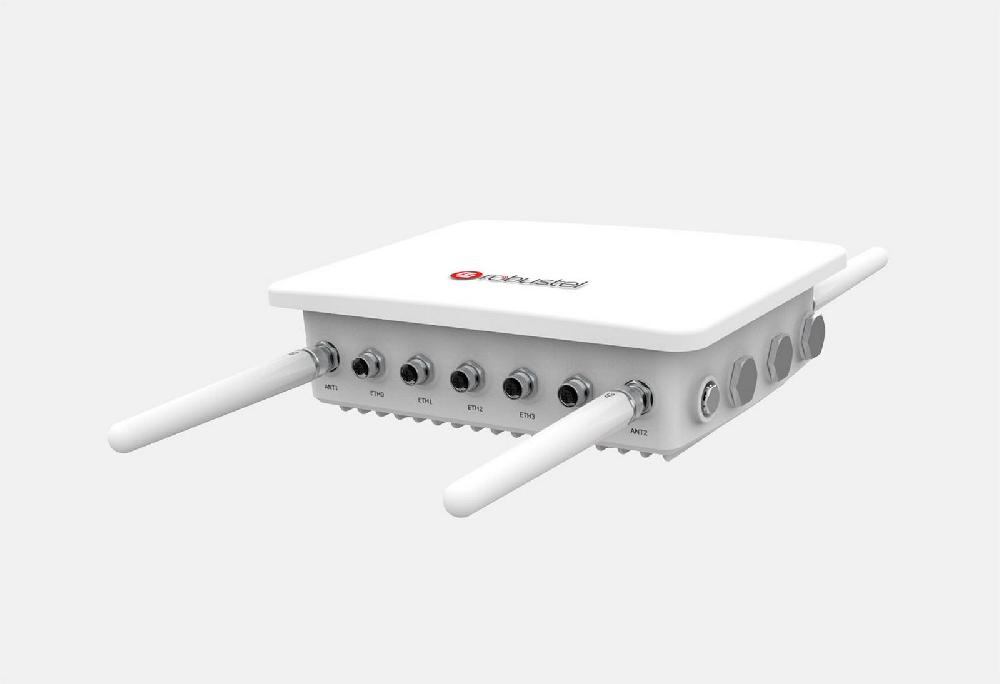

Designed to protect devices and connectors from extreme outdoor environments and harsh industrial conditions, the Robustel Typhoon6700 IP67 PC/ABS Housing (TPH6700) provides a weatherproof enclosure based on the available features of R2000/

R2000 Ent/R3000/R3000 Lite/ R3000 LG. It combines a powerful device and a robust enclosure together in a single unit, providing high-protection for the use of the whole equipment. With an IP67 rated enclosure, the TPH6700 can be mounted either on a wall or a pole and positioned in diverse temperatures and environments.

Robustel is a leading global industrial IoT/M2M hardware and solution provider. Since its establishment in 2010 in Guangzhou, China, Robustel has been focusing on designing and manufacturing industrial cellular routers, gateways, modems, cloud platforms and E2E solutions. In order to support global business in more than 100+ countries and regions, Robustel has set up local offices in Germany, Australia, the Netherlands, the UK, Japan and Hong Kong.

Cellular Interface
Number of ports4 or 2 connectors optional (MAIN + AUX + ANT1 + ANT2)
ConnectorM16, female

Wi-Fi Interface
Number of ports2 (WiFi MAIN + WiFi AUX)
ConnectorM16, female

Ethernet Interface
Number of ports5, 2 or 1 ports optional
10/100 Mbps
ConnectorM12

Serial Port
Number of ports1 x RS-232, 1 x RS-485 or 1 x RS-232 +
1 x RS-485
ConnectorM12, 8 PIN

Power Supply
Number of ports1 x POWER + 1 x POWER OPTIONAL
ConnectorM12, 3 PIN or 5 PIN optional
Input voltagePOWER port –
100 – 240 V, 50-60 HZ AC input
9 – 60 V DC input
(9 – 36 V DC for R2000 Ent)
POWER OPTIONAL –
15 – 18 V for new energy input
48 – 57 V for POE input

Physical Characteristics
Enclosure coverFully detachable
Weight1010 g
Dimensions310 x 245 x 95 mm
InstallationsWall mounting and pole mounting



Name Type Version Release Date
TPH6700 Datasheet Datasheet V1.0.6 30 July 2020

TPH6700-R2000

Number of Cellular Antennas 2
Number of Wi-Fi Antennas 2
Number of Ethernet Ports 2
Number of Serial Ports -
Operating Environment -25 to 70°C 5 to 95% RH

TPH6700-R2000E

Number of Cellular Antennas 2/4
Number of Wi-Fi Antennas 2
Number of Ethernet Ports 5
Number of Serial Ports 1
Operating Environment -25 to 70°C 5 to 95% RH

TPH6700-R3000

Number of Cellular Antennas 2
Number of Wi-Fi Antennas 1
Number of Ethernet Ports 2
Number of Serial Ports 2
Operating Environment -40 to 75°C 5 to 95% RH

TPH6700-R3000L

Number of Cellular Antennas 2
Number of Wi-Fi Antennas -
Number of Ethernet Ports 1
Number of Serial Ports 1
Operating Environment -40 to 75°C 5 to 95% RH

TPH6700-R3000LG

Number of Cellular Antennas 2
Number of Wi-Fi Antennas -
Number of Ethernet Ports 2
Number of Serial Ports 1
Operating Environment -40 to 75°C 5 to 95% RH
