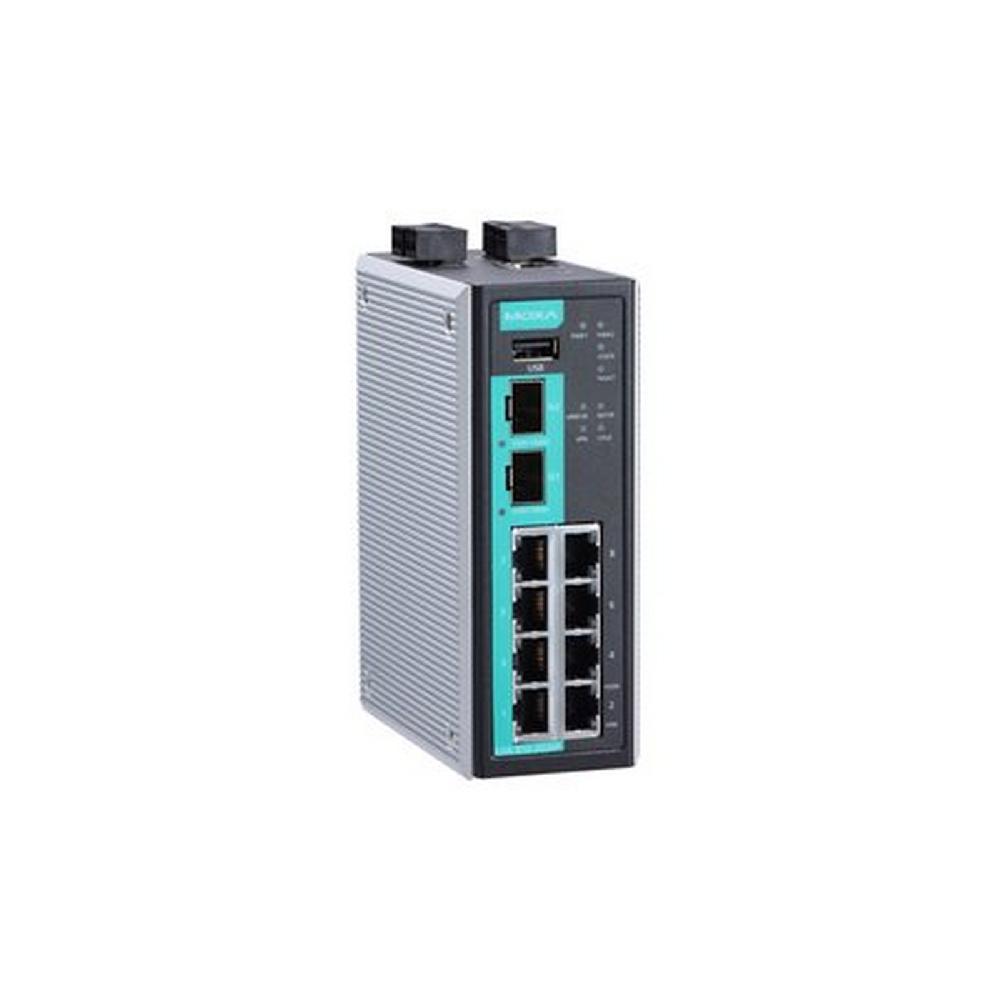

8 FE copper + 2 GbE SFP multiport industrial secure router

Product Feature

  • 8+2G all-in-one firewall/NAT/VPN/router/switch
  • Secure remote access tunnel with VPN
  • Stateful firewall protects critical assets
  • Inspect industrial protocols with PacketGuard technology
  • Easy network setup with Network Address Translation (NAT)
  • RSTP/Turbo Ring redundant protocol enhances network redundancy
  • -40 to 75°C operating temperature range (-T model)
  • Security features based on IEC 62443/NERC CIP
  • Check firewall settings with intelligent SettingCheck feature

Introduction

The EDR-810 is a highly integrated industrial multiport secure router with firewall/NAT/VPN and managed Layer 2 switch functions. It is designed for Ethernet-based security applications on critical remote control or monitoring networks, and it provides an electronic security perimeter for the protection of critical cyber assets including pump-and-treat systems in water stations, DCS systems in oil and gas applications, and PLC/SCADA systems in factory automation. The EDR-810 Series includes the following cybersecurity features:

Firewall/NAT: Firewall policies control network traffic between different trust zones, and Network Address Translation (NAT) shields the internal LAN from unauthorized activity by outside hosts.

VPN: Virtual Private Networking (VPN) is designed to provide users with secure communication tunnels when accessing a private network from the public Internet. VPNs use IPsec (IP Security) server or client mode for encryption and authentication of all IP packets at the network layer to ensure confidentiality and sender authentication.

The EDR-810’s “WAN Routing Quick Setting” provides an easy way for users to set up WAN and LAN ports to create a routing function in four steps. In addition, the EDR-810’s “Quick Automation Profile” gives engineers a simple way to configure the firewall filtering function with general automation protocols, including EtherNet/IP, Modbus TCP, EtherCAT, FOUNDATION Fieldbus, and PROFINET. Users can easily create a secure Ethernet network from a user-friendly web UI with a single click, and the EDR-810 is capable of performing deep Modbus TCP packet inspection. Wide-temperature range models that operate reliably in hazardous, -40 to 75°C environments are also available.

Input/Output Interface

Alarm Contact ChannelsResistive load: 1 A @ 24 VDC
ButtonsReset button
Digital Input Channels+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)8
100/1000BaseSFP Slots2
StandardsIEEE 802.1Q for VLAN Tagging
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
Static Port Trunk
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

Broadcast ForwardingIP directed broadcast, broadcast forwarding
ManagementBack Pressure Flow Control, DDNS, DHCP Server/Client, Web Console
(HTTP/HTTPS), LLDP, QoS/CoS/ToS, SNMPv1/v2c/v3, Telnet, TFTP
Multicast RoutingDVMRP, PIM-SM, PIM-SSM
Redundancy ProtocolsRSTP, STP, Turbo Ring v2
RoutingThroughput: 10,000 packets per second (max. 100 Mbps)
Routing RedundancyVRRP
SecurityAll models: HTTPS/SSL, SSH, L2TP (server), RADIUS
EDR-810-VPN-2GSFP Series: HTTPS/SSL, SSH, IPsec, OpenVPN (client
and server), UDP and TCP Tunnel mode (routing) and TAP mode (bridge),
L2TP (server), RADIUS, L2TP (server), RADIUS
Time ManagementNTP Server/Client, SNTP
Unicast RoutingOSPF, RIPV1/V2, Static Route
FilterIGMP v1/v2/v3

Switch Properties

VLAN ID RangeVID 1 to 4094
IGMP Groups256
Max. No. of VLANs16

LED Interface

LED IndicatorsSTATE, PWR1, PWR2, FAULT, 10/100/1000M

DoS and DDoS Protection

TechnologyARP-Flood, FIN Scan, ICMP-Death, NEWWithout-SYN Scan, NMAP-ID
Scan, NMAP-Xmas Scan, Null Scan, SYN/FIN Scan, SYN/RST Scan, SYN-
Flood, Xmas Scan

Firewall

Deep Packet InspectionModbus TCP
Modbus UDP
FilterDDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports
Quick Automation ProfilesDNP, EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, FTP, HTTP,
IEC 60870-104, IPsec, L2TP, LonWorks, Modbus TCP, PPTP,
PROFINET, RADIUS, SSH, Telnet
Stateful InspectionRouter firewall
Transparent (bridge) firewall
ThroughputMax. 10,000 packets per second (max. 100 Mbps)

IPsec VPN

AuthenticationEDR-810-VPN-2GSFP Series: MD5 and SHA (SHA-256), RSA
(key size: 1024-bit, 2048-bit), X.509 v3 certificate
Concurrent VPN TunnelsEDR-810-VPN-2GSFP Series: Max. 10 IPsec VPN tunnels
EncryptionEDR-810-VPN-2GSFP Series: DES, 3DES, AES-128, AES-192, AES-256
ProtocolsEDR-810-VPN-2GSFP Series: IPsec, L2TP (server), PPTP (client)
ThroughputEDR-810-VPN-2GSFP Series: Max. 17 Mbps (Conditions:
AES-256, SHA-256)

NAT

Features1-to-1, N-to-1, Port forwarding

OpenVPN

AuthenticationEDR-810-VPN-2GSFP Series: User password by MD5 and SHA1
Concurrent VPN TunnelsEDR-810-VPN-2GSFP Series:
Client Mode: max. 2 external servers
Server Mode: max. 5 external clients
Encryption
EDR-810-VPN-2GSFP Series: AES-128/192/256 CBC, Blowfish
CBC, DES CBC, DES-EDE3 CBC
ProtocolsEDR-810-VPN-2GSFP Series:
OpenVPN (client and server), UDP, and TCP
Tunnel mode (routing) and TAP mode (bridge)
ThroughputEDR-810-VPN-2GSFP Series: Max. 5 Mbps

Real-Time Firewall / VPN Event Log

Event TypeAll models: Firewall event
EDR-810-VPN-2GSFP Series: VPN event
MediaLocal storage, SNMP Trap, Syslog server

Serial Interface

Console PortRS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)

Power Parameters

ConnectionRemovable terminal block
Input Voltage12 to 48 VDC
Input Current0.706 A @ 12 VDC, 0.353 A @ 24 VDC, 0.187 A @ 48 VDC
Reverse Polarity ProtectionSupported

Physical Characteristics

HousingMetal
Dimensions53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight830 g (2.10 lb)
InstallationDIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating TemperatureStandard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

SafetyUL 508
EMCEN 55032/24
Hazardous LocationsUL/cUL Class I Division 2 Groups A/B/C/D
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
RailwayEN 50121-4
Traffic ControlNEMA TS2
ShockIEC 60068-2-27
FreefallIEC 60068-2-32
VibrationIEC 60068-2-6

MTBF

Time981,954 hrs
StandardTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EDR-810 Series Datasheet V1.4 26 March 2020

EDR-810-2GSFP

10/100BaseT(X) Ports RJ45 Connector 8
100/1000Base SFP Slots 2
Firewall
NAT
VPN
Operating Temp. -10 to 60°C

EDR-810-2GSFP-T

10/100BaseT(X) Ports RJ45 Connector 8
100/1000Base SFP Slots 2
Firewall
NAT
VPN
Operating Temp. -40 to 75°C

EDR-810-VPN-2GSFP

10/100BaseT(X) Ports RJ45 Connector 8
100/1000Base SFP Slots 2
Firewall
NAT
VPN
Operating Temp. -10 to 60°C

EDR-810-VPN-2GSFP-T

10/100BaseT(X) Ports RJ45 Connector 8
100/1000Base SFP Slots 2
Firewall
NAT
VPN
Operating Temp. -40 to 75°C
