KVM Extenders

A high-performance KVM transmitter producing high-resolution video, USB 2.0 and audio signals up to 4km (2.5miles)

Product Feature

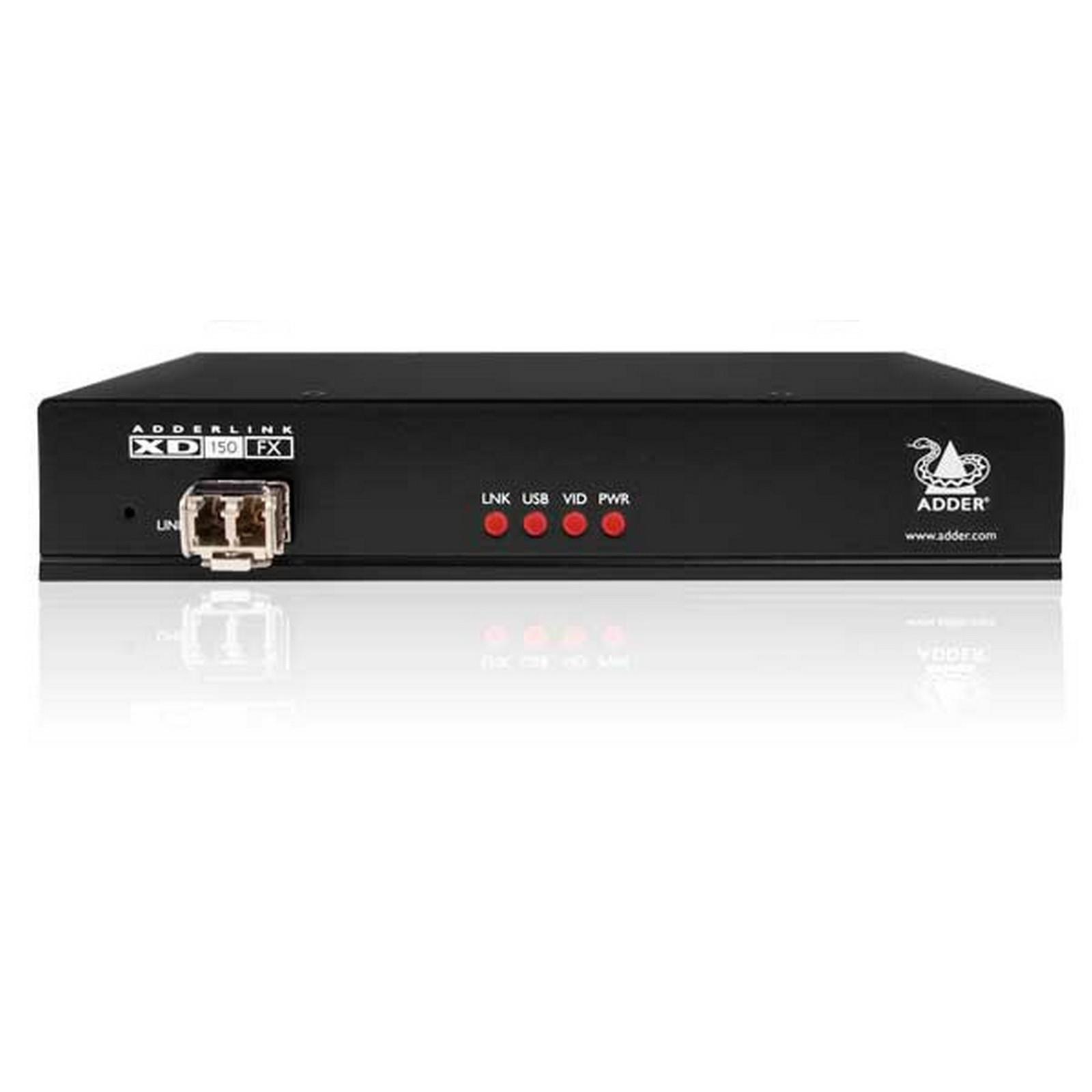

ADDERLink XD150FX is a high performance KVM (Keyboard, Video, Mouse) extender that
enables you to locate your critical computing hardware in a secure and temperature controlled
environment away from the user work station whilst maintaining the original user desktop

  • Resolutions up to 2560x1600@60Hz
  • 150m/ 492ft extension distance for OM2 multi-mode fiber
  • 4km extension distance for a single mode fiber. 400m/ 1312ft extension for OM4 fiber
  • USB2.0 Hi-speed for mass storage devices: Keyboard, mouse, tablet and touch screen
  • Bi-directional analog audio (Line in/out with microphone & headphone support)
  • RS232 with RTS/CTS flow control

The ADDERLink® XD150FX high-performance KVM (Keyboard, Video, Mouse) transmits high resolution video, USB 2.0
and audio signals up to 4km (2.5miles), Critical computer hardware can be held in a secure, temperature-controlled
environment and the XD150FX delivers the same desktop experience through real-time, lossless extension to the
user workstation including support for a wide range of USB devices.

Hardware compatibility

All computers with DVI, USB and audio

DVI Interface

The system supports resolutions to a maximum of 2560x1600@60Hz.

USB 2.0

Supports USB2.0 devices (low, full and high speed). Isochronous devices are supported.

Software compatibility

All known operating systems.

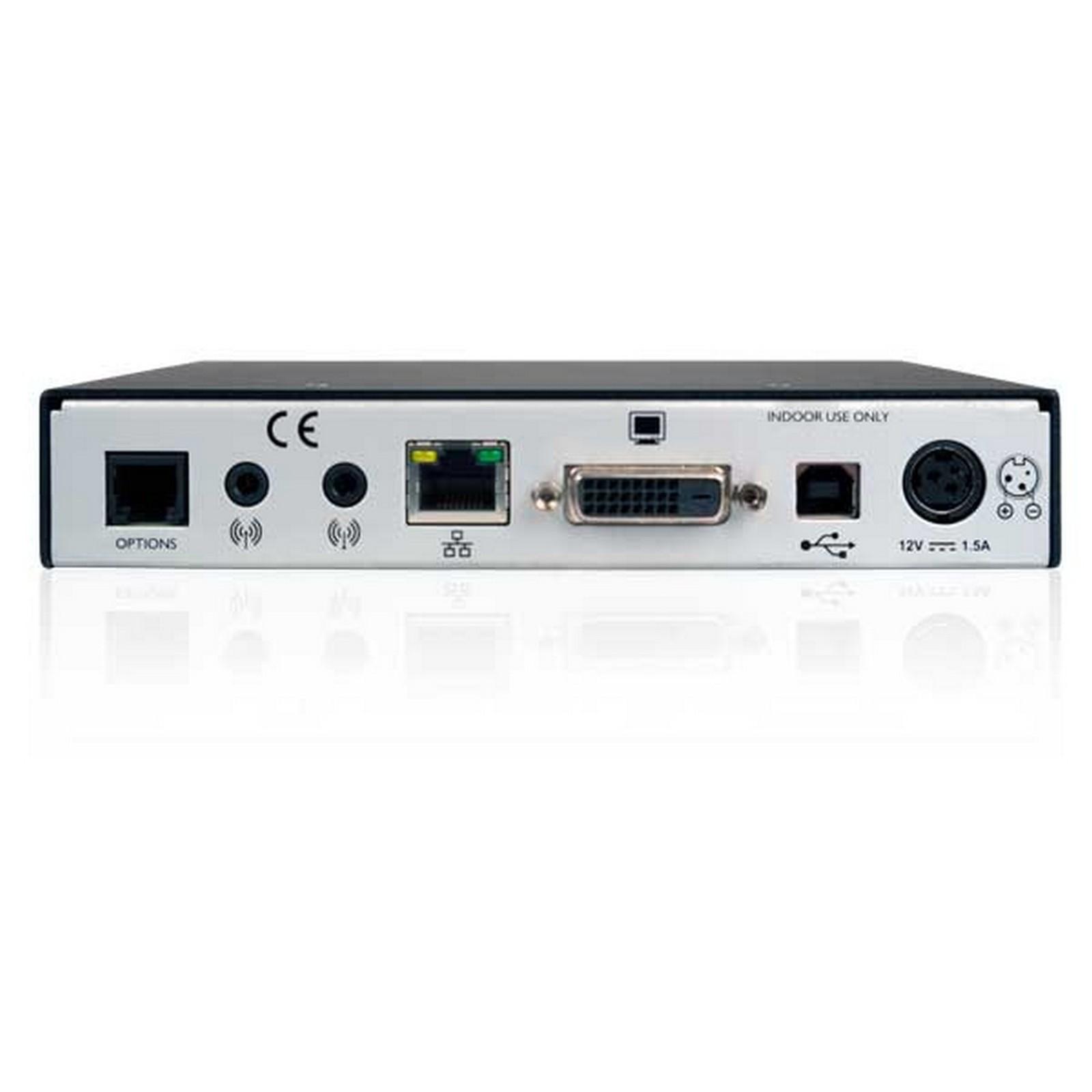

Computer connections LOCAL transmitter

Transmitter (TX)
DVI, Audio 3.5mm x 2, USB type-B,
Options port (6p6c), Ethernet port (8p8c),
Peripheral connections.
Receiver (RX)
DVI, Audio 3.5mm (line in and out),
Audio 3.5mm (mic in and headphones),
USB type-A x 4, Options port (6p6c).

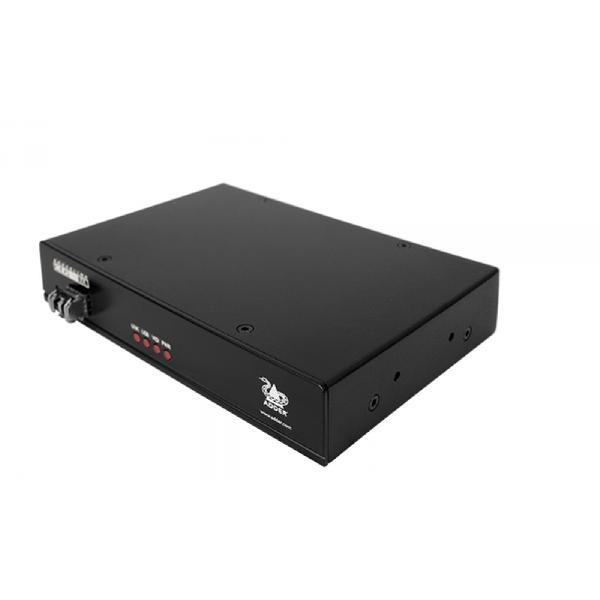

Physical design

Compact case, robust metal construction.
169mm/6.65” (w), 31mm/1.22” (h),
120mm/4.8” (d), 0.6kg/1.3lbs.
Name Type Version Release Date
ADDERLink XD150FX Datasheet Datasheet V1.12 03 August 2020
