ADDER C-USB LAN

Home  >   Adder  >   Extenders  >
USB Extenders

USB2.0 over Gigabit Ethernet LAN

Product Feature

  • Transparent USB2.0 operation
  • 100m extension distance
  • Switchable and routable
  • USB2.0 Hi-speed for mass storage devices plus:
  • USB2.0 (low and full speed) for keyboard, mouse, tablet and touch screen
  • Supports USB3.0 controllers
  • Isochronous support for audio devices and web cams
  • Plug and play

ADDER® C-USB-LAN is a high performance USB extender that enables you to locate your critical computing hardware away from the
user work station whilst maintaining the original user desktop experience. It can transmit USB2.0 over a single CATx cable or via an 1GbE
IP network

Hardware compatibility

All computers with USB

USB 2.0

Supports USB2.0 devices (low, full and high speed). Isochronous devices are supported

Software compatibility

All known operating systems

Connections

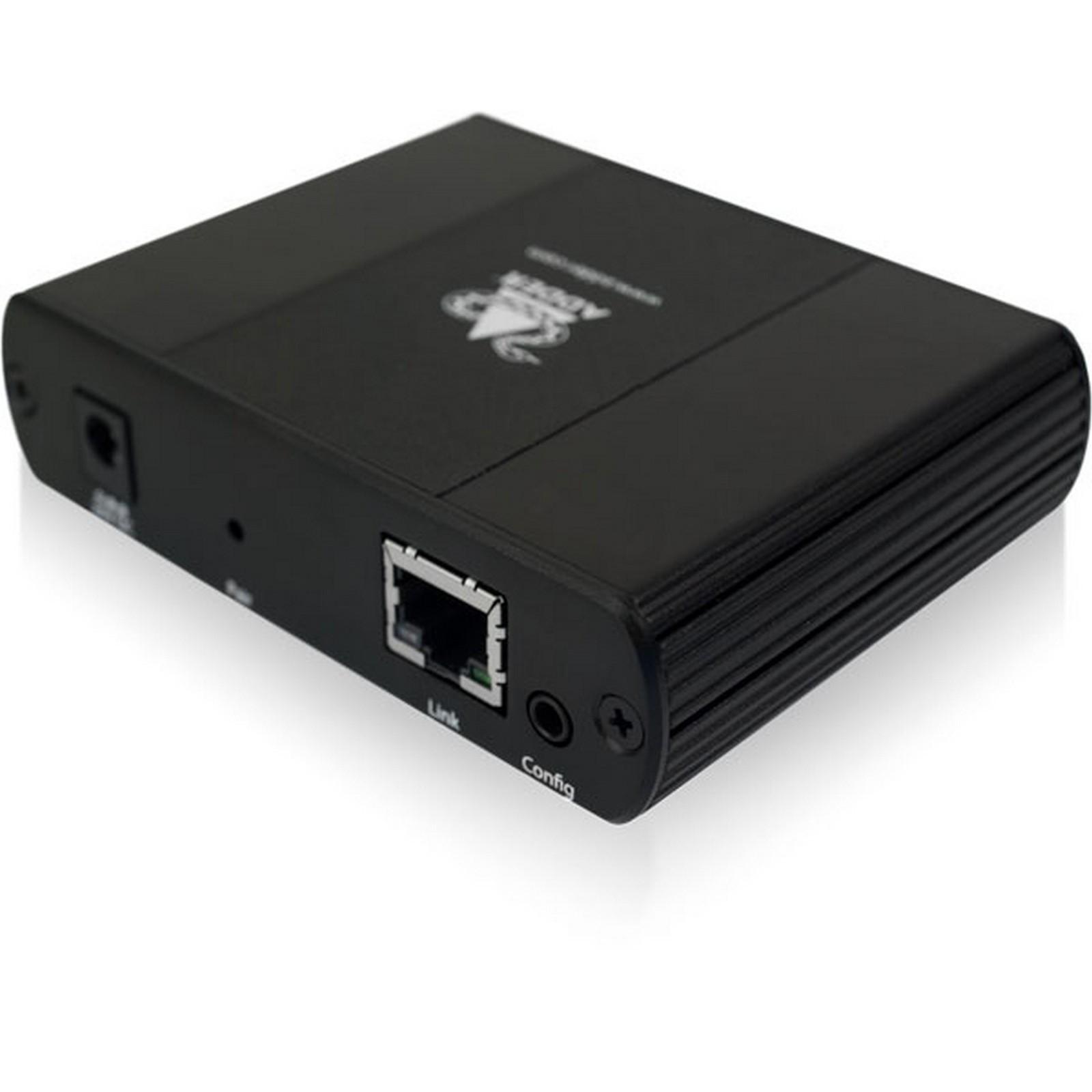

Transmitter (TX) USB type B, config port,
8p8c Ethernet port

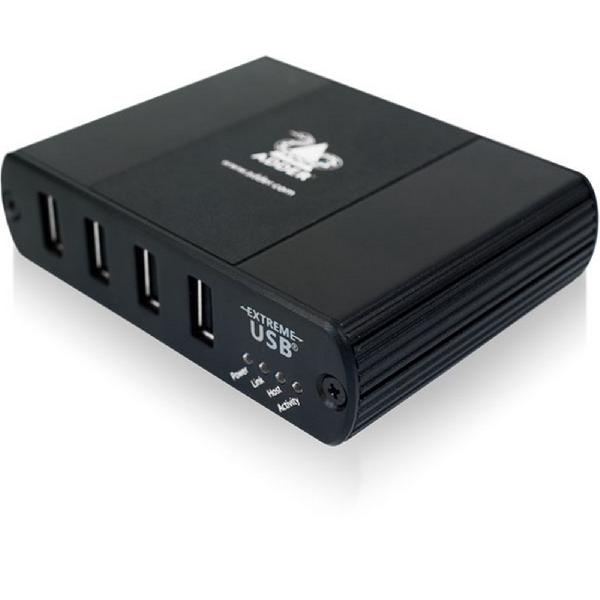

Receiver (RX) USB type A x 4, config port,
8p8c Ethernet port and 2.1mm jack power socket

Physical design

Compact case, robust metal construction.
100mm/3.9” (w), 26mm/1.0” (h),
76mm/3.0” (d), 0.2kg/0.4lbs each

Power (RX only)

DC jack (1 x power adapter included for RX),100-240VAC 50/60Hz,
0.7A, input to power adapter, 24VDC 24W output from
power adapter provides up to 600mA per USB port

Operating temperature

0 to 50ºC / 32 to 122ºF

Approvals

CE, FCC
Name Type Version Release Date
ADDER C-USB_LAN Datasheet Datasheet V1.2 05 August 2020
