2-port RS-232/422/485 serial device servers

Product Feature

  • Compact design for easy installation
  • Socket modes: TCP server, TCP client, UDP
  • Easy-to-use Windows utility for configuring multiple device servers
  • Patented ADDC® (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
  • SNMP MIB-II for network management

Introduction

The NPort® 5200 serial device servers are designed to make your industrial serial devices Internet-ready in no time. The compact size of NPort 5200 serial device servers makes them the ideal choice for connecting your RS-232 (NPort 5210/5230/5210-T/5230-T) or RS-422/485 (NPort 5230/5232/5232I/5230-T/5232-T/5232I-T) serial devices—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, making it possible for your software to access serial devices from anywhere over a local LAN or the Internet. The NPort 5200 Series has a number of useful features, including standard TCP/IP protocols and choice of operation modes, Real COM/TTY drivers for existing software, and remote control of serial devices with TCP/IP or traditional COM/TTY Port.



Standard TCP/IP Protocols and Choice of Operation Modes

NPort 5200 device servers can operate in TCP Server, TCP Client, or UDP operation mode, ensuring compatibility with software based on a standard network API (Winsock, BSD Sockets).



Real COM/TTY Drivers for Existing Software

With the Real COM/TTY drivers that are provided with each NPort, software designed for communication with COM/TTY ports can be instantly and seamlessly integrated into a TCP/IP network. This is an excellent no fuss way to preserve your software investment and enjoy the benefits of networking your serial devices.



Control Remote Serial Devices with TCP/IP or Traditional COM/TTY Port

By specifying the NPort 5200's IP address and port number, a network sockets API can obtain access to the attached serial device over the network, from any host computer that supports TCP/IP. For legacy Windows or Linux software that is COM or TTY-based, Moxa’s COM/TTY drivers provide a seamless way of operating over the network.



Appearance

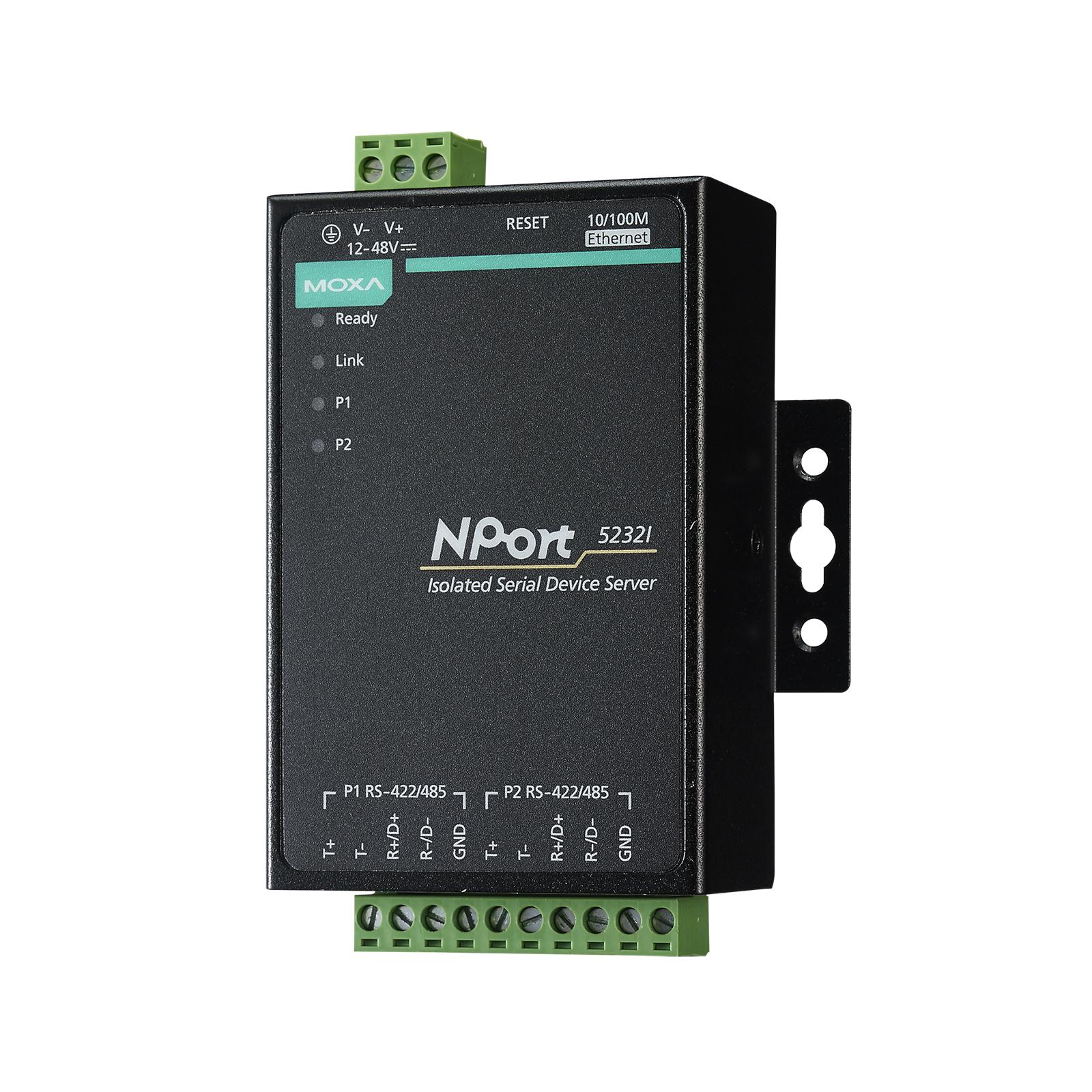

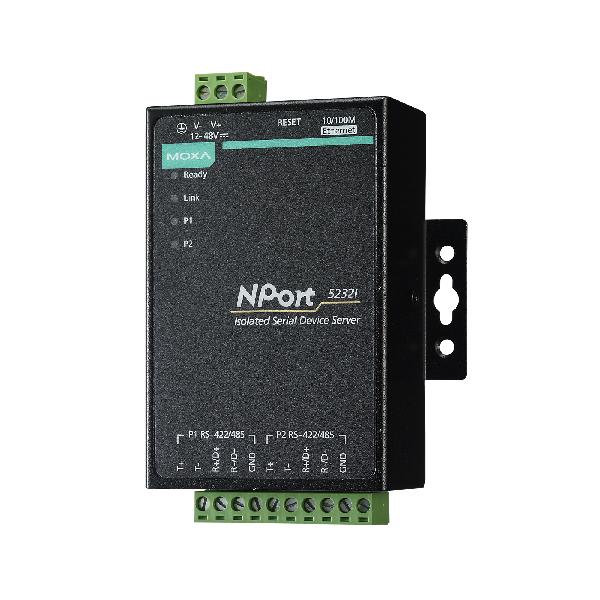

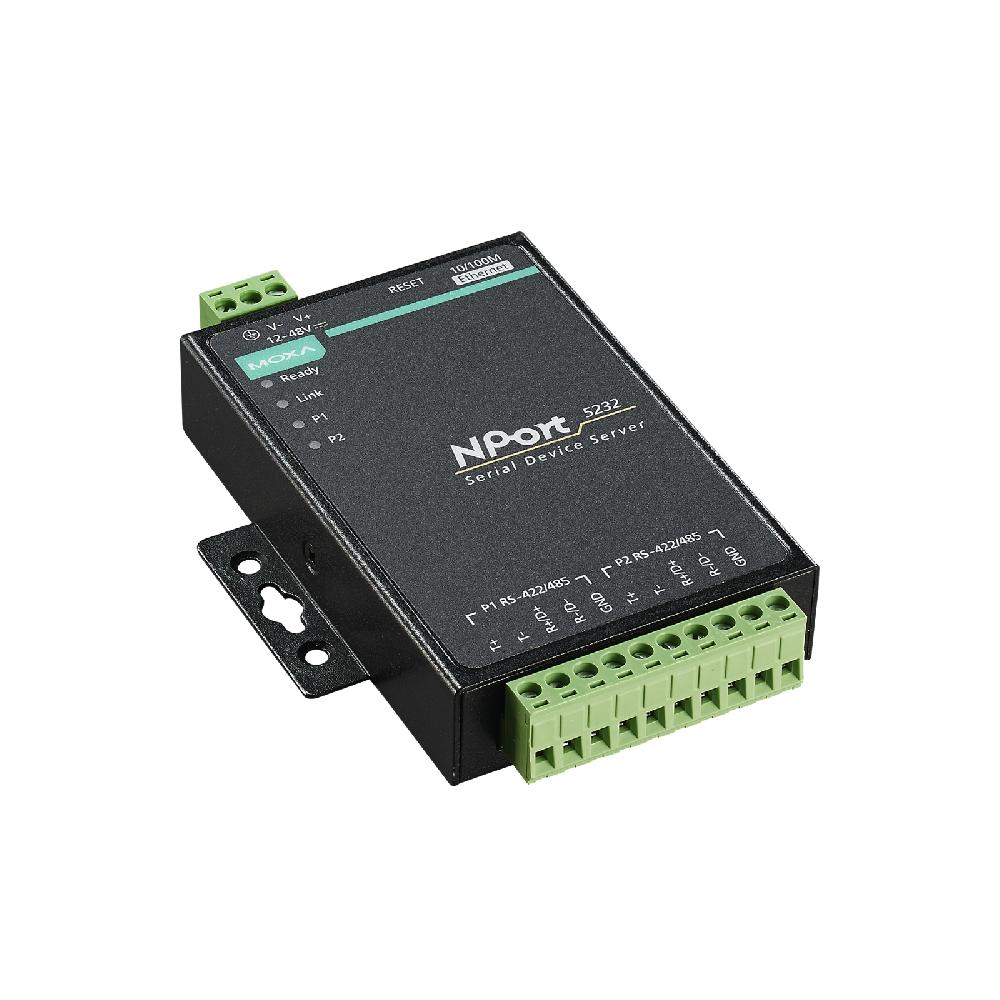

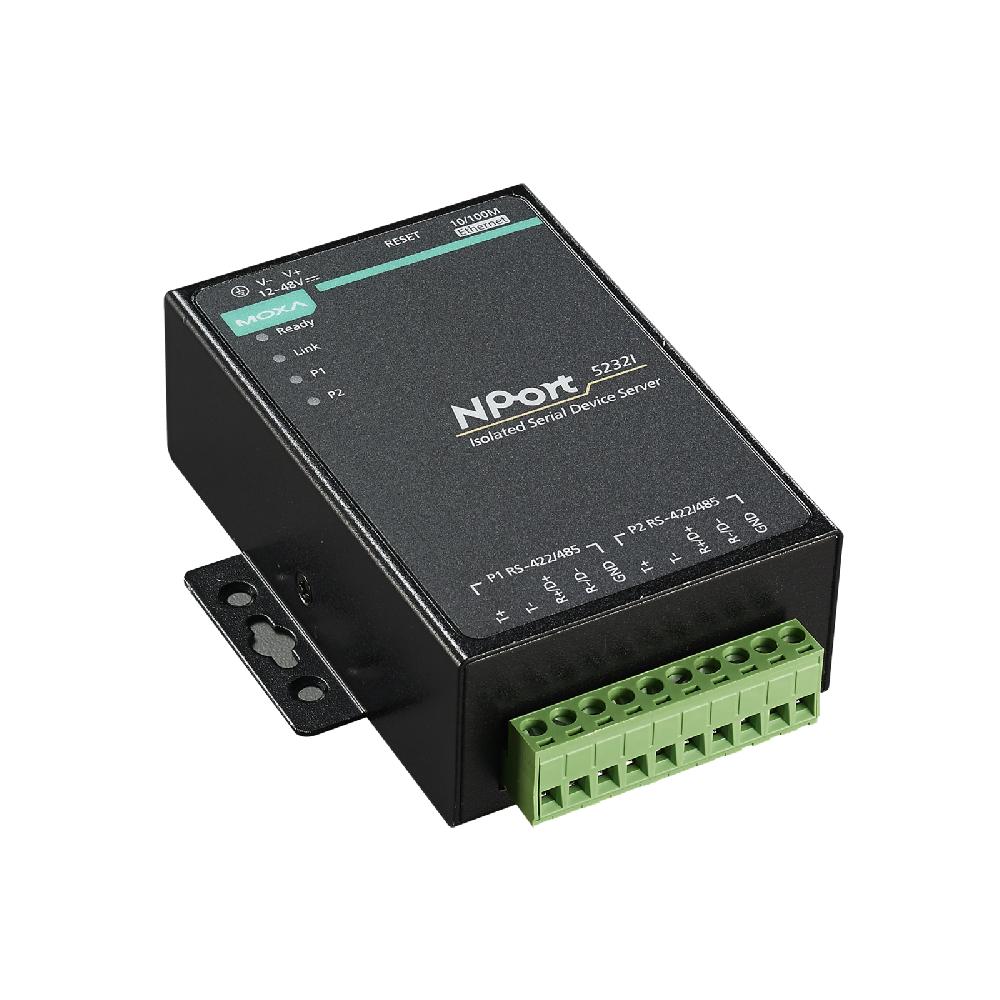

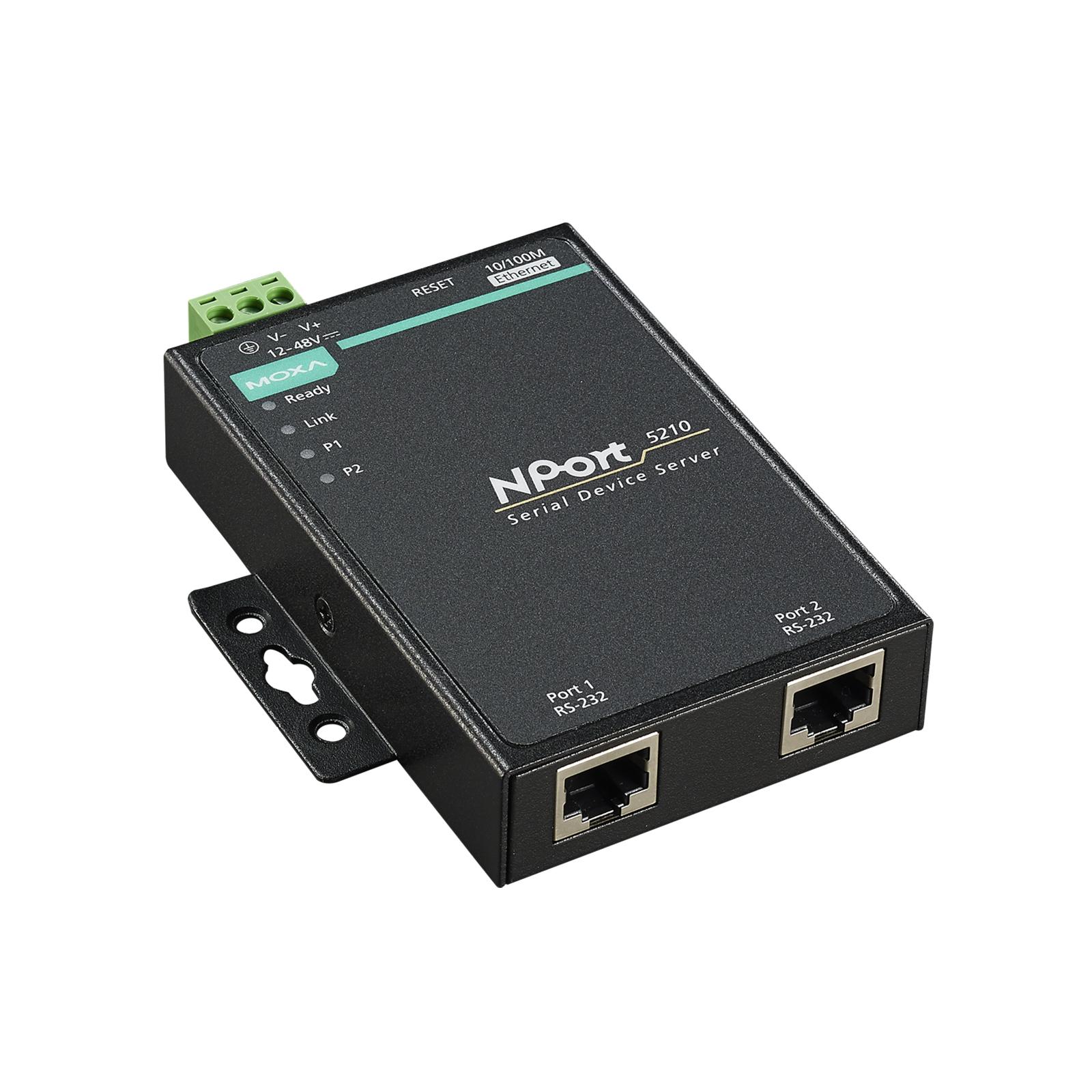

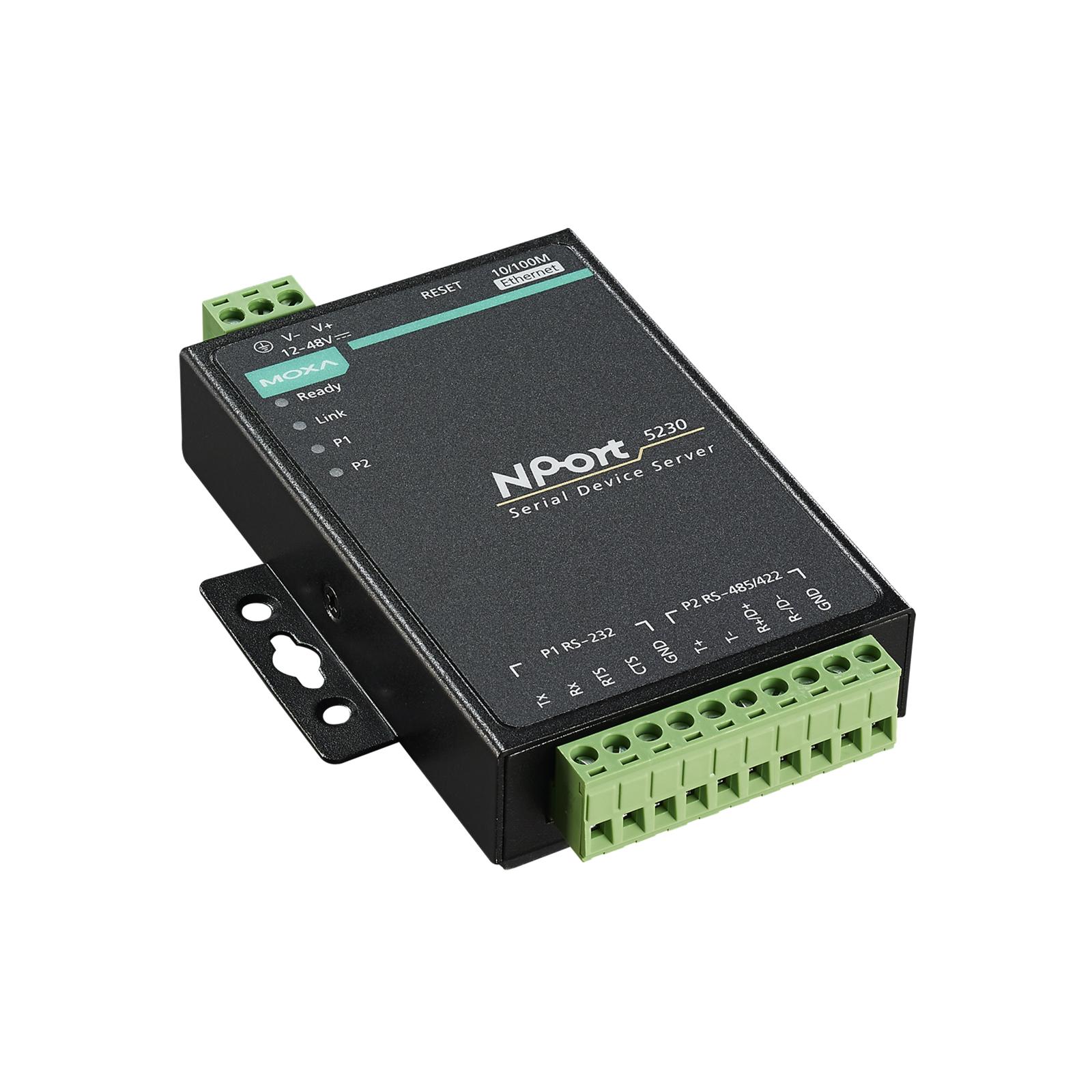

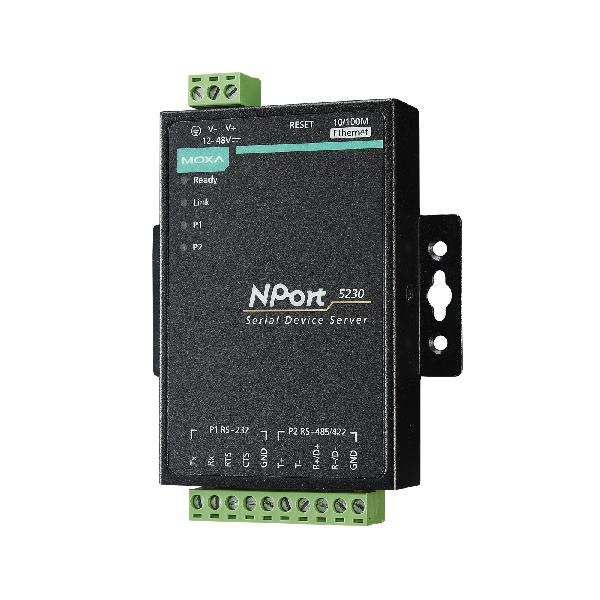

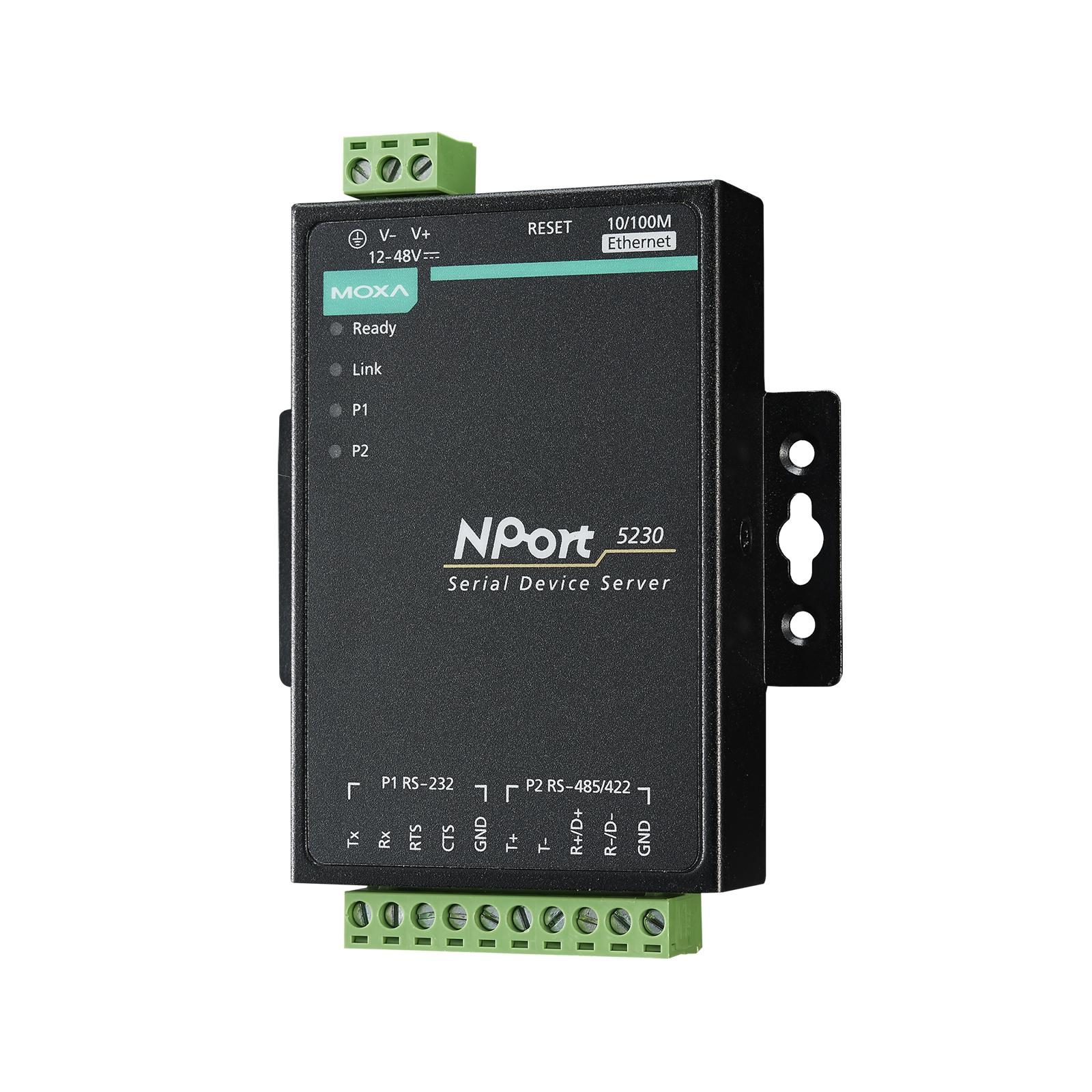

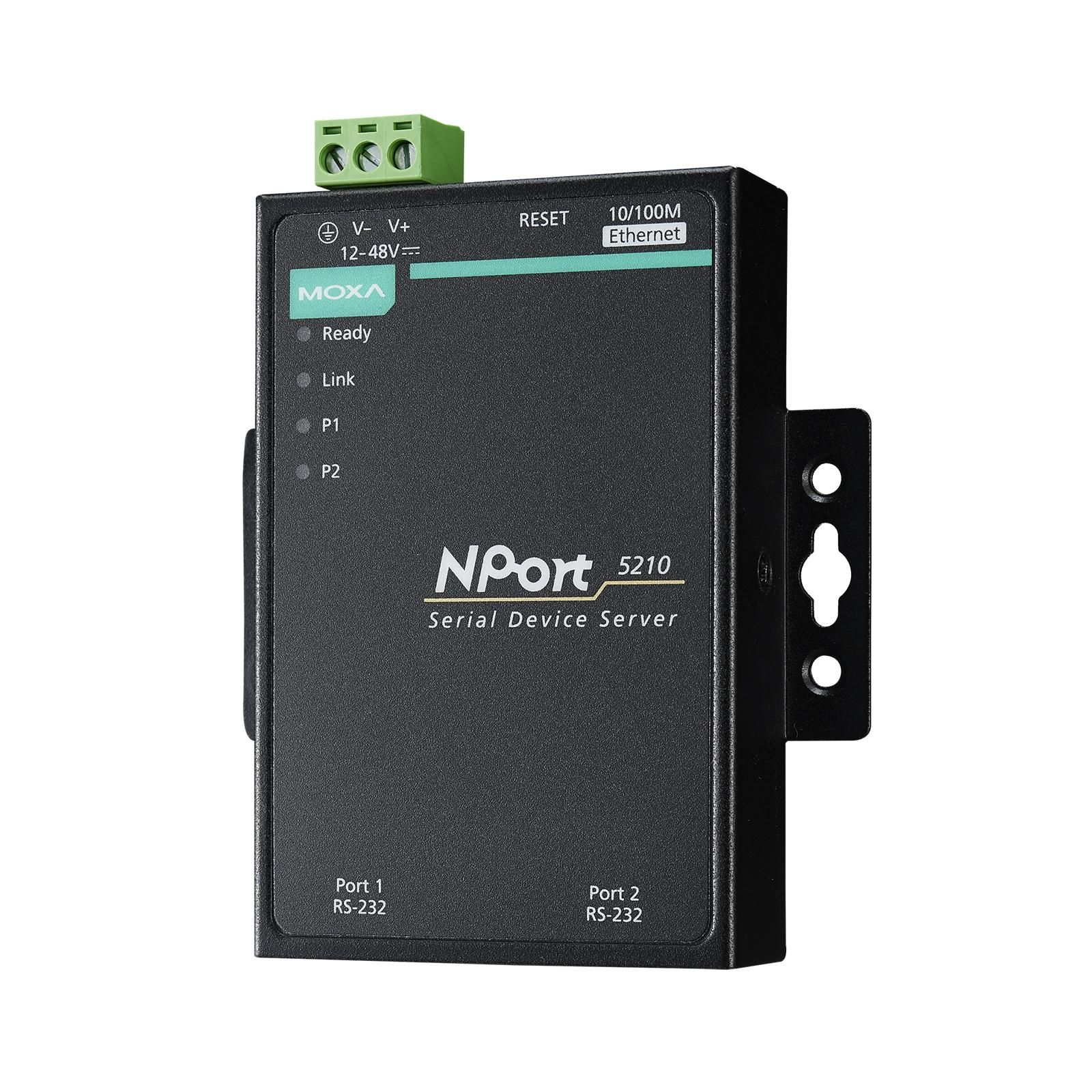

MOXA

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

1

Magnetic Isolation Protection

1.5 kV (built-in)

Ethernet Software Features

Configuration Options

Windows Utility, Telnet Console, Web Console (HTTP), Serial Console

Management

DHCP Client, IPv4, SNTP, SMTP, SNMPv1, DNS, HTTP, ARP, BOOTP, UDP, TCP/IP, Telnet, ICMP

Windows Real COM Drivers

Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Fixed TTY Drivers

SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Linux Real TTY Drivers

Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

Android API

Android 3.1.x and later

MIB

RFC1213, RFC1317

Serial Interface

Connector

NPort 5210 Series: 8-pin RJ45
NPort 5230/5232 Series: Terminal block

No. of Ports

2

Serial Standards

NPort 5210 Series: RS-232
NPort 5230 Series: RS-232/422/485 The NPort 5230 Series supports RS-232 on one port, and RS-422/485 on the other.
NPort 5232 Series: RS-422/485

Operation Modes

Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, TCP Client, TCP Server, UDP

Baudrate

Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

Pull High/Low Resistor for RS-485

NPort 5210/5232I Series: None
NPort 5230 Series: 150 kilo-ohms
NPort 5232 Series: 1 kilo-ohms

RS-485 Data Direction Control

ADDC® (automatic data direction control)

Isolation

NPort 5232I Series: 2 kV

Serial Signals

RS-232

NPort 5210 Series: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
NPort 5230 Series: TxD, RxD, RTS, CTS, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

Power Parameters

Input Current

NPort 5210/5230 Series: 325 mA @ 12 VDC
NPort 5232/5232I Series: 280 mA @ 12 VDC, 365 mA @ 12 VDC

Input Voltage

12 to 48 VDC

No. of Power Inputs

1

Power Connector

1 removable 3-contact terminal block(s)

Reliability

Automatic Reboot Trigger

Built-in WDT

Alert Tools

Built-in buzzer and RTC (real-time clock)

Physical Characteristics

Housing

Metal

Dimensions (with ears)

NPort 5210/5230 Series, NPort 5232/5232-T: 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in)
NPort 5232I/5232I-T: 90 x 100.4 x 35 mm (3.54 x 3.95 x 1.37 in)

Dimensions (without ears)

NPort 5210/5230 Series, NPort 5232/5232-T: 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in)
NPort 5232I/5232I-T: 67 x 100.4 x 35 mm (2.64 x 3.95 x 1.37 in)

Weight

NPort 5210 Series: 340 g (0.75 lb)
NPort 5230 Series, NPort 5232/5232-T: 360 g (0.79 lb)
NPort 5232I/5232I-T: 380 g (0.84 lb)

Installation

Desktop, DIN-rail mounting (with optional kit), Wall mounting

Environmental Limits

Operating Temperature

Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs

Safety

UL 60950-1

Medical

NPort 5210 Series: EN 60601-1-2 Class B, EN 55011

Maritime

NPort 5230/5232 Series: DNV

Declaration

Green Product

RoHS, CRoHS, WEEE

MTBF

Time

NPort 5210 Series: 381,342 hrs
NPort 5230 Series: 377,937 hrs
NPort 5232 Series: 309,383 hrs

Standards

Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty
Name Type Version Release Date
Datasheet for NPort 5200 Series Datasheet V1.4 08 November 2019

NPort 5210

Operating Temp. 0 to 55°C
Baudrate 110 bps to 230.4 kbps
Serial Standards RS-232
Serial Isolation -
No. of Serial Ports 2
Input Voltage 12-48 VDC

NPort 5210-T

Operating Temp. -40 to 75°C
Baudrate 110 bps to 230.4 kbps
Serial Standards RS-232
Serial Isolation -
No. of Serial Ports 2
Input Voltage 12-48 VDC

NPort 5230

Operating Temp. 0 to 55°C
Baudrate 110 bps to 230.4 kbps
Serial Standards RS-232/422/485
Serial Isolation -
No. of Serial Ports 2
Input Voltage 12-48 VDC

NPort 5230-T

Operating Temp. -40 to 75°C
Baudrate 110 bps to 230.4 kbps
Serial Standards RS-232/422/485
Serial Isolation -
No. of Serial Ports 2
Input Voltage 12-48 VDC

NPort 5232

Operating Temp. 0 to 55°C
Baudrate 110 bps to 230.4 kbps
Serial Standards RS-422/485
Serial Isolation -
No. of Serial Ports 2
Input Voltage 12-48 VDC

NPort 5232-T

Operating Temp. -40 to 75°C
Baudrate 110 bps to 230.4 kbps
Serial Standards RS-422/485
Serial Isolation -
No. of Serial Ports 2
Input Voltage 12-48 VDC

NPort 5232I

Operating Temp. 0 to 55°C
Baudrate 110 bps to 230.4 kbps
Serial Standards RS-422/485
Serial Isolation 2 kV
No. of Serial Ports 2
Input Voltage 12-48 VDC

NPort 5232I-T

Operating Temp. -40 to 75°C
Baudrate 110 bps to 230.4 kbps
Serial Standards RS-422/485
Serial Isolation 2 kV
No. of Serial Ports 2
Input Voltage 12-48 VDC
