ADDERLink AV100

Home  >   Adder  >   Extenders  >
AV Distribution

Full HD 1920x1080 digital signage extender with Audio: 1080p & 720p

Product Feature

The ADDERLink AV Series is a range of audiovisual extenders delivering high video resolutions
and superb quality audio up to 300m using standard CATx cable (x=5,5e,6,7). The innovative
design allows for flexible audiovisual distribution that can be expanded to grow in line with
project developments and ensures direct delivery of crystal clear communication to consumers
at the point of decision. The ADDERLink AV Series avoids the prohibitive costs of fibre optic
cabling, displays with built in CPUs or locating a CPU next to each screen.Consisting of 4
interchangeable units, the ADDERLink AV Series makes the design of digital signage and
narrow casting applications cost effective, flexible and easy to plan.

The ADDERLink AV Series is a range of audiovisual extenders delivering high video resolutions and superb quality audio up to 300m
using standard CATx cable (x=5,5e,6,7).

Designed for use in Digital Signage applications, the innovative design allows for flexible distribution that can grow in line with project
developments and ensures direct delivery of crystal clear communication to consumers at the point of decision. The AdderLink AV
Series avoids the prohibitive costs of fibre optic cabling, displays with built in CPUs or locating a CPU next to each screen.

Video Resolutions

1600x1200 at distances up to 200m (650ft), 1280x1024 at distances up to 300m (1000ft)

Extension distance (x=5,5e,6,7)

Up to 300m/1000 ft using CATx (x=5,5e,6,7).

Cable Equalisation

Finely adjustable cable equalisation amplifiers enable the video sharpness and brightness
to be independently adjusted using the dials on the side of the receiver units.

Integral DeSkew (ADDERLink AV101R only)

Skew compensation adjustments can be made using the two rotary dials on the ADDERLink
AV101R receiver unit. The first dial affects the relationship between green and blue colour signals,
the second red and green. The cable skew is produced due to wire length differences between
different twisted pairs in a CATx cable that arise due to the different twist rates used to reduce
signalling cross talk. The amount of cable skew seen depends on the cable type used and the
cable length. The ADDERLink AV101R provides up to 62ns of DeSkew with a fine 2ns resolution.
This means that high-resolution video can be accurately DeSkewed even at long cable distances.
The DeSkew supports 300MHz bandwidths, which means it does not adversely affect the video
quality.

Rack mount options

Both the local (computer-end) and remote (display-end) units may be rack mounted using
ADDERLink AV Series rack mount chassis. The chassis enable 16 units to be mounted in 3U
of 19-inch rack space. The units are rack mounted using the optional rack mount faceplate.

Audio

Transmitted as digital signals to ensure high fidelity and low noise levels

Connectors

• AV100T Video In/Out: HDD15. Audio In/Out: 3.5mm audio jack. CATx: 1 x RJ45 connector.
Power: 2.5mm DC jack

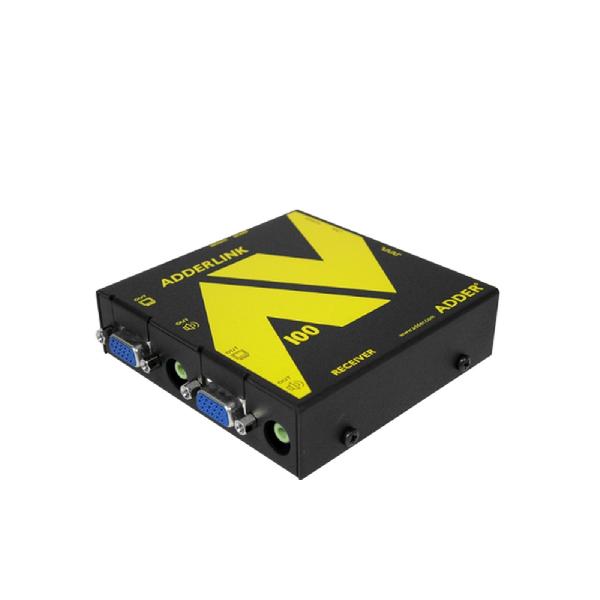

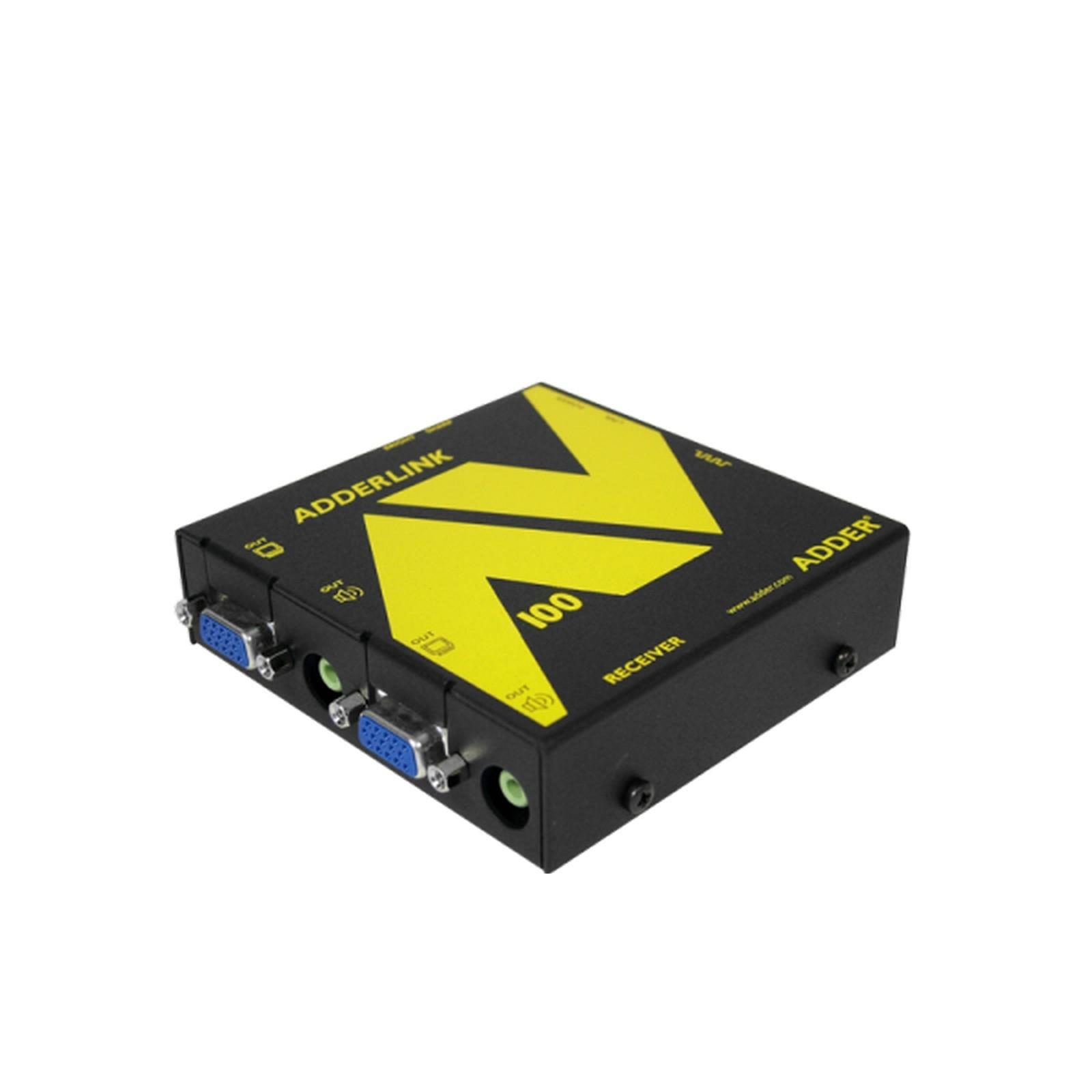

• AV100R Video Out: 2 x HDD15. Audio Out: 2 x 3.5mm audio jack. CATx: 1 x RJ45 connector.
Power: 2.5mm DC jack

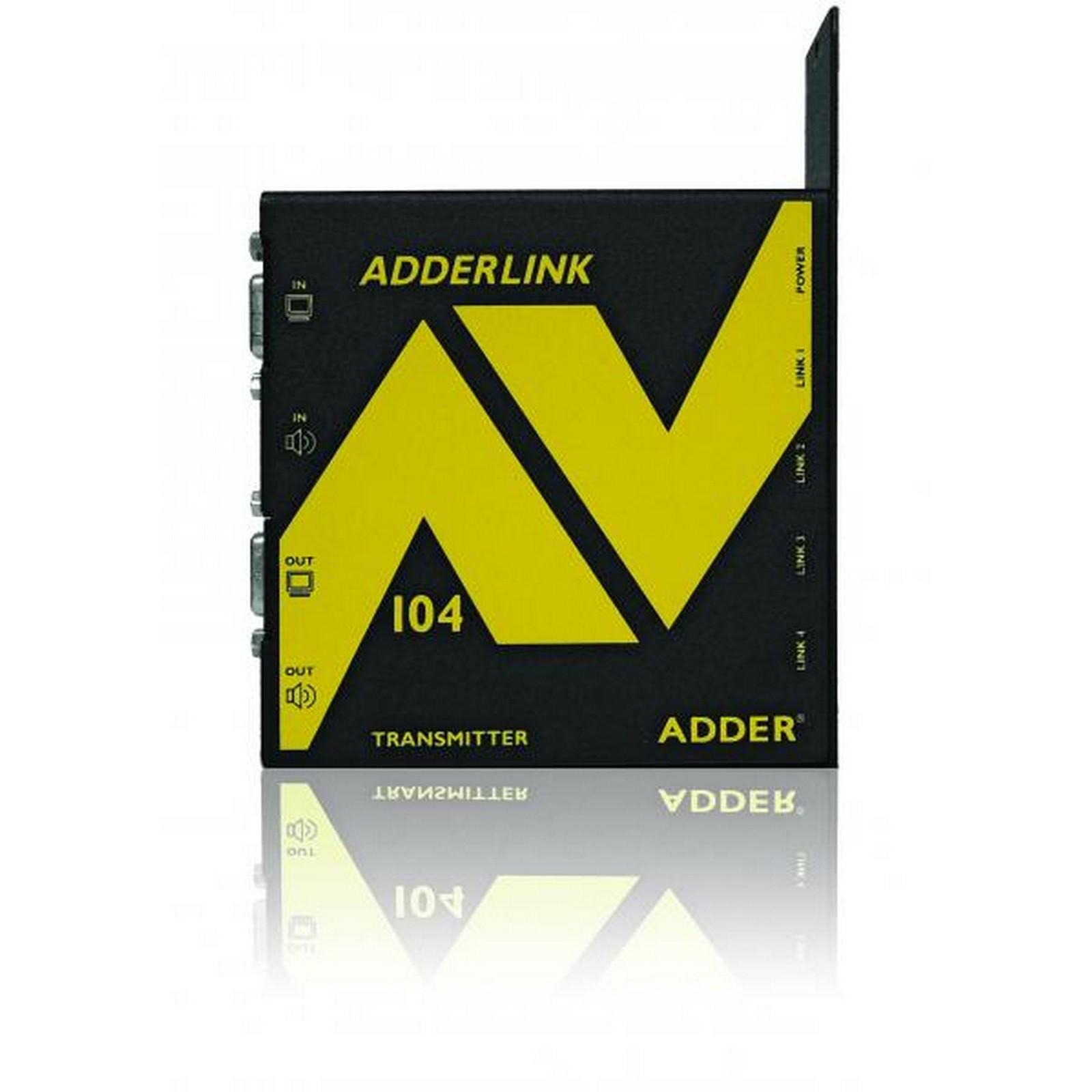

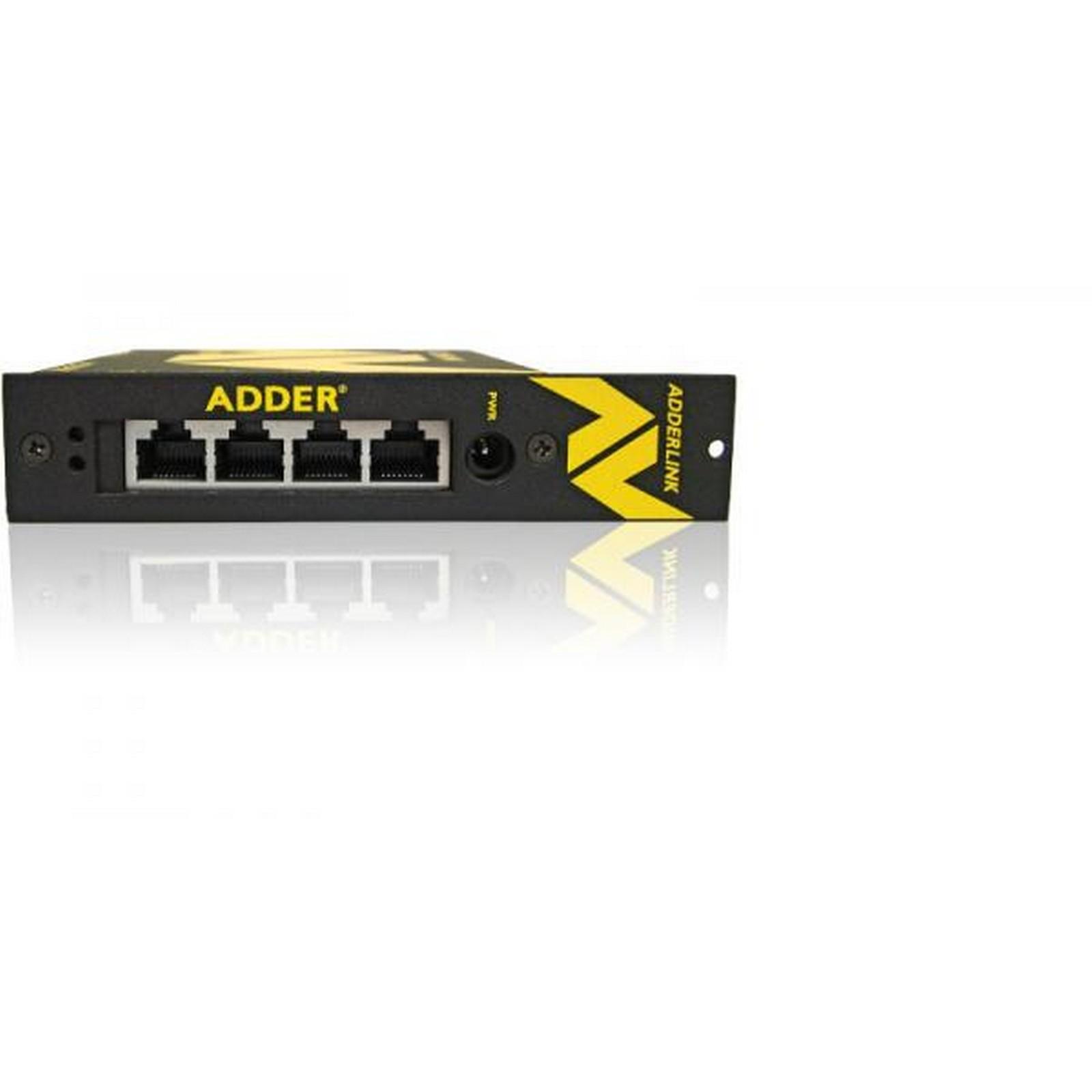

• AV104T Video In/Out: HDD15. Audio In/Out: 3.5mm audio jack. CATx: 4 x RJ45 connector.
Power: 2.5mm DC jack

• AV101R Video Out: 2 x HDD15. Audio Out: 2 x 3.5mm audio jack. CATx: in 1 x RJ45 connector
out, 1 x RJ45 connector in. Power: 2.5mm DC jack

Physical (All ADDERLink AV100 units)

Metal case (steel), 98mm x 95mm x 25mm

Spike suppression

All ADDERLink AV units are fitted with spike suppression circuits.

Display Data Channel

DDC signalling is supported to enable the computer to communicate with the local monitor and
 thus configure its video card for optimal operation.

Power

• Operating Voltage: 100-240VAC
• Power Frequency: 50-60Hz
• Usage: 5VDC at 500mA

Operating temperature

0ºC to 40ºC / 32ºF to 104ºF

Humidity Tolerance

5 to 60% non-condensing

Approvals

CE, FCC
Name Type Version Release Date
ADDERLink AV100 Series Datasheet Datasheet V5.0 05 August 2020
