2-port RS-232/422/485 serial device servers with serial surge protection

Product Feature

  • Fast 3-step web-based configuration
  • Surge protection for serial, Ethernet, and power
  • COM port grouping and UDP multicast applications
  • Screw-type power connectors for secure installation
  • Dual DC power inputs with power jack and terminal block
  • Versatile TCP and UDP operation modes

Introduction

The NPort® 5200A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort® 5200A device servers are ultra-lean, ruggedized, and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.



A Greener Serial-to-Ethernet Solution

The MiiNe is a small but powerful Arm-based serial-to-Ethernet SoC with RAM and Flash embedded. With the MiiNe inside, the NPort® 5200A Series saves at least 50% on power consumption compared to existing solutions on the market, helping engineers meet the tough environmental compliance challenges found in today’s industrial environments.



Surge Protection for Serial, Ethernet, and Power

Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® 5200A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.



3-Step Web-based Configuration

The NPort® 5200A’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort® 5200A’s web console guides users through three simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this fast 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort® settings and enable the application, saving a great amount of time and effort.



COM Port Grouping

The NPort® 5200A’s COM Grouping function allows you to create a COM Group and redirect data from it to several physical COM ports on NPort device servers. With COM Grouping, you will be able to control multiple physical serial ports simultaneously by operating only one COM port.



Appearance

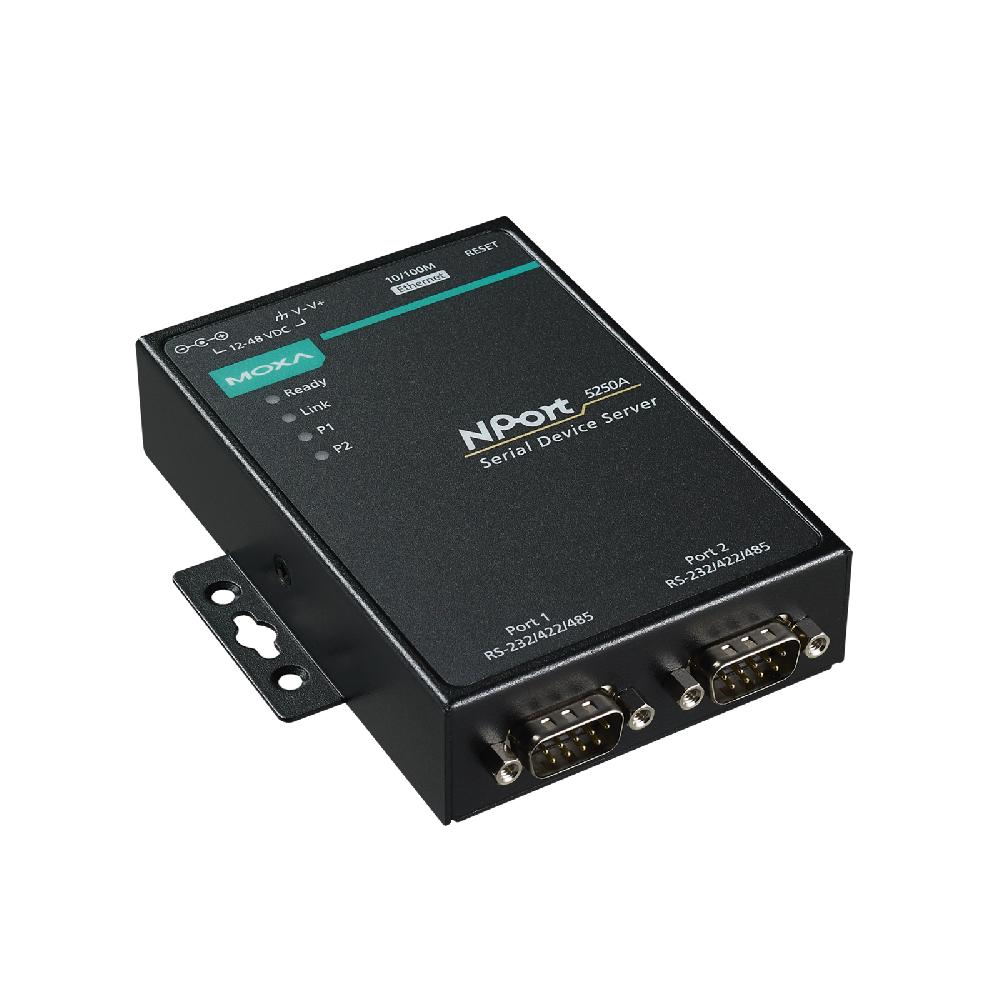

MOXA

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

1

Magnetic Isolation Protection

1.5 kV (built-in)

Ethernet Software Features

Configuration Options

Windows Utility, Telnet Console, Web Console (HTTP), Serial Console

Management

DHCP Client, IPv4, SNTP, SMTP, SNMPv1, DNS, HTTP, ARP, BOOTP, UDP, TCP/IP, Telnet, ICMP

Windows Real COM Drivers

Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Fixed TTY Drivers

SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Linux Real TTY Drivers

Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

Android API

Android 3.1.x and later

MIB

RFC1213, RFC1317

Serial Interface

Connector

NPort 5210 Series: 8-pin RJ45
NPort 5230/5232 Series: Terminal block

No. of Ports

2

Serial Standards

NPort 5210 Series: RS-232
NPort 5230 Series: RS-232/422/485 The NPort 5230 Series supports RS-232 on one port, and RS-422/485 on the other.
NPort 5232 Series: RS-422/485

Operation Modes

Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, TCP Client, TCP Server, UDP

Baudrate

Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

Pull High/Low Resistor for RS-485

NPort 5210/5232I Series: None
NPort 5230 Series: 150 kilo-ohms
NPort 5232 Series: 1 kilo-ohms

RS-485 Data Direction Control

ADDC® (automatic data direction control)

Isolation

NPort 5232I Series: 2 kV

Serial Signals

RS-232

NPort 5210 Series: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
NPort 5230 Series: TxD, RxD, RTS, CTS, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

Power Parameters

Input Current

NPort 5210/5230 Series: 325 mA @ 12 VDC
NPort 5232/5232I Series: 280 mA @ 12 VDC, 365 mA @ 12 VDC

Input Voltage

12 to 48 VDC

No. of Power Inputs

1

Power Connector

1 removable 3-contact terminal block(s)

Reliability

Automatic Reboot Trigger

Built-in WDT

Alert Tools

Built-in buzzer and RTC (real-time clock)

Physical Characteristics

Housing

Metal

Dimensions (with ears)

NPort 5210/5230 Series, NPort 5232/5232-T: 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in)
NPort 5232I/5232I-T: 90 x 100.4 x 35 mm (3.54 x 3.95 x 1.37 in)

Dimensions (without ears)

NPort 5210/5230 Series, NPort 5232/5232-T: 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in)
NPort 5232I/5232I-T: 67 x 100.4 x 35 mm (2.64 x 3.95 x 1.37 in)

Weight

NPort 5210 Series: 340 g (0.75 lb)
NPort 5230 Series, NPort 5232/5232-T: 360 g (0.79 lb)
NPort 5232I/5232I-T: 380 g (0.84 lb)

Installation

Desktop, DIN-rail mounting (with optional kit), Wall mounting

Environmental Limits

Operating Temperature

Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs

Safety

UL 60950-1

Medical

NPort 5210 Series: EN 60601-1-2 Class B, EN 55011

Maritime

NPort 5230/5232 Series: DNV

Declaration

Green Product

RoHS, CRoHS, WEEE

MTBF

Time

NPort 5210 Series: 381,342 hrs
NPort 5230 Series: 377,937 hrs
NPort 5232 Series: 309,383 hrs

Standards

Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty
Name Type Version Release Date
Datasheet for NPort 5200A Series Datasheet V1.5 06 May 2020

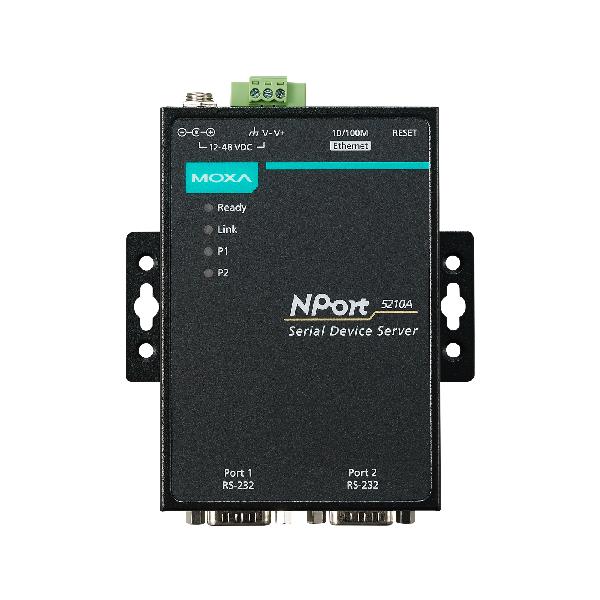

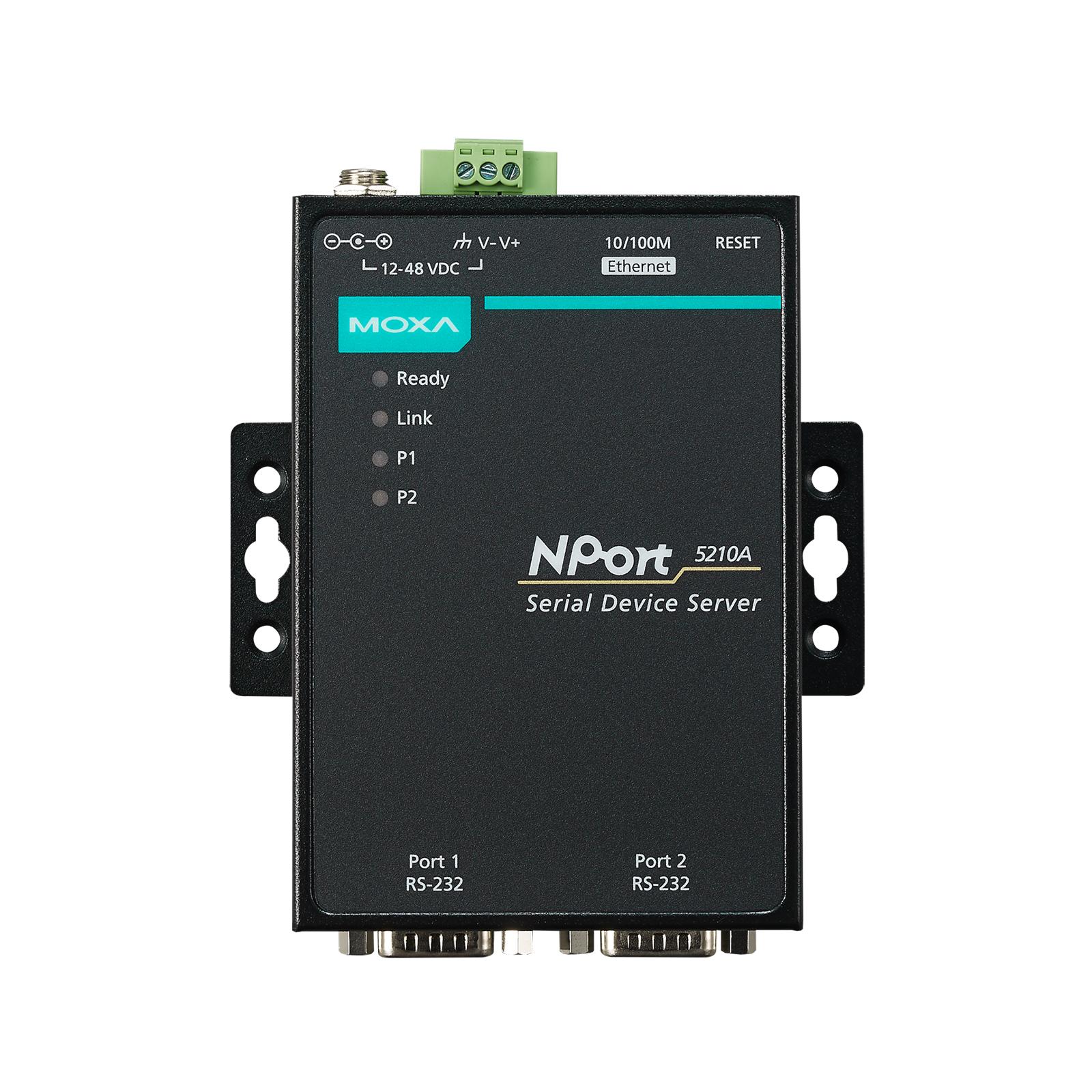

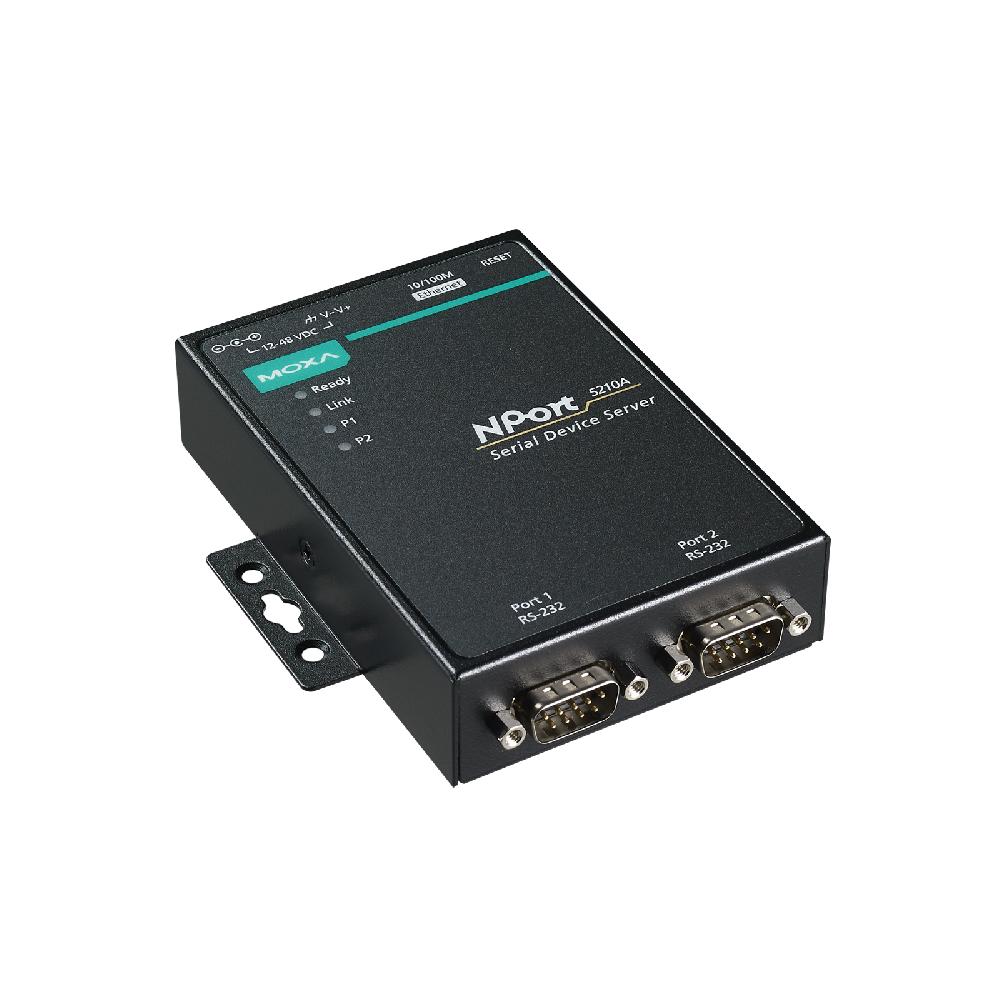

NPort 5210A

Operating Temp. 0 to 55°C
Baudrate 50 bps to 921.6 kbps
Serial Standards RS-232
No. of Serial Ports 2
Input Current 119 mA @ 12 VDC
Input Voltage 12-48 VDC

NPort 5210A-T

Operating Temp. -40 to 75°C
Baudrate 50 bps to 921.6 kbps
Serial Standards RS-232
No. of Serial Ports 2
Input Current 119 mA @ 12 VDC
Input Voltage 12-48 VDC

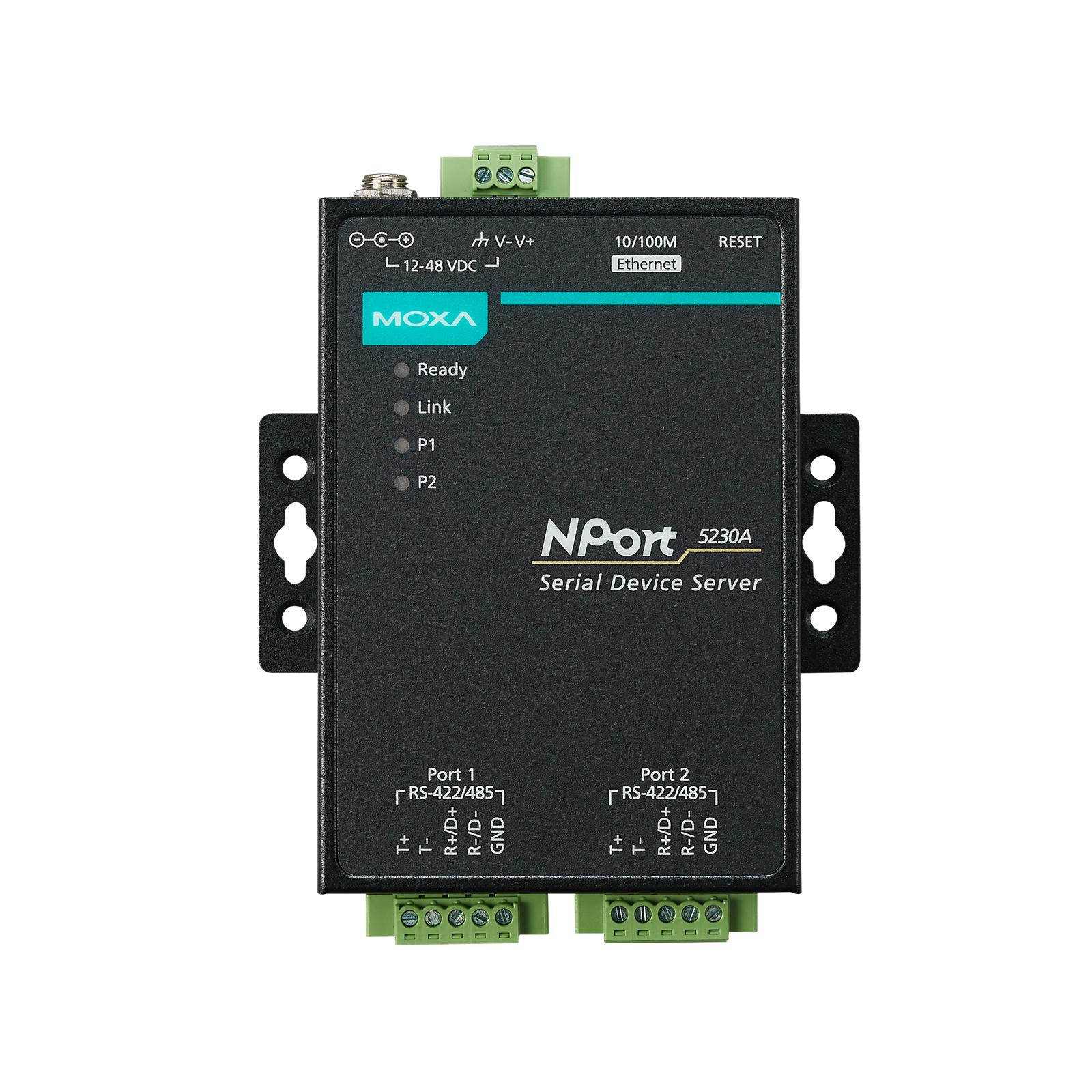

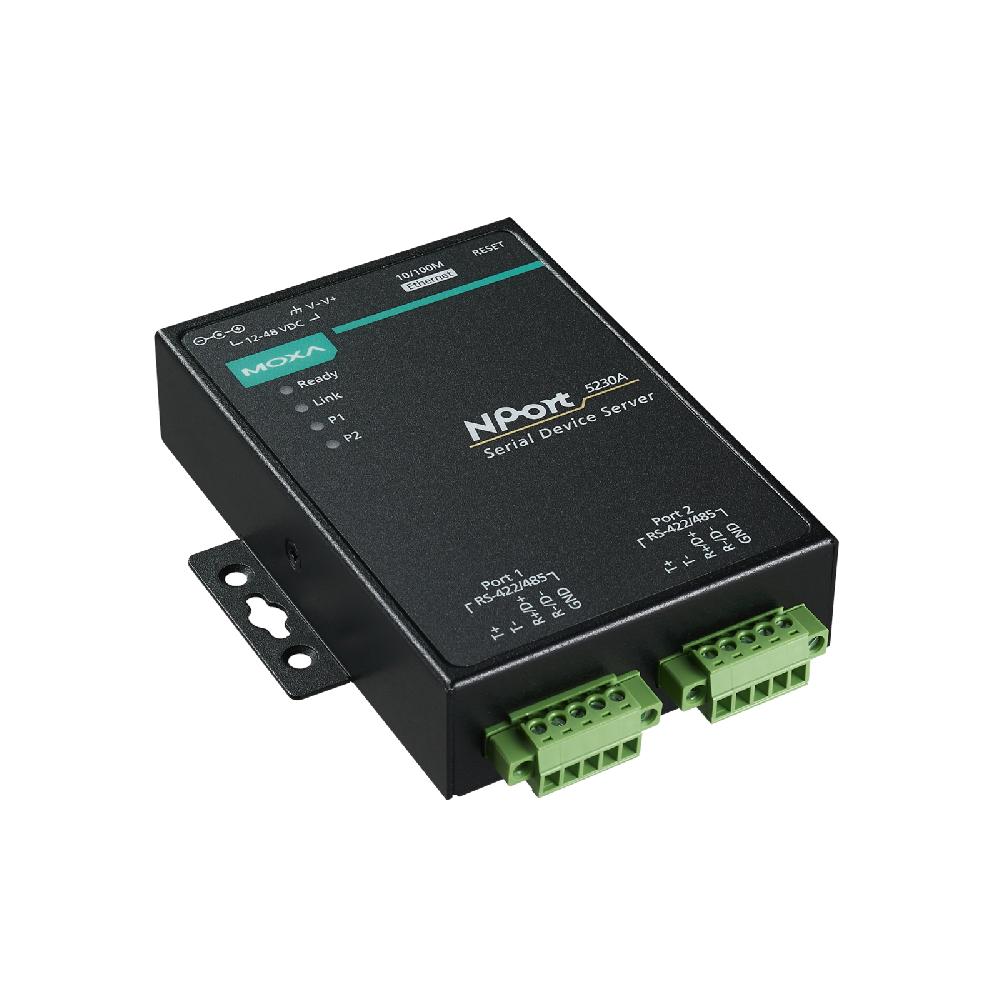

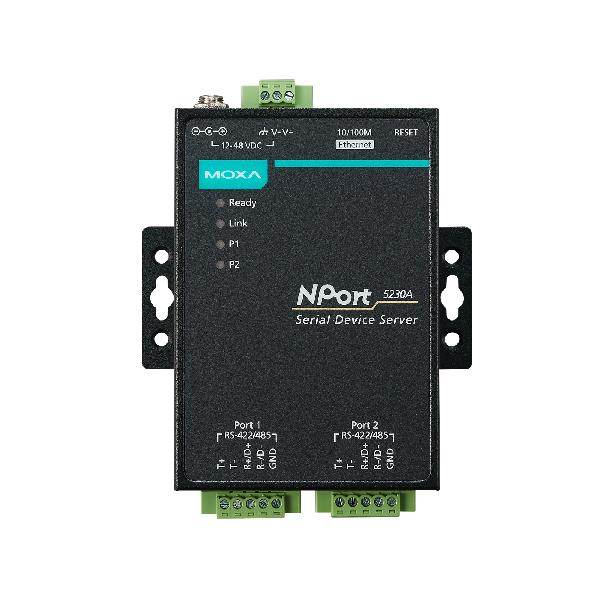

NPort 5230A

Operating Temp. 0 to 55°C
Baudrate 50 bps to 921.6 kbps
Serial Standards RS-422/485
No. of Serial Ports 2
Input Current 119 mA @ 12 VDC
Input Voltage 12-48 VDC

NPort 5230A-T

Operating Temp. -40 to 75°C
Baudrate 50 bps to 921.6 kbps
Serial Standards RS-422/485
No. of Serial Ports 2
Input Current 119 mA @ 12 VDC
Input Voltage 12-48 VDC

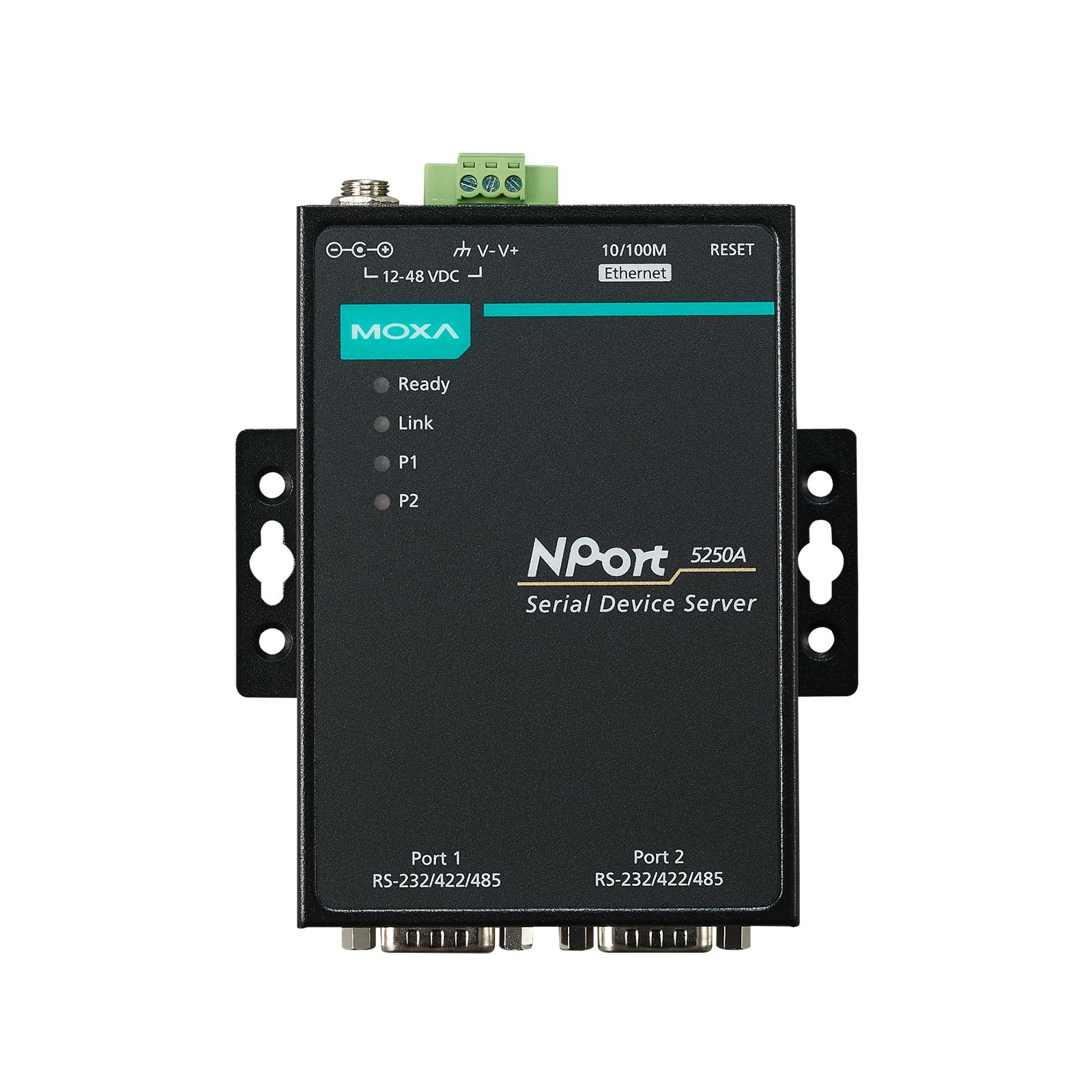

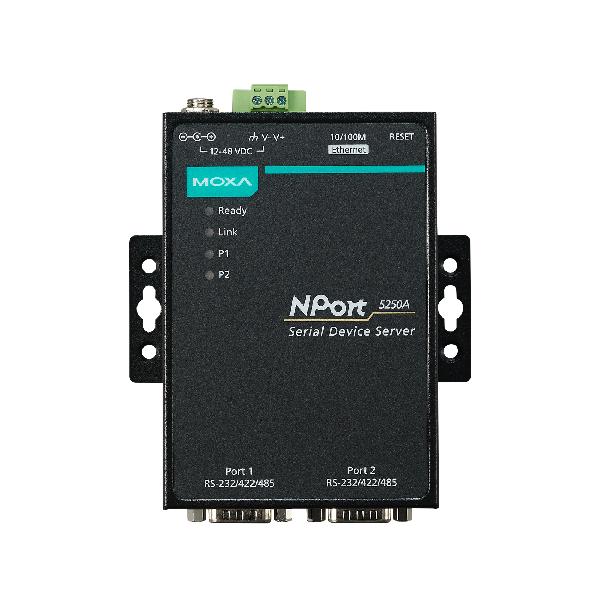

NPort 5250A

Operating Temp. 0 to 55°C
Baudrate 50 bps to 921.6 kbps
Serial Standards RS-232/422/485
No. of Serial Ports 2
Input Current 119 mA @ 12 VDC
Input Voltage 12-48 VDC

NPort 5250A-T

Operating Temp. -40 to 75°C
Baudrate 50 bps to 921.6 kbps
Serial Standards RS-232/422/485
No. of Serial Ports 2
Input Current 119 mA @ 12 VDC
Input Voltage 12-48 VDC
