NPort 5400 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Serial Device Servers  >   General Device Servers

4-port RS-232/422/485 serial device servers

Product Feature

  • User-friendly LCD panel for easy installation
  • Adjustable termination and pull high/low resistors
  • Socket modes: TCP server, TCP client, UDP
  • Configure by Telnet, web browser, or Windows utility
  • SNMP MIB-II for network management
  • 2 kV isolation protection for NPort 5430I/5450I/5450I-T
  • -40 to 75°C operating temperature range (-T model)

Introduction

NPort® 5400 device servers provide many useful features for serial-to-Ethernet applications, including an independent operation mode for each serial port, user-friendly LCD panel for easy installation, dual DC power inputs, and adjustable termination and pull high/low resistors.



Network Readiness for up to 4 Serial Devices

NPort® 5400 device servers can conveniently and transparently connect up to four serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. Data transmission between the serial and Ethernet interfaces is bidirectional. By using NPort® device servers, you not only protect your current hardware investment, but also allow for future network expansion. You can both centralize the management of your serial devices and distribute management hosts over the network.



Independent Operation Mode for Each Serial Port

NPort® 5400 device servers can be used to connect different devices for remote data polling or event handling over a TCP/IP network. Each serial port on the NPort® 5400 operates independently to provide maximum versatility. For example, port 1 can operate in Driver mode, port 2 in TCP Server mode, and ports 3 and 4 in TCP Client mode.



User-friendly LCD Panel for Easy Installation

An LCD panel is built into the NPort® 5400’s top panel, with four buttons for data input, configuration, and operation mode selection. The LCD panel displays the server name, serial number, and IP address, and it can be used to enter or modify parameters such as IP address, netmask, and gateway. (The LCD panel is not available on wide-temperature models.)



MOXA





Dual DC Power Inputs

NPort® 5400 device servers support dual power sources by providing both a DC terminal block input and a DC power jack input. Providing two types of power inputs gives users greater flexibility for use with different applications.



MOXA





Adjustable Termination and Pull High/Low Resistors

The NPort 5400 Series provides adjustable termination and pull high/low resistors for RS-485 applications. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals, and the pull high/low resistors may need adjusting to maintain the integrity of the electrical signal. Since no set of resistor values is universally compatible with all environments, the NPort® 5400 has four sets of DIP switches on the bottom panel to set the termination and pull high/low resistor values.



MOXA

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

1

Magnetic Isolation Protection

1.5 kV (built-in)

Ethernet Software Features

Configuration Options

Telnet Console, Windows Utility, Web Console (HTTP/HTTPS)

Management

ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP

Filter

IGMP v1/v2

Windows Real COM Drivers

Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Linux Real TTY Drivers

Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

Fixed TTY Drivers

SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Android API

Android 3.1.x and later

Time Management

SNTP

Serial Interface

Connector

NPort 5410/5450/5450-T/5450I/5450I-T: DB9 male
NPort 5430/5430I: Terminal block

No. of Ports

4

Serial Standards

NPort 5410: RS-232
NPort 5430 Series: RS-422, RS-485
NPort 5450 Series: RS-232, RS-422, RS-485

Operation Modes

Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, TCP Client, TCP Server, UDP

Baudrate

Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

Isolation

2 kV isolation for NPort 5430I/5450I/5450I-T

Pull High/Low Resistor for RS-485

1 kilo-ohm, 150 kilo-ohms

RS-485 Data Direction Control

ADDC® (automatic data direction control)

Terminator for RS-485

120 ohms

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND



RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

Power Parameters

Input Current

NPort 5410/5450/5450-T: 350 mA @ 12 VDC
NPort 5430: 320 mA @ 12 VDC
NPort 5430I: 530 mA @ 12 VDC
NPort 5450I/5450I-T: 554 mA @ 12 VDC

Input Voltage

12 to 48 VDC

No. of Power Inputs

2

Power Connector

1 removable 3-contact terminal block(s)
Power input jack

Reliability

Automatic Reboot Trigger

Built-in WDT

Alert Tools

Built-in buzzer and RTC (real-time clock)

Physical Characteristics

Housing

Metal

Dimensions (with ears)

181 x 103 x 33 mm (7.14 x 4.06 x 1.30 in)

Dimensions (without ears)

158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in)

Weight

740 g (1.63 lb)

Interactive Interface

LCD panel display (standard temp. models only)
Push buttons for configuration (standard temp. models only)

Installation

Desktop, DIN-rail mounting (with optional kit), Wall mounting

Environmental Limits

Operating Temperature

Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs

Maritime

DNV-GL (standard temp. models only)

Medical

EN 60601-1-2 Class B, EN 55011 (NPort 5410/5450/5450I only)

Safety

UL 60950-1

MTBF

Time

NPort 5410: 310,331 hrs
NPort 5430/5430I: 265,650 hrs
NPort 5450/5450I: 206,903 hrs

Standards

Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty
Name Type Version Release Date
Datasheet for NPort 5400 Series Datasheet V1.4 26 November 2019

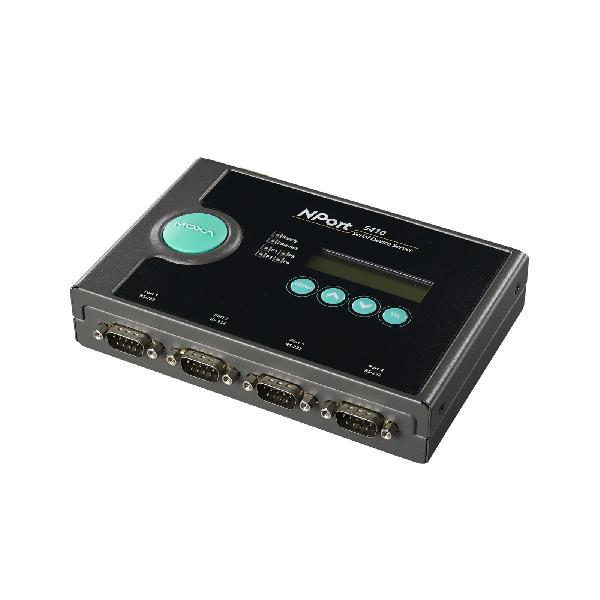

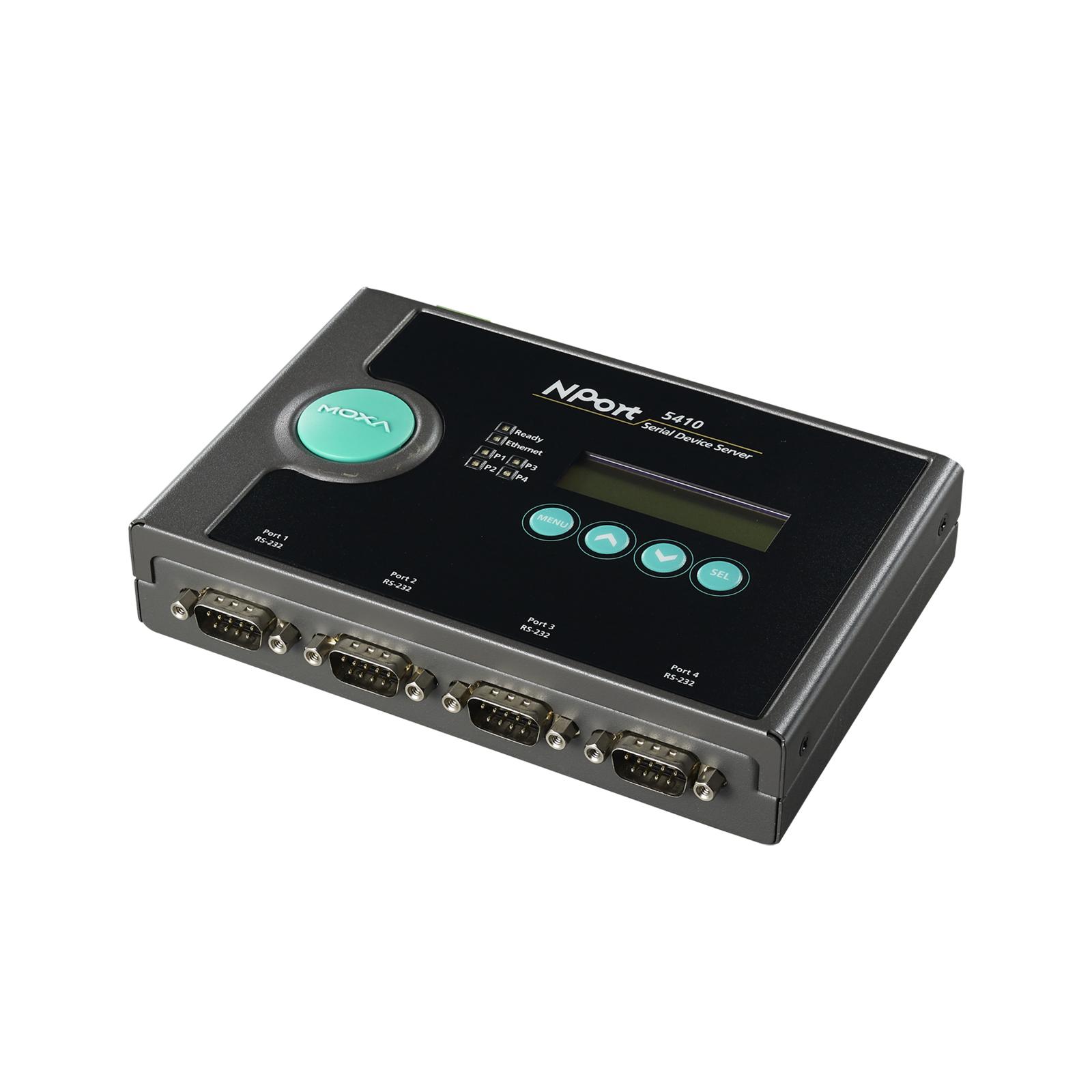

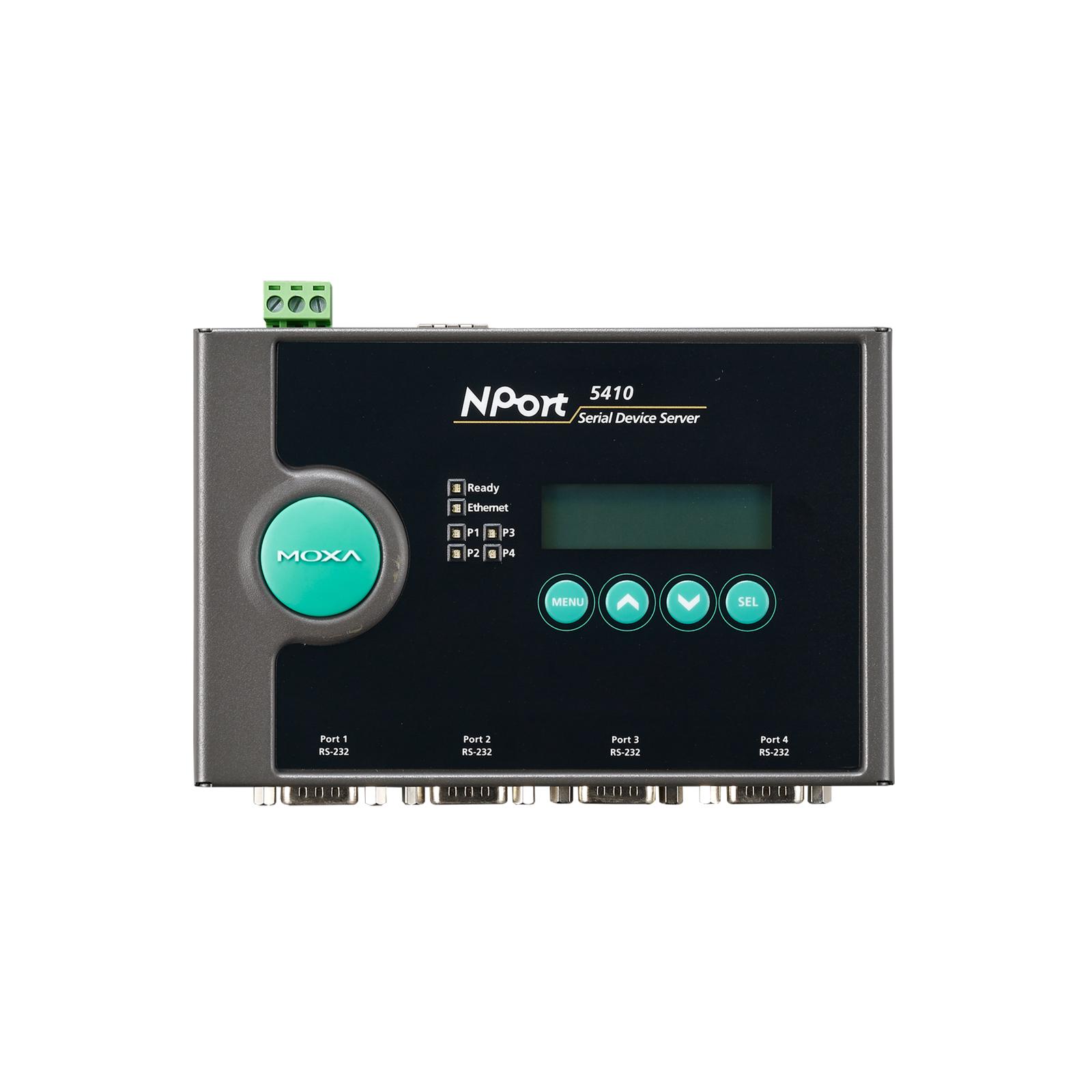

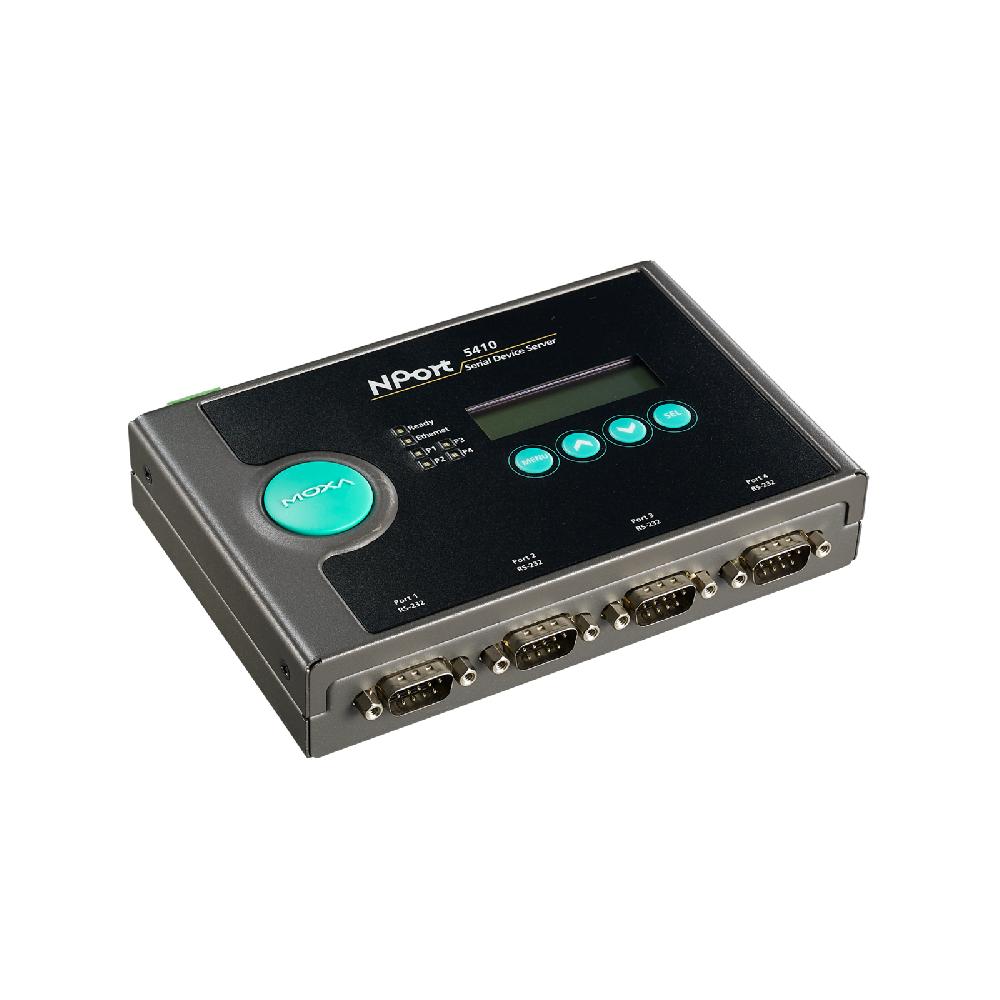

NPort 5410

Serial Interface RS-232
Serial Interface Connector DB9 male
Serial Interface Isolation -
Operating Temp. 0 to 55°C
Input Voltage 12 to 48 VDC

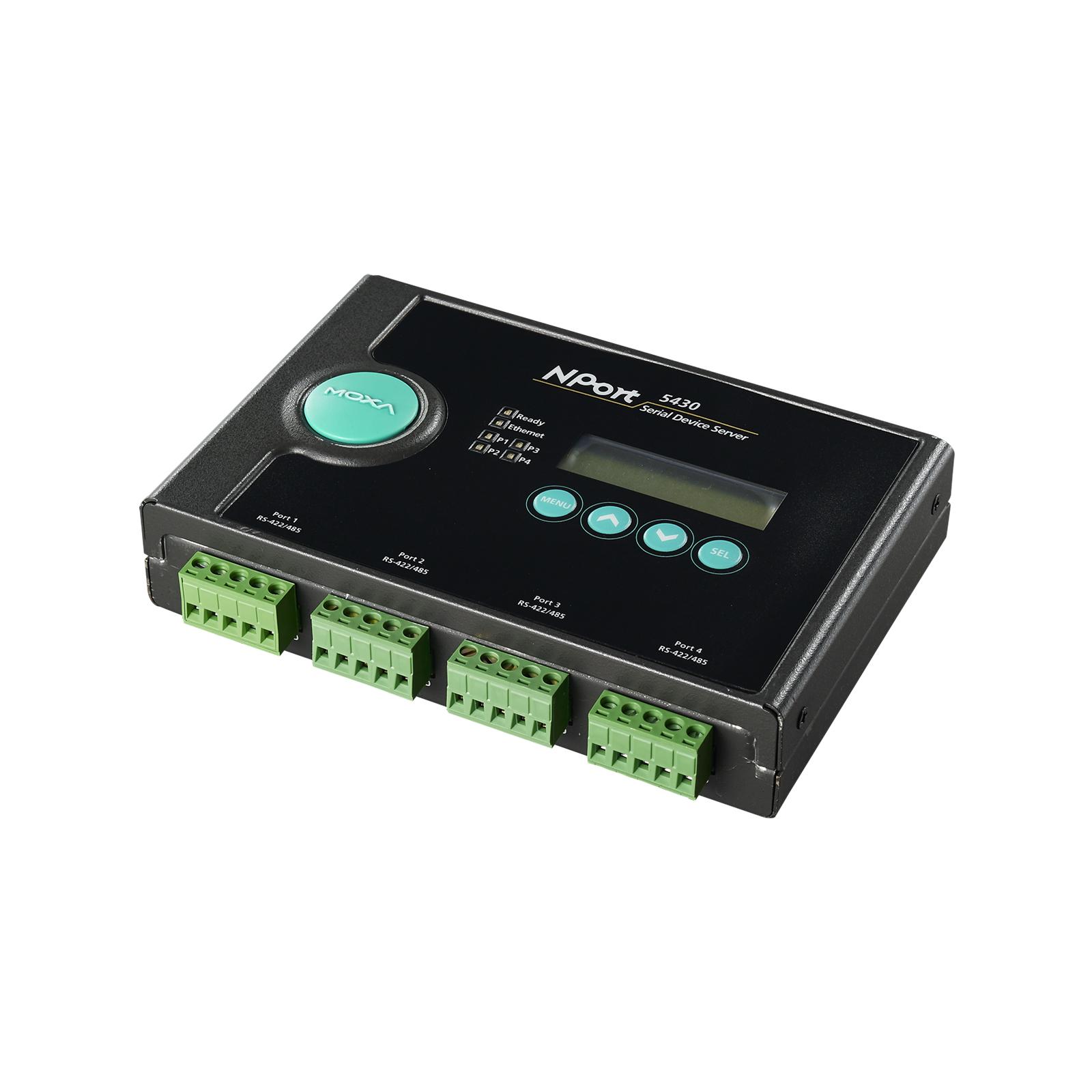

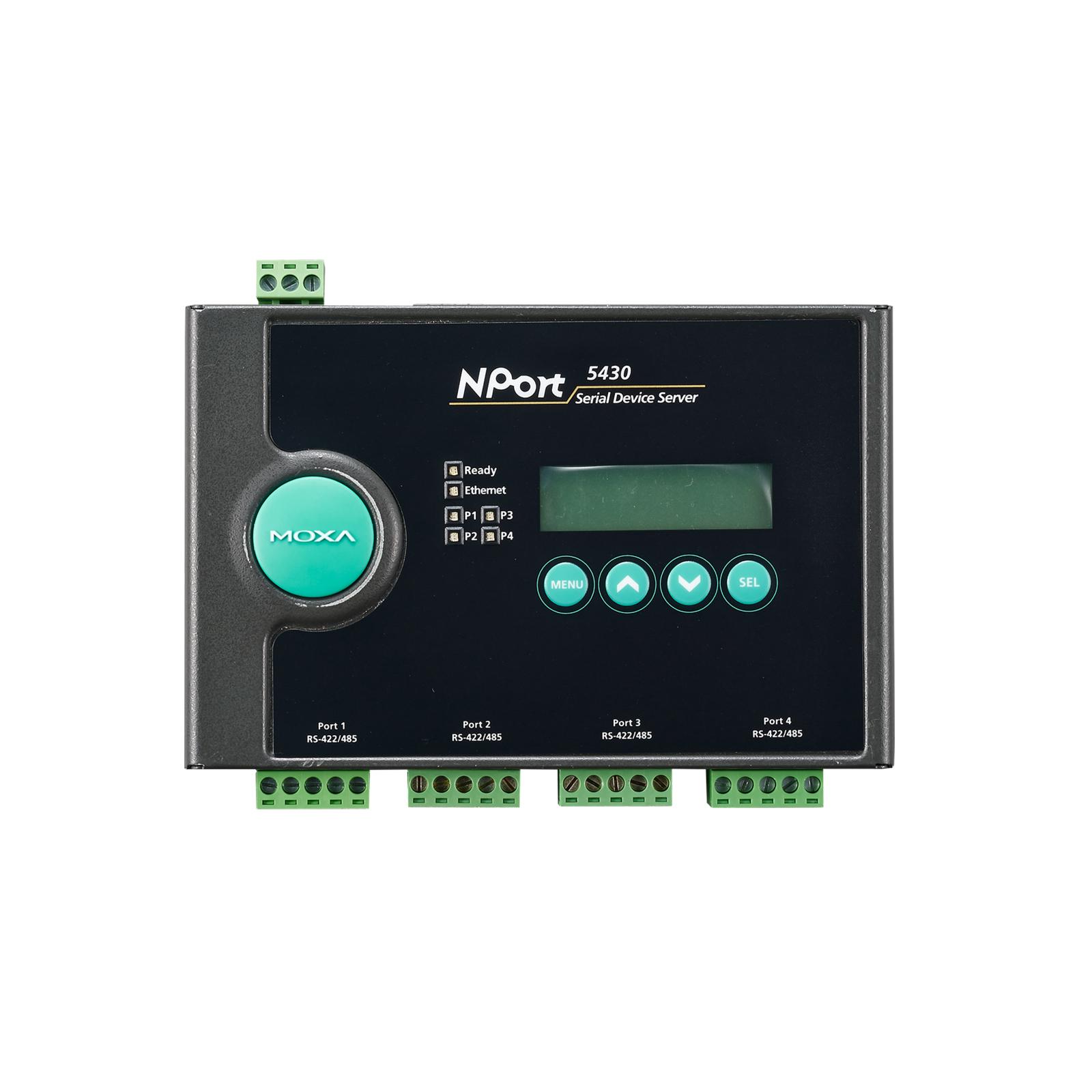

NPort 5430

Serial Interface RS-422/485
Serial Interface Connector Terminal block
Serial Interface Isolation -
Operating Temp. 0 to 55°C
Input Voltage 12 to 48 VDC

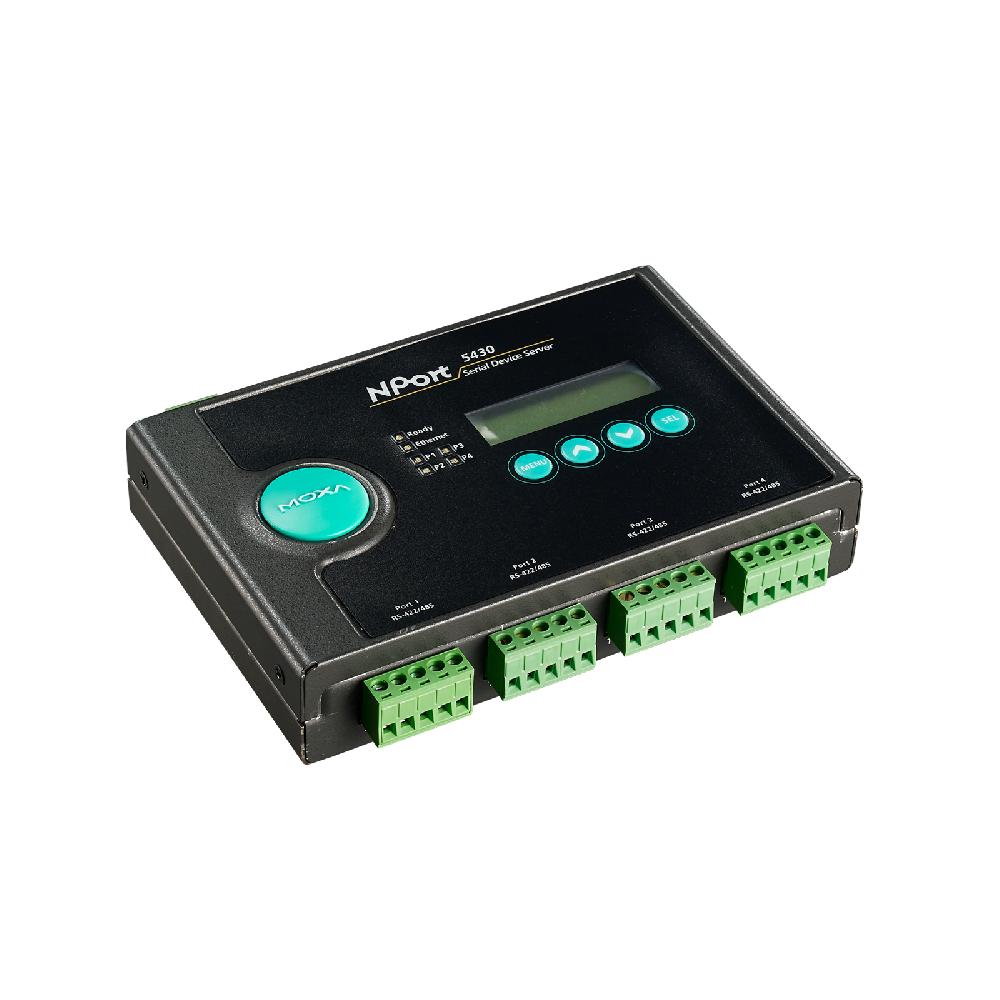

NPort 5430I

Serial Interface RS-422/485
Serial Interface Connector Terminal block
Serial Interface Isolation 2 kV
Operating Temp. 0 to 55°C
Input Voltage 12 to 48 VDC

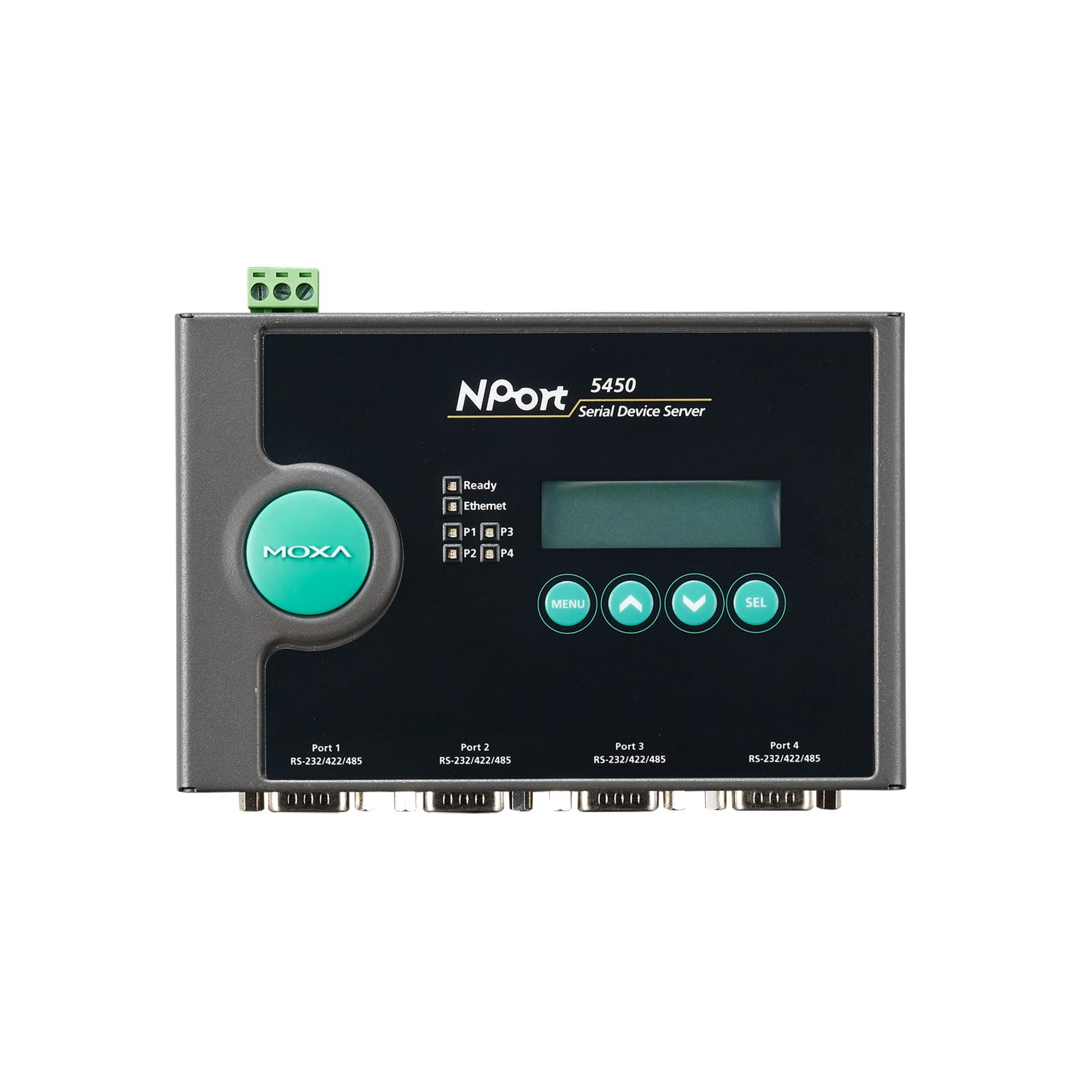

NPort 5450

Serial Interface RS-232/422/485
Serial Interface Connector DB9 male
Serial Interface Isolation -
Operating Temp. 0 to 55°C
Input Voltage 12 to 48 VDC

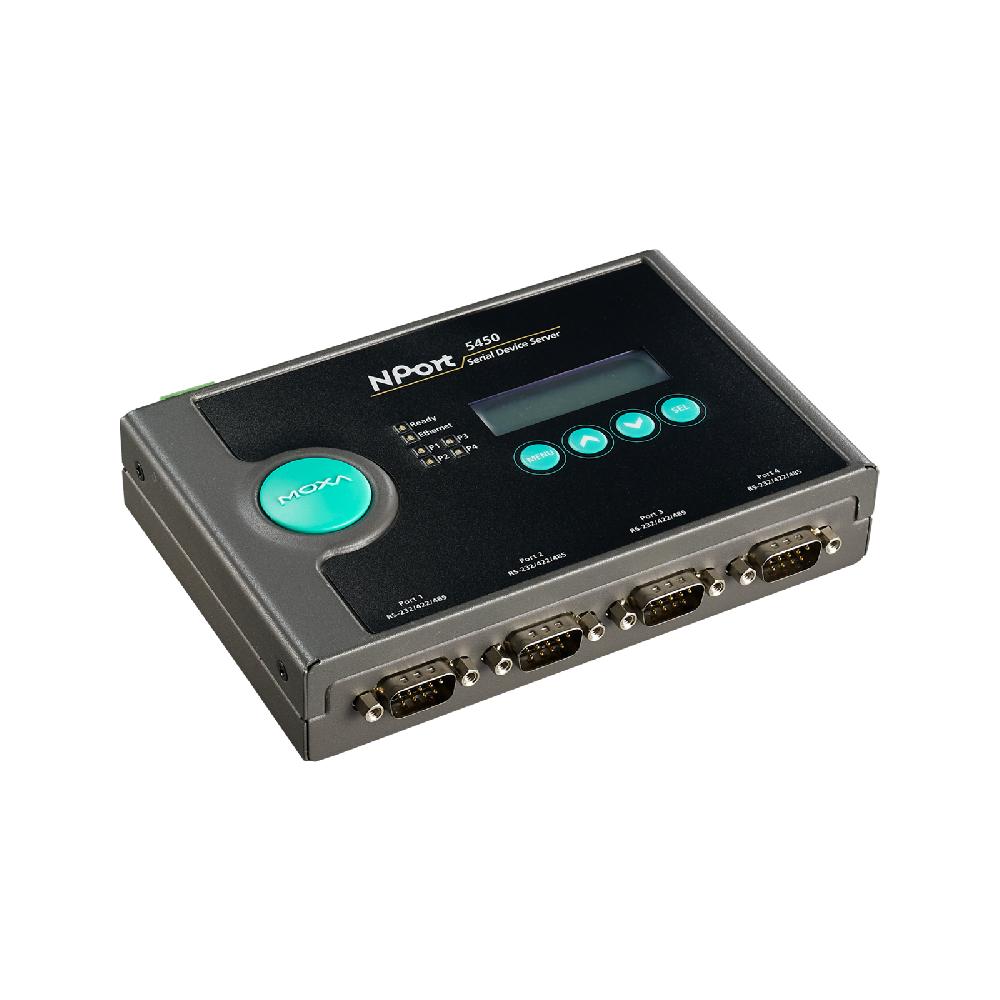

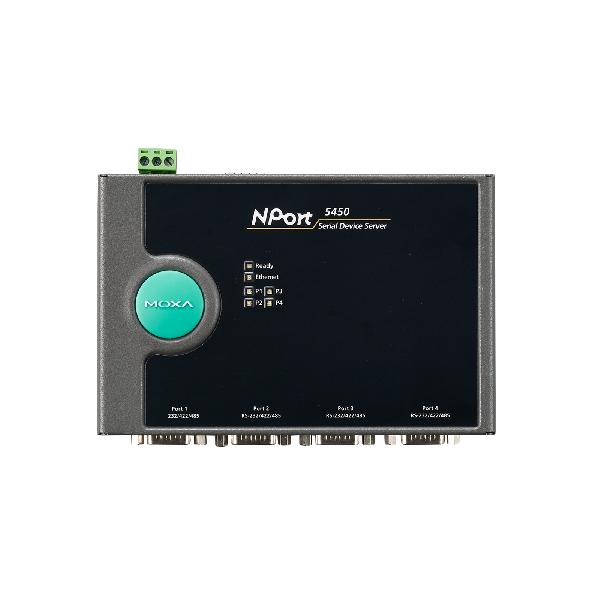

NPort 5450-T

Serial Interface RS-232/422/485
Serial Interface Connector DB9 male
Serial Interface Isolation -
Operating Temp. -40 to 75°C
Input Voltage 12 to 48 VDC

NPort 5450I

Serial Interface RS-232/422/485
Serial Interface Connector DB9 male
Serial Interface Isolation 2 kV
Operating Temp. 0 to 55°C
Input Voltage 12 to 48 VDC

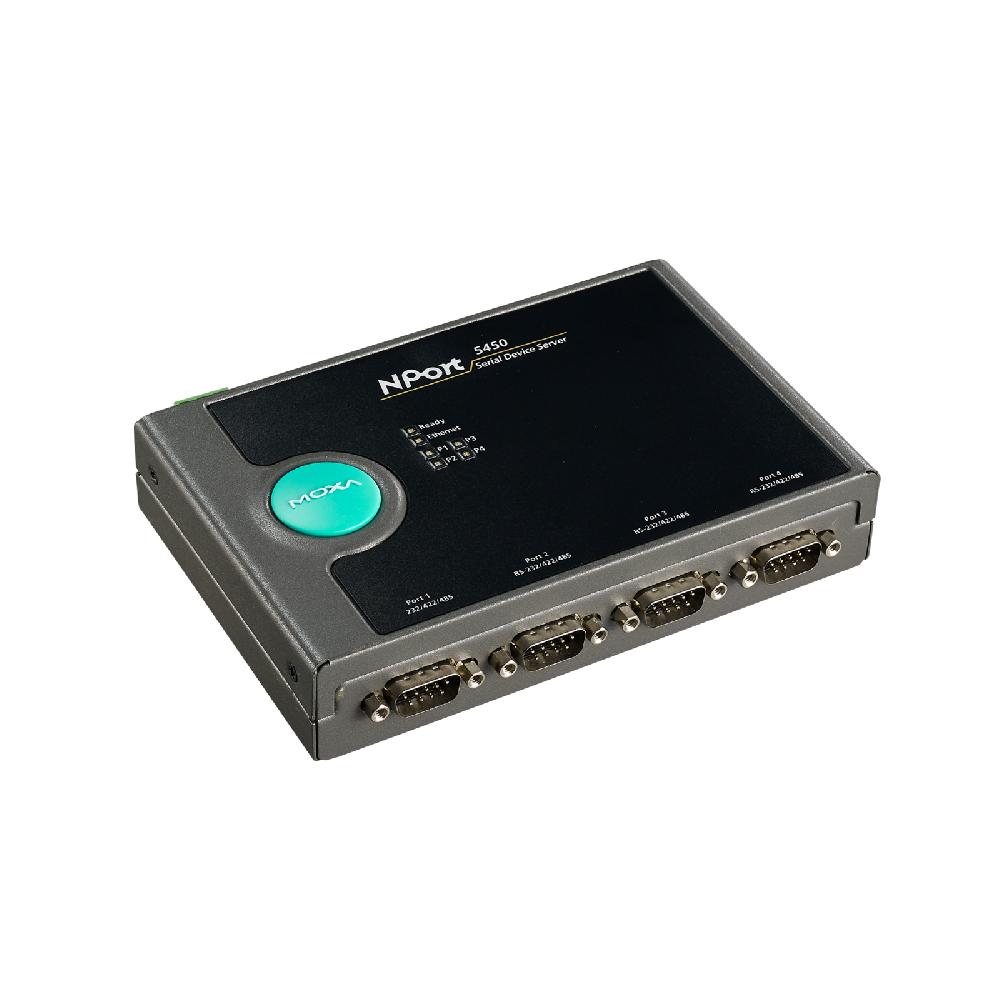

NPort 5450I-T

Serial Interface RS-232/422/485
Serial Interface Connector DB9 male
Serial Interface Isolation 2 kV
Operating Temp. -40 to 75°C
Input Voltage 12 to 48 VDC
