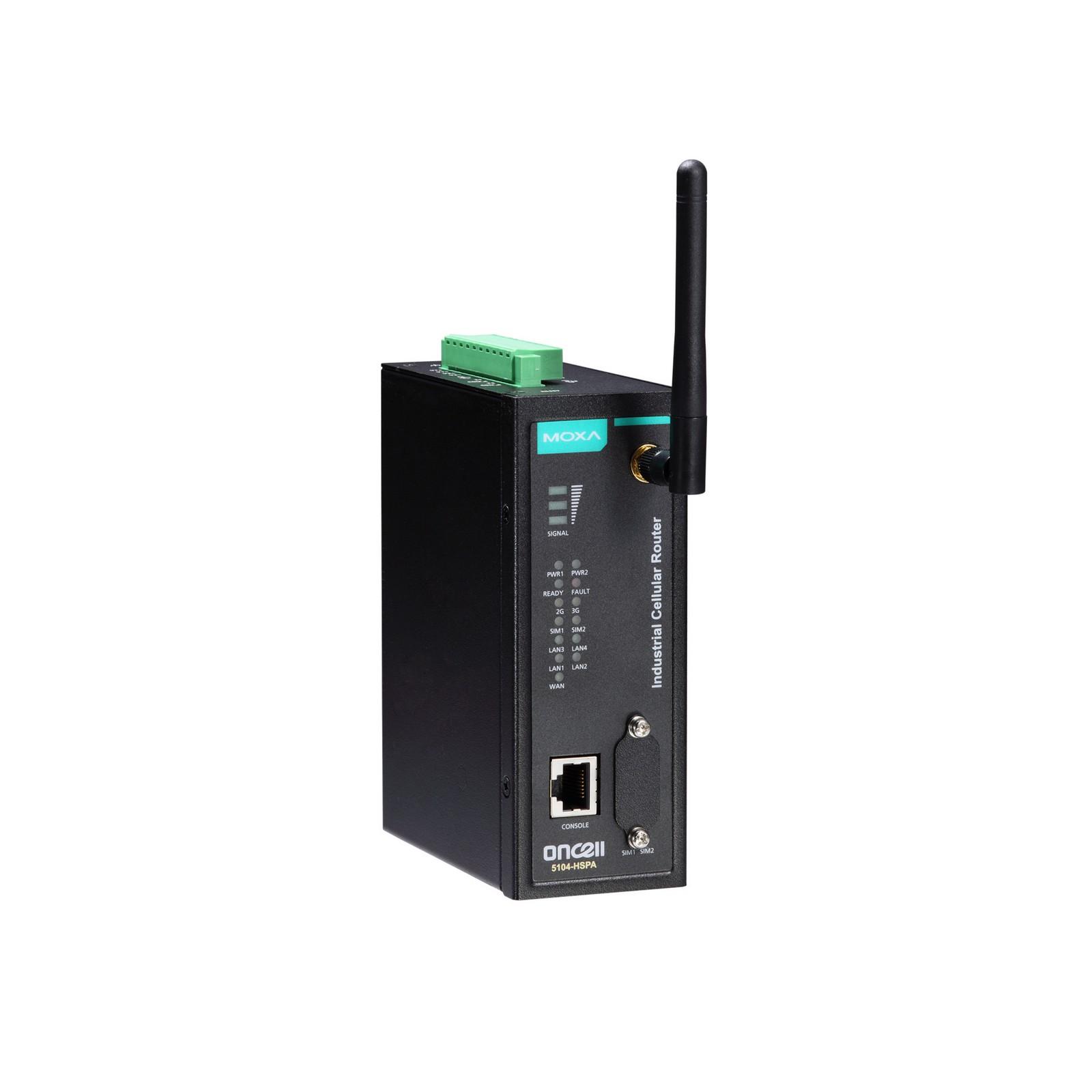

OnCell 5104-HSPA Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Cellular Gateways/Routers/Modems  >   Cellular Routers

Industrial five-band GSM/GPRS/EDGE/UMTS/HSPA cellular routers

Product Feature

  • Five-band UMTS/HSPA 800/850/AWS/1900/2100 MHz
  • Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz
  • Cellular WAN and Ethernet WAN backup mechanism for a complete path redundancy
  • Primary and secondary power inputs for power source redundancy
  • Cellular link redundancy with dual-SIM GuaranLink support
  • DIN-rail housing and wall-mountable housing
  • Connect to 4 10/100BaseT(X) devices over an integrated VPN
  • 2 digital inputs and 1 relay output
  • Centralized private IP management software with OnCell Central Manager

Introduction

The OnCell 5104-HSPA high-performance industrial-grade cellular routers allow up to 4 Ethernet-based devices to simultaneously use a single cellular data account for primary or backup network connectivity to remote sites and devices. It provides the functionality of a cellular router, firewall, and switch in one device and is integrated with Moxa’s GuaranLink function to ensure zero data loss and on-demand cellular communication.

The OnCell 5104-HSPA comes with a built-in relay output that can be configured to indicate the priority of events when notifying or warning engineers in the field, and the two digital inputs allow you to connect basic I/O devices, such as sensors, to the cellular network. The OnCell 5104-HSPA uses 12 to 48 VDC power inputs with a screw-on design for greater reliability, and the Ethernet ports come with 1.5 kV magnetic isolation protection to keep your system safe from unexpected electrical discharges.

Cellular Interface

Cellular StandardsGSM, GPRS, EDGE, UMTS, HSPA
Band OptionsUMTS/HSPA 800 MHz / 850 MHz / AWS MHz / 1900 MHz / 2100 MHz
Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz
HSPA Data Rates14.4 Mbps DL, 5.76 Mbps UL
EDGE Data Rates237 kbps DL, 237 kbps UL
EDGE Multi-Slot Class12
EDGE Terminal Device ClassClass B
GPRS Data Rates85.6 kbps DL, 85.6 kbps UL
GPRS Multi-Slot Class12
GPRS Terminal Device ClassClass B
No. of SIMs2
SIM Control Voltage3 V
Cellular Antenna Connectors1 SMA female

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)5
Total Port Count5
Highest Speed100M
NoteOne of the Ethernet ports is a WAN port.

Serial Interface

Console PortRS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

Input/Output Interface

Alarm Contact Channels1, Resistive load: 1 A @ 24 VDC
Digital Input Channels2
Digital Inputs+13 to +30 V for state 1
+3 to -30 V for state 0

Ethernet Software Features

ManagementARP, BOOTP, DDNS, DHCP Server/Client, DNS, PPPOE, PPP, HTTP, IPv4, SMTP, SNMPv1/v2c/v3,
TCP/IP, Telnet, UDP, Web Console, Serial Console, Telnet Console, Remote SMS Control,
Wireless Search Utility, Auto IP Report, OnCell Central Manager
SecurityHTTPS/SSL, IPsec, SSH
Time ManagementSNTP
RoutingStatic Route, Port forwarding, NAT
Windows Real COM DriversWindows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64),
Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0,
Windows XP Embedded

Firewall

FilterICMP
FirewallWAN IP Filtering

Physical Characteristics

HousingAluminum
IP RatingIP30
Dimensions51 x 135 x 103 mm (2 x 5.32 x 4.16 in)
Weight650 g (1.43 lb)

Environmental Limits

Operating TemperatureOnCell 5104-HSPA: -30 to 55°C (-22 to 131°F)
OnCell 5104-HSPA-T: -30 to 70°C (-22 to 158°F)
Storage Temperature (package included)-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Power Parameters

Power ConnectorTerminal block
Input VoltageRedundant dual inputs, 12 to 48 VDC
Input Current0.95 A @ 12 VDC, 0.25 A @ 48 VDC
Reverse Polarity ProtectionSupported

Standards and Certifications

SafetyUL 60950-1
EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Radio FrequencyFCC Part 22H, FCC Part 24E, EN 301 489-1, EN 301 489-7, EN 301 489-24,
EN 301 511, EN 301 908

MTBF

Time483,175 hrs
StandardsTelcordia SR332

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for OnCell 5104-HSPA Series Datasheet V1.2 29 August 2019

OnCell 5104-HSPA

Cellular Standard UMTS/HSPA
HSPA Band 800/850/AWS/1900/2100 MHz
Operating Temp. -30 to 55°C
Mounting DIN rail

OnCell 5104-HSPA-T

Cellular Standard UMTS/HSPA
HSPA Band 800/850/AWS/1900/2100 MHz
Operating Temp. -30 to 70°C
Mounting DIN rail
