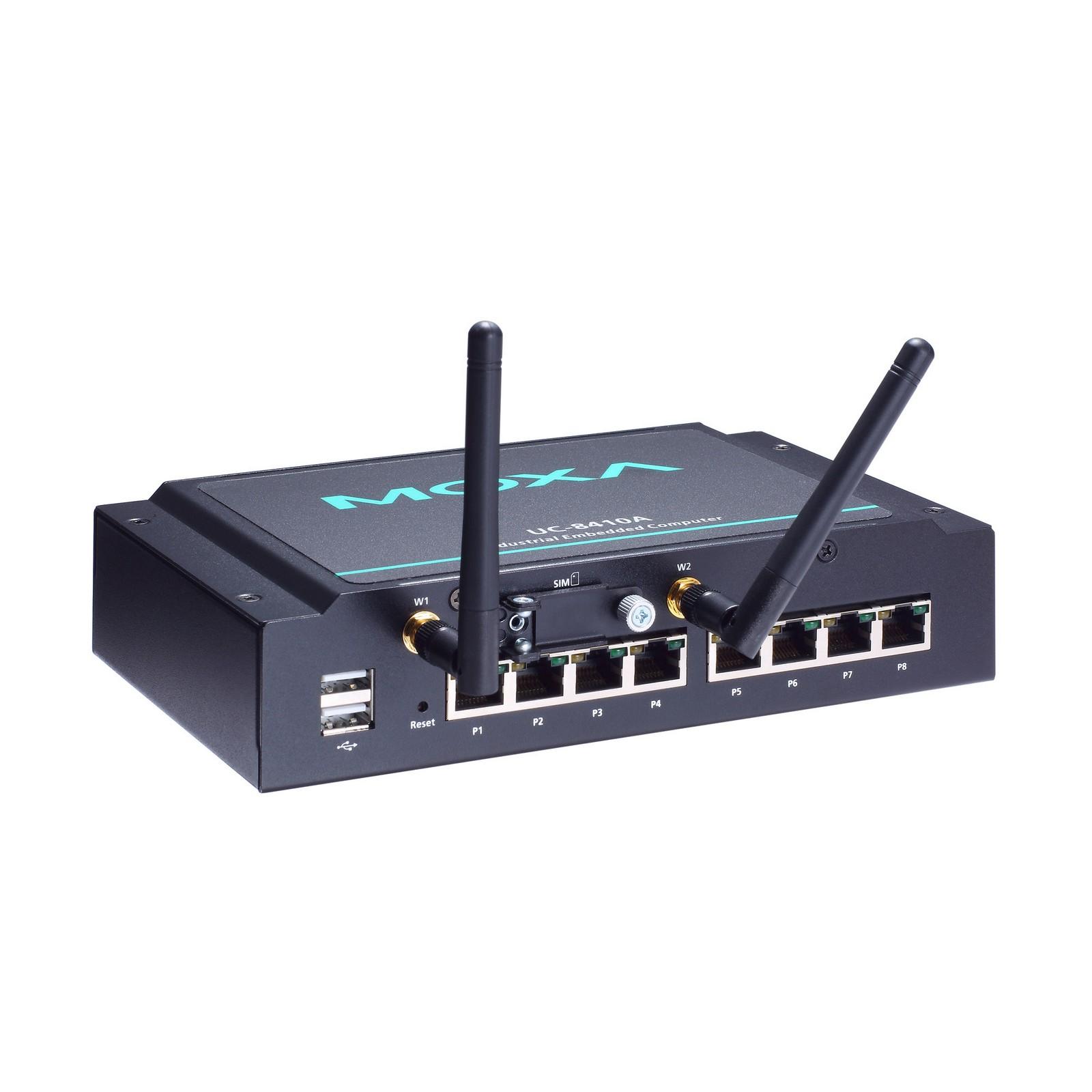

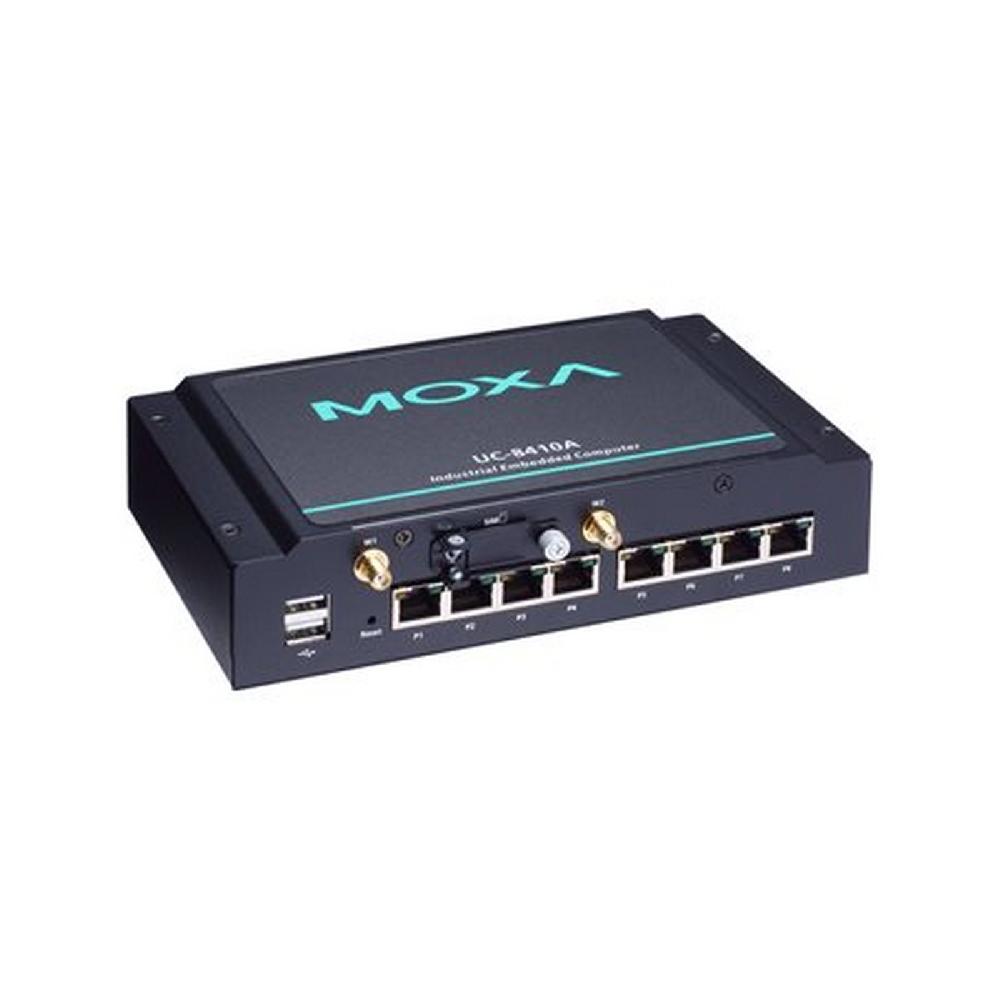

The UC-8410A Series embedded computers support a rich collection of communication interfaces, including 8 RS-232/422/485 serial ports, 3 Ethernet ports, 1 PCIe mini slot for a wireless module, 4 digital input channels, 4 digital output channels, 1 mSATA slot, and 2 USB 2.0 hosts.
The UC-8410A computer uses the Freescale Cortex-A7 dual-core 1 GHz RISC CPU. This powerful computing engine supports several useful communications functions, without generating too much heat. The built-in 8 GB eMMC card and 1 GB DDR3 SDRAM give you enough memory to run your application software, and the mSATA slot provides the flexibility of adding additional data storage.
The UC-8410A computers come with a variety of communication interfaces, including serial ports, Ethernet ports, wireless communication slot, and digital input/output channels, making them ideal as communication platforms for industrial applications that require network and device communications.
The UC-8410A Series comes with Linux Debian 8 preinstalled to provide an open software operating system for software program development. This makes the UC-8410A computer an optimal solution for use with industrial applications, but at minimal cost and effort. In addition to the standard model of the UC-8410A, a -40 to 75°C wide-temperature model is available for harsh industrial environments.
Computer | |
| CPU | Armv7 Cortex-A7 dual-core 1 GHz |
| System Memory Pre-installed | 1 GB DDR3L |
| Storage Pre-installed | 8 GB eMMC |
| Pre-installed OS | Linux Debian 8 (kernel 4.1) |
| Storage Slot | SD slots x 1 mSATA slots x 1, internal mini-PCIe socket |
Computer Interface | |
| Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 3 |
| USB 2.0 | USB 2.0 hosts x 2, type-A connectors |
| Digital Input | DIs x 4 |
| Digital Output | DOs x 4 |
| Expansion Slots | UC-8410A-LX Series: 1 |
| Cellular Antenna Connector | UC-8410A-LX Series: 2 |
| Number of SIMs | UC-8410A-LX Series: 1 |
| SIM Format | UC-8410A-LX Series: Mini |
| Console Port | 1 x 4-pin header to DB9 console port |
| Serial Ports | RS-232/422/485 ports x 8, software-selectable (RJ45) |
Digital Inputs | |
| Channel-to-Channel Isolation | 3000 VDC |
| Connector | Screw-fastened Euroblock terminal |
| Dry Contact | On: short to GND Off: open |
| Sensor Type | Dry contact Wet contact (NPN or PNP) |
| Wet Contact (DI to COM) | On: 10 to 30 VDC Off: 0 to 3 VDC |
Digital Outputs | |
| Connector | Screw-fastened Euroblock terminal |
| Current Rating | 200 mA per channel |
| I/O Type | Sink |
| Voltage | Open-drain to 30 VDC |
LED Indicators | |
| System | Power x 1 System Ready x 1 Storage x 1 Programmable x 10 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
Serial Interface | |
| Baudrate | 50 bps to 115.2 kbps |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Parity | None, Even, Odd, Space, Mark |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
Power Parameters | |
| Input Voltage | 12 to 48 VDC |
| Power Connector | Terminal block (for DC models) |
| Power Consumption | 19 W (max.) |
Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 200 x 120 x 48.6 mm (7.87 x 4.72 x 1.91 in) |
| Weight | 1,000 g (2.21 lb) |
| Installation | Wall mounting (standard) |
Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | Standard Models: -20 to 75°C (-4 to 167°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF |
| Safety | UL 60950-1 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-64 |
Declaration | |
| Green Product | RoHS, CRoHS, WEEE |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for UC-8410A Series | Datasheet | V1.2 | 21 January 2020 |
| CPU | Armv7 Cortex-A7 dual-core 1 GHz |
| OS | Debian 8 |
| RAM | 1 GB |
| eMMC | 8 GB |
| mSATA | 1 slot |
| mPCIe Slot for Wireless Module | ✓ |
| SIM Slots | 1 |
| USB | 2 |
| Ethernet Ports | 3 |
| Serial Ports | 8 |
| DIO Ports | 4 x DI, 4 x DO |
| Operating Temp. | -10 to 60°C |
| CPU | Armv7 Cortex-A7 dual-core 1 GHz |
| OS | Debian 8 |
| RAM | 1 GB |
| eMMC | 8 GB |
| mSATA | 1 slot |
| mPCIe Slot for Wireless Module | ✓ |
| SIM Slots | 1 |
| USB | 2 |
| Ethernet Ports | 3 |
| Serial Ports | 8 |
| DIO Ports | 4 x DI, 4 x DO |
| Operating Temp. | -40 to 75°C |
| CPU | Armv7 Cortex-A7 dual-core 1 GHz |
| OS | Debian 8 |
| RAM | 1 GB |
| eMMC | 8 GB |
| mSATA | 1 slot |
| mPCIe Slot for Wireless Module | - |
| SIM Slots | - |
| USB | 2 |
| Ethernet Ports | 3 |
| Serial Ports | 8 |
| DIO Ports | 4 x DI, 4 x DO |
| Operating Temp. | -10 to 60°C |
| CPU | Armv7 Cortex-A7 dual-core 1 GHz |
| OS | Debian 8 |
| RAM | 1 GB |
| eMMC | 8 GB |
| mSATA | 1 slot |
| mPCIe Slot for Wireless Module | - |
| SIM Slots | - |
| USB | 2 |
| Ethernet Ports | 3 |
| Serial Ports | 8 |
| DIO Ports | 4 x DI, 4 x DO |
| Operating Temp. | -40 to 75°C |
