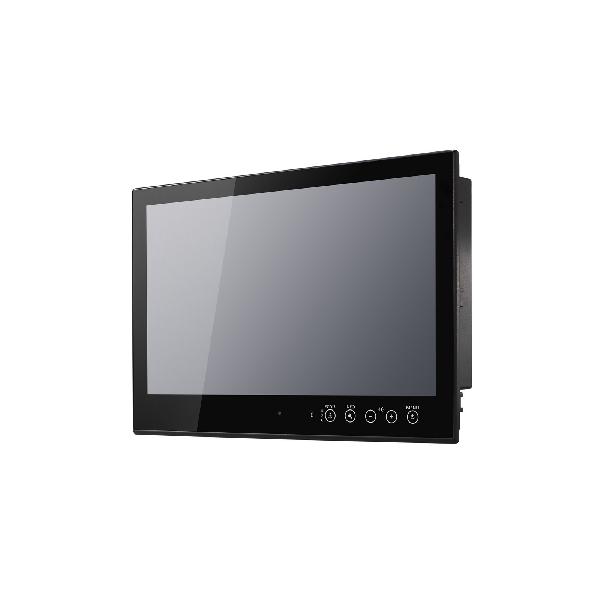

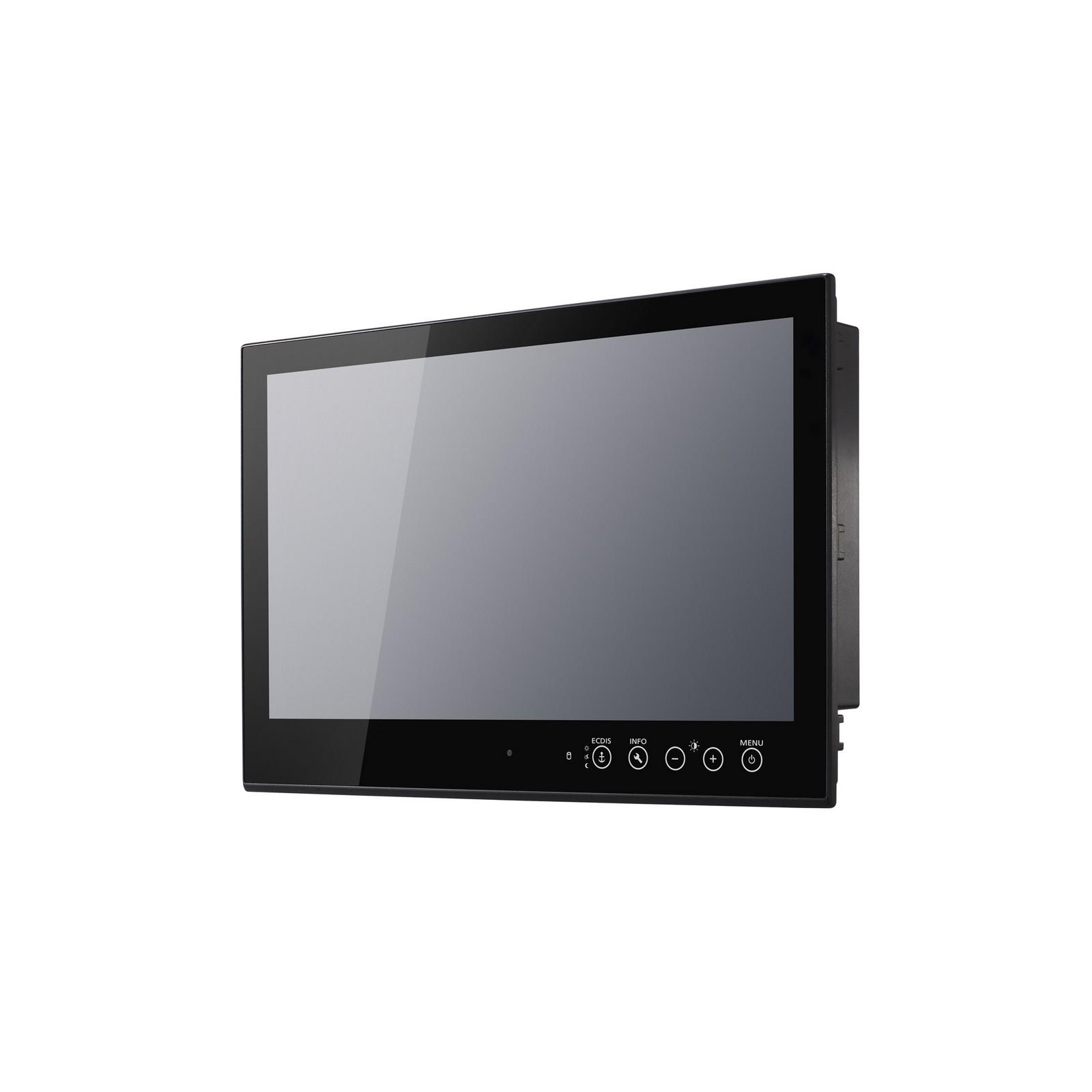

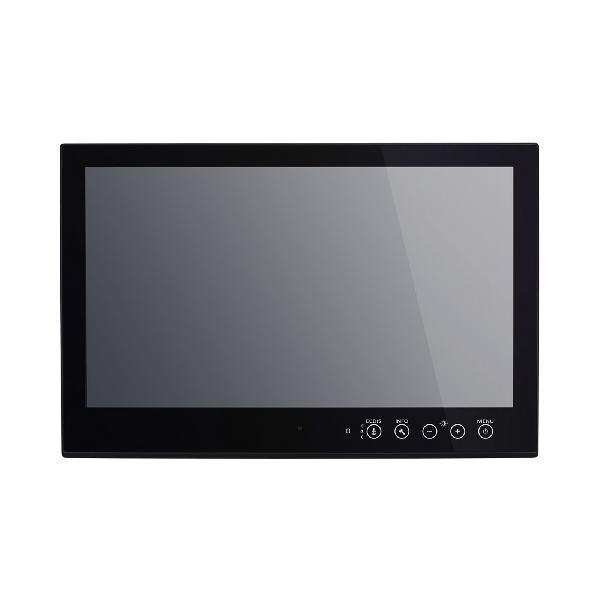

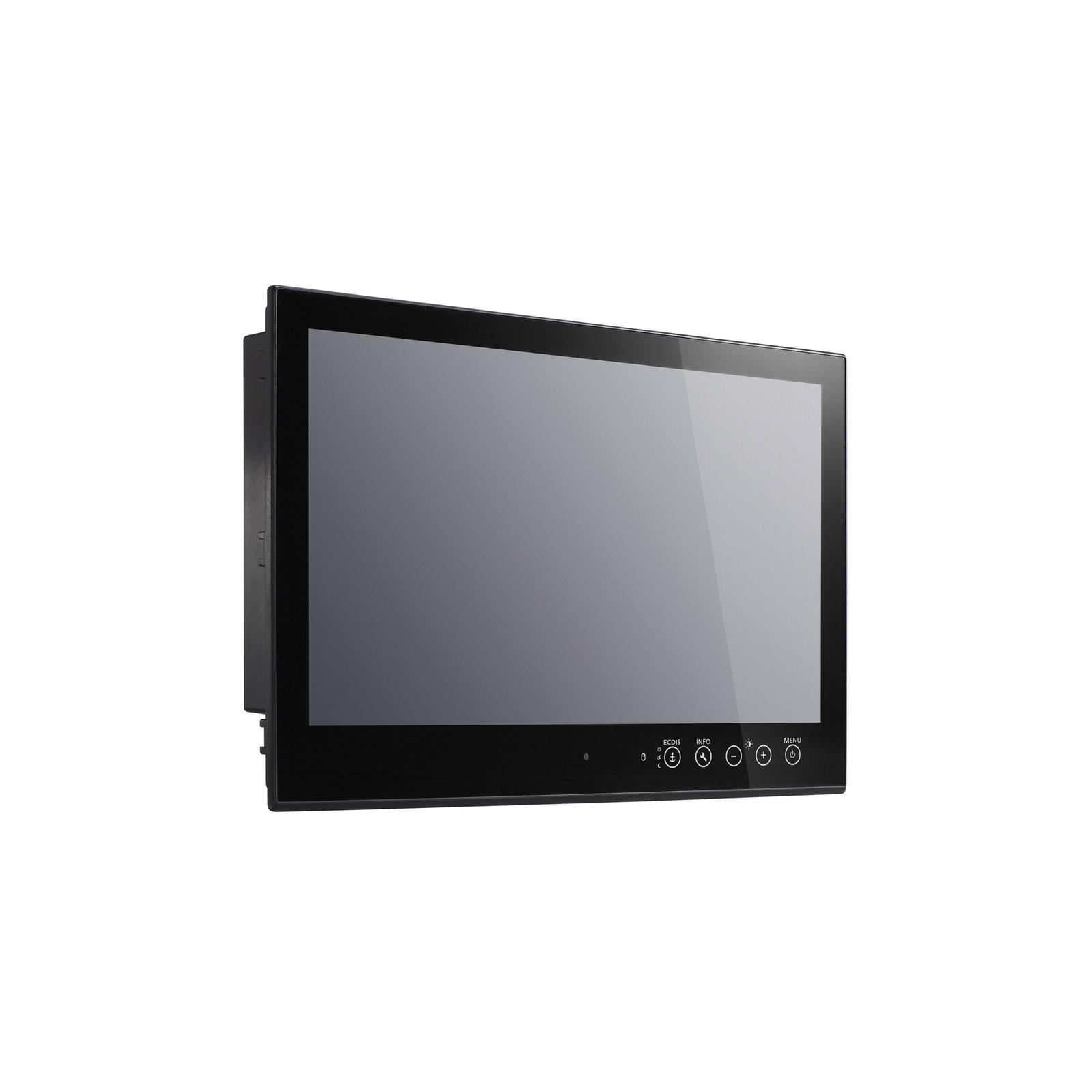

MPC-2240 Series

Home  >   MOXA  >   Industrial Computing  >
Panel Computers & Displays

24-inch ECDIS color calibrated, fanless panel computers

Product Feature

  • 24-inch panel computer
  • Color calibrated for ECDIS compliance (available by CTOS)
  • Intel® Core™ processor: i7 3517UE 1.7 GHz or Celeron® 1047UE 1.40 GHz
  • SavvyTouch display controls
  • Fanless system design
  • Built-in NMEA 0183 and 3-in-1 software selectable RS-232/422/485 interfaces
  • Multiple power supplies (AC & DC)

Introduction

MPC-2240 Series panel computers feature Intel® processors Ivy Bridge Core or Celeron and built-in 4 GB system memory, delivering a reliable, high-performance platform of wide versatility for use in industrial marine environments. With its RS-232/422/485 serial, NMEA 0183, and Gigabit Ethernet ports, the MPC- 2240 panel computer supports a wide variety of serial- and marine-specific interfaces alongside high-speed IT communications, all with native network redundancy.

The MPC-2240 Series comes with a range of standard display enhancements useful in industrial environments (including 0 to 100% full-range dimming, 178°/178° wide viewing angles, optional optical bonding, and/or multi-touch screen), as well as Moxa’s innovative SavvyTouch display controls.

The MPC-2240 panel computers are compliant with several marine industry standards, including IEC 60945 4th, IEC 61174, IEC 61162, DNV 2.4, and IACS E10, verifying their resilient and durability in marine operations. An optional IP65-rated unibody shell provides strong additional protection against the harsh conditions found in marine environments. The MPC-2240 Series delivers rugged, type-approved, high-performance, and user-friendly panel computers that are perfect for ECDIS navigation systems and other marine IBS applications.

Computer

CPUMPC-2240X/2240Z: Intel® Celeron® Processor 1047UE (2M Cache, 1.40 GHz)
MPC-2247X/2247Z: Intel® Core™ i7-3517UE Processor (4M Cache, up to 2.80 GHz)
System ChipsetMobile Intel® HM65 Express Chipset
Graphics ControllerIntel® HD Graphics 520
System Memory Pre-installed4 GB DDR3/DDR3L
System Memory SlotSODIMM DDR3/DDR3L slot x 1
Pre-installed OSOS is not pre-installed
Supported OSWindows 7 Pro for Embedded Systems
Windows Embedded Standard 7 (WS7P) 64-bit
Windows 10 Pro 64-bit
Windows 10 Embedded IoT Ent 2016 LTSB High End EPKEA
Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA
Storage Slot2.5-inch HDD/SSD slots x 2

Computer Interface

Ethernet PortsAuto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial PortsRS-232/422/485 ports x 2, software selectable (DB9 male)
USB 2.0USB 2.0 hosts x 4, type-A connectors
Audio Input/OutputLine in x 1, Line out x 1, 3.5 mm phone jack
PS/2Keyboard PS/2 x 1, Mouse PS/2 x 1
Video OutputDVI-D x 1, 29-pin DVI-D connectors (female)
VGA x 1, 15-pin D-sub connector (female)
NMEA PortNMEA 0183 ports x 8 (terminal block)

LED Indicators

SystemPower x 1
LAN2 per port (10/100/1000 Mbps)

Display

Active Display Area531.36 (H) x 98.89 (V) mm
Aspect Ratio16:9
Contrast Ratio5000:1
Light Intensity (Brightness)300 cd/m2
Max. No. of Colors16.7M (8-bit/color)
Panel Size24-inch viewable image
Panel TypeMVA
Pixel Pitch (RGB)0.276 (H) x 0.276 (V) mm
Pixels1920 x 1080
Response Time25 ms (gray to gray)
Viewing Angles178°/178°

Touch Function

Touch TypeMPC-2240Z/2247Z: Capacitive Touch (PCAP)
MPC-2240X/2247X: None
Touch Support PointsMPC-2240Z/2247Z: 4 points

Serial Interface

Baudrate50 bps to 115.2 kbps
Data Bits5, 6, 7, 8
Flow ControlRTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485,
RTS Toggle (RS-232 only)
ParityNone, Even, Odd, Space, Mark
Stop Bits1, 1.5, 2
NMEA InterfaceSerial Standards:
NMEA 0183: RS-422
NMEA 2000: CAN bus (available on request)
Baudrate: 4800 bps
Data Bits: 8
Handshake: None
Optical Isolation Protection: 3 kV
Parity: None
Serial Standards: NMEA 0183v2 (NMEA 2000 available on request)
Stop Bits: 1, 1.5, 2
Voltage Differential: -6 V to +6 V (maximal differential level)

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND

Power Parameters

Input Voltage100 to 240 VAC, 18 to 34 VDC

Physical Characteristics

HousingMetal
IP RatingIP54, front
IP20, rear
Dimensions595 x 393 x 75 mm (23.44 x 15.48 x 2.95 in)
Weight12,400 g (27.34 lb)

Environmental Limits

Operating Temperature-15 to 55°C (5 to 131°F)
Storage Temperature (package included)-20 to 60°C (-4 to 140°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
Environmental TestingIEC 60068-2-1, DNVGL-CG-0339
IEC 60068-2-2, DNVGL-CG-0339
IEC 60068-2-2, IEC 60945
IEC 60068-2-30, IEC 60945
MaritimeABS, CCS, DNV-GL
SafetyEN 60950-1, IEC 60950-1, UL 60950-1
VibrationIEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNVGL-CG-0339

Warranty

Warranty PeriodLCD: 1 year
System: 3 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for MPC-2240 Series Datasheet V1.5 03 September 2019

MPC-2240X

Panel 24" (16:9) 300 nits
CPU Celeron 1047UE
RAM 4 GB
OS Preinstalled
Touchscreen
LAN 2
Serial 2
NMEA 0183 8
Video Outputs 1 x VGA 1 x DVI-D
Power Input 12/24 VDC 100-240 VAC
IP Rating IP54 (front), IP20 (rear)
Operating Temp. -15 to 55°C

MPC-2240Z

Panel 24" (16:9) 300 nits
CPU Celeron 1047UE
RAM 4 GB
OS Preinstalled
Touchscreen Capacitive
LAN 2
Serial 2
NMEA 0183 8
Video Outputs 1 x VGA 1 x DVI-D
Power Input 12/24 VDC 100-240 VAC
IP Rating IP54 (front), IP20 (rear)
Operating Temp. -15 to 55°C

MPC-2247X

Panel 24" (16:9) 300 nits
CPU i7-3517UE
RAM 4 GB
OS Preinstalled
Touchscreen
LAN 2
Serial 2
NMEA 0183 8
Video Outputs 1 x VGA 1 x DVI-D
Power Input 12/24 VDC 100-240 VAC
IP Rating IP54 (front), IP20 (rear)
Operating Temp. -15 to 55°C

MPC-2247Z

Panel 24" (16:9) 300 nits
CPU i7-3517UE
RAM 4 GB
OS Preinstalled
Touchscreen Capacitive
LAN 2
Serial 2
NMEA 0183 8
Video Outputs 1 x VGA 1 x DVI-D
Power Input 12/24 VDC 100-240 VAC
IP Rating IP54 (front), IP20 (rear)
Operating Temp. -15 to 55°C
