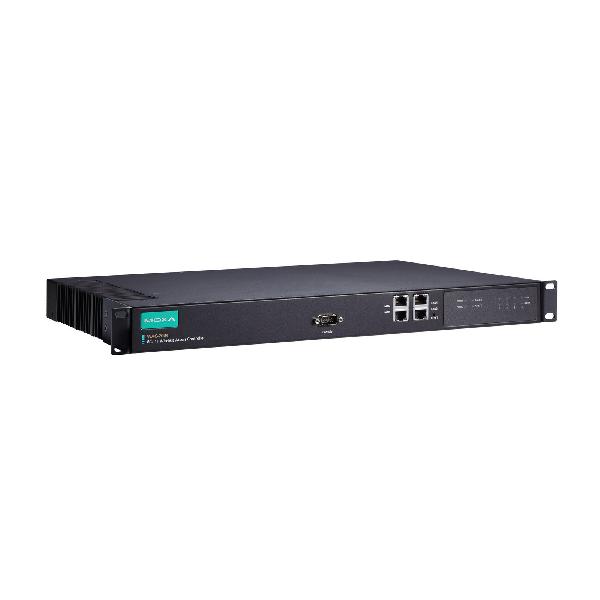

The WAC-2004 wireless access controller provides a seamless roaming experience for Moxa’s access points distributed wireless networks. It uses Moxa’s controller-based Turbo Roaming technology to achieve millisecond-level roaming over different IP subnets. The combination of an advanced roaming algorithm and mobile IP technology allows wireless clients to roam between different IP subnets within milliseconds, while maintaining stringent security in extremely demanding environments. WAC-2004 also supports 1-to-1 hot backup to help make your network more reliable. The WAC-2004 is rated to operate at temperatures ranging from 0 to 50°C, and is rugged enough for installation in any harsh industrial environment.
Ethernet Interface | |
| 10/100/1000BaseT(X) Ports (RJ45 connector) | 1 |
| Standards | IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) |
| Total Port Count | 4 |
| Highest Speed | 1G |
Ethernet Software Features | |
| Management | IPv4, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, TFTP, Web Console, Wireless Search Utility |
| Security | HTTPS/SSL, RADIUS, SSH |
| Time Management | NTP Client, SNTP |
Serial Interface | |
| Console Port | RS-232 ports x 1 (DB9 male) |
| Flow Control | RTS/CTS, XON/XOFF |
| Parity | None, Even, Odd, Space, Mark |
Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
Wireless Access Control | |
| Controller Failover Mode | 1-on-1 hot backup |
| Handover Time | 50 ms |
| Roaming Support | Turbo Roaming (L2/L3) with inter-controller capabilities |
| WLAN Products Supported | 200 radios |
Power Parameters | |
| Input Current | 1.2 A @ 100 VAC |
| Input Voltage | 100 to 240 VAC |
| No. of Power Inputs | 2 |
| Operating Voltage | 100 to 240 VAC |
Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions (without ears) | 440 x 44 x 325 mm (17.32 x 1.73 x 12.80 in) |
| Weight | 5,480 g (12.08 lb) |
| Installation | 19-inch rack mounting |
Environmental Limits | |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
Standards and Certifications | |
| EMC | EN 55032/24, EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Safety | IEC 60950-1, UL 60950-1 |
Declaration | |
| Green Product | RoHS, CRoHS, WEEE |
MTBF | |
| Time | 383,478 hrs |
| Standards | Telcordia SR332 |
Warranty | |
| Warranty Period | 3 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for WAC-2004 Series | Datasheet | V1.0 | 12 November 2018 |
