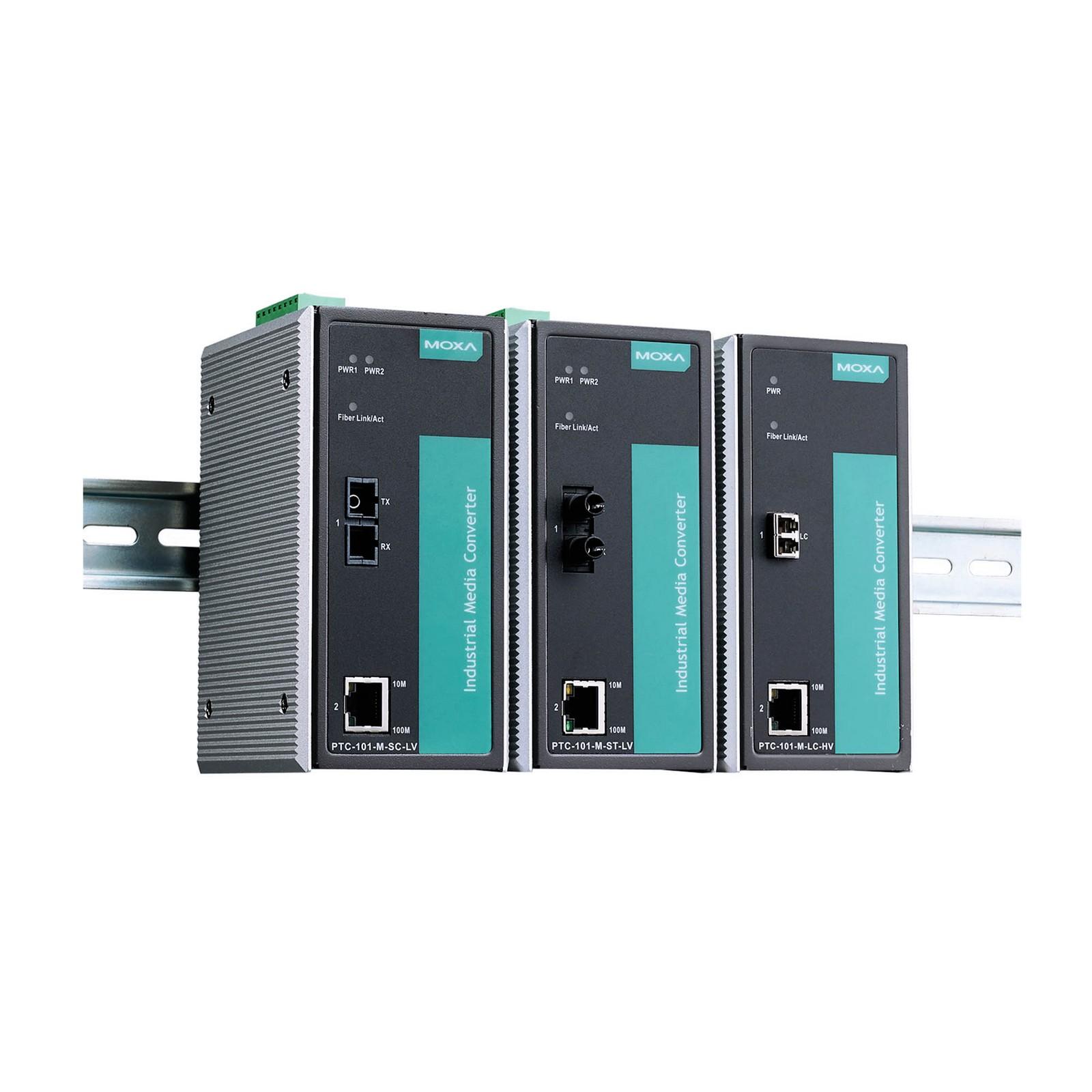

PTC-101 Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Media Converters

IEC 61850-3 Ethernet-to-fiber media converters

Product Feature

  • 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • Link Fault Pass-Through (LFPT)
  • Power failure alarm by relay output (LV model only)
  • -40 to 85°C operating temperature range
  • Redundant dual DC power inputs (LV model only)
  • Integrated high-reliability power supply eliminates the need for external power transformer

Introduction

The PTC-101 Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring, and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with mandatory sections of IEC 61850-3, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the media converters suitable for a variety of industrial applications.

Ethernet Interface

10/100BaseT(X) Ports (RJ45
connector)
1
100BaseFX Ports (multi-mode
SC connector)
PTC-101-M-SC-HV/M-SC-LV: 1
100BaseFX Ports (multi-mode
ST connector)
PTC-101-M-ST-HV/M-ST-LV: 1
100BaseFX Ports (single-mode
SC connector)
PTC-101-S-SC-HV/S-SC-LV: 1
100BaseFX Ports (single-mode
ST connector)
PTC-101-S-ST-HV/S-ST-LV: 1
100BaseFX Ports (multi-mode
LC connector)
PTC-101-M-LC-HV/M-LC-LV: 1
100BaseFX Ports (single-mode
LC connector)
PTC-101-S-LC-HV/S-LC-LV: 1
Magnetic Isolation Protection1.5 kV (built-in)
Optical FiberRead more

Power Parameters

Input VoltageLV-DC models: 20 to 72 VDC
HV-AC models: 100 to 240 VAC
HV-DC models: 88 to 300 VDC
Input CurrentLV-DC models: 150 mA @ 20 to 72 VDC
HV-AC models: 200 to 350 mA @ 100 to 240 VAC
HV-DC models: 47 mA @ 88 VDC
Overload Current ProtectionSupported
Power ConsumptionLV-DC models: 150 mA @ 20 to 72 VDC
HV-AC models: 200 to 350 mA @ 100 to 240 VAC
HV-DC models: 47 mA @ 88 VDC

Physical Characteristics

HousingMetal
Dimensions152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in)
WeightPackaged: 875 g (1.92 lb)
Product only: 690 g (1.52 lb)
InstallationDIN-rail mounting

Environmental Limits

Operating Temperature-40 to 85°C (-40 to 185°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
Environmental TestingIEC 60068-2-1
IEC 60068-2-14
IEC 60068-2-2
IEC 60068-2-3
SafetyEN 60950-1, UL 60950-1
VibrationIEC 60068-2-6
Power SubstationIEC 61850-3

MTBF

Time1,211,613 hrs
StandardsMIL-HDBK-217F

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for PTC-101 Series Datasheet V1.3 21 May 2020

PTC-101-M-LC-HV

Fiber Module Type Multi-mode LC
Input Voltage 85-264 VAC 88-300 VDC

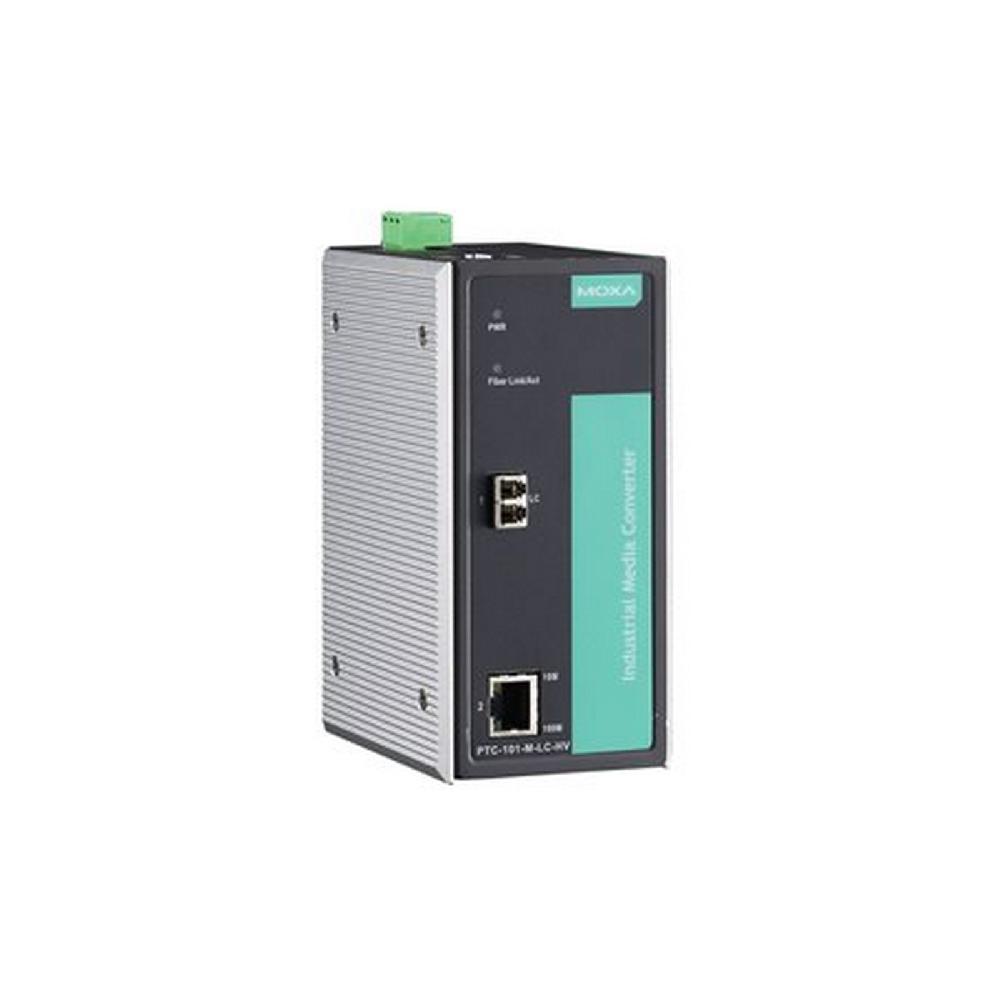

PTC-101-M-LC-LV

Fiber Module Type Multi-mode LC
Input Voltage 20-72 VDC

PTC-101-M-SC-HV

Fiber Module Type Multi-mode SC
Input Voltage 85-264 VAC 88-300 VDC

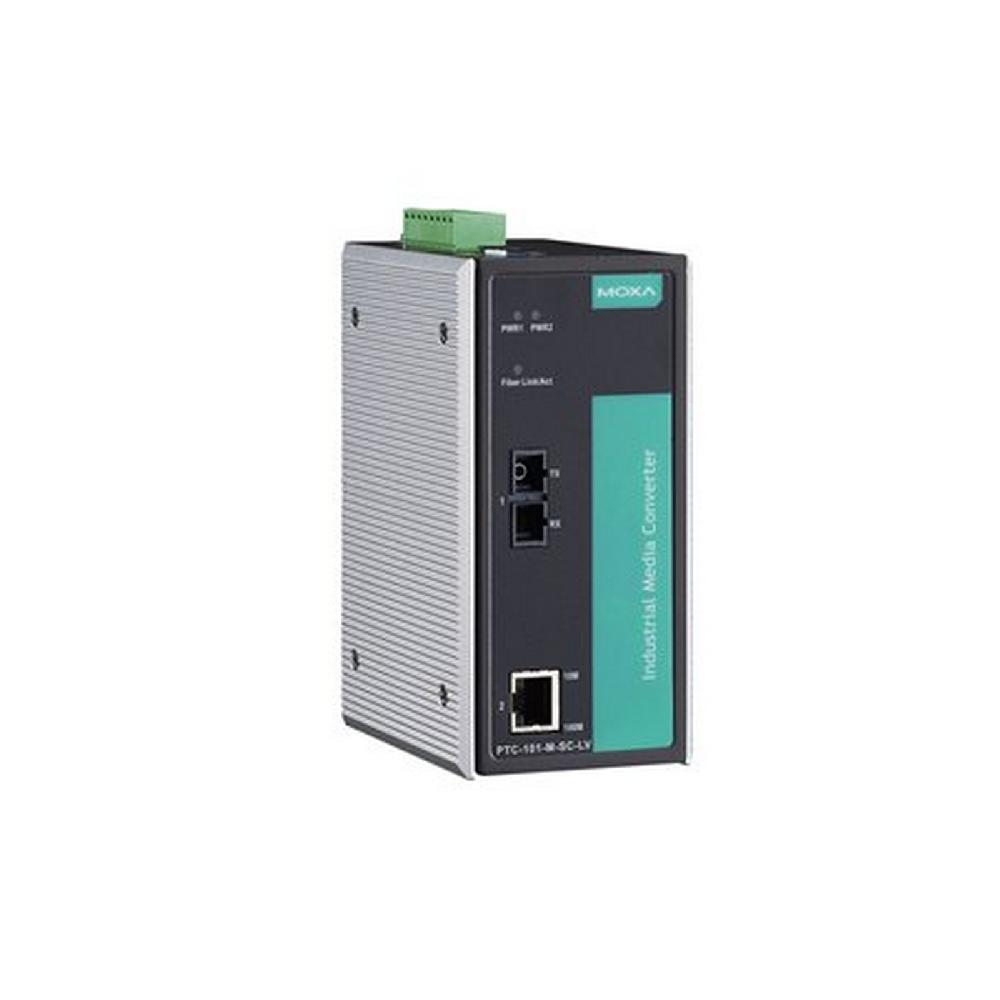

PTC-101-M-SC-LV

Fiber Module Type Multi-mode SC
Input Voltage 20-72 VDC

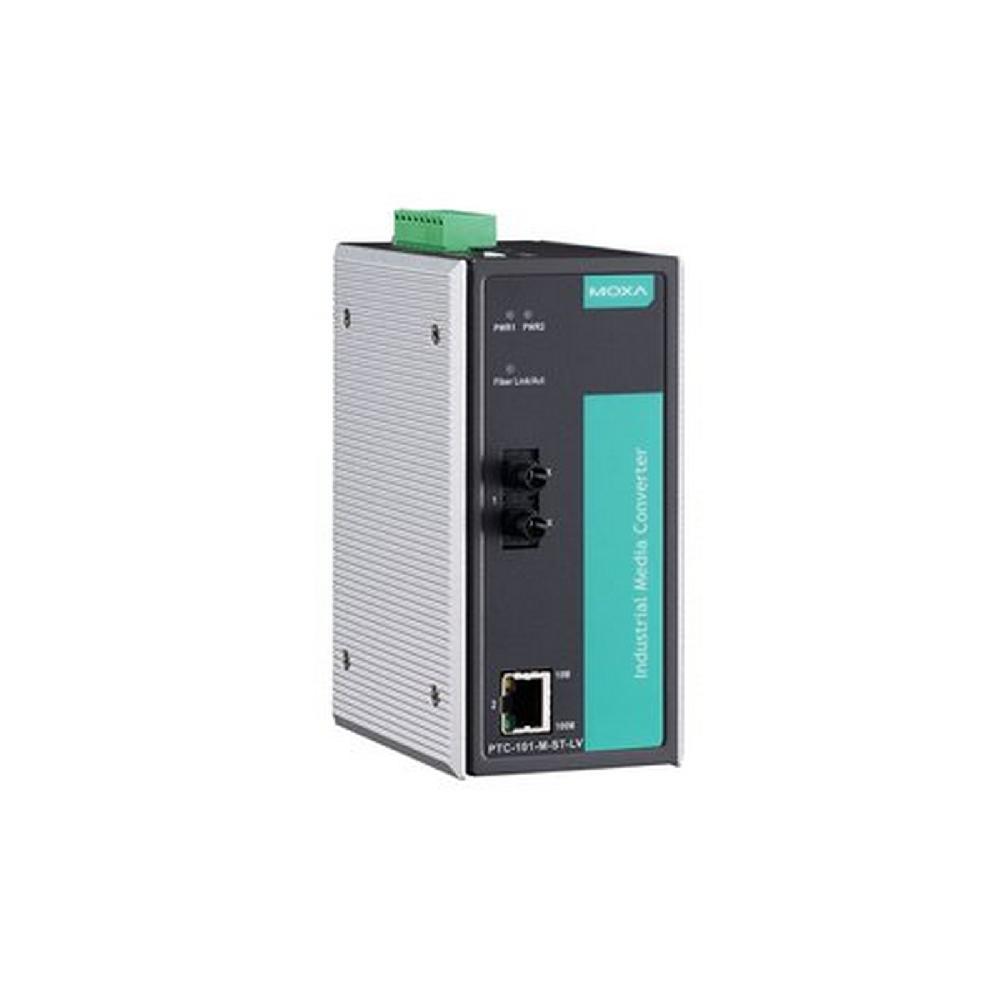

PTC-101-M-ST-HV

Fiber Module Type Multi-mode ST
Input Voltage 85-264 VAC 88-300 VDC

PTC-101-M-ST-LV

Fiber Module Type Multi-mode ST
Input Voltage 20-72 VDC

PTC-101-S-LC-HV

Fiber Module Type Single-mode LC
Input Voltage 85-264 VAC 88-300 VDC

PTC-101-S-LC-LV

Fiber Module Type Single-mode LC
Input Voltage 20-72 VDC

PTC-101-S-SC-HV

Fiber Module Type Single-mode SC
Input Voltage 85-264 VAC 88-300 VDC

PTC-101-S-SC-LV

Fiber Module Type Single-mode SC
Input Voltage 20-72 VDC

PTC-101-S-ST-HV

Fiber Module Type Single-mode ST
Input Voltage 85-264 VAC 88-300 VDC

PTC-101-S-ST-LV

Fiber Module Type Single-mode ST
Input Voltage 20-72 VDC
