NPort 5000AI-M12 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Serial Device Servers  >   Industrial Device Servers

Railway 1, 2, and 4-port RS-232/422/485 serial device servers

Product Feature

  • Speedy 3-step web-based configuration
  • COM port grouping and UDP multicast applications
  • Real COM/TTY drivers for Windows and Linux
  • Standard TCP/IP interface and versatile TCP and UDP operation modes
  • Complies with EN 50121-4
  • Complies with all EN 50155 mandatory test items
  • M12 connector and IP40 metal housing
  • 2 kV isolation for serial signals

Introduction

The NPort® 5000AI-M12 serial device servers are designed to make serial devices network-ready in an instant, and provide direct access to serial devices from anywhere on the network. Moreover, the NPort 5000AI-M12 is compliant with EN 50121-4 and all mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for rolling stock and wayside applications where high levels of vibration exist in the operating environment.



3-Step Web-based Configuration

The NPort 5000AI-M12’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort 5000AI-M12’s web console guides users through three simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this speedy 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort settings and enable the application, saving a great amount of time and effort.



Easy to Troubleshoot

NPort 5000AI-M12 device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.

Ethernet Interface

10/100BaseT(X) Ports (M12 D-
coded 4-pin female connector)
1

Ethernet Software Features

Configuration OptionsTelnet Console, Web Console (HTTP/HTTPS), Windows Utility
ManagementARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP,
SNMPv1/v2c, TCP/IP, Telnet, UDP
FilterIGMP v1/v2
Windows Real COM DriversWindows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10
(x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE
5.0/6.0, Windows XP Embedded
Linux Real TTY DriversKernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY DriversSCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10,
FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android APIAndroid 3.1.x and later

Serial Interface

ConnectorDB9 male
No. of PortsNPort 5150AI-M12 Series: 1
NPort 5250AI-M12 Series: 2
NPort 5450AI-M12 Series: 4
Serial StandardsRS-232, RS-422, RS-485
BaudrateSupports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600,
1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k,
460.8k, 921.6k
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityNone, Even, Odd, Space, Mark
Flow ControlRTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
RS-485 Data Direction ControlADDC® (automatic data direction control)

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND

Power Parameters

Input CurrentNPort 5150AI-M12 Series: 310 mA @ 12 VDC
NPort 5250AI-M12 Series: 360 mA @ 12 VDC
NPort 5450AI-M12 Series: 440 mA @ 12 VDC
Input Voltage12 to 48 VDC
NoteCompliant with EN 50155 on 24/48 VDC
Power ConnectorM12 A-coded 5-pin male connector

Reliability

Automatic Reboot TriggerBuilt-in WDT
Alert ToolsBuilt-in buzzer and RTC (real-time clock)

Physical Characteristics

Dimensions80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in)
Weight686 g (1.51 lb)
ProtectionNPort 5000AI-M12-CT Series: PCB Conformal Coating

Environmental Limits

Operating TemperatureStandard Models: -25 to 55°C (-13 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
RailwayEN 50121-4
SafetyUL 60950-1
VibrationIEC 60068-2-6

Declaration

Green ProductRoHS, CRoHS, WEEE

MTBF

TimeNPort 5150AI-M12 Series: 789,341 hrs
NPort 5250AI-M12 Series: 639,622 hrs
NPort 5450AI-M12 Series: 467,777 hrs
StandardsTelcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for NPort 5000AI-M12 Series Datasheet V1.3 26 November 2019

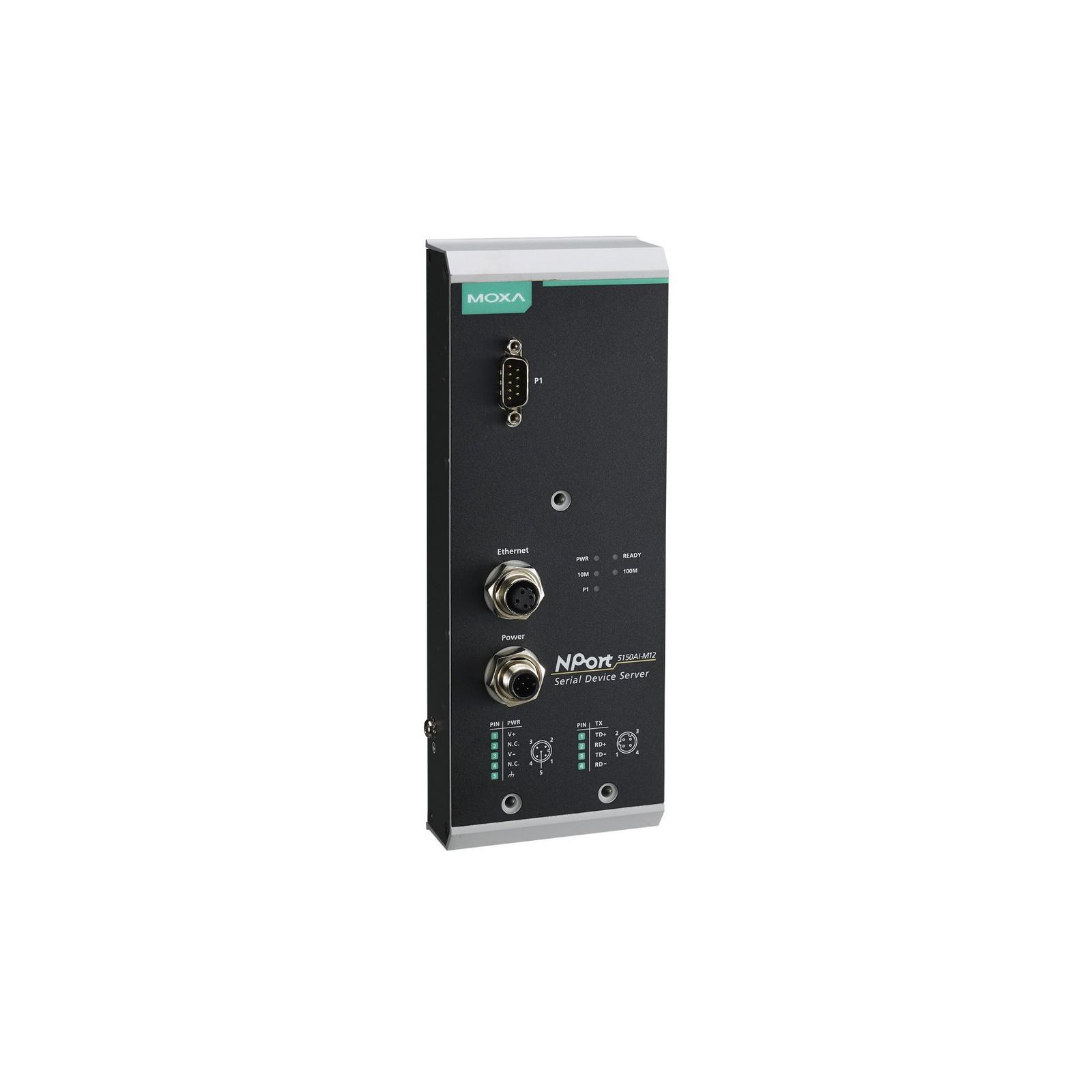

NPort 5150AI-M12

No. of Serial Ports 1
Power Input Voltage 12-48 VDC
Operating Temp. -25 to 55°C
PCB Conformal Coating -

NPort 5150AI-M12-CT

No. of Serial Ports 1
Power Input Voltage 12-48 VDC
Operating Temp. -25 to 55°C
PCB Conformal Coating

NPort 5150AI-M12-T

No. of Serial Ports 1
Power Input Voltage 12-48 VDC
Operating Temp. -40 to 75°C
PCB Conformal Coating -

NPort 5150AI-M12-CT-T

No. of Serial Ports 1
Power Input Voltage 12-48 VDC
Operating Temp. -40 to 75°C
PCB Conformal Coating

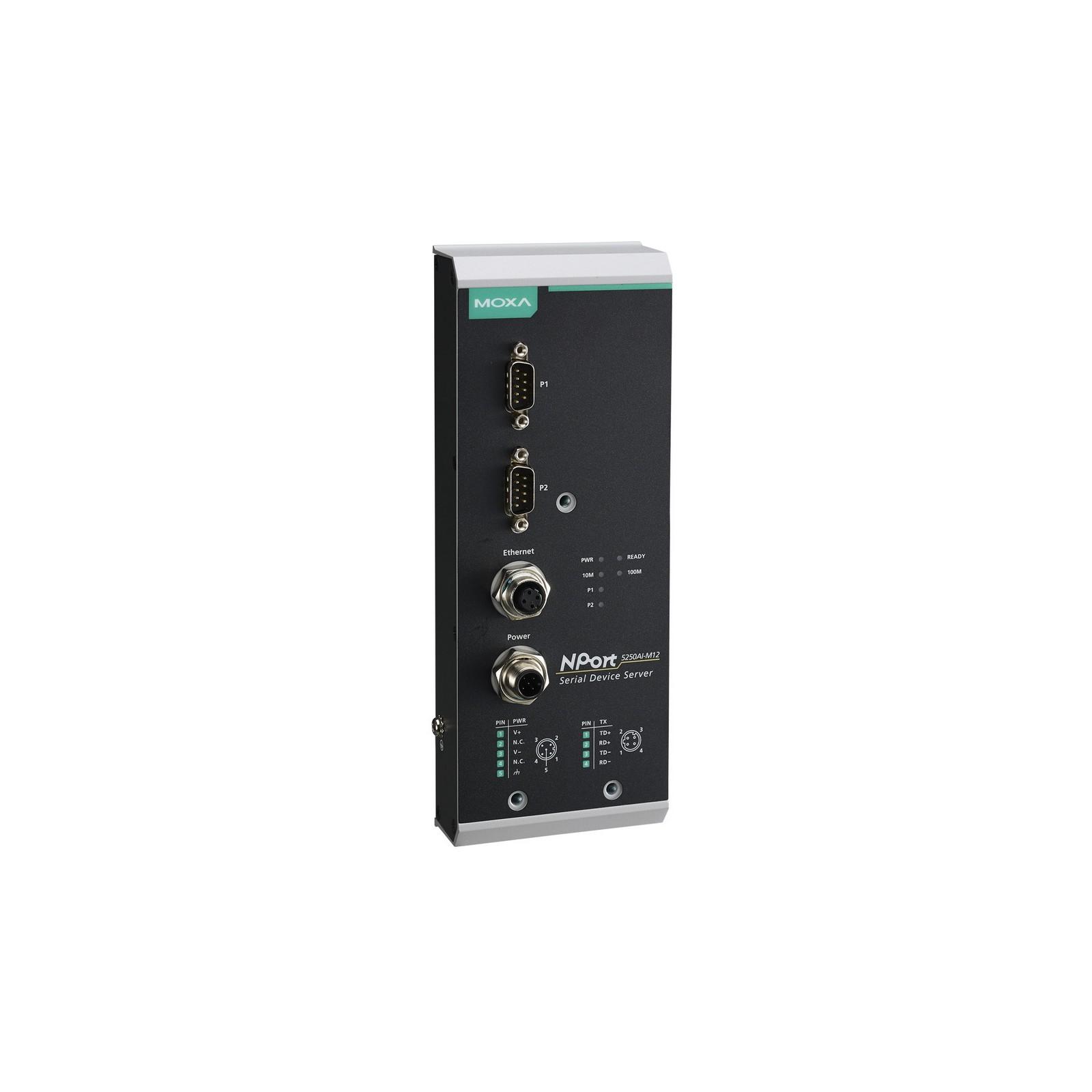

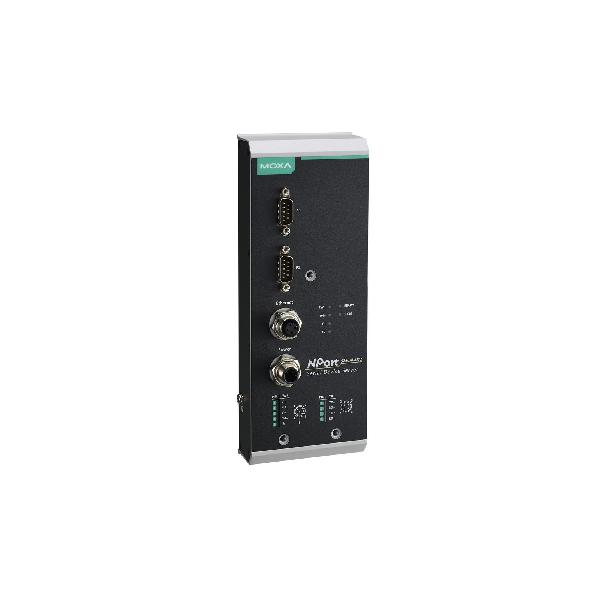

NPort 5250AI-M12

No. of Serial Ports 2
Power Input Voltage 12-48 VDC
Operating Temp. -25 to 55°C
PCB Conformal Coating -

NPort 5250AI-M12-CT

No. of Serial Ports 2
Power Input Voltage 12-48 VDC
Operating Temp. -25 to 55°C
PCB Conformal Coating

NPort 5250AI-M12-T

No. of Serial Ports 2
Power Input Voltage 12-48 VDC
Operating Temp. -40 to 75°C
PCB Conformal Coating -

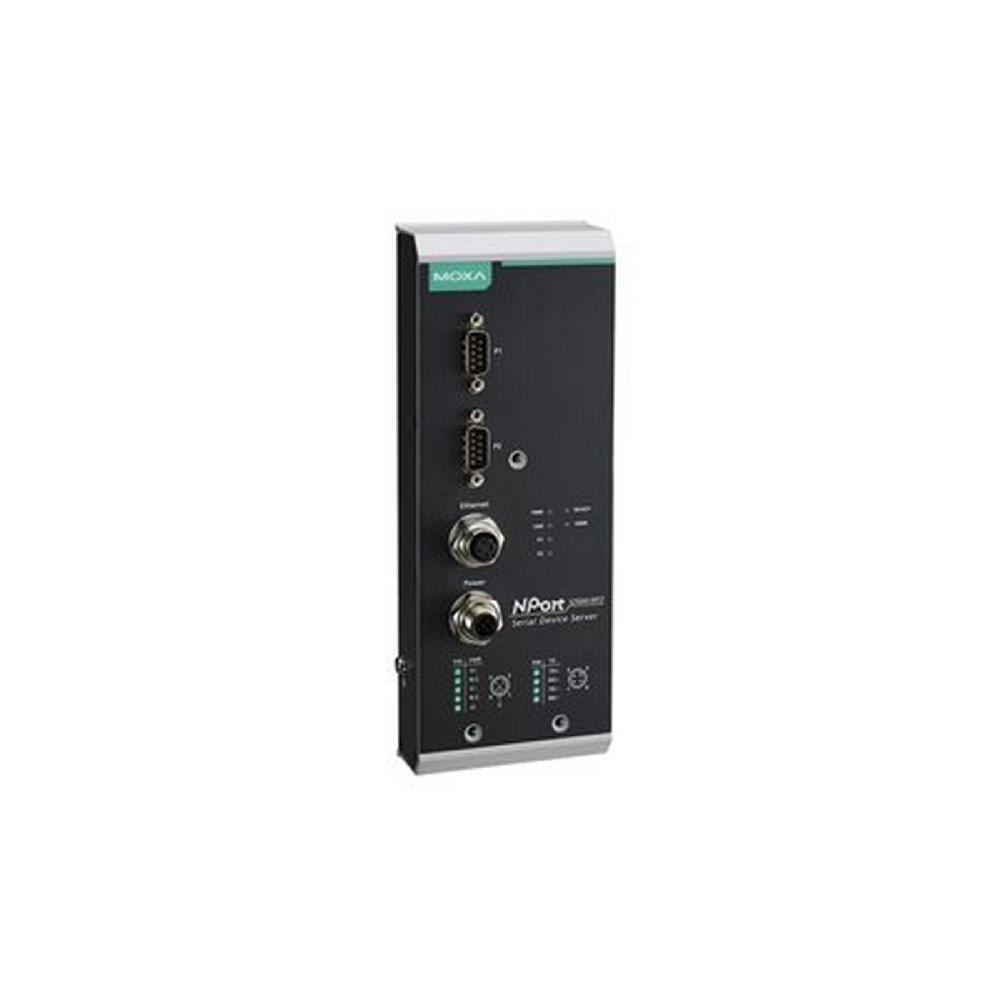

NPort 5250AI-M12-CT-T

No. of Serial Ports 2
Power Input Voltage 12-48 VDC
Operating Temp. -40 to 75°C
PCB Conformal Coating

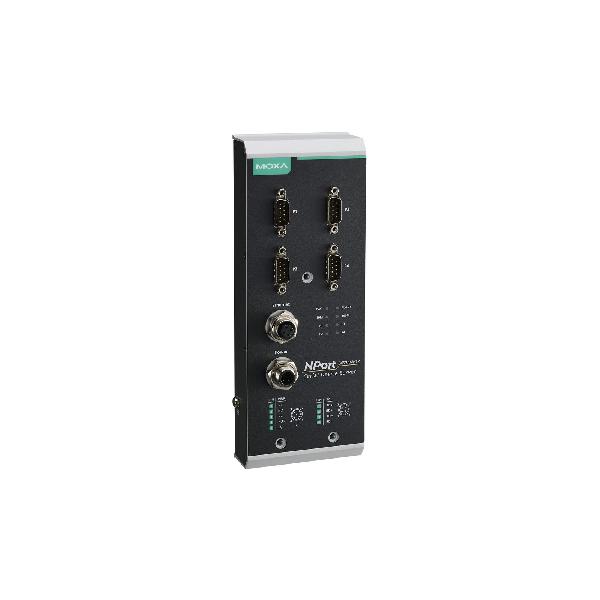

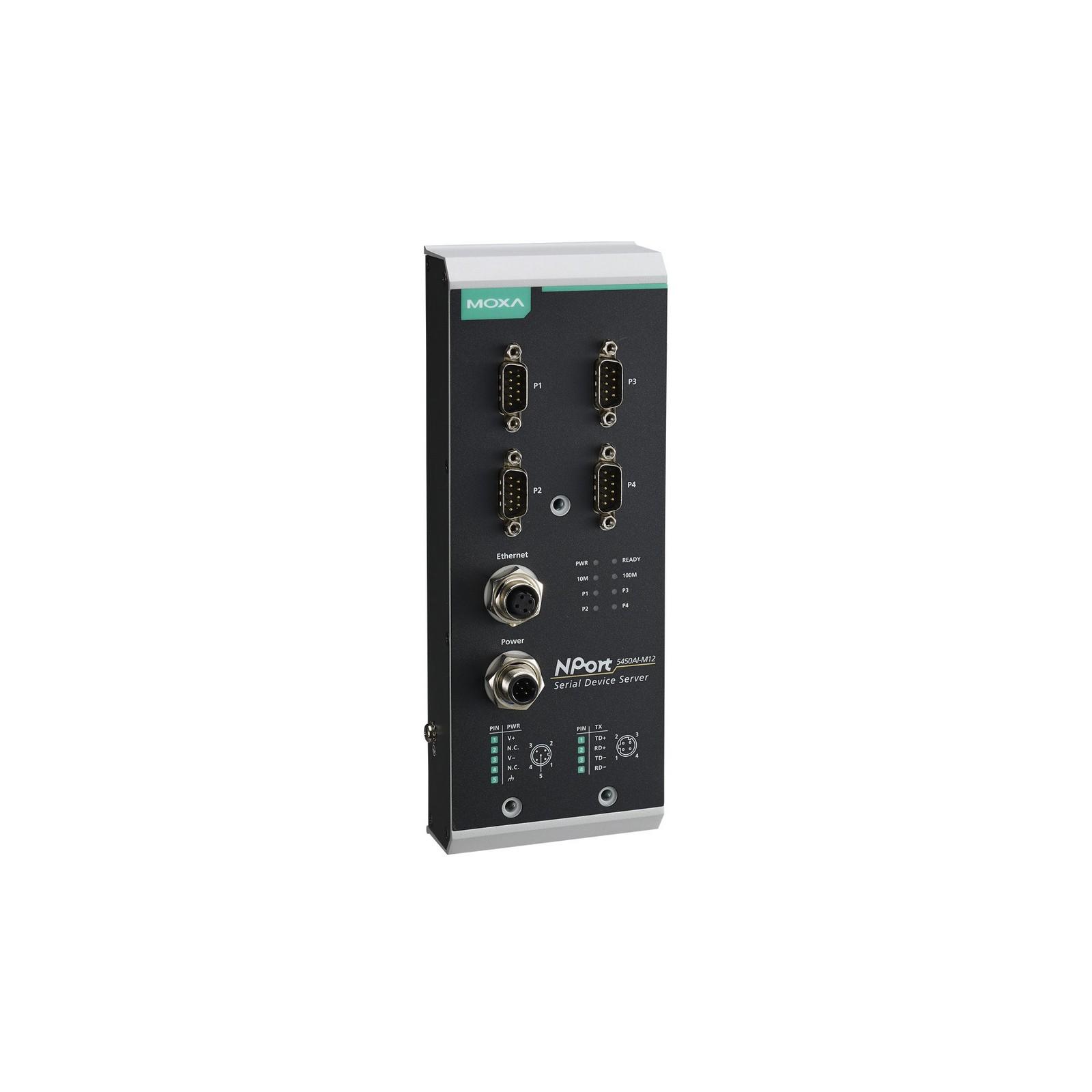

NPort 5450AI-M12

No. of Serial Ports 4
Power Input Voltage 12-48 VDC
Operating Temp. -25 to 55°C
PCB Conformal Coating -

NPort 5450AI-M12-CT

No. of Serial Ports 4
Power Input Voltage 12-48 VDC
Operating Temp. -25 to 55°C
PCB Conformal Coating

NPort 5450AI-M12-T

No. of Serial Ports 4
Power Input Voltage 12-48 VDC
Operating Temp. -40 to 75°C
PCB Conformal Coating -

NPort 5450AI-M12-CT-T

No. of Serial Ports 4
Power Input Voltage 12-48 VDC
Operating Temp. -40 to 75°C
PCB Conformal Coating
