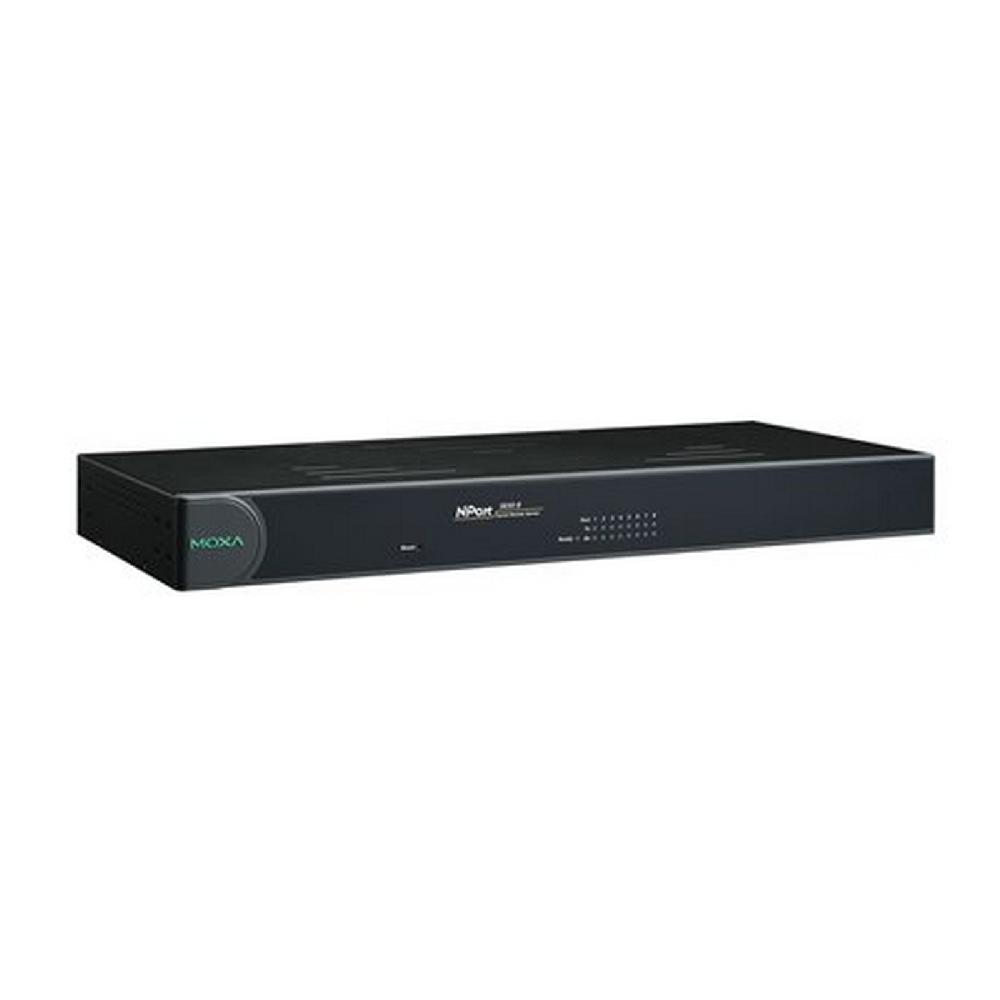

NPort 5600 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Serial Device Servers  >   General Device Servers

8 and 16-port RS-232/422/485 rackmount serial device servers

Product Feature

  • Standard 19-inch rackmount size
  • Easy IP address configuration with LCD panel (excluding wide-temperature models)
  • Configure by Telnet, web browser, or Windows utility
  • Socket modes: TCP server, TCP client, UDP
  • SNMP MIB-II for network management
  • Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
  • Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)

Introduction

With the NPort® 5600 Rackmount Series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.



Network Readiness for up to 16 Serial Devices

Only basic configuration is needed with the NPort® 5600 to connect up to 16 serial devices to an Ethernet network.



19-Inch Rackmount Device Server

NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for a standard 19-inch rackmount, allowing you to simplify operational, maintenance, and administrative tasks.



Real COM/TTY Ports

Real COM/TTY drivers are provided to make the serial ports on the NPort® 5600 recognizable as Real COM ports by Windows, or Real TTY ports by Linux. In addition to supporting basic data transmission and reception, the NPort® drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.



LED Indicators to Ease Your Maintenance Tasks

The System LED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The LEDs not only indicate current system and network status, but they also help field engineers monitor the status of attached serial devices.



Adjustable Termination and Pull High/Low Resistors

When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible for all environments, the NPort® 5650-8/16 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.

Ethernet Interface

10/100BaseT(X) Ports
(RJ45 connector)
1
Magnetic Isolation Protection1.5 kV (built-in)
Optical FiberRead more

Ethernet Software Features

Configuration OptionsTelnet Console, Web Console (HTTP/HTTPS), Windows Utility
ManagementARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP,
RFC2217, Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
FilterIGMP v1/v2c
Windows Real COM DriversWindows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10
(x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE
5.0/6.0, Windows XP Embedded
Linux Real TTY DriversKernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY DriversSCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10,
FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android APIAndroid 3.1.x and later
Time ManagementSNTP

Serial Interface

Connector8-pin RJ45
No. of Ports8 or 16 ports
Serial StandardsNPort 5610 Series: RS-232
NPort 5630 Series: RS-422, RS-485
NPort 5650 Series: RS-232, RS-422, RS-485
Operation ModesDisabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet,
RFC2217, TCP Client, TCP Server, UDP
BaudrateSupports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600,
1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k,
460.8k, 921.6k
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityNone, Even, Odd, Space, Mark
Flow ControlNone, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Pull High/Low Resistor for RS-4851 kilo-ohm, 150 kilo-ohms
Terminator for RS-485120 ohms
RS-485 Data Direction ControlADDC® (automatic data direction control)

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND

Power Parameters

Input CurrentNPort 5610-8-48V/16-48V: 135 mA @ 48 VDC
NPort 5650-8-HV-T/16-HV-T: 152 mA @ 88 VDC
NPort 5610-8/16: 141 mA @ 100 VAC
NPort 5630-8/16: 152 mA @ 100 VAC
NPort 5650-8/8-T/16/16-T: 158 mA @ 100 VAC
NPort 5650-8-M-SC/16-M-SC: 174 mA @ 100 VAC
NPort 5650-8-S-SC/16-S-SC: 164 mA @ 100 VAC
Input VoltageHV Models: 88 to 300 VDC
AC Models: 100 to 240 VAC, 47 to 63 Hz
DC Models: ±48 VDC, 20 to 72 VDC, -20 to -72 VDC

Reliability

Automatic Reboot TriggerBuilt-in WDT

Physical Characteristics

HousingMetal
Installation19-inch rack mounting
Dimensions (with ears)480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
Dimensions (without ears)440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
WeightNPort 5610-8: 2,290 g (5.05 lb)
NPort 5610-8-48V: 3,160 g (6.97 lb)
NPort 5610-16: 2,490 g (5.49 lb)
NPort 5610-16-48V: 3,260 g (7.19 lb)
NPort 5630-8: 2,510 g (5.53 lb)
NPort 5630-16: 2,560 g (5.64 lb)
NPort 5650-8/5650-8-T: 2,310 g (5.09 lb)
NPort 5650-8-M-SC: 2,380 g (5.25 lb)
NPort 5650-8-S-SC/5650-16-M-SC: 2,440 g (5.38 lb)
NPort 5650-8-HV-T: 3,720 g (8.20 lb)
NPort 5650-16/5650-16-T: 2,510 g (5.53 lb)
NPort 5650-16-S-SC: 2,500 g (5.51 lb)
NPort 5650-16-HV-T: 3,820 g (8.42 lb)
Interactive InterfaceLCD panel display (standard temp. models only)
Push buttons for configuration (standard temp. models only)

Environmental Limits

Operating TemperatureStandard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package
included)
Standard Models: -20 to 70°C (-4 to 158°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMICISPR 32, FCC Part 15B Class A
EMCEN 55032/24
EMSNPort 5650-8/16 Series:
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8
IEC 61000-4-11 DIPs

NPort 5650-8/16-HV Series:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8
MedicalEN 60601-1-2 Class B, EN 55011
SafetyUL 60950-1

MTBF

TimeNPort 5610-8: 877,888 hrs
NPort 5610-8-48V: 870,961 hrs
NPort 5610-16: 666,105 hrs
NPort 5610-16-48V: 662,111 hrs
NPort 5630-8: 765,449 hrs
NPort 5630-16: 473,748 hrs
NPort 5650-8: 692,010 hrs
NPort 5650-8-T: 692,010 hrs
NPort 5650-8-HV-T: 627,078 hrs
NPort 5650-8-M-SC: 678,053 hrs
NPort 5650-8-S-SC: 678,053 hrs
NPort 5650-16: 473,748 hrs
NPort 5650-16-T: 473,748 hrs
NPort 5650-16-HV-T: 442,626 hrs
NPort 5650-16-M-SC: 467,180 hrs
NPort 5650-16-S-SC: 467,180 hrs
StandardsAC models: MIL-HDBK-217F
HV models: Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for NPort 5600 Series Datasheet V1.4 30 January 2020

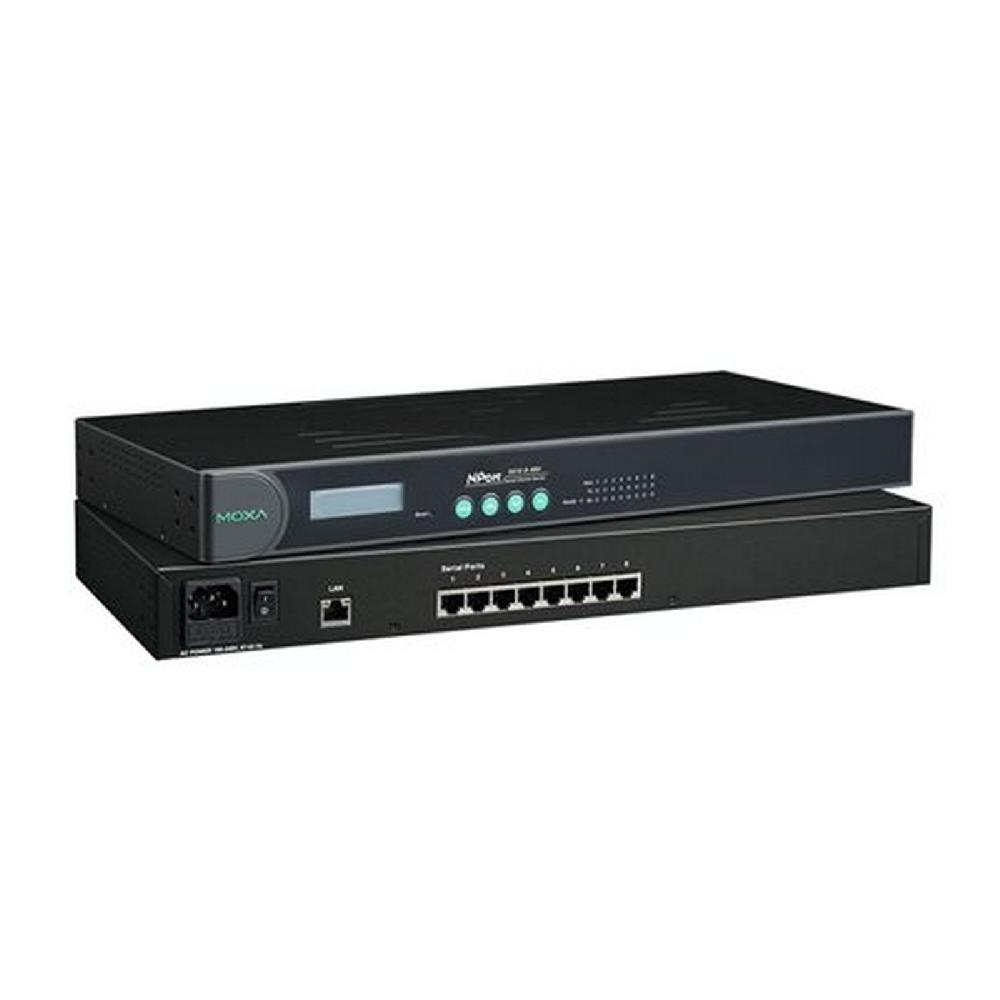

NPort 5610-8

Ethernet Interface Connector 8-pin RJ45
Serial Interface RS-232
No. of Serial Ports 8
Operating Temp. 0 to 60°C
Input Voltage 100-240 VAC

NPort 5610-8-48V

Ethernet Interface Connector 8-pin RJ45
Serial Interface RS-232
No. of Serial Ports 8
Operating Temp. 0 to 60°C
Input Voltage ±48 VDC

NPort 5630-8

Ethernet Interface Connector 8-pin RJ45
Serial Interface RS-422/485
No. of Serial Ports 8
Operating Temp. 0 to 60°C
Input Voltage 100-240 VAC

NPort 5610-16

Ethernet Interface Connector 8-pin RJ45
Serial Interface RS-232
No. of Serial Ports 16
Operating Temp. 0 to 60°C
Input Voltage 100-240 VAC

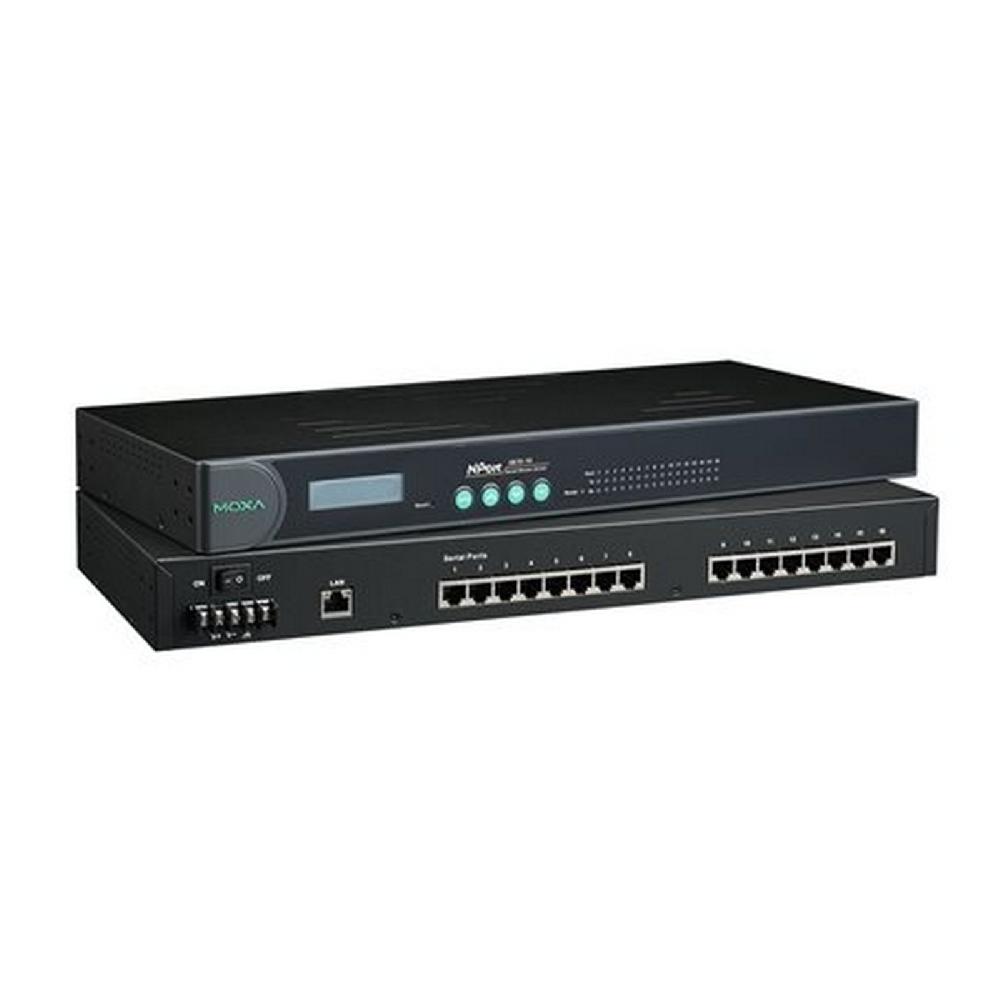

NPort 5610-16-48V

Ethernet Interface Connector 8-pin RJ45
Serial Interface RS-232
No. of Serial Ports 16
Operating Temp. 0 to 60°C
Input Voltage ±48 VDC

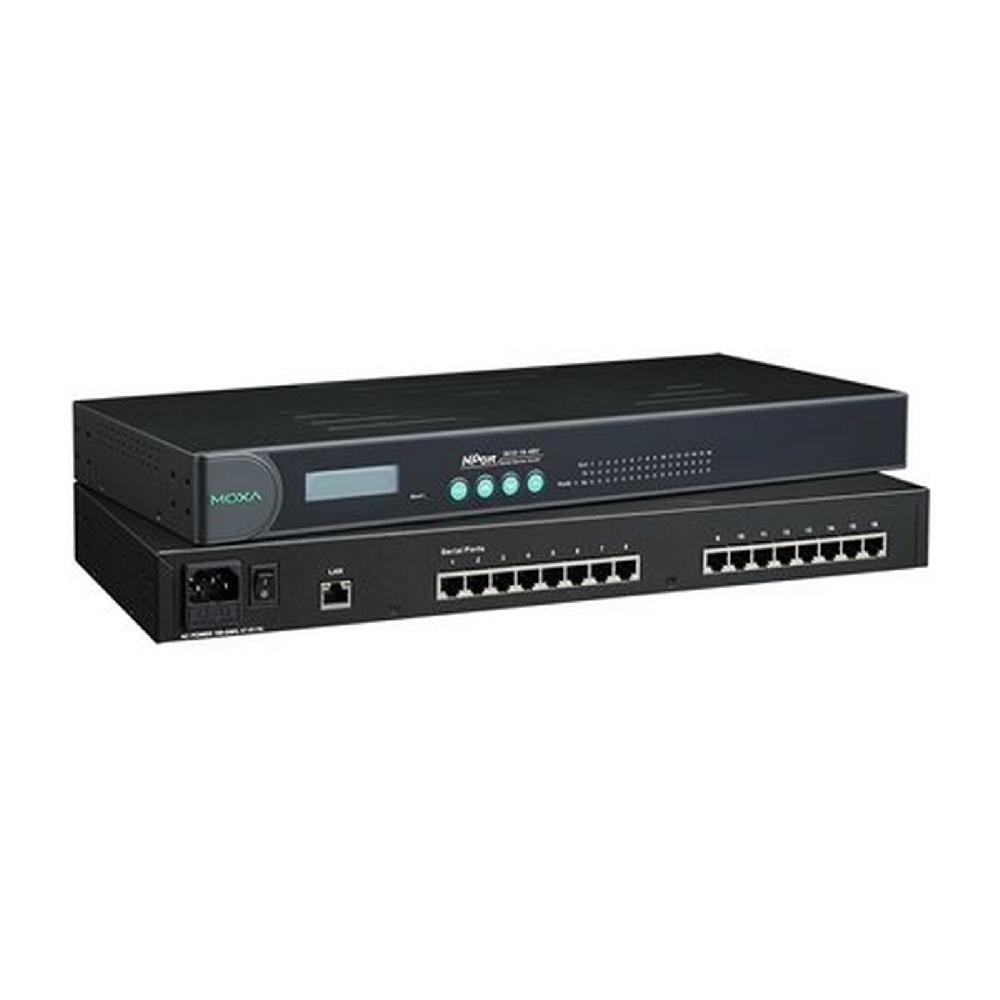

NPort 5630-16

Ethernet Interface Connector 8-pin RJ45
Serial Interface RS-422/485
No. of Serial Ports 16
Operating Temp. 0 to 60°C
Input Voltage 100-240 VAC

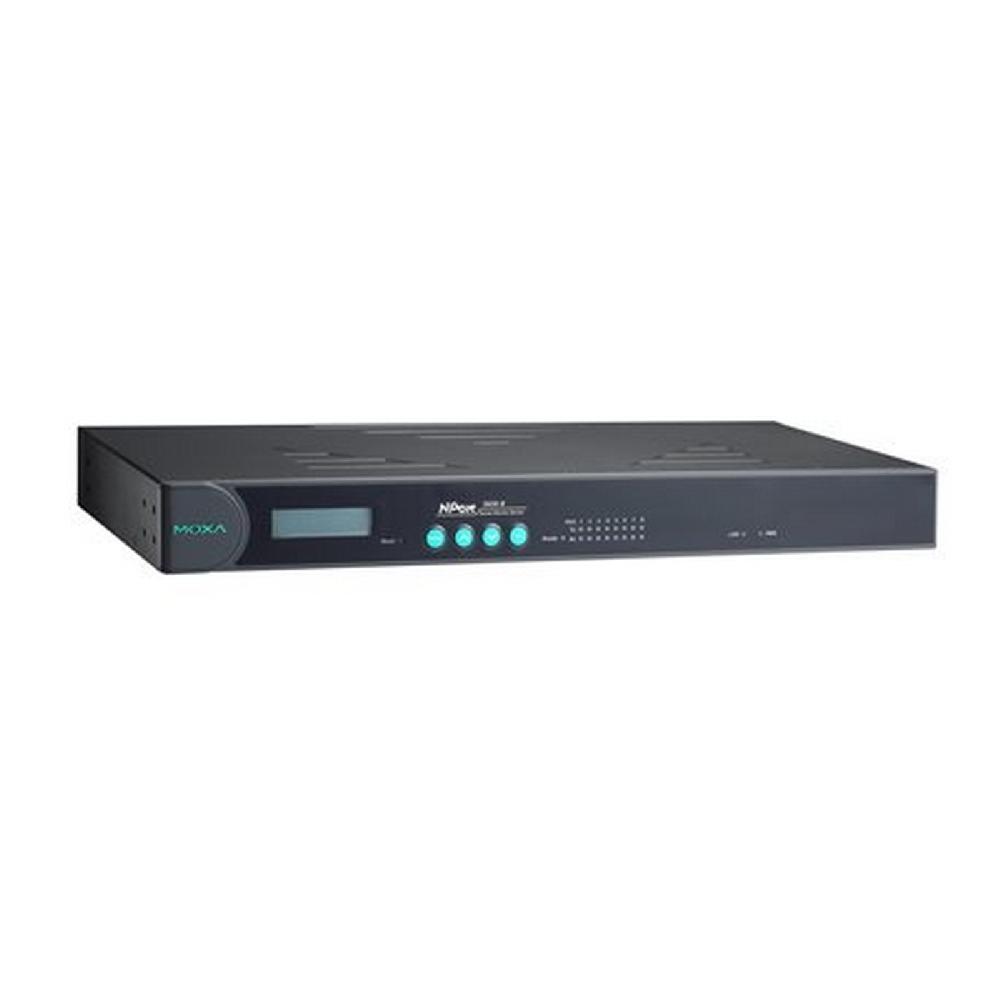

NPort 5650-8

Ethernet Interface Connector 8-pin RJ45
Serial Interface RS-232/422/485
No. of Serial Ports 8
Operating Temp. 0 to 60°C
Input Voltage 100-240 VAC

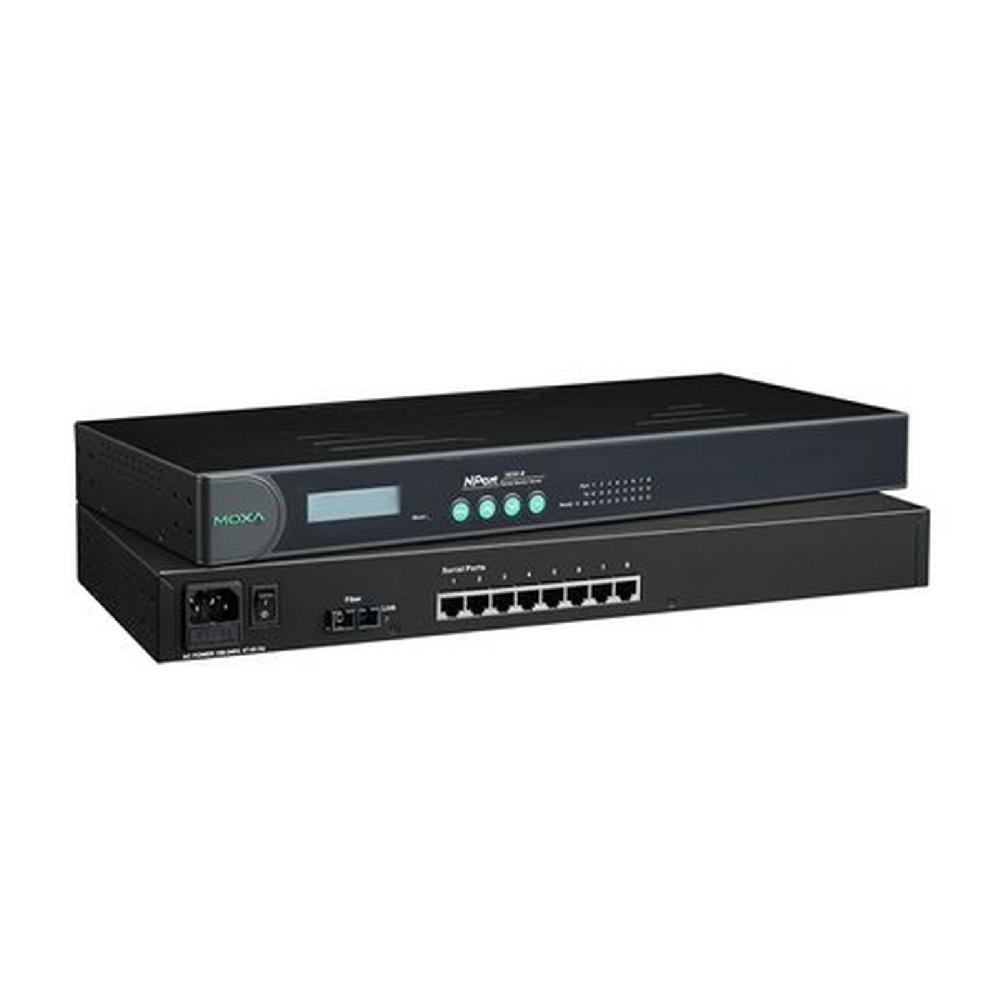

NPort 5650-8-M-SC

Ethernet Interface Connector Multi-mode fiber SC
Serial Interface RS-232/422/485
No. of Serial Ports 8
Operating Temp. 0 to 60°C
Input Voltage 100-240 VAC

NPort 5650-8-S-SC

Ethernet Interface Connector Single-mode fiber SC
Serial Interface RS-232/422/485
No. of Serial Ports 8
Operating Temp. 0 to 60°C
Input Voltage 100-240 VAC

NPort 5650-8-T

Ethernet Interface Connector 8-pin RJ45
Serial Interface RS-232/422/485
No. of Serial Ports 8
Operating Temp. -40 to 75°C
Input Voltage 100-240 VAC

NPort 5650-8-HV-T

Ethernet Interface Connector 8-pin RJ45
Serial Interface RS-232/422/485
No. of Serial Ports 8
Operating Temp. -40 to 85°C
Input Voltage 88-300 VDC

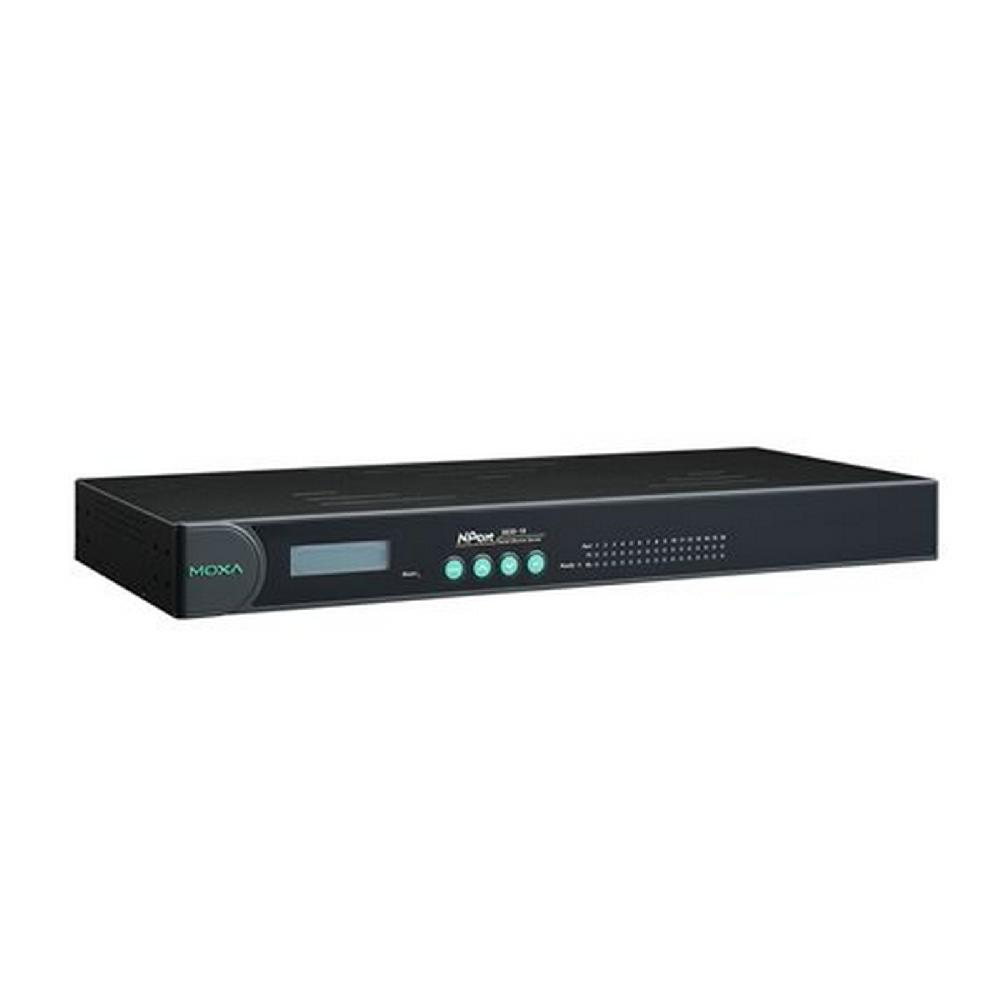

NPort 5650-16

Ethernet Interface Connector 8-pin RJ45
Serial Interface RS-232/422/485
No. of Serial Ports 16
Operating Temp. 0 to 60°C
Input Voltage 100-240 VAC

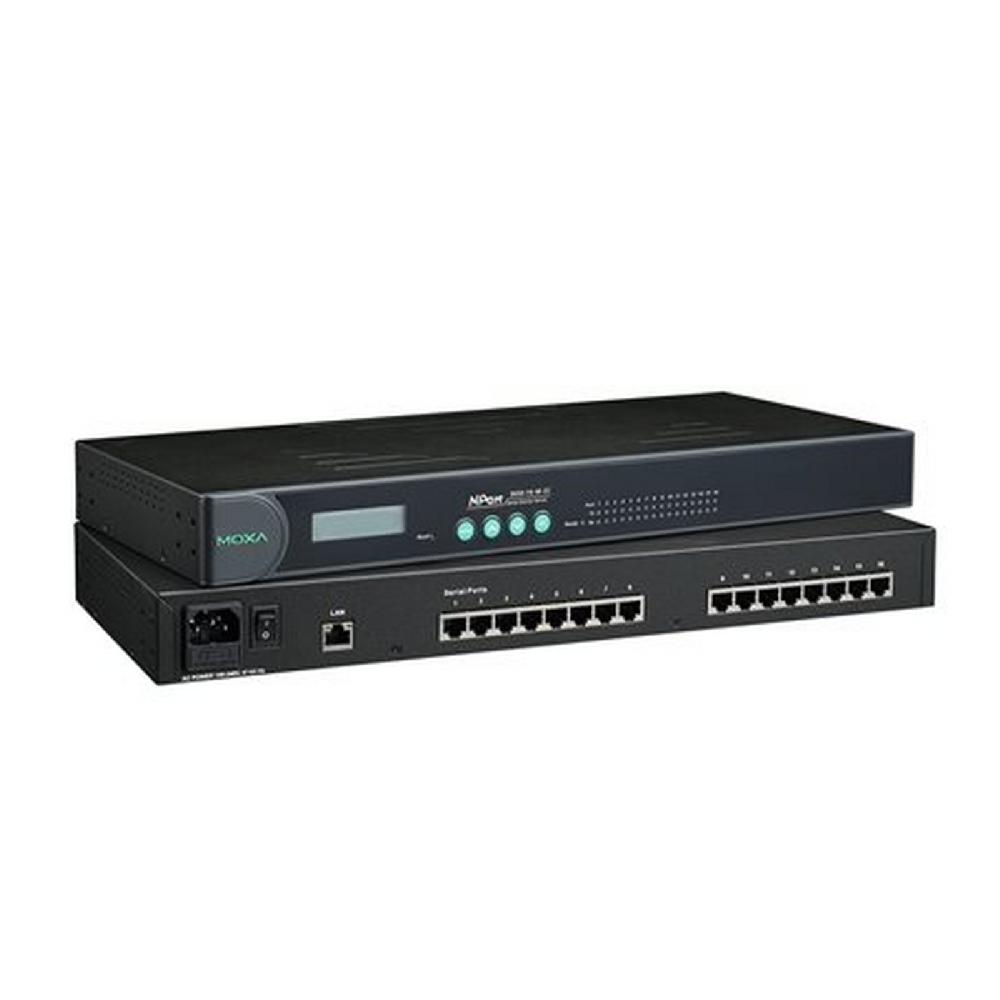

NPort 5650-16-M-SC

Ethernet Interface Connector Multi-mode fiber SC
Serial Interface RS-232/422/485
No. of Serial Ports 16
Operating Temp. 0 to 60°C
Input Voltage 100-240 VAC

NPort 5650-16-S-SC

Ethernet Interface Connector Single-mode fiber SC
Serial Interface RS-232/422/485
No. of Serial Ports 16
Operating Temp. 0 to 60°C
Input Voltage 100-240 VAC

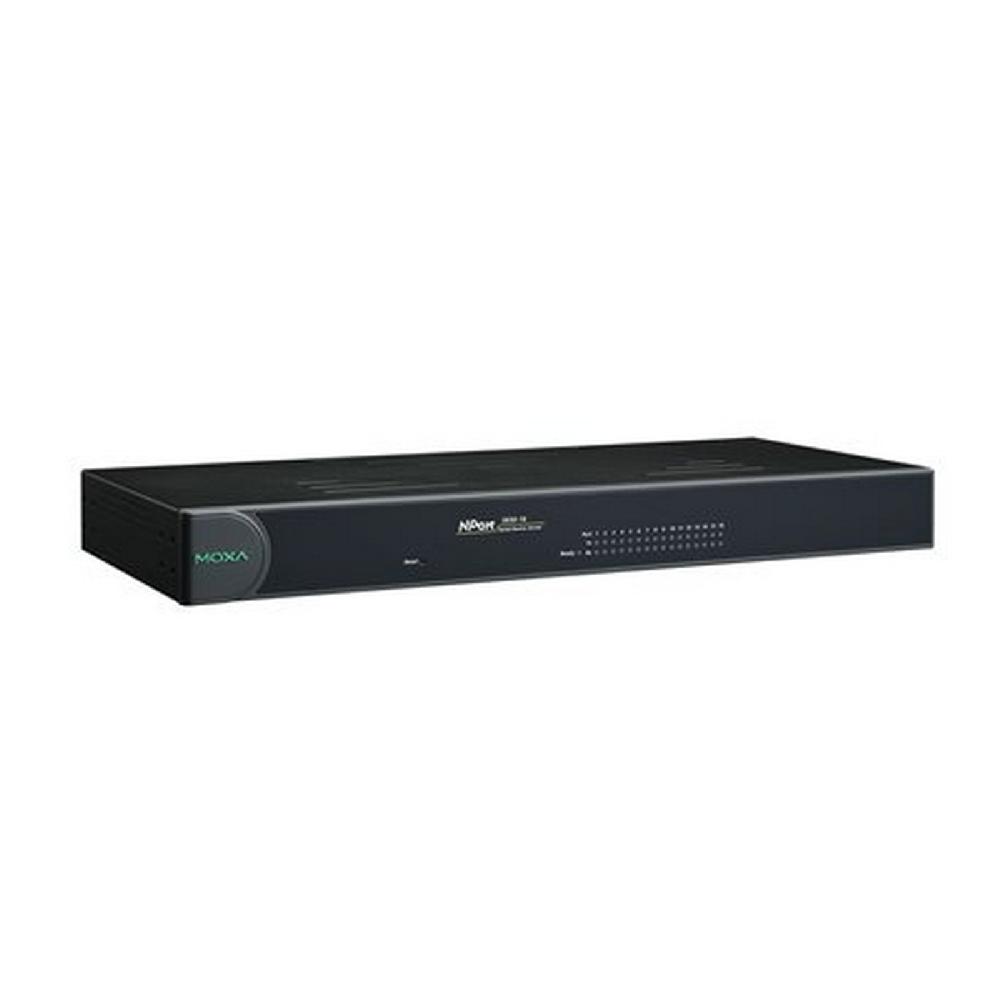

NPort 5650-16-T

Ethernet Interface Connector 8-pin RJ45
Serial Interface RS-232/422/485
No. of Serial Ports 16
Operating Temp. -40 to 75°C
Input Voltage 100-240 VAC

NPort 5650-16-HV-T

Ethernet Interface Connector 8-pin RJ45
Serial Interface RS-232/422/485
No. of Serial Ports 16
Operating Temp. -40 to 85°C
Input Voltage 88-300 VDC
