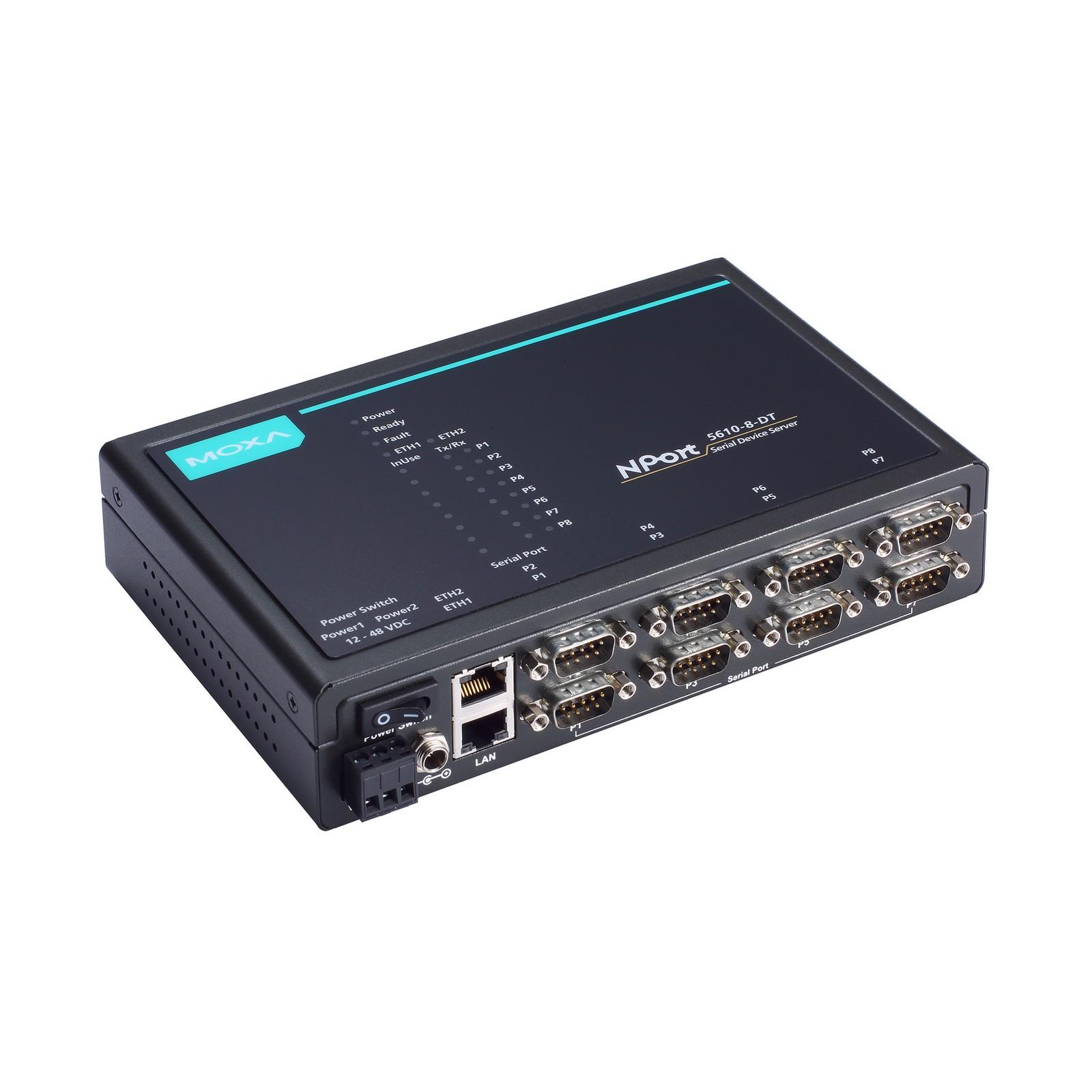

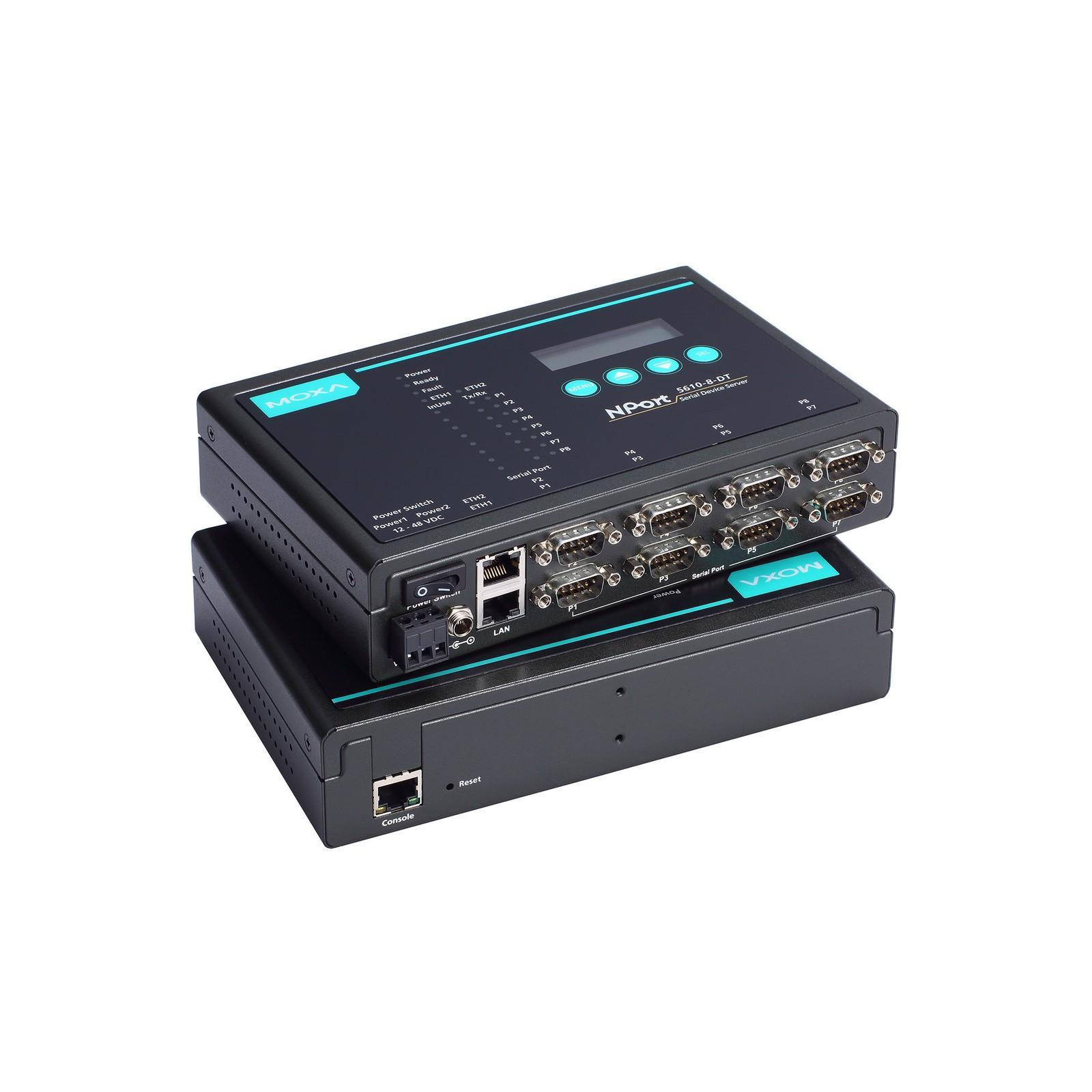

NPort 5600-DT Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Serial Device Servers  >   General Device Servers

8-port RS-232/422/485 serial device servers

Product Feature

  • 8 serial ports supporting RS-232/422/485
  • Compact desktop design
  • 10/100M auto-sensing Ethernet
  • Easy IP address configuration with LCD panel
  • Configure by Telnet, web browser, or Windows utility
  • Socket modes: TCP server, TCP client, UDP, Real COM
  • SNMP MIB-II for network management

Introduction

NPort 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize management of your serial devices and distribute management hosts over the network. Since the NPort 5600-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.



Convenient Design for RS-485 Applications

The NPort 5650-8-DT device servers support selectable 1 kilo-ohm and 150 kilo-ohms pull high/low resistors and a 120-ohm terminator. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, NPort 5600-8-DT device servers use DIP switches to allow users to adjust termination and pull high/low resistor values manually for each serial port.



Convenient Power Inputs

The NPort 5650-8-DT device servers support both power terminal blocks and power jacks for ease of use and greater flexibility. Users can connect the terminal block directly to a DC power source, or use the power jack to connect to an AC circuit through an adapter.



LED Indicators to Ease Your Maintenance Tasks

The System LED, Serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The NPort 5600’s LEDs not only indicate current system and network status, but also help field engineers monitor the status of attached serial devices.



Two Ethernet Ports for Convenient Cascade Wiring

The NPort 5600-8-DT device servers come with two Ethernet ports that can be used as Ethernet switch ports. Connect one port to the network or server, and the other port to another Ethernet device. The dual Ethernet ports eliminate the need to connect each device to a separate Ethernet switch, reducing wiring costs.

Ethernet Interface

10/100BaseT(X) Ports
(RJ45 connector)
2
Magnetic Isolation Protection1.5 kV (built-in)

Ethernet Software Features

Configuration OptionsSerial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows
Utility
ManagementARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP,
Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
FilterIGMP v1/v2
MIBRFC1213, RFC1317
Time ManagementSNTP
Windows Real COM DriversWindows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10
(x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows
Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY DriversKernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY DriversSCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25,
QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android APIAndroid 3.1.x and later

Serial Interface

Connector8-pin RJ45:
NPort 5610-8-DT-J/5650-8-DT-J
DB9 male:
NPort 5610-8-DT models/NPort 5650-8-DT models/NPort 5650I-8-DT models
No. of Ports8
Serial StandardsNPort 5610-8-DT Series: RS-232
NPort 5650-8-DT Series: RS-232/422/485
BaudrateSupports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600,
1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k,
460.8k, 921.6k
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityNone, Even, Odd, Space, Mark
Flow ControlRTS/CTS, DTR/DSR, XON/XOFF
Pull High/Low Resistor for RS-4851 kilo-ohm, 150 kilo-ohms
Terminator for RS-485120 ohms
RS-485 Data Direction ControlADDC® (automatic data direction control)
Isolation-I models: 2 kV
Surge0.5 kV
Console PortRS-232 (TxD, RxD, GND), 3-pin (19200, n, 8, 1)

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND

Power Parameters

Input CurrentNPort 5610-8-DT/NPort 5610-8-DT-J/NPort 5610-8-DT-T: 611 mA @ 12 VDC
NPort 5650-8-DT/NPort 5650-8-DT-J/NPort 5650-8-DT-T: 615 mA @ 12 VDC
NPort 5650I-8-DT/NPort 5650I-8-DT-T: 1066 mA @ 12 VDC
No. of Power Inputs2
Input Voltage12 to 48 VDC
Reverse Polarity ProtectionSupported

Reliability

Automatic Reboot TriggerBuilt-in WDT
Alert ToolsBuilt-in buzzer and RTC (real-time clock)

Physical Characteristics

HousingMetal
Dimensions (with ears)229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in)
Dimensions (without ears)197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in)
Dimensions (with DIN-rail kit on
bottom panel)
197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)
WeightNPort 5610-8-DT: 1,570 g (3.46 lb)
NPort 5610-8-DT-J: 1,520 g (3.35 lb)
NPort 5610-8-DT-T: 1,320 g (2.91 lb)
NPort 5650-8-DT: 1,590 g (3.51 lb)
NPort 5650-8-DT-J: 1,540 g (3.40 lb)
NPort 5650-8-DT-T: 1,340 g (2.95 lb)
NPort 5650I-8-DT: 1,660 g (3.66 lb)
NPort 5650I-8-DT-T: 1,410 g (3.11 lb)
InstallationDesktop, DIN-rail mounting (with optional kit), Wall mounting (with optional
kit)
Interactive InterfaceLCD panel display
Push buttons for configuration

Environmental Limits

Operating TemperatureStandard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package
included)
-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/35
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
SafetyUL 60950-1, IEC 62368-1

Declaration

Green ProductRoHS, CRoHS, WEEE

MTBF

Time836,374 hrs
StandardsTelcordia (Bellcore) Standard

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for NPort 5600-DT Series Datasheet V1.6 24 June 2020

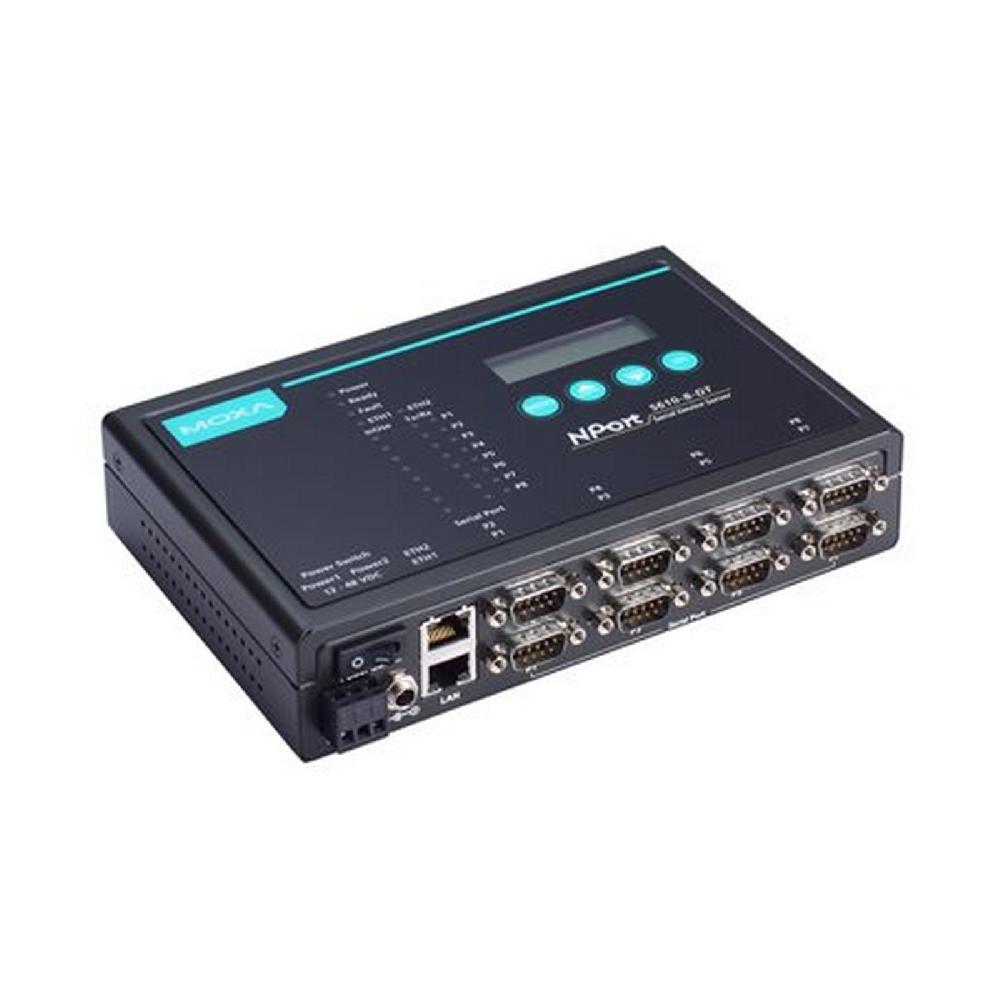

NPort 5610-8-DT

Serial Interface RS-232
Serial Interface Connector DB9
Serial Interface Isolation -
Operating Temp. 0 to 55°C
Input Voltage 12 to 48 VDC

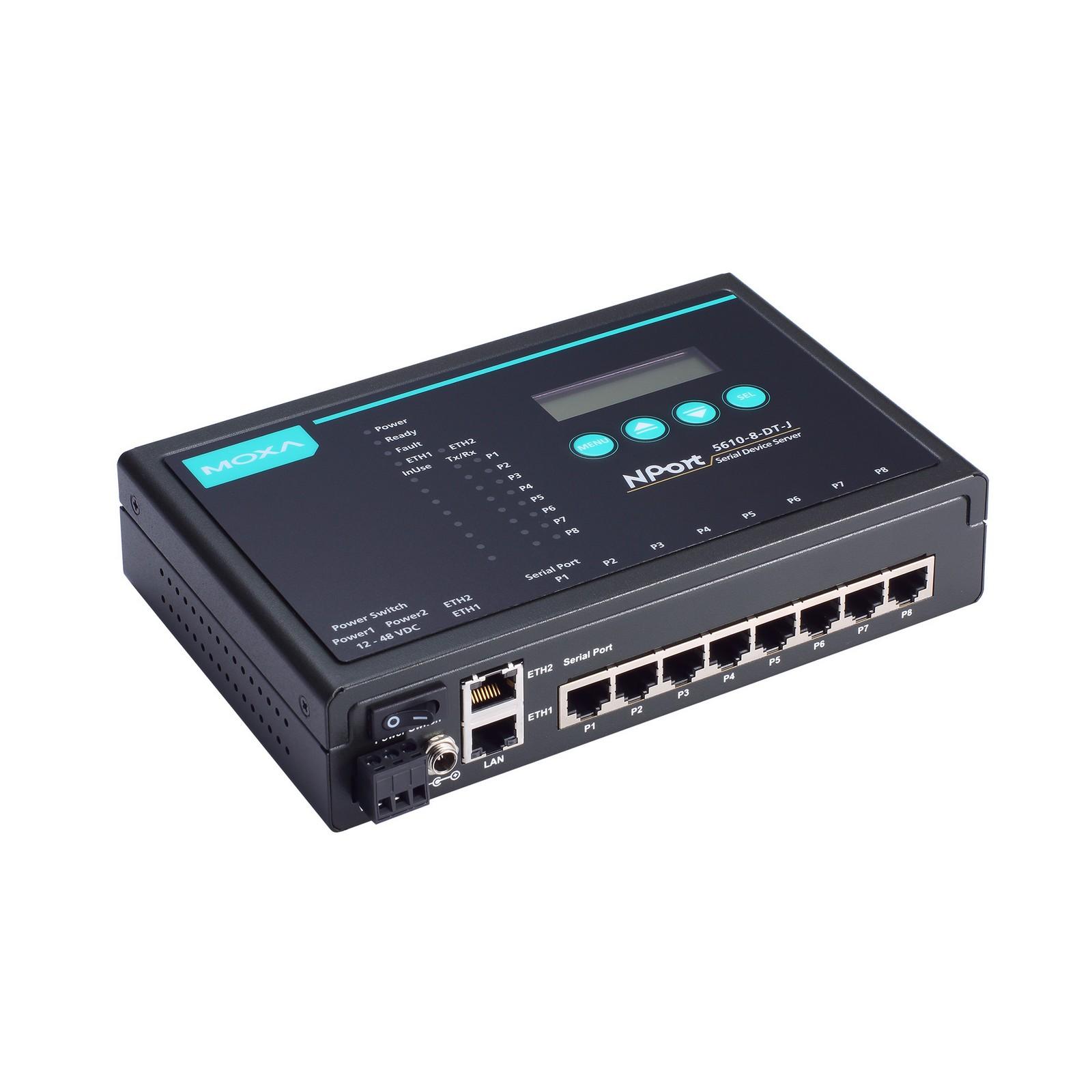

NPort 5610-8-DT-J

Serial Interface RS-232
Serial Interface Connector 8-pin RJ45
Serial Interface Isolation -
Operating Temp. 0 to 55°C
Input Voltage 12 to 48 VDC

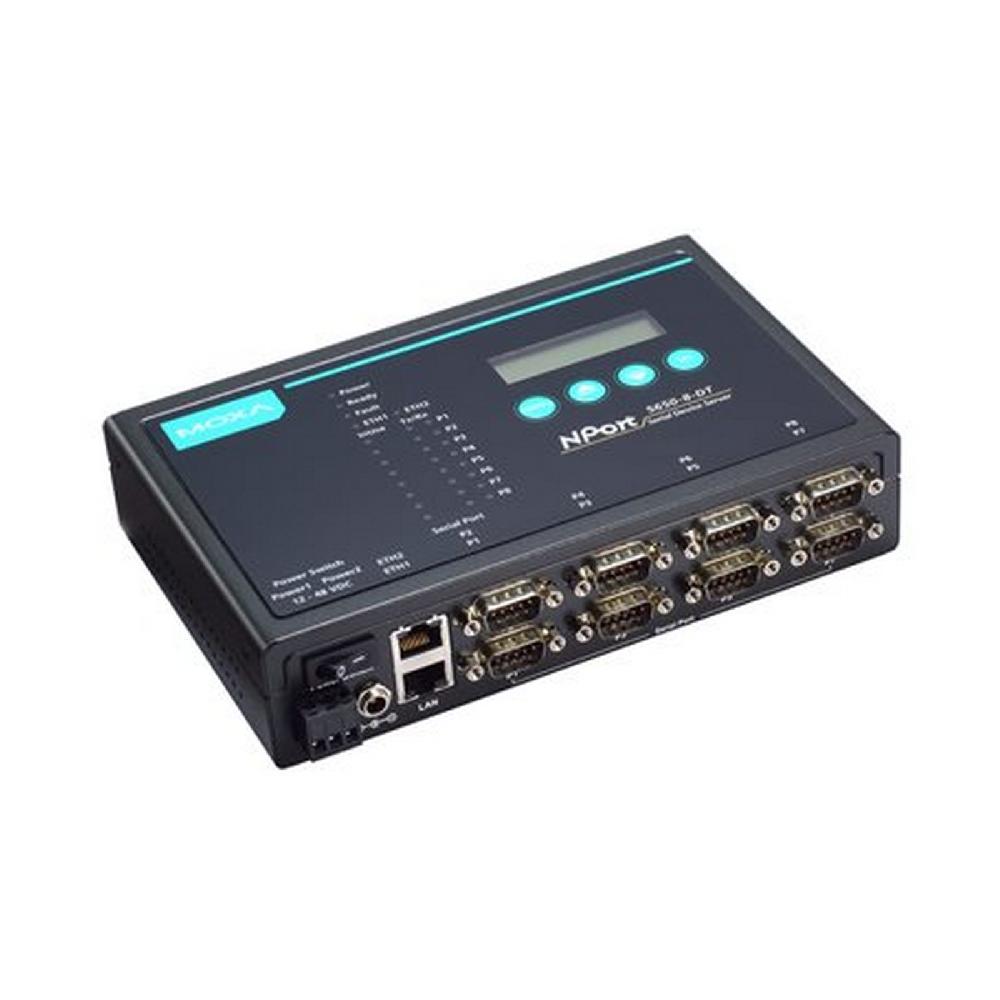

NPort 5650-8-DT

Serial Interface RS-232/422/485
Serial Interface Connector DB9
Serial Interface Isolation -
Operating Temp. 0 to 55°C
Input Voltage 12 to 48 VDC

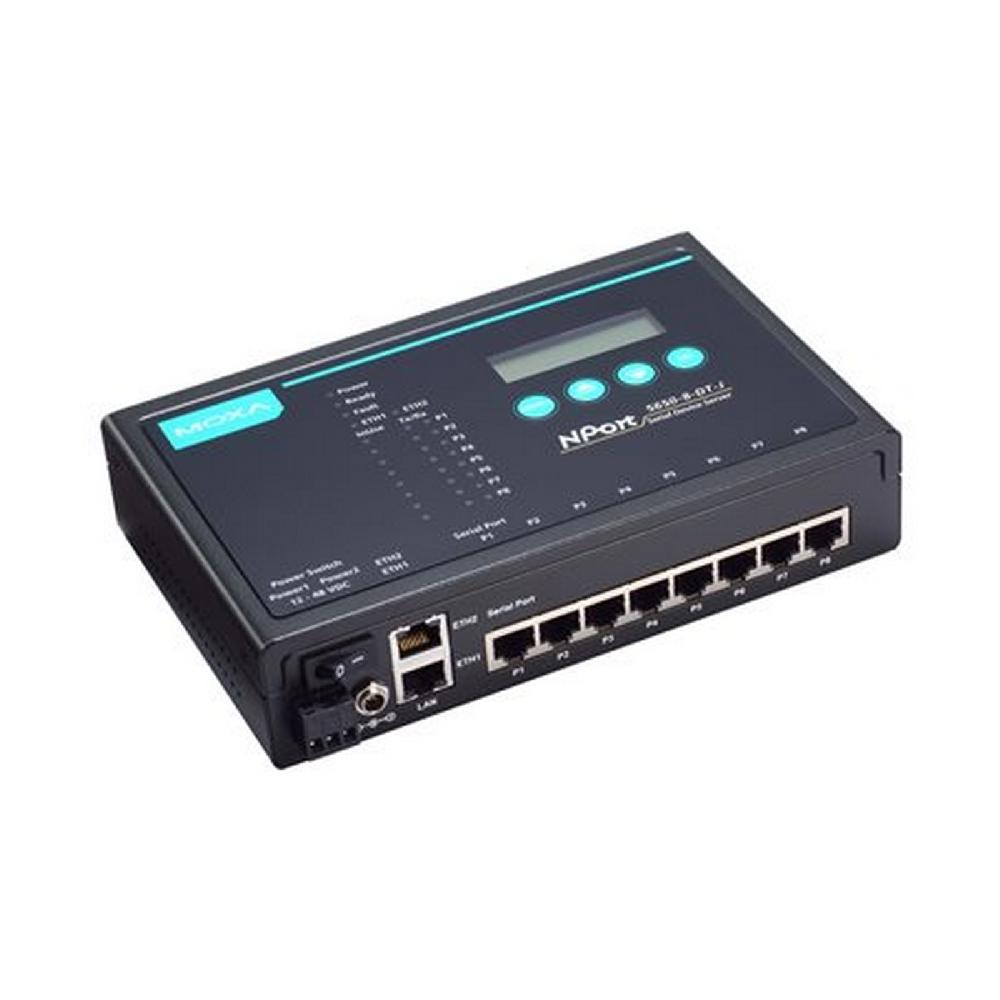

NPort 5650-8-DT-J

Serial Interface RS-232/422/485
Serial Interface Connector 8-pin RJ45
Serial Interface Isolation -
Operating Temp. 0 to 55°C
Input Voltage 12 to 48 VDC

NPort 5650I-8-DT

Serial Interface RS-232/422/485
Serial Interface Connector DB9
Serial Interface Isolation 2 kV
Operating Temp. 0 to 55°C
Input Voltage 12 to 48 VDC

NPort 5610-8-DT-T

Serial Interface RS-232
Serial Interface Connector DB9
Serial Interface Isolation -
Operating Temp. -40 to 75°C
Input Voltage 12 to 48 VDC

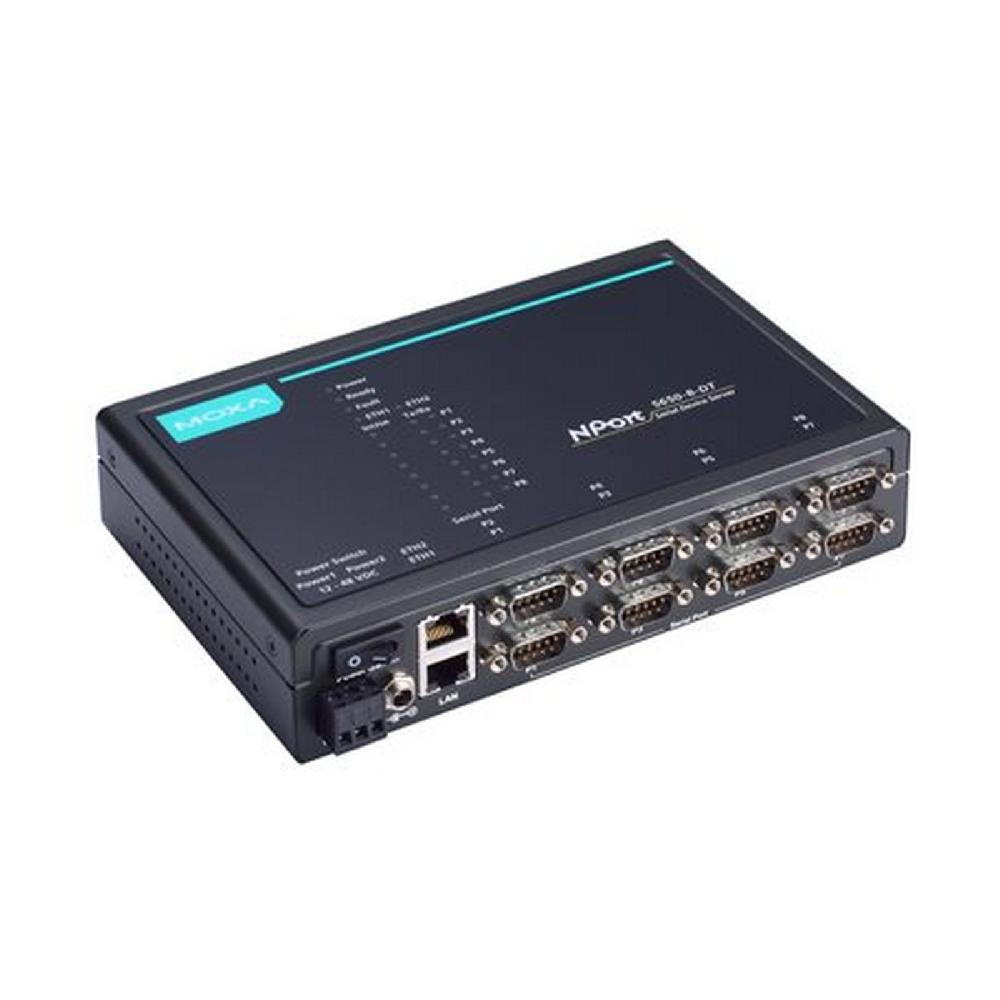

NPort 5650I-8-DT-T

Serial Interface RS-232/422/485
Serial Interface Connector DB9
Serial Interface Isolation 2 kV
Operating Temp. -40 to 75°C
Input Voltage 12 to 48 VDC

NPort 5650-8-DT-T

Serial Interface RS-232/422/485
Serial Interface Connector DB9
Serial Interface Isolation -
Operating Temp. -40 to 75°C
Input Voltage 12 to 48 VDC
