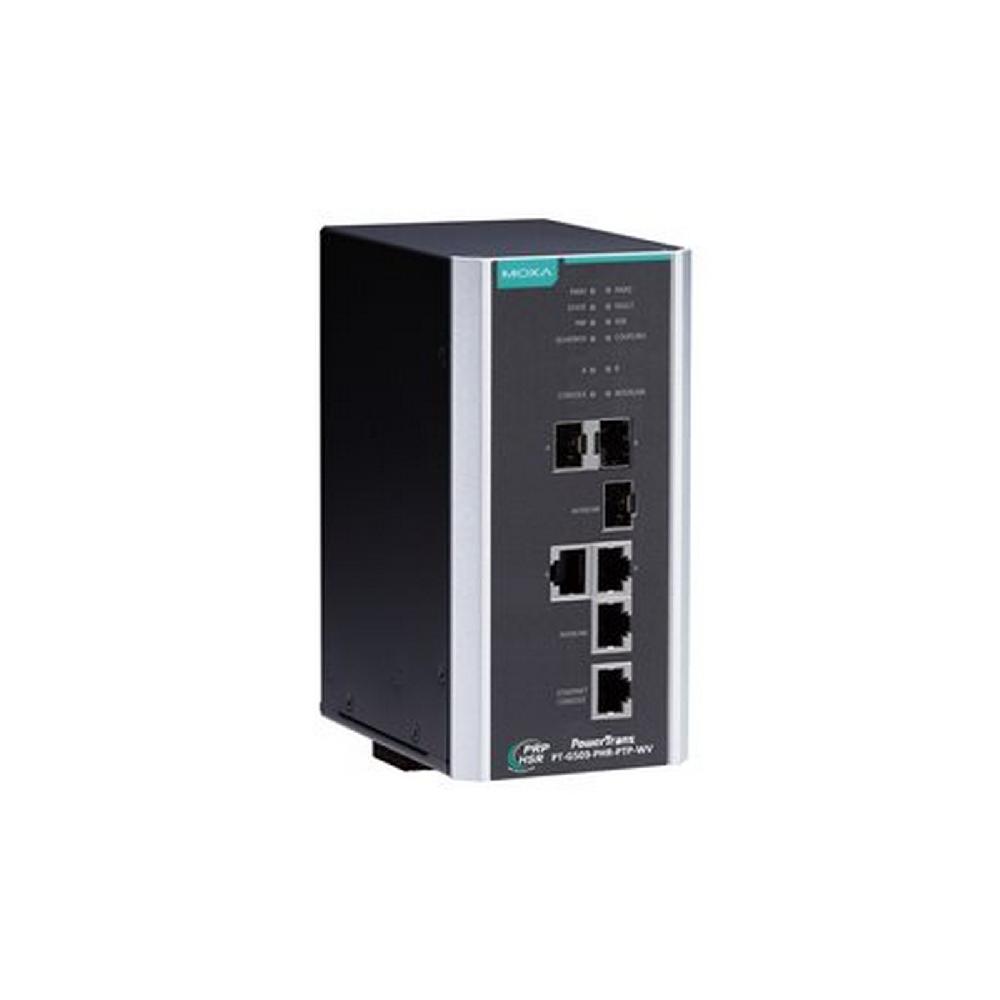

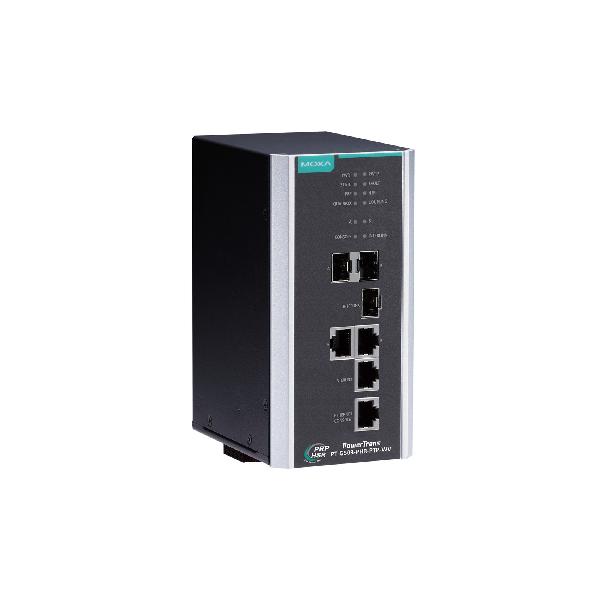

The PT-G503-PHR-PTP Series redundancy boxes (RedBoxes) are compliant with the latest standardized redundancy protocols for industrial automation networks, IEC 62439-3 Clause 4 (Parallel Redundancy Protocol, PRP) and IEC 62439-3 Clause 5 (High-availability Seamless Redundancy, HSR). PRP/HSR ensures the highest system availability and data integrity for mission-critical applications in electrical substation and/or process automation systems that require zero recovery time redundancy. The redundant protocols Coupling and QuadBox are also supported. With Coupling and QuadBox, HSR rings can be connected to make the redundant network more versatile. The PT-G503-PHR-PTP Series comes with three 10/100/1000BaseT(X) and 100/1000BaseSFP slot combo ports.
One slot (INTERLINK port) is for an internal link for connecting with a SAN (Singly Attached Node). The other two ports (LAN A and LAN B ports) are for PRP/HSR redundant protocol communications. With this full Gigabit Ethernet port design, the PT-G503-PHR-PTP Series provides high performance for PRP/HSR systems.
The PT-G503-PHR-PTP Series also provides IEEE 1588v2 PTP in end-to-end one-step transparent clock mode for timing-critical applications and isolated redundant power inputs with 24/48 VDC or 110/220 VDC/VAC power supply ranges to increase the reliability of the power supply.
Ethernet Interface | |
| Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) | 3 |
| Console Port | Ethernet console (10/100/1000Mbps RJ45) |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3z for 1000BaseSX/LX/LHX/ZX |
Ethernet Software Features | |
| Filter | Static Multicast |
| Industrial Protocols | Modbus TCP |
| Management | Back Pressure Flow Control, BOOTP, DHCP Client, Fiber check, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet |
| Power Substation | MMS |
| Redundancy Protocols | HSR, PRP, RSTP grouping |
| Security | HTTPS/SSL, TACACS+, RADIUS, SSH, Trust access control |
| Time Management | NTP Server/Client, SNTP, IEEE 1588v2 PTP (hardware-based) |
| MIB | IEC 62439-3 MIB |
USB Interface | |
| Storage Port | USB Type A |
Serial Interface | |
| Console Port | USB-serial console (Type B connector) |
Input/Output Interface | |
| Alarm Contact Channels | Resistive load: 1 A @ 24 VDC |
| Digital Inputs | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
Power Parameters | |
| Input Voltage | PT-G503-PHR-PTP-HV: Redundant dual inputs 110/220 VAC/VDC (85 to 264 VAC, 88 to 300 VDC) PT-G503-PHR-PTP-WV: Redundant dual inputs 24/48 VDC (18 to 72 VDC) |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Input Current | PT-G503-PHR-PTP-HV: 0.260/0.170 A @ 110/220 VAC PT-G503-PHR-PTP-HV: 0.150/0.080 A @ 110/220 VDC PT-G503-PHR-PTP-WV: 0.660/0.360 A @ 24/48 VDC |
| Power Connector | 1 removable 5-contact terminal block(s) |
Physical Characteristics | |
| Housing | Aluminum |
| IP Rating | IP40 |
| Dimensions (without ears) | 80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in) |
| Weight | 1210 g (2.69 lb) |
| Installation | DIN-rail mounting |
Environmental Limits | |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| Safety | UL 508 |
| EMI | EN 55032 Class A, CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs |
| Power Substation | IEC 61850-3, IEEE 1613 |
| Railway | EN 50121-4 |
MTBF | |
| Time | PT-G503-PHR-PTP-HV: 566,844 hrs PT-G503-PHR-PTP-WV: 440,857 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for PT-G503 Series | Datasheet | V1.0 | 12 November 2018 |
| Max. No. of Ports | 3 |
| Max. No. of Gigabit Ports | 3 |
| Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP | 3 |
| Input Voltage | 110/220 VDC/VAC |
| Operating Temp. | -45 to 85°C |
| Max. No. of Ports | 3 |
| Max. No. of Gigabit Ports | 3 |
| Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP | 3 |
| Input Voltage | 24/48 VDC |
| Operating Temp. | -45 to 85°C |
