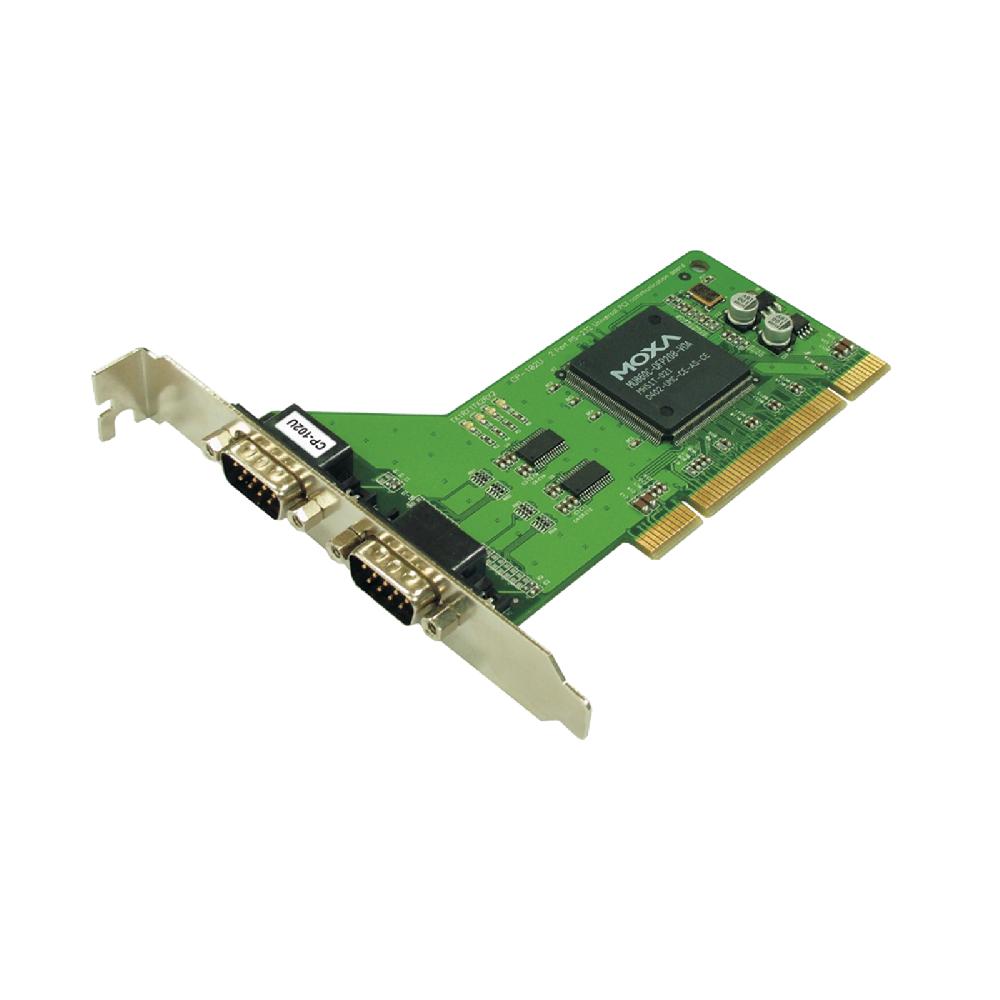

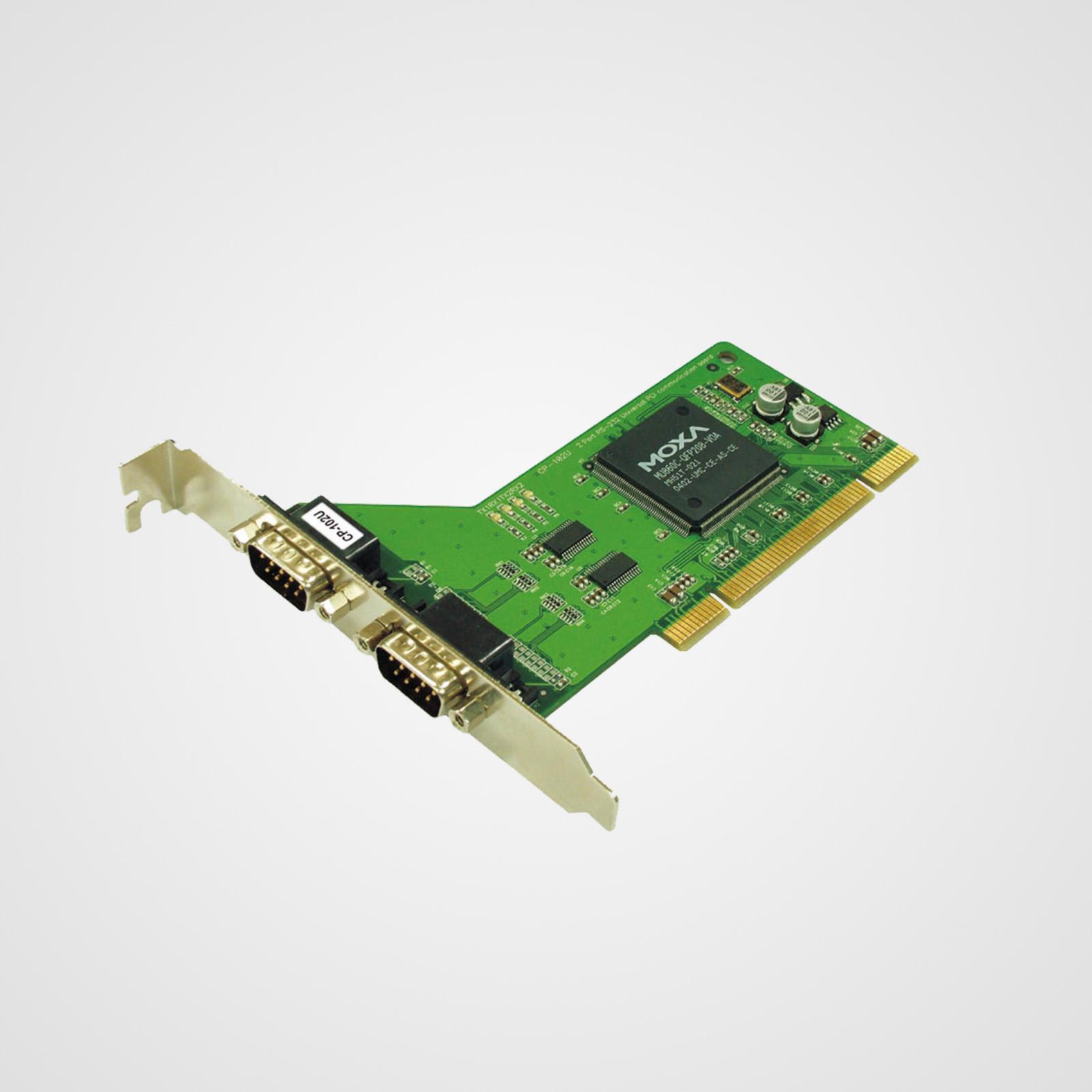

CP-102U/102UL Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Multiport Serial Boards  >   PCIe/UPCI/PCI Serial Cards

2-port RS-232 Universal PCI serial boards

Product Feature

  • Excellent data throughput at over 800 kbps
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5 V PCI and PCI-X
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • MD1 low-profile form factor (CP-102UL) fits compact PCs
  • Wide-temperature model available for -40 to 85°C environments

Introduction

The CP-102U and CP-102UL are 2-port universal PCI boards designed for POS and ATM applications. They are designed especially for industrial automation engineers and system integrators to support many different operating systems, including Windows, Linux, and even UNIX. In addition, each RS-232 serial port supports up to 921.6 kbps baudrate. The CP-102U and CP-102UL implement full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any PC.



Designed for Standard and Compact PCs

The CP-102UL is a low-profile board requiring a 5 VDC power supply. It is compatible with both a 3.3 V and 5 V PCI bus, allowing the CP-102UL to be tucked inside compact PCs.



Top Serial Performance

With 30-plus years of experience in serial board design, Moxa is now concentrating on a new high-performance serial data transmission chip. The Turbo Serial Engine™ chip provides serial boards with a 128-byte FIFO, on-chip hardware and software flow control, and burst data mode. With Turbo Serial Engine™, Moxa is able to offer advanced smart serial boards with unbeatable transmission performance.



Drivers Provided for Windows, Linux, and UNIX

Moxa continues to support a wide variety of operating systems, and the CP-102U/UL boards are no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, with support for many operating systems, including WEPOS, for embedded integration.

Serial Interface

Comm. Controller

MU860 (16C550C compatible)

Bus

32-bit Universal PCI

Connector

CP-102UL Series: DB25 female
CP-102U Series: 2 x DB9 male

Max. No. of Boards per PC

8

No. of Ports

2

Serial Standards

RS-232

Baudrate

50 bps to 921.6 kbps

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

None, RTS/CTS, XON/XOFF

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Serial Software Features

Windows Drivers

DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Linux Drivers

Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x

UNIX Drivers

QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

Power Parameters

Input Current

93 mA @ 5 VDC

Physical Characteristics

Dimensions

CP-102U Series: 80 x 120 mm (3.15 x 4.72 in)
CP-102UL Series: 64.5 x 120 mm (2.53 x 4.72 in)

LED Interface

LED Indicators

Built-in Tx, Rx LEDs for each port

Environmental Limits

Operating Temperature

Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class B

EMS

All models:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

CP-102UL Series:
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8

International Approval

CP-102U: KC

Declaration

Green Product

RoHS, CRoHS, WEEE

MTBF

Time

CP-102U Series: 574,050 hrs
CP-102UL Series: 576,401 hrs

Standards

CP-102UL Series: Telcordia (Bellcore) Standard TR/SR
CP-102U Series: MIL-HDBK-217F

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty
Name Type Version Release Date
Datasheet for CP-102U/102UL Series Datasheet V1.1 09 March 2020

CP-102U

Serial Bus Universal PCI
No. of Serial Ports 2
Form Factor Standard board
Operating Temp. 0 to 55°C
Included Cable -

CP-102UL-DB9M

Serial Bus Universal PCI
No. of Serial Ports 2
Form Factor Low profile
Operating Temp. 0 to 55°C
Included Cable CBL-M25M9x2-50

CP-102U-T

Serial Bus Universal PCI
No. of Serial Ports 2
Form Factor Standard board
Operating Temp. -40 to 85°C
Included Cable -

CP-102UL-T

Serial Bus Universal PCI
No. of Serial Ports 2
Form Factor Low profile
Operating Temp. -40 to 85°C
Included Cable -
