COM-WHUC6

Home  >   AAEON  >   Embedded Boards  >
Computer-on-Modules  >   COM Express Modules

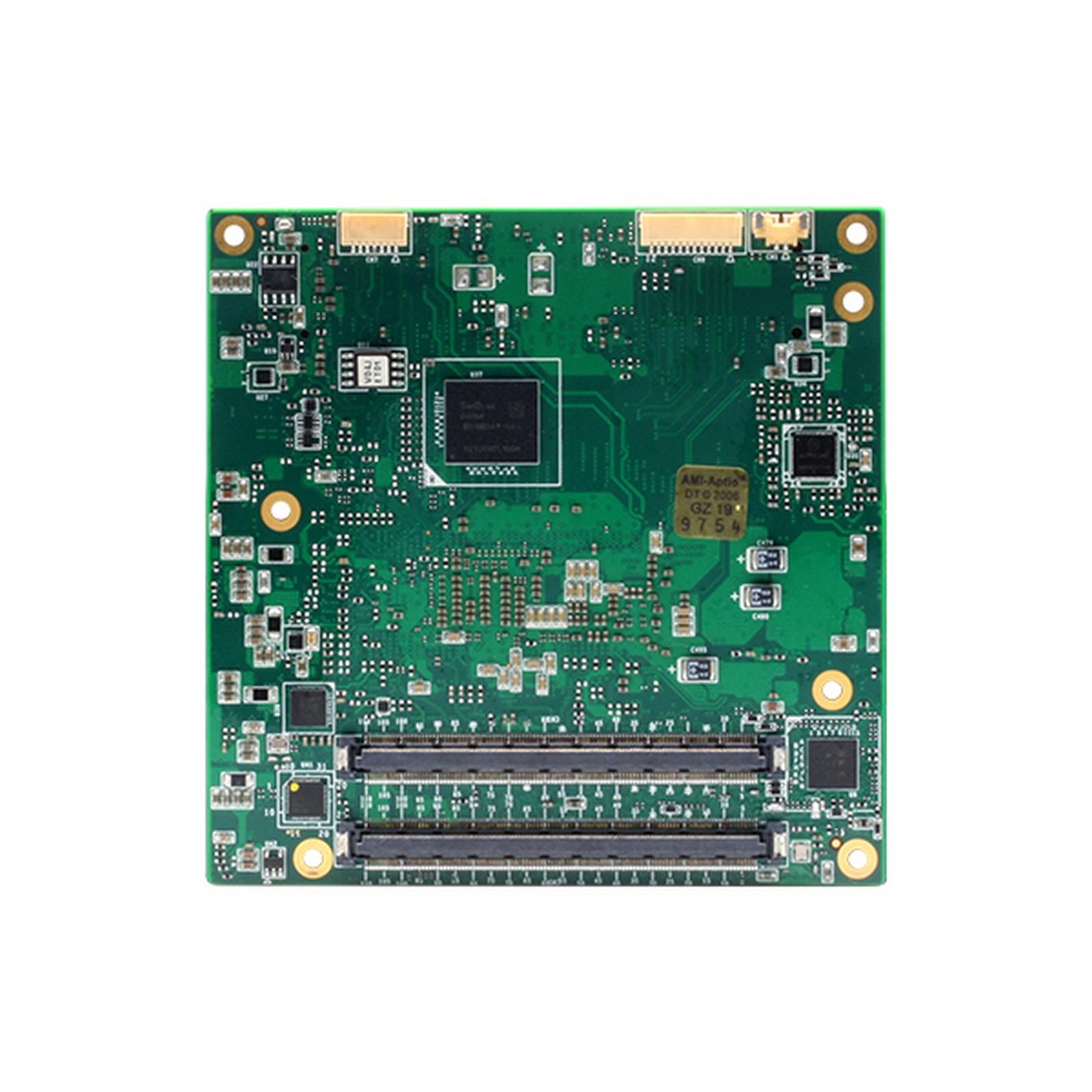

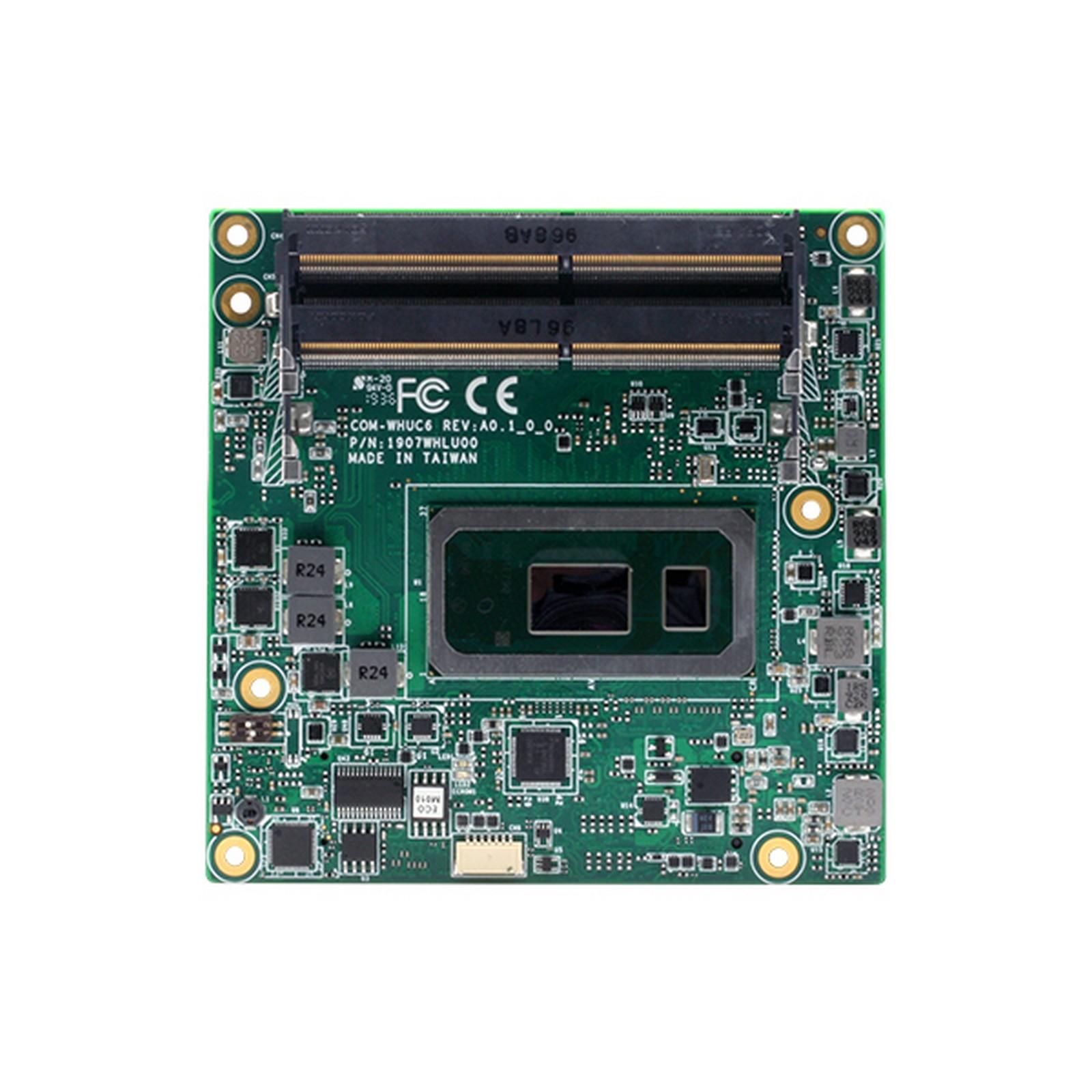

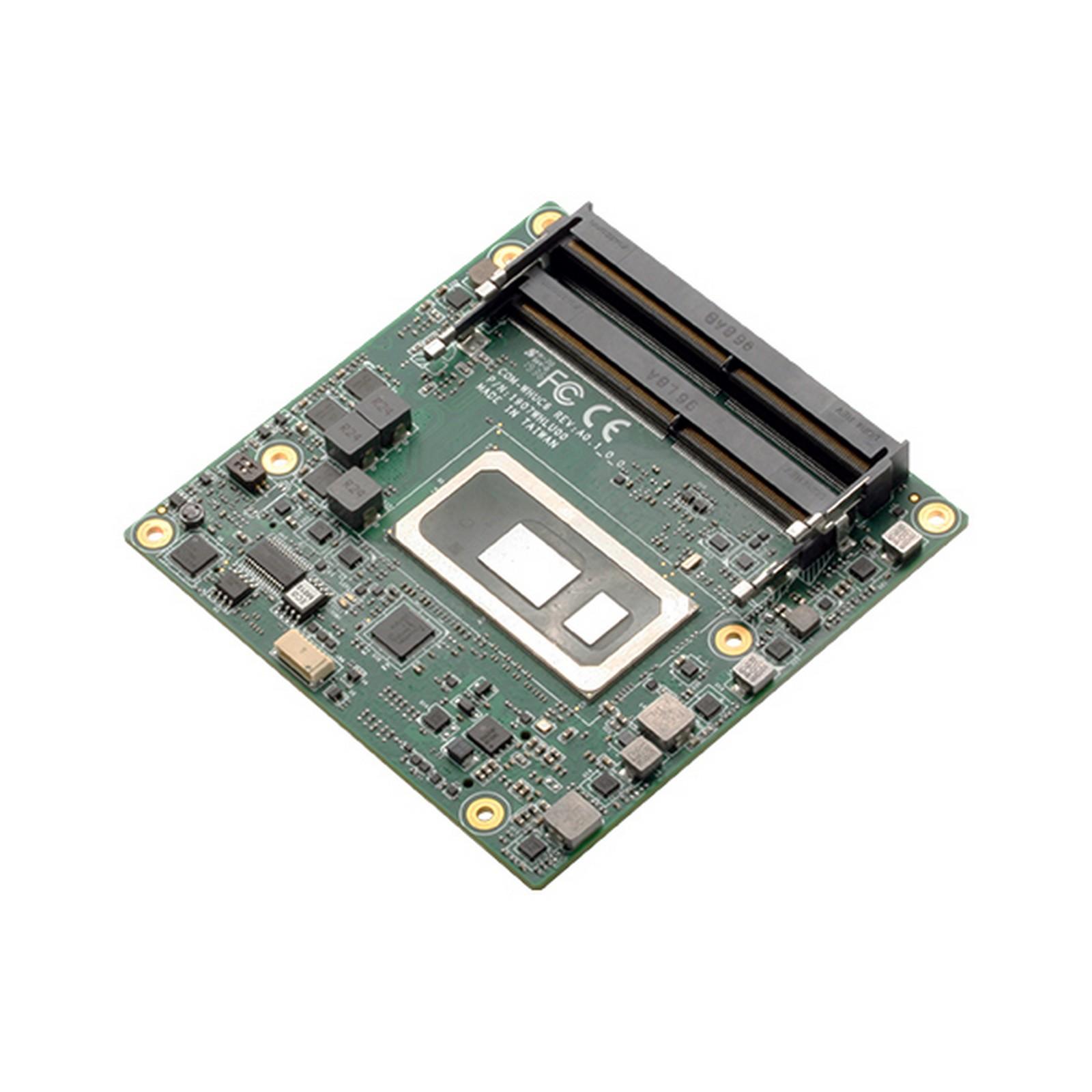

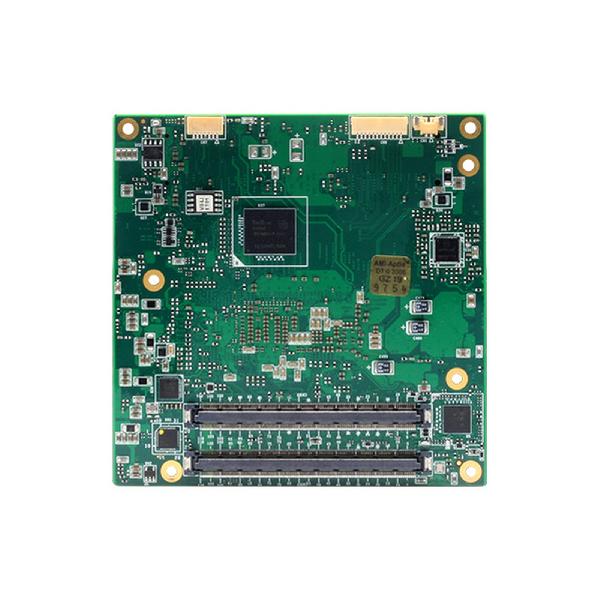

COM Express Compact Type 6 with 8th Gen Intel® Core™ ULT SoC

Product Feature

  • 8th Generation Intel® Core™/Celeron™ ULT Processor
  • DDR4 socket x 2, non-ECC Support
  • Gigabit Ethernet x 1
  • VGA, 18/24b 2ch LVDS LCDs or eDP, DDIx2 (DDI2 share with VGA)
  • High Definition Audio Interface
  • SATA3 x 2, eMMC onboard (up to 64GB)
  • USB 3.2 Gen 2 x 4, USB2.0 x 8
  • PCI-Express [x1] x 8 lanes available, 5 Devices max.
  • GPIO x8, SMbus, I2C, LPC
  • COM Express Type 6, Compact size, 95mm x 95mm

COM Express Compact Type 6 with 8th Gen Intel® Core™ ULT SoC

SYSTEM
FORM FACTORCOM Express Compact size, 95mm x 95mm
CPU8th Generation Intel® Core™ ULT Series Processor
CPU FREQUENCY
CHIPSETOnboard 8th Generation Intel® Core™ SoC
MEMORY TYPESO-DIMM DDR4 2400 Socket x2
MAX. MEMORY CAPACITYUp to 64GB
BIOSAMI BIOS, Legacy free BIOS
WAKE ON LANYes
WATCHDOG TIMER255 Levels
POWER REQUIREMENTStandard: +12V
POWER SUPPLY TYPEAT/ ATX Mode
POWER CONSUMPTION (TYPICAL)12V, estimate 18W with i7-8655UE @ 100% loading
DIMENSION (L X W)3.75" x 3.75" (95mm x 95mm)
OPERATING TEMPERATURE32°F~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE-4°F ~ 158°F (-20°C ~ 70°C)
OPERATING HUMIDITY0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)TBD
CERTIFICATIONCE/FCC Class A
DISPLAY
VGA/LCD CONTROLLERIntel® UHD Graphics 620 / 610
VIDEO OUTPUTDDI0: LVDS, (eDP by BOM change)
DDI1: Display Port
DDI2: Default VGA, (DP by SW1&2 selected)
I/O
ETHERNETIntel® I219 GbE x 1
AUDIOHD Audio x 1
USB PORTUSB 2.0 x 8, USB 3.2 Gen 2 x 4
SERIAL PORT2-wire UART x 2 (TX/RX)
HDD INTERFACESATA3 x 2 as default (up to 3)
EXPANSION SLOTPCIe[x1] x 4 + PCIe[x4] x 1 (default), I2C, LPC, SMBus
GPIO8-bit
ONBOARD STORAGEeMMC x 1 (up to 64GB)
TPMTPM 2.0 Optional
Name Type Version Release Date
COM-WHUC6 Datasheet Datasheet V1.0 09 December 2019
