CP-104EL-A Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Multiport Serial Boards  >   PCIe/UPCI/PCI Serial Cards

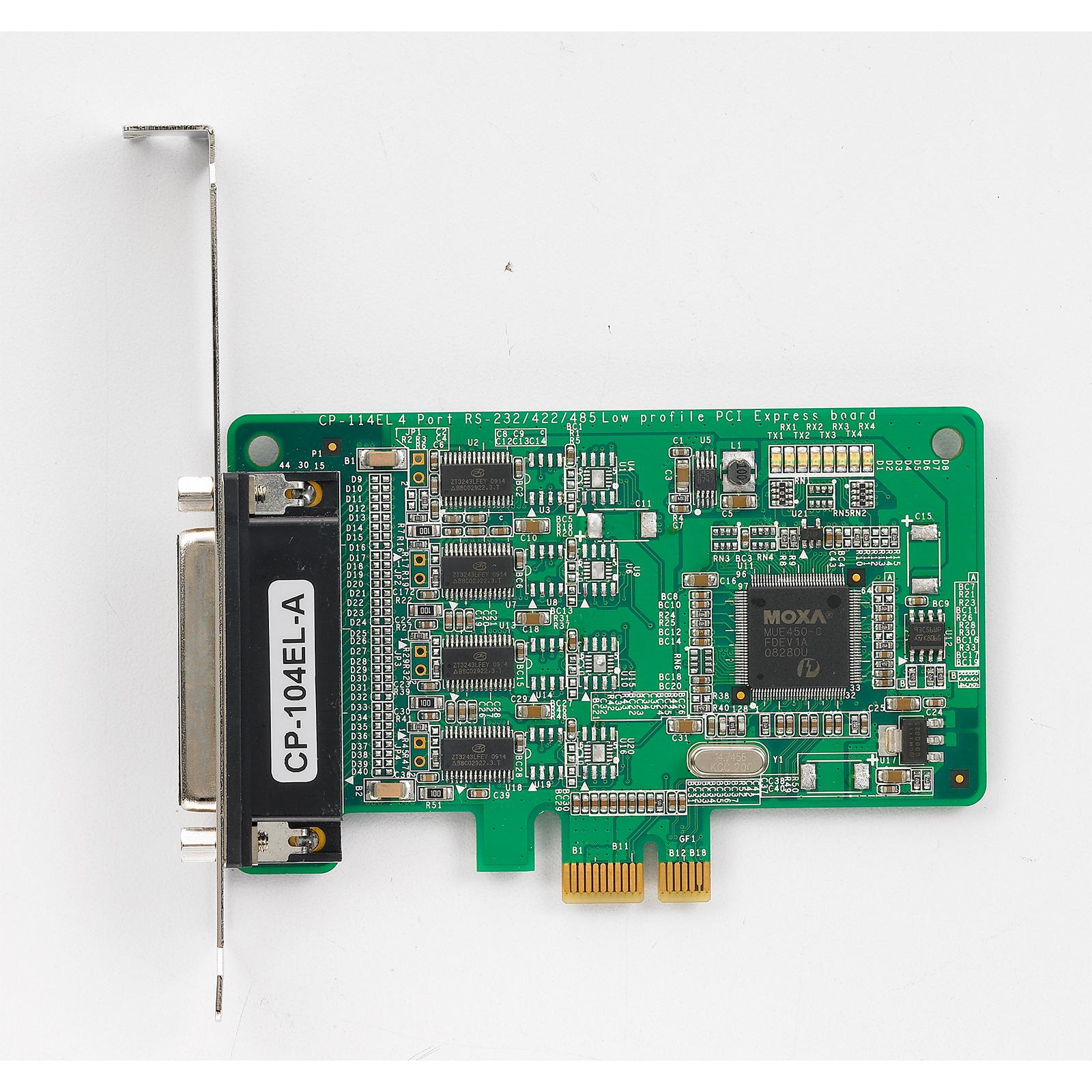

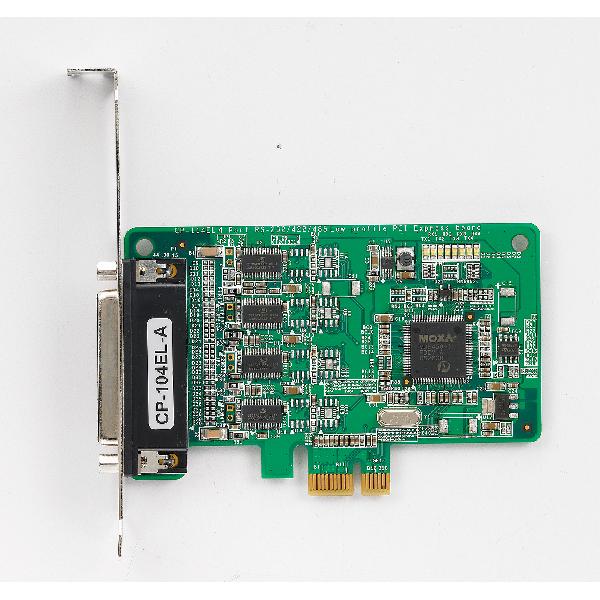

4-port RS-232 PCI Express serial board

Product Feature

  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Low-profile form factor fits small-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Easy maintenance with built-in LEDs and management software

Introduction

The CP-104EL-A is a smart, 4-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s 4 RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-104EL-A provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express x1 classification allows it to be installed in any PCI Express slot.



Smaller Form Factor

The CP-104EL-A is a low-profile board that is compatible with any PCI Express slot. The board requires only a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.



Drivers Provided for Windows, Linux, and UNIX

Moxa continues to support a wide variety of operating systems, and the CP-104EL-A board is no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.

Serial Interface

Comm. Controller

16C550C compatible

Bus

PCI Express 1.0

Connector

DB44 female

FIFO

128 bytes

Max. No. of Boards per PC

8

No. of Ports

4

Serial Standards

RS-232

Baudrate

50 bps to 921.6 kbps (supports non-standard baudrates)

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

None, RTS/CTS, XON/XOFF

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Serial Software Features

Linux Drivers

Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x

Windows Drivers

DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

UNIX Drivers

QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6

Power Parameters

Input Current

805 mA @ 3.3 VDC

Physical Characteristics

Dimensions

67.21 x 103 mm (2.65 x 4.06 in)

LED Interface

LED Indicators

Built-in Tx, Rx LEDs for each port

Environmental Limits

Operating Temperature

0 to 55°C (32 to 131°F)

Storage Temperature (package included)

-20 to 85°C (-4 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class B

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF

Declaration

Green Product

RoHS, CRoHS, WEEE

MTBF

Time

3,601,447 hrs

Standards

Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty
Name Type Version Release Date
Datasheet for CP-104EL-A Series Datasheet V1.1 09 March 2020

CP-104EL-A-DB25M

Serial Standards RS-232
No. of Serial Ports 4
Included Cable CBL-M44M25x4-50

CP-104EL-A-DB9M

Serial Standards RS-232
No. of Serial Ports 4
Included Cable CBL-M44M9x4-50
