EMPU-3201

Home  >   Innodisk  >   Embedded Peripherals  >
Storage

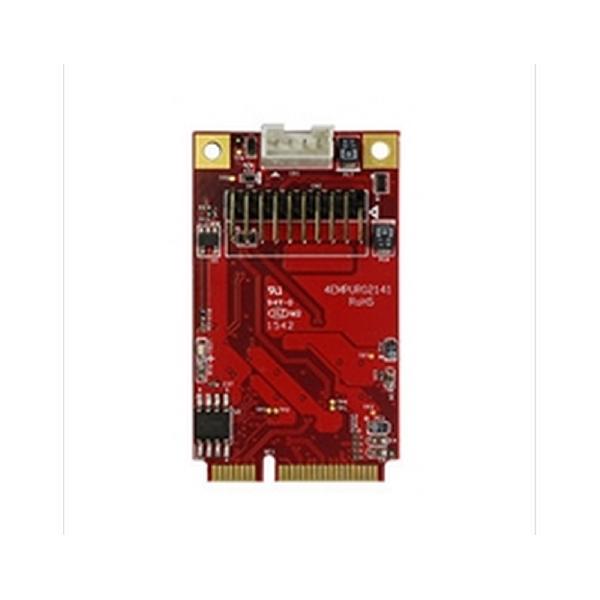

mPCIe to dual USB 3.0 Module

Product Feature

  • Compliant with PCI Express Base Specification Revision 2.0
  • Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
  • Supports 2 downstream USB 3.0 ports
  • Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
  • 30μ" golden finger, 3 years warranty.
  • Industrial design, manufactured in innodisk Taiwan

mPCIe to dual USB 3.0 Module

Module NameEMPU-3201
Module TypemPCIe to dual USB 3.0 Module
Form FactormPCIe
Input I/FPCI Express 2.0
Output I/FUSB 3.0

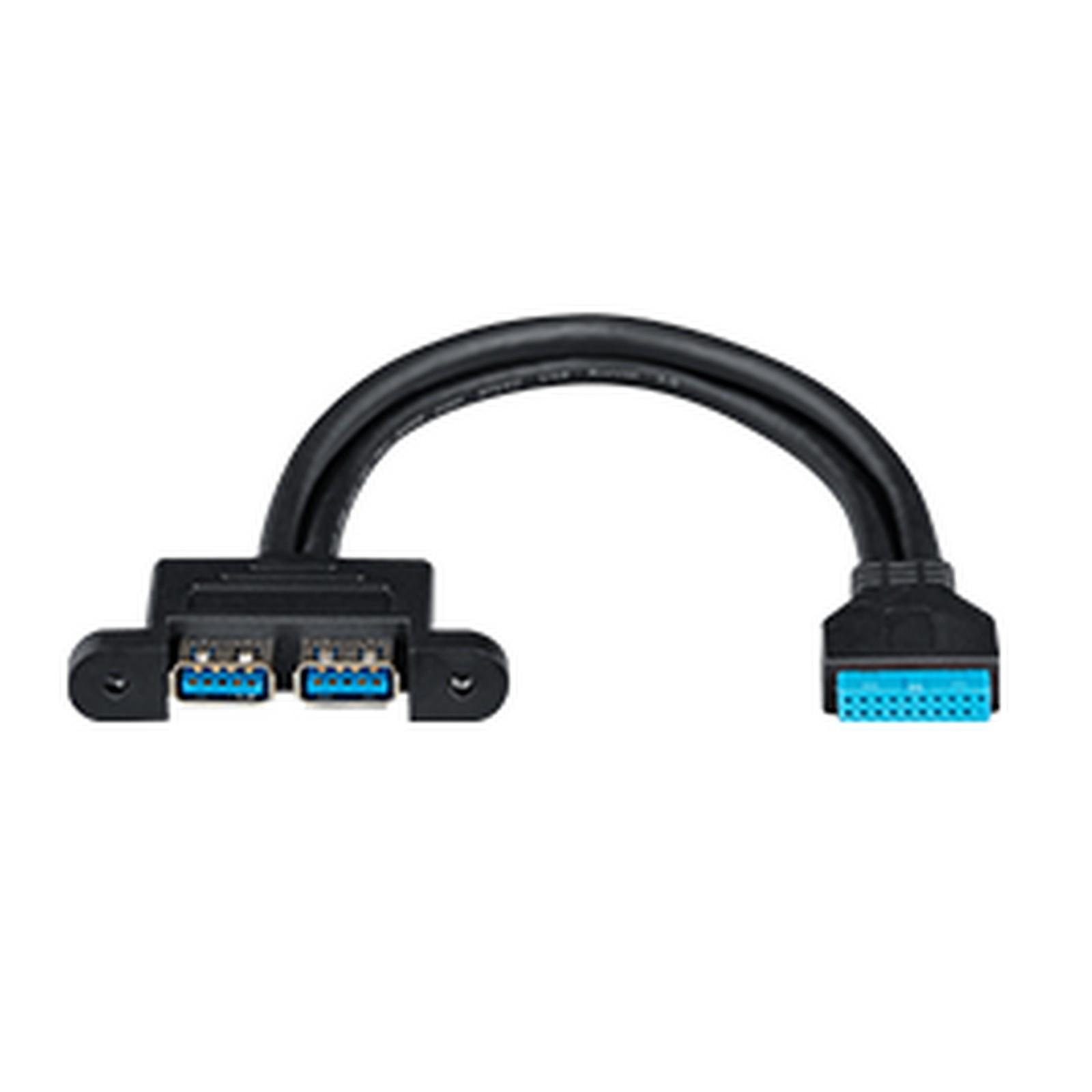

Output connector19 Pin header
Power Consumption0.89W (3.3V x 270mA)
Dimensions (W x L x H/mm)30.0 x 50.9 x 8.45
TemperatureOperation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C
Storage: -55°C ~ +95°C
EnvironmentVibration: 5G @7~2000Hz
Shock: 50G @ 0.5ms
NotesPlease download driver from MyInnodisk website.
Windows: XP(32 bit), 7(32/64 bit), Vista
Linux: Kernel v2.6.0, v2.6.8
*After Win8 and Linux Kernel v2.6.31 supports built-in xHCI 1.0.
Name Type Version Release Date
EMPU-3201_Datasheet Datasheet V1.0 29 October 2020
