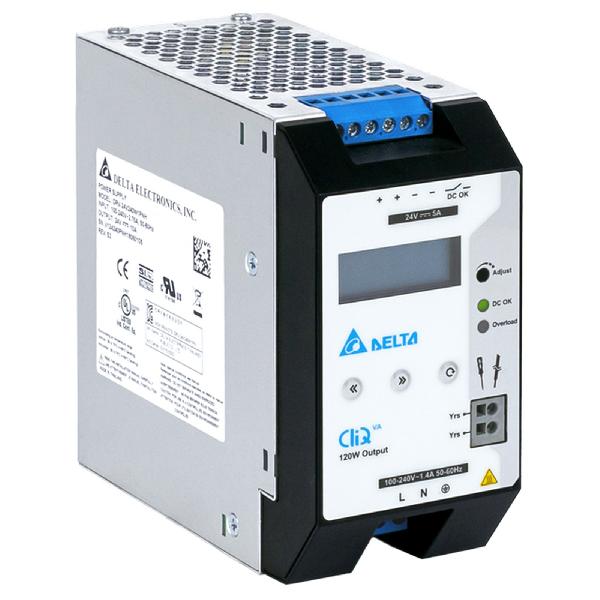

DRV-24V120W1PN

Home  >   Delta PSU  >   DIN Rail Power Supply  >
CliQ VA

DIN Rail CliQ VA Series

Product Feature

  • Universal AC input voltage range
  • LCD display monitoring the output current / voltage / peak current and temperature
  • Life time expectancy alarm signal and monitoring
  • Built-in active PFC with up to 94% efficiency
  • Power Boost of 150% up to 7 seconds
  • Advanced Power Boost (APB) – protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection
  • DC OK Contact and LED indicator for DC OK/ Overload
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants

Output Voltage

24V

Output Power

120W

Output Current

5A

Input Voltage Range

85-264Vac

Dimensions (L x W x D)

124 x 60 x 139 mm

4.88” x 2.36” x 5.47”

Unit Weight

0.75 kg (1.65 lb)

Output

Output Current5A
Output Voltage24V
Output Voltage Adjustment Range24-28Vdc
Output Power120W
Line Regulation20mV Max. (@ 85-264Vac input, 100% load)
Load Regulation100mV Max. (@ 85-264Vac input, 0-100% load)
PARD50mVpp Max.
Start-up Time750ms Max. (24V, 5A) @ 100Vac, 120Vac, 230Vac
Hold-up Time140ms typ. (24V, 2.5A.) @ 100, 120, 230Vac
70ms typ. (24V, 5A.) @ 100, 120, 230Vac
Dynamic Response (Overshoot & Undershoot O/P Voltage)± 5% Max. @ 0-100% load Slew rate 0.1A/µsec (@ 5Hz, 50Hz & 1kHz, 50% Duty Cycle)
Start-up with Capacitive Loads10,000µF Max.
Rise Time20ms Max. (0µF, 24V, 5A) @ 100Vac, 120Vac, 230Vac
50ms Max. (5,000µF, 24V, 5A) @ 100Vac, 120Vac, 230Vac

Input

Input Voltage100-240Vac
Input Voltage Range88-264Vac
Nominal Input Frequency50-60Hz
Nominal DC Input Voltage110-300Vdc
DC Input Voltage Range88-375Vdc
Input Current1.34A Typ. @ 100Vac, 1.11A Typ. @ 120Vac, 0.61A Typ. @ 230Vac
Efficiency at 100% load89.67% Typ. @ 100Vac, 90.62% Typ. @ 120Vac, 91.42% Typ. @ 230Vac
Max Inrush Current(Cold Start)
5.2A Typ. @ 100Vac, 5.5A Typ. @ 120Vac, 10.1A Typ. @ 230Vac, 15.0A Max. @ 100Vac, 120Vac, 230Vac
Power Factor at 100% load0.99 Typ. @ 100Vac, 0.99 Typ. @ 120Vac, 0.93 Typ. @ 230Vac
Leakage Current(Enclosure to Neutral)
< 0.18mA / 0.46mA : 110Vac, 50Hz, TN/TT system / IT system
< 0.22mA / 0.54mA : 132Vac, 50Hz, TN/TT system / IT system
< 0.45mA / 1.08mA : 264Vac, 50Hz, TN/TT system / IT system
Max Power DissipationAt 24V,0A: 3.70W Typ. @ 100Vac, 3.36W Typ. @ 120Vac, 2.70W Typ. @ 230Vac, 3.80W Max. @ 100Vac, 3.90W Max.
@ 120Vac, 4.30W Max. @ 230Vac
At 24V,5A: 13.85W Typ. @ 100Vac, 12.45W Typ. @ 120Vac, 11.27W Typ. @ 230Vac, 14.00W Max. @ 100Vac, 12.90W Max.
@ 120Vac, 11.60W Max. @ 230Vac

Mechanical

Case Chassis / CoverAluminium and Plastic / Aluminium
IndicatorGreen LED (DC OK)
Cooling SystemConvection
Unit Weight0.75 kg (1.65 lb)
Dimensions124 x 60 x 139 mm
4.88” x 2.36” x 5.47”

Environment

Operating Temperature-25°C to +70°C (Cold start -40°C)
Storage Temperature-40°C to +85°C
Power De-ratingVertical: > 60°C de-rate power by 2.5% / °C
Horizontal: > 50°C de-rate power by 2.5% / °C
Operating Humidity5 to 95% RH (Non-Condensing)
Shock Test (Non-Operating)IEC 60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak);60 min per axis for all X, Y, Z direction
Vibration Test (Non-Operating)IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms,1,000 times per direction, 6,000 times in total
Operating Altitude0 to 5,000 Meters (16,400 ft.)
Pollution Degree2
Bump Test (Operating)IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms, 1,000 times per direction, 6,000 times in total
Over Voltage CategoryIII

Protections

Overvoltage28.8 – 35.2V, SELV Output, Hiccup Mode,
Non-Latching (Auto-Recovery)
Overload / Overcurrent> 150% of rated load current, Constant current,
Hiccup Mode (Auto-Recovery)
Over Temperature< 80°C Surrounding Air Temperature @ 100% load,
Non-Latching (Auto-Recovery)
Short CircuitHiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
Degree of ProtectionIP20
Protection Against ShockClass I with Primary Earth connection

Reliability

MTBFMTBF (as per Telcordia SR-332): 1,444,000 hrs. I/P: 100Vac, O/P: 24V, 5A, Ta: 25°C
801,000 hrs. I/P: 100Vac, O/P: 24V, 5A, Ta: 40°C
Expected Cap Life Time131,400hrs. O/P: 24V, 5A, Ta: 25°C
92,230hrs. @ 100Vac, 98,540hrs. @ 230Vac O/P: 24V, 5A, Ta: 40°C
131,400hrs. O/P: 24V, 2.5A, Ta: 40°C

Safety

Electrical SafetySIQ Bauart: EN 60950-1, EN 61010-1, EN 61010-2-201
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 61010-1, IEC 61010-2-201
CEIn conformance with EMC Directive 2014/30/EU (only AC input) and Low Voltage Directive 2014/35/EU
Galvanic Isolation3.0KVac: Input / Output
2.0KVac: Input / PE
3.0KVac: Input / DC OK relay contact
1.5KVac: Output / PE
0.5KVac: Output / DC OK relay contact
1.5KVac: DC OK relay contact / PE
Industrial Control EquipmentUL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)
CSA: CSA C22.2 No. 107.1-01 (File No. 181564)
Electrical Equipments of MachinesEN 60204-1 (over voltage category III)
Electrical Equipment for Use in Electrical Power InstallationsIEC/EN 62477-1 / IEC 62103
Safety Entry Low VoltagePELV (EN 60204-1), SELV (EN 60950-1)
MaritimeDNV GL: Germanischer Lloyd classified
ABS: American Bureau for Shipping PDA Environmental category: C, EMC2
Material and PartsRoHS Directive 2011/65/EU Compliant (EN 50581)
Isolation Resistance> 5MOhm: Input to Output, 500Vdc
PE Resistance< 0.1Ohm

EMC

Emission(CE & RE)
Generic Standards: EN 61000-6-3
CISPR 32, EN 55032, CISPR 11, EN 55011, FCC Title 47: Class B
ImmunityGeneric Standards: EN 55024, EN 61000-6-2
Harmonic Current EmissionsIEC/EN 61000-3-2, Class A
Voltage Fluctuation and FlickerIEC/EN 61000-3-3
Component Power Supply for General UseEN 61204-3
Name Type Version Release Date
DRV-24V120W1PN Datasheet Datasheet V1.0 09 June 2020
