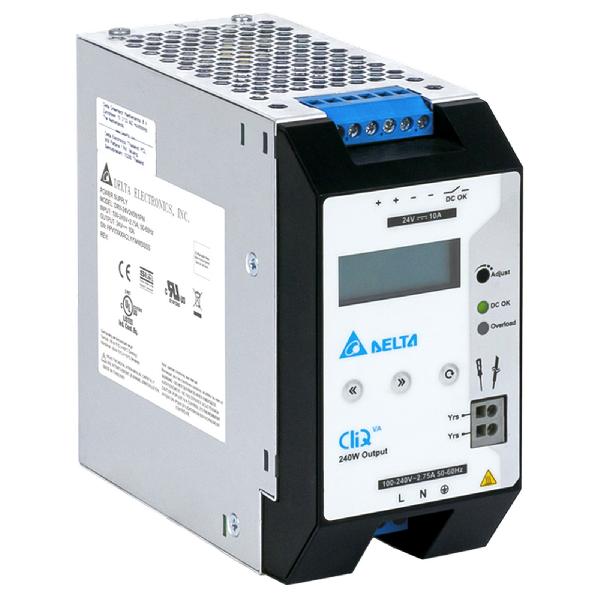

DRV-24V240W1PN

Home  >   Delta PSU  >   DIN Rail Power Supply  >
CliQ VA

DIN Rail CliQ VA Series

Product Feature

  • Universal AC input voltage range
  • LCD display monitoring the output current / voltage / peak current and temperature
  • Life time expectancy alarm signal and monitoring
  • Built-in active PFC with up to 94% efficiency
  • Power Boost of 150% up to 7 seconds
  • Advanced Power Boost (APB) – protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection
  • DC OK Contact and LED indicator for DC OK/ Overload
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants

Output Voltage

24V

Output Power

240W

Output Current

10A

Input Voltage Range

85-276Vac

Dimensions (L x W x D)

124 x 60 x 139 mm

4.88” x 2.36” x 5.47”

Unit Weight

1.02 kg (2.25 lb)

Output

Output Current10A
Output Voltage24V
Output Voltage Adjustment Range24-28Vdc
Output Power240W
Line Regulation10mV Max. (@ 85-276Vac input, 100% load)
Load Regulation100mV Max. (@ 85-276Vac input, 0-100% load)
PARD50mVpp Max.
Start-up TimeAt 24V, 10A: 800ms Max. @ 100Vac, 650ms Max. @ 120Vac, 340ms Max. @ 230Vac
Hold-up Time92ms typ. (24V, 5A.) @ 100, 120, 230Vac
46ms typ. (24V, 5A.) @ 100, 120, 230Vac
Dynamic Response (Overshoot & Undershoot O/P Voltage)± 5% Max. @ 0-100% load Slew rate 0.1A/µs (@ 5Hz, 50Hz & 1kHz, 50% Duty Cycle)
Start-up with Capacitive Loads10,000µF Max.
Rise Time100ms Max. (0µF, 24V, 10A) @ 100Vac, 120Vac, 230Vac
120ms Max. (10,000µF, 24V, 10A) @ 100Vac, 120Vac, 230Vac

Input

Input Voltage100-240Vac
Input Voltage Range85-276Vac
Nominal Input Frequency50-60Hz
Nominal DC Input Voltage110-300Vdc
DC Input Voltage Range88-375Vdc
Input Current2.63A Typ. @ 100Vac, 2.18A Typ. @ 120Vac, 1.16A Typ. @ 230Vac
Efficiency at 100% load91.90% Typ. @ 100Vac, 92.72% Typ. @ 120Vac, 94.73% Typ. @ 230Vac
Max Inrush Current(Cold Start)
5.0A Typ. @ 100Vac, 6.0A Typ. @ 120Vac, 7.0A Typ. @ 230Vac, 10.0A Max. @ 100Vac, 120Vac, 230Vac
Power Factor at 100% load0.99 Typ. @ 100Vac, 0.98 Typ. @ 120Vac, 0.95 Typ. @ 230Vac
Leakage Current(Enclosure to Neutral)
< 0.28mA / 0.80mA: 110Vac, 50Hz, TN/TT system / IT system
< 0.38mA / 0.95mA: 132Vac, 50Hz, TN/TT system / IT system
< 0.74mA / 2.10mA: 264Vac, 50Hz, TN/TT system / IT system
Max Power DissipationAt 24V,0A: 2.87W Typ. @ 100Vac, 2.94W Typ. @ 120Vac, 3.00W Typ. @ 230Vac, 4.4W Max. @ 100Vac, 4.9W Max.
@ 120Vac, 6.1W Max. @ 230Vac
At 24V,10A: 21.20W Typ. @ 100Vac, 18.90W Typ. @ 120Vac, 13.39W Typ. @ 230Vac, 22.4W Max. @ 100Vac, 19.1W Max.
@ 120Vac, 16.7W Max. @ 230Vac

Mechanical

Case Chassis / CoverAluminium and Plastic / Aluminium
IndicatorGreen LED (DC OK)
Cooling SystemConvection
Unit Weight1.02 kg (2.25 lb)
Dimensions124 x 60 x 139 mm
4.88” x 2.36” x 5.47”

Environment

Operating Temperature-25°C to +70°C (Cold start -40°C)
Storage Temperature-40°C to +85°C
Power De-ratingVertical Mounting: > 60°C de-rate power by 2.5% / °C
Horizontal Mounting: > 50°C de-rate power by 2.5% / °C
Operating Humidity5 to 95% RH (Non-Condensing)
Shock Test (Non-Operating)IEC 60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak);60 min per axis for all X, Y, Z direction
Vibration Test (Non-Operating)IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms,1,000 times per direction, 6,000 times in total
Operating Altitude0 to 5,000 Meters (16,400 ft.)
Pollution Degree2
Bump Test (Operating)IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total
Over Voltage CategoryIII

Protections

Overvoltage28.8 – 35.2V, SELV Output, Hiccup Mode,
Non-Latching (Auto-Recovery)
Overload / Overcurrent> 150% of rated load current, Constant current,
Hiccup Mode (Auto-Recovery)
Over Temperature< 80°C Surrounding Air Temperature @ 100% load,
Non-Latching (Auto-Recovery)
Short CircuitHiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
Degree of ProtectionIP20
Protection Against ShockClass I with Primary Earth connection

Reliability

MTBFMTBF (as per Telcordia SR-332): 1,268,000 hrs. I/P: 100Vac, O/P: 24V, 10A, Ta: 25°C
666,000 hrs. I/P: 100Vac, O/P: 24V, 10A, Ta: 40°C
Expected Cap Life Time131,400hrs. O/P: 24V, 10A, Ta: 25°C
81,490hrs. @ 100Vac, 121,350hrs. @ 230Vac O/P: 24V, 10A, Ta: 40°C
131,400hrs. O/P: 24V, 5A, Ta: 40°C

Safety

Electrical SafetySIQ Bauart: EN 60950-1, EN 61558-1, EN 61558-2-16, EN 61010-1, EN 61010-2-201
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 61558-1, IEC 61558-2-16, IEC 61010-1, IEC 61010-2-201
CEIn conformance with EMC Directive 2014/30/EU (only AC input) and Low Voltage Directive 2014/35/EU
Galvanic Isolation3.0KVac: Input / Output
2.0KVac: Input / PE
3.0KVac: Input / DC OK relay contact
1.5KVac: Output / PE
0.5KVac: Output / DC OK relay contact
1.5KVac: DC OK relay contact / PE
Industrial Control EquipmentUL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)
CSA: CSA C22.2 No. 107.1-01 (File No. 181564)
Electrical Equipments of MachinesEN 60204-1 (over voltage category III)
Electrical Equipment for Use in Electrical Power InstallationsIEC/EN 62477-1 / IEC 62103
Safety Entry Low VoltagePELV (EN 60204-1), SELV (EN 60950-1)
MaritimeDNV GL: Germanischer Lloyd classified
ABS: American Bureau for Shipping PDA Environmental category: C, EMC2
Material and PartsRoHS Directive 2011/65/EU Compliant (EN 50581)
Isolation Resistance> 5MOhm: Input to Output, 500Vdc
PE Resistance< 0.1Ohm

EMC

Emission(CE & RE)
Generic Standards: EN 61000-6-3
CISPR 32, EN 55032, CISPR 11, EN 55011, FCC Title 47: Class B
ImmunityGeneric Standards: EN 55024, EN 61000-6-2
Harmonic Current EmissionsIEC/EN 61000-3-2, Class A
Voltage Fluctuation and FlickerIEC/EN 61000-3-3
Component Power Supply for General UseEN 61204-3
Name Type Version Release Date
DRV-24V240W1PN Datasheet Datasheet V1.0 09 June 2020
