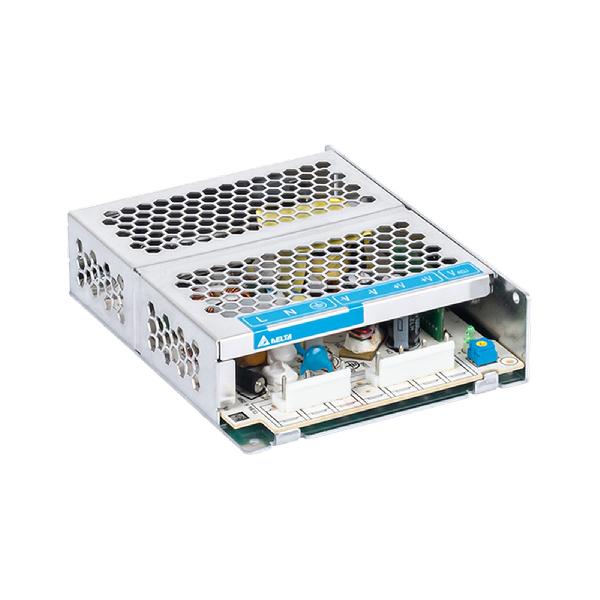

PMH-12V100WCMT

Home  >   Delta PSU  >   Panel Mount Power Supply  >
PMH

Panel Mount PMH Series

Product Feature

  • Household appliance approvals for pollution degree 3 to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
  • Universal AC input voltage
  • Withstand line input voltage surge 300Vac up to 7 seconds
  • Full power 54W up to 70°C
  • Full corrosion resistant aluminium casing
  • No load power consumption < 0.3W @ 115Vac
  • Low earth leakage current < 0.75mA
  • Certified according to IEC/EN/UL 62368-1

Output Voltage

12V

Output Power

54W

Output Current

4.5A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

129 x 97 x 30 mm

5.08” x 3.82” x 1.18”

Unit Weight

0.31 kg (0.68 lb)

Output

Output Current4.5A
Output Voltage12V
Output Voltage Adjustment Range11-12Vdc
Output Power54W
Line Regulation< 1.0% (@ 100-264Vac input, 100% load)
Load Regulation< 2.0% (@ 100-264Vac input, 0-100% load)
PARD< 120mVpp (20MHz)
Start-up Time< 2500ms @ 115Vac (100% load),
< 1500ms @ 230Vac (100% load)
Hold-up Time> 5ms @ 115Vac, > 25ms @ 230Vac (100% load)
Dynamic Response (Overshoot & Undershoot O/P Voltage)± 5% @ 100-264Vac input, 0-50%, 0-100%, 50-100% load
(Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 1kHz)
Start-up with Capacitive Loads3,000μF Max
Rise Time< 100ms @ nominal input (100% load)

Input

Input Voltage100-240Vac
Input Voltage Range85-264Vac
Nominal Input Frequency50-60Hz
Input Frequency Range47-63Hz
DC Input Voltage Range120-375Vdc
Input Current< 1.50A @ 115Vac, < 0.80A @ 230Vac
Efficiency at 100% load> 83% @115Vac & 230Vac
Max Inrush Current(Cold Start)
< 30A @ 115Vac, < 60A @ 230Vac
Leakage Current< 0.75mA @ 240Vac
Max Power DissipationNo Load: < 0.3W @ 115Vac, < 0.5W @ 230Vac
100% Load: < 11.0W @ 115Vac & 230Vac

Mechanical

Case Chassis / CoverAluminium
IndicatorGreen LED (DC OK)
Cooling SystemConvection
Noise Sound Pressure Level (SPL)< 25dBA (1 Meter from power supply)
WireAWG 20-18
Unit Weight0.31 kg (0.68 lb)
Dimensions129 x 97 x 30 mm
5.08” x 3.82” x 1.18”

Environment

Operating Temperature-30°C to +70°C
Storage Temperature-40°C to +85°C
Power De-ratingTemperature:
120Vac: < -25°C de-rate power by 5.0% / °C
120Vac and 240Vac: > 50°C de-rate power by 2.0% / °C
Input Voltage:
< 100Vac de-rate power by 1.33%/°C
Operating Humidity5 to 95% RH (Non-Condensing)
Shock Test (Non-Operating)IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,3 times per direction, 9 times in total
Vibration Test (Non-Operating)IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); displacement of 0.35mm; 20 min per axis for all X, Y, Z direction
Operating Altitude0 to 5,000 Meters (16,400 ft.)
Pollution Degree3
Over Voltage CategoryII

Protections

Overvoltage< 17.5V, SELV Output, Latch mode
Overload / Overcurrent115~150% of rated load current, Hiccup mode, Non-Latching (Auto recovery)
Over Temperature< 85°C Surrounding Air Temperature @ 100% load, Latch mode
Short CircuitHiccup Mode, Non-Latching (Auto-recovery when the fault is removed)
Protection Against ShockClass I with Primary Earth connection

Reliability

MTBF> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C
Expected Cap Life Time10 years (115Vac & 230Vac, 50% load @ 40°C)

Safety

Electrical SafetySIQ Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1, UL 62368-1 and CSA C22.2 No. 60950-1, 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1, IEC 60335-1, IEC 61558-1, IEC 61558-2-16
CEIn conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
Galvanic IsolationInput to Output: 4.0KVac
Input to Ground: 2.0KVac
Output to Ground: 1.0KVdc
Safety Entry Low VoltageSELV (EN 60950-1)
Material and PartsRoHS Directive 2011/65/EU Compliant

EMC

Emission(CE & RE)
EN 55011, EN 55032, CISPR 32, FCC Title 47: Class B, EN 61000-6-3
ImmunityEN 55024, EN 61000-6-2
Harmonic Current EmissionsIEC/EN 61000-3-2, Class A
Voltage Fluctuation and FlickerIEC/EN 61000-3-3
Component Power Supply for General UseEN 61204-3
Name Type Version Release Date
PMH-12V100WCMT Datasheet Datasheet V1.0 09 June 2020
