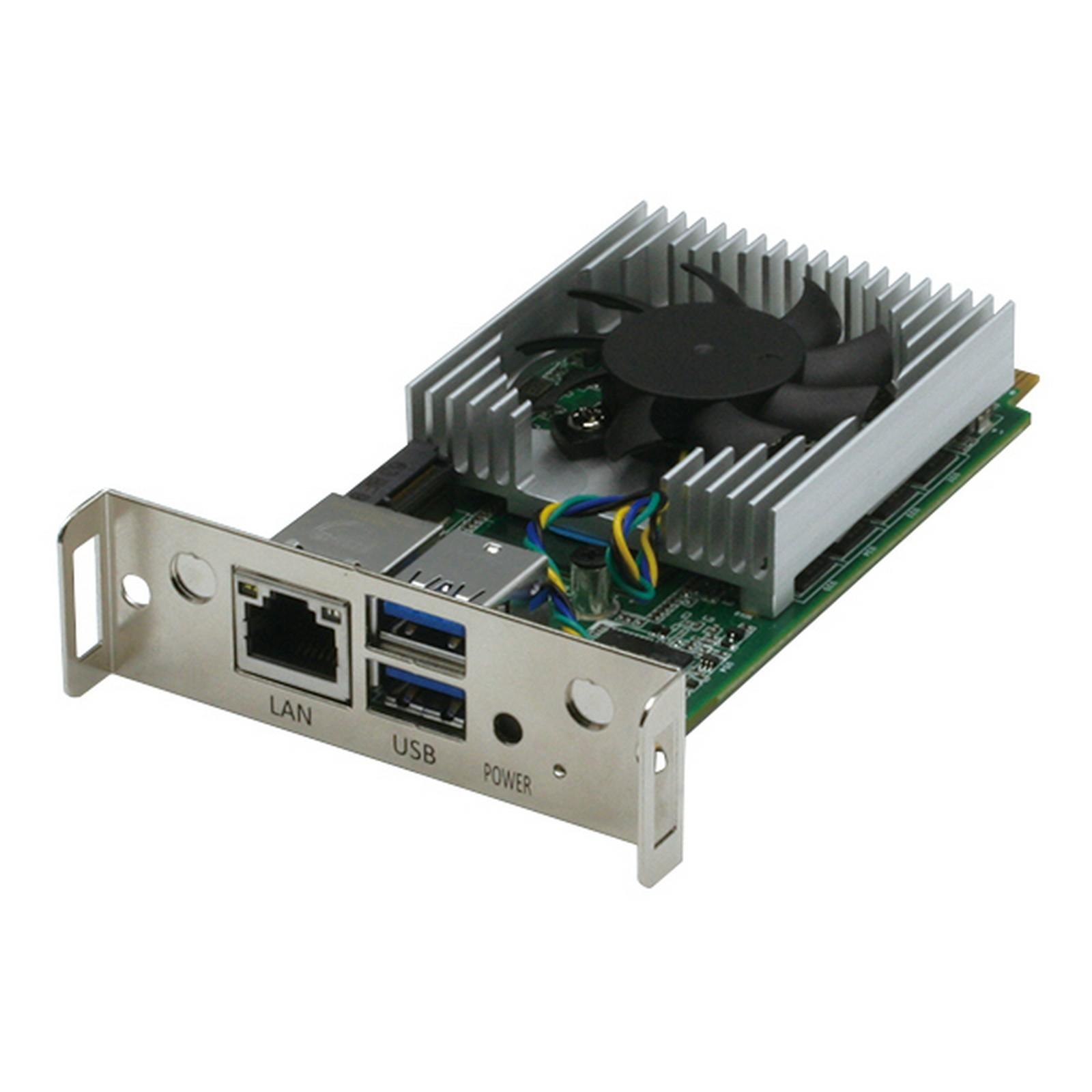

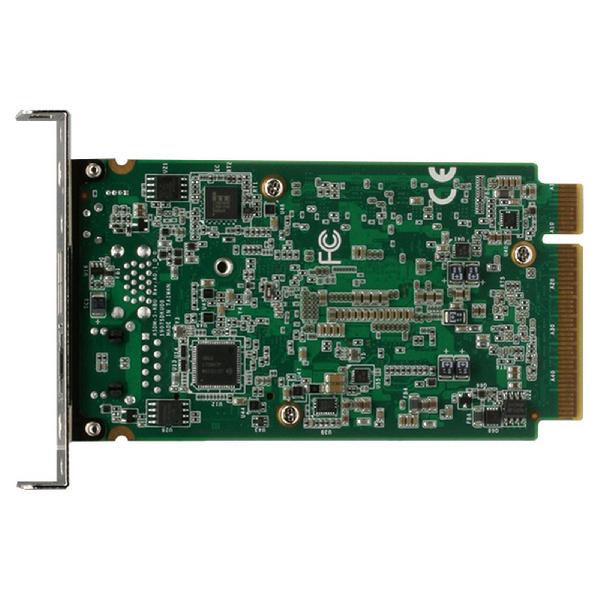

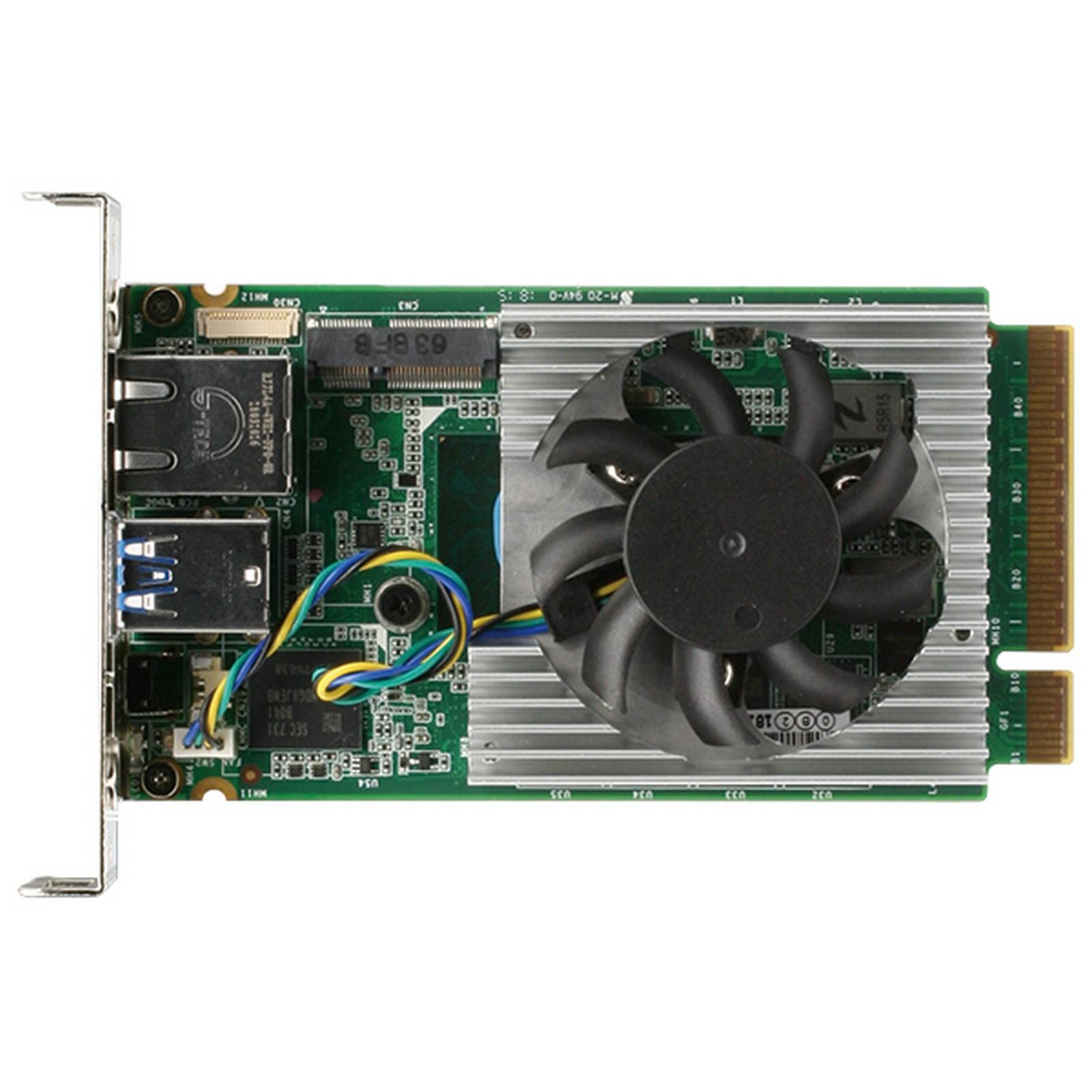

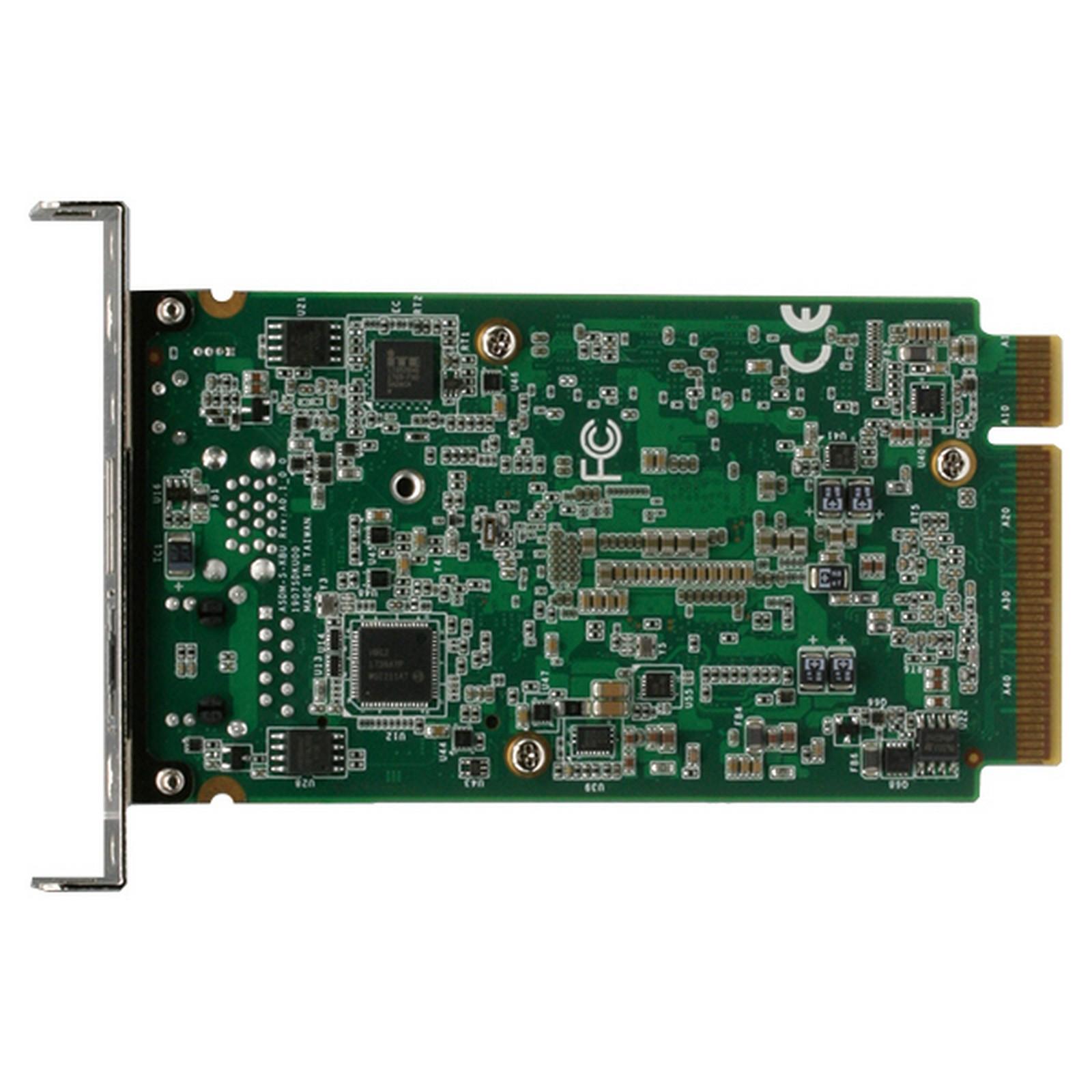

The ASDM-S-KBU Smart Display Module from AAEON is a powerful board built to the Intel SDM Small form factor, or Intel SDM-S. Powered by the Intel 7th Generation Core U and Celeron U processors (formerly Kaby Lake), the ASDM-S-KBU is the most powerful Intel SDM Small module available. With up to 8GB of DDR memory, it offers scalability for slimmer and more compact smart displays.
The ASDM-S-KBU brings the Edge to Intel SDM Small modules. Compatible with OpenVINO, the ASDM-S-KBU can power AI Edge applications such as context sensing in virtual dressing rooms, which can determine a person’s age, gender and body shape. It can also be used to power Smart Retail and Smart Vending solutions, or even deployed as part of the Smart City ecosystem.
The ASDM-S-KBU brings the power of Intel Core processors and the Edge to your Intel SDM needs.
| SYSTEM | |
| FORM FACTOR | Intel SDM-S Module |
| CPU | 7th Generation Intel® Core™ i7-7600U/ i5-7300U/ i3-7100U/ Celeron® 3965U SoC |
| CPU FREQUENCY | i7-7600U up to 3.9 GHz i5-7300U up to 3.5 GHz i3-7100U up to 2.4 GHz Celeron 3965U up to 2.2 GHz |
| CHIPSET | 7th Generation Intel® Core™ i7-7600U/ i5-7300U/ i3-7100U/ Celeron® 3965U SoC |
| MEMORY TYPE | onboard DDR4 up to 8GB |
| MAX. MEMORY CAPACITY | Up to 8GB |
| BIOS | AMI BIOS |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | 12V DC from the Docking Board through the Edge Connector |
| POWER SUPPLY TYPE | AT/ATX |
| POWER CONSUMPTION (TYPICAL) | Intel Core i7-7600U, DDR4 4G, 64G eMMC, 2.4A @ 12V |
| DIMENSION | 3.94" x 2.36" x 0.79" (100 mm x 60 mm x 20 mm) |
| OPERATING TEMPERATURE | 32°F ~ 131°F (0°C ~ 55°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | - |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| CONTROLLER | 7th Generation Intel® Core™ : Intel® HD Graphics 620 Intel® Celeron: intel® HD Graphics 610 |
| VIDEO OUTPUT | HDMI 1.4 x 1 (through Edge connector) DP1.2 x 1 (through Edge connector) |
| AUDIO | Through HDMI, DP by edge connector |
| I/O | |
| ETHERNET | Intel I211, RJ45 x 1 |
| USB PORT | USB 3.2 Gen1 x 2 |
| STORAGE | eMMC 32/64/128G |
| EXPANSION SLOT | M.2 2230 (E-Key) |
| Name | Type | Version | Release Date | |
| ASDM-S-KBU Datasheet | Datasheet | V1.0 | 14 Febuary 2019 |
