AAEON introduces the ACP-1000 product family, a series of elegantly designed, highly customizable touch panel PCs that will facilitate system integration, IoT and smart home applications, and provide a highly dynamic option for product line management, smart city applications, and other forms of data-driven service management. The durable ACPs offer a thermal management system that boosts airflow and cool air circulation, and are ensconced within an IP 65 Front Bezel Design, which provide a steely layer of protection against environmental nuisances such as dust mites and water. Reasonably priced, moderately sized and easy to customize, the ACP-1000 greatly eliminates product turnaround times as well as manufacturing costs, minimizing space requirements and maximizing available space usage.
| SYSTEM | |
| PROCESSOR | Intel® Pentium® N4200 processor, 1.1 GHz (Quad-Core), Burst frequency 2.5GHz Intel® Celeron® N3350 processor, 1.1 GHz (Dual-Core), Burst frequency 2.4GHz |
| SYSTEM MEMORY | 204-pin DDR3L SODIMM x 1, Build-in 4GB, Max. 8GB |
| LCD/CRT CONTROLLER | Integrated in processor |
| ETHERNET | 10/100/1000Base-TX, RJ-45 x 2 |

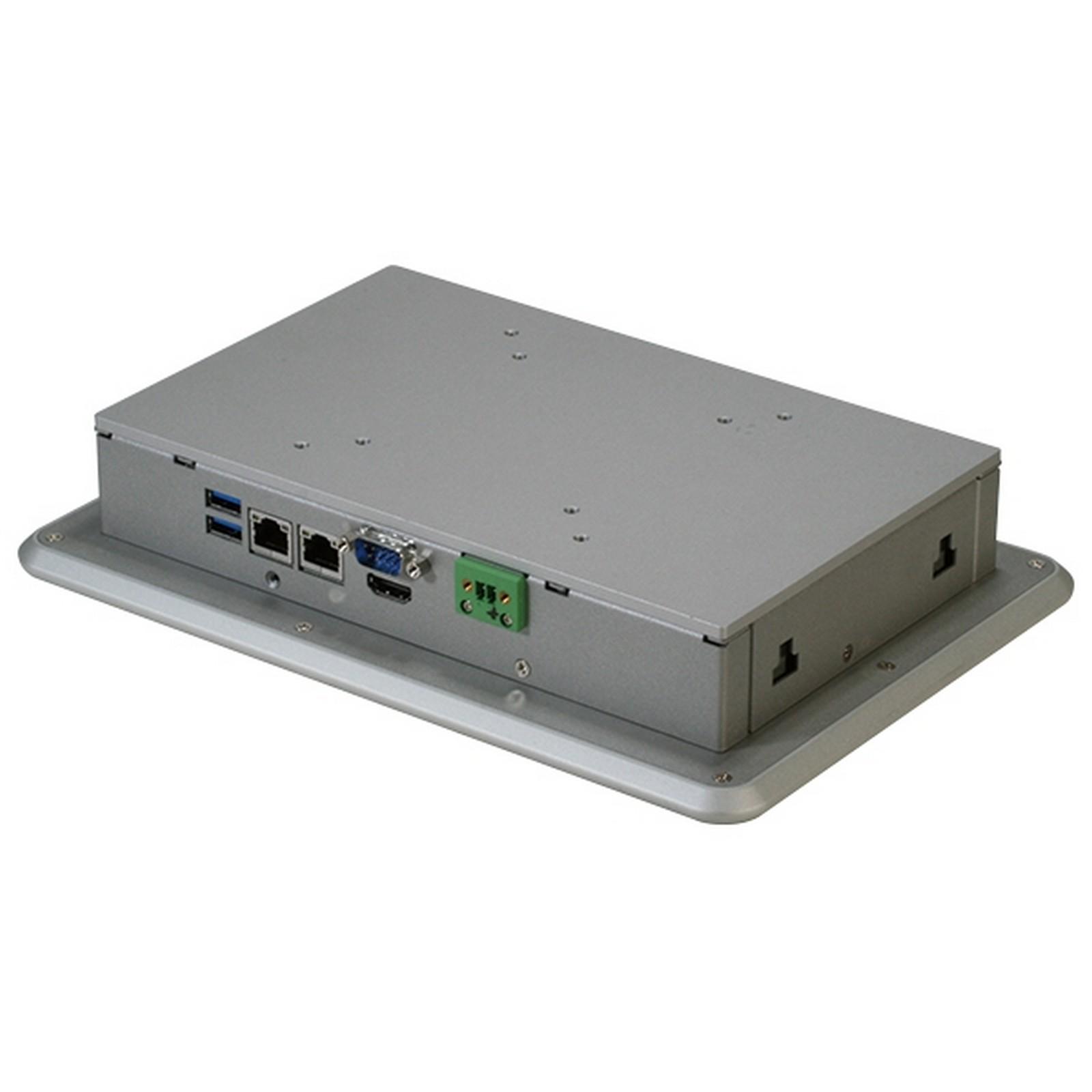

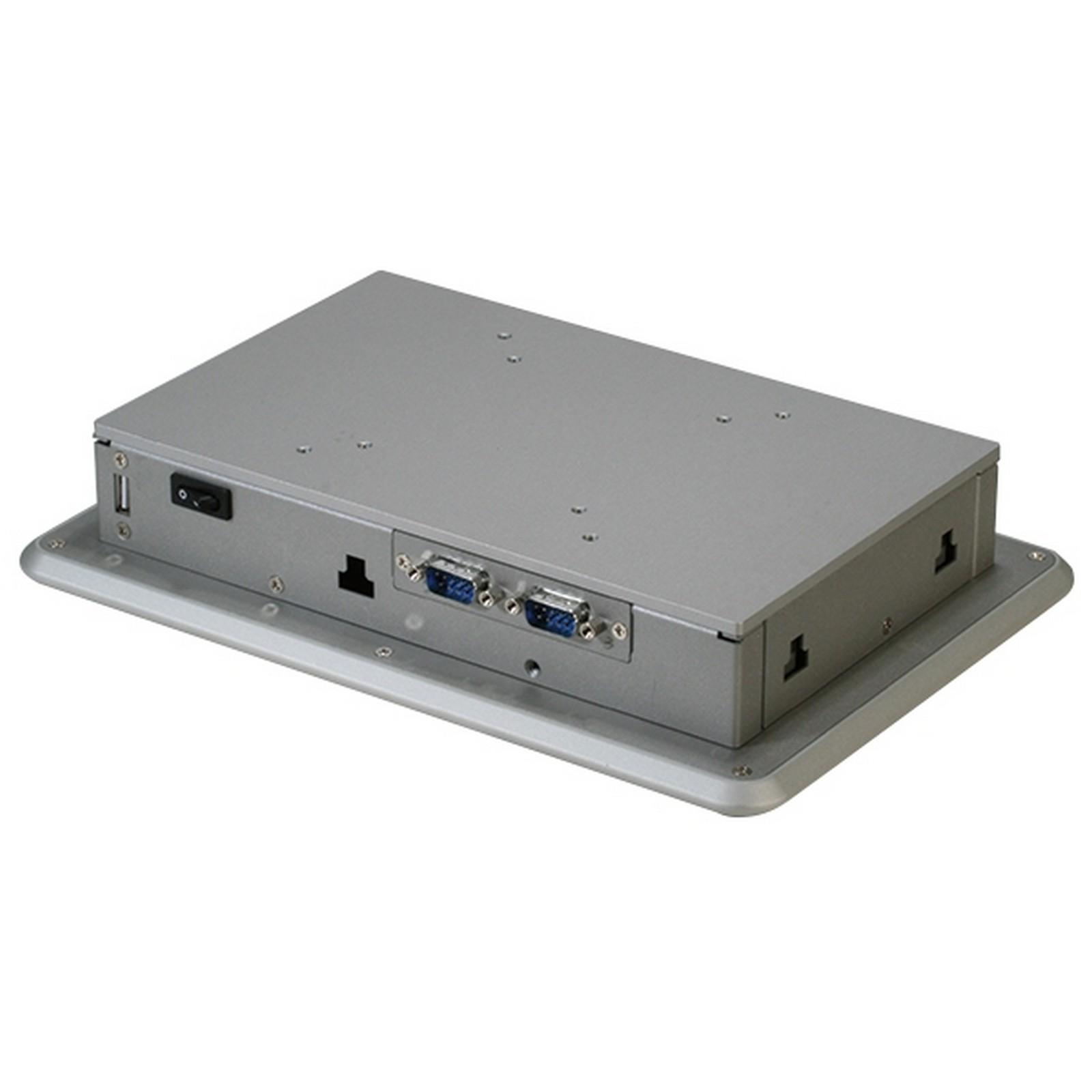

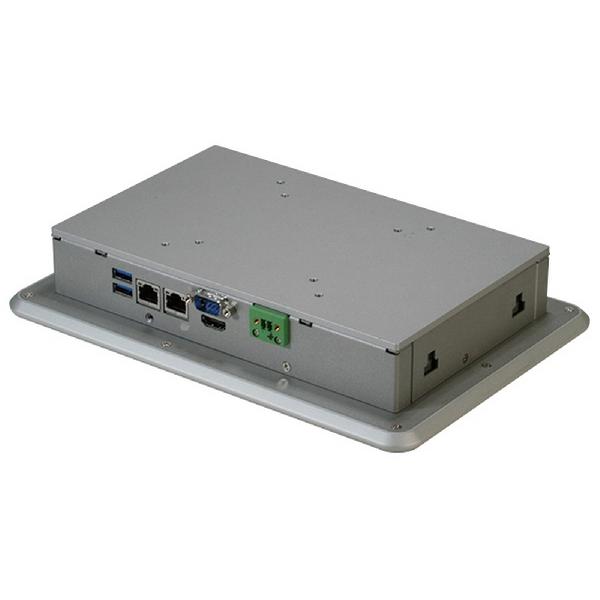

| I/O PORT | Bottom: DB9 Type RS-232 x 1 USB 3.2 Gen 1 x 2 HDMI x 1 RJ-45 10/100/1000 LAN x 2 2 Pin terminal block for power input Top: Power Button x 1 Type A USB 2.0 x 1 Expansion I/O Slot |
| STORAGE DISK DRIVE | Full Size mSATA x 1 |
| EXPANSION SLOT | Half size mini card x 1(Internal) |
| OS SUPPORT | Windows® 10, Linux Kernal 4.4.0 or higher |
| MECHANICAL | |
| CONSTRUCTION | Aluminum Front Bezel + Metal Chassis |

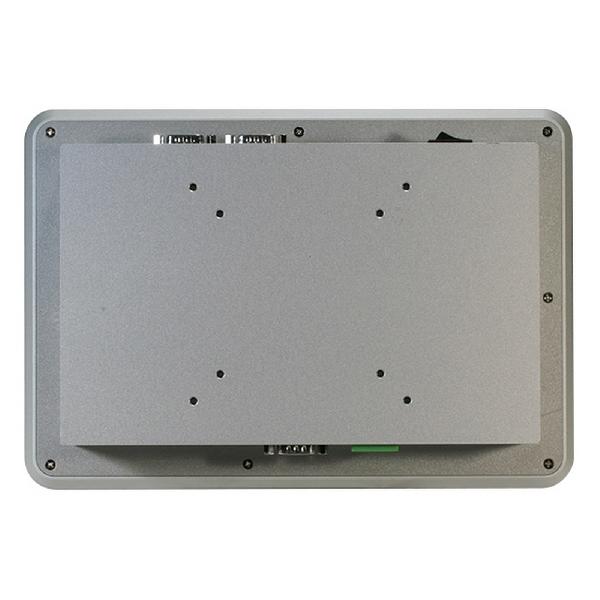

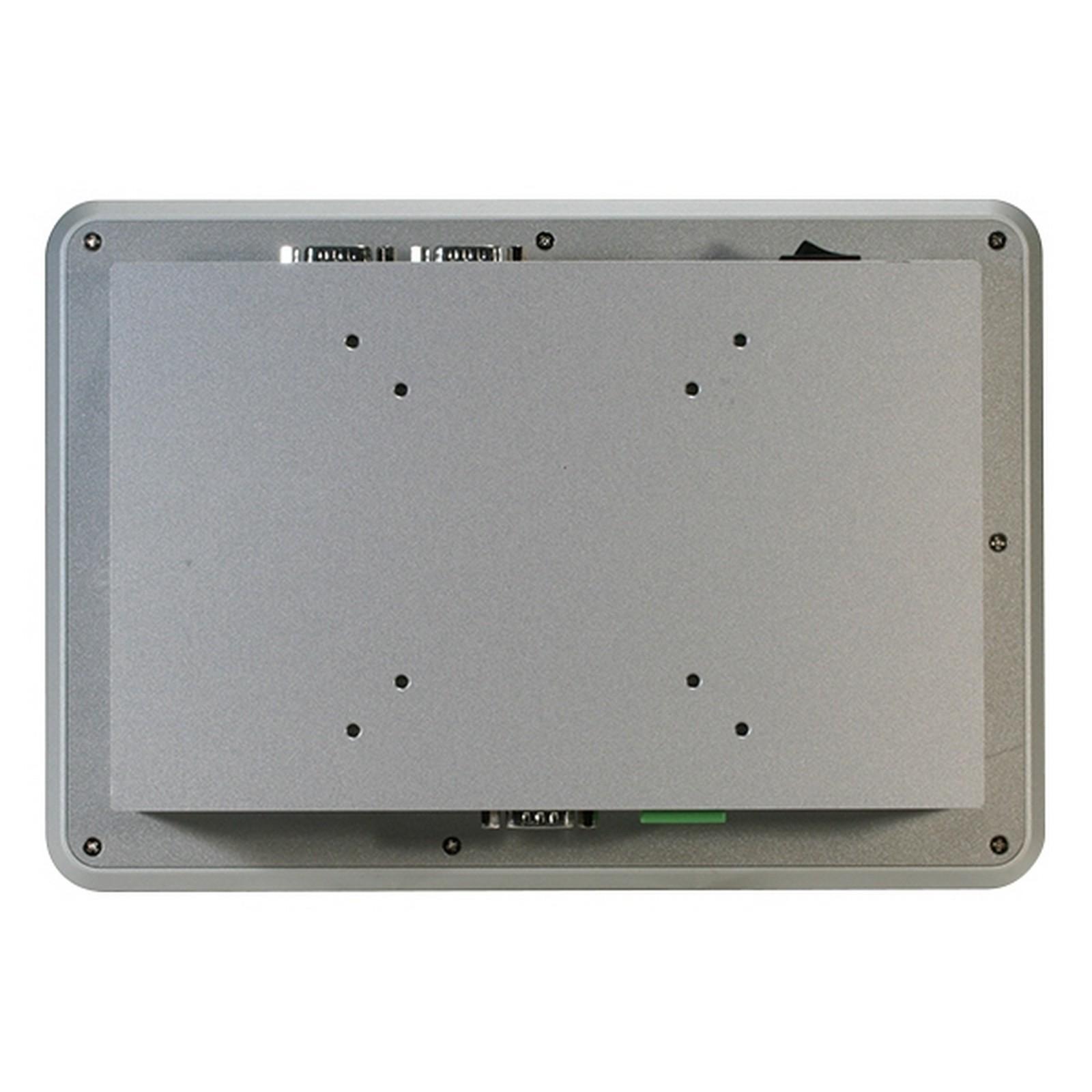

| MOUNTING | VESA 75, Panel Mount |
| DIMENSION | 10.47" x 7.24 x 1.89" (266 x 184 x 48mm) |
| CARTON DIMENSION | 13.38" x 7.64 x 9.96" (340 x 194 x 253mm) |
| GROSS WEIGHT | 6.38 lb (2.9 kg) |
| NET WEIGHT | — |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 23°F ~ 122°F (-5°C ~ 50°C) with 0.5 m/s airflow |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 90% @40°C; non-condensing |
| VIBRATION | 1 Grms/ 5~ 500Hz/ operation – with HDD |
| SHOCK | — |
| EMC | CE/FCC Class A |
| POWER SUPPLY | |
| DC INPUT | DC 9~30V |
| LCD | |

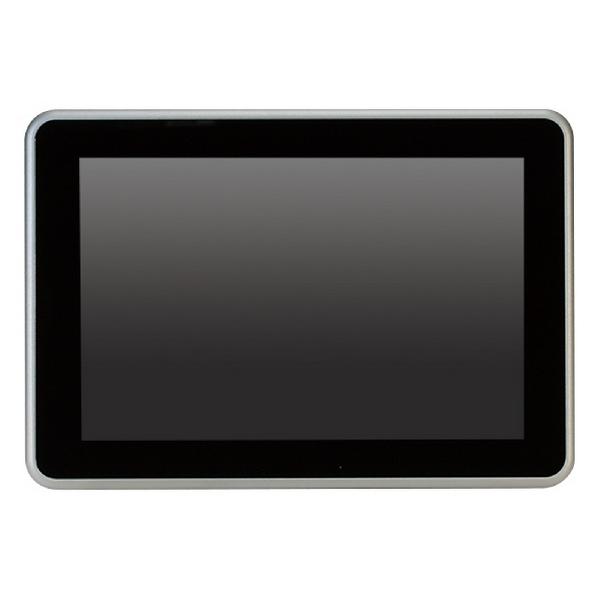

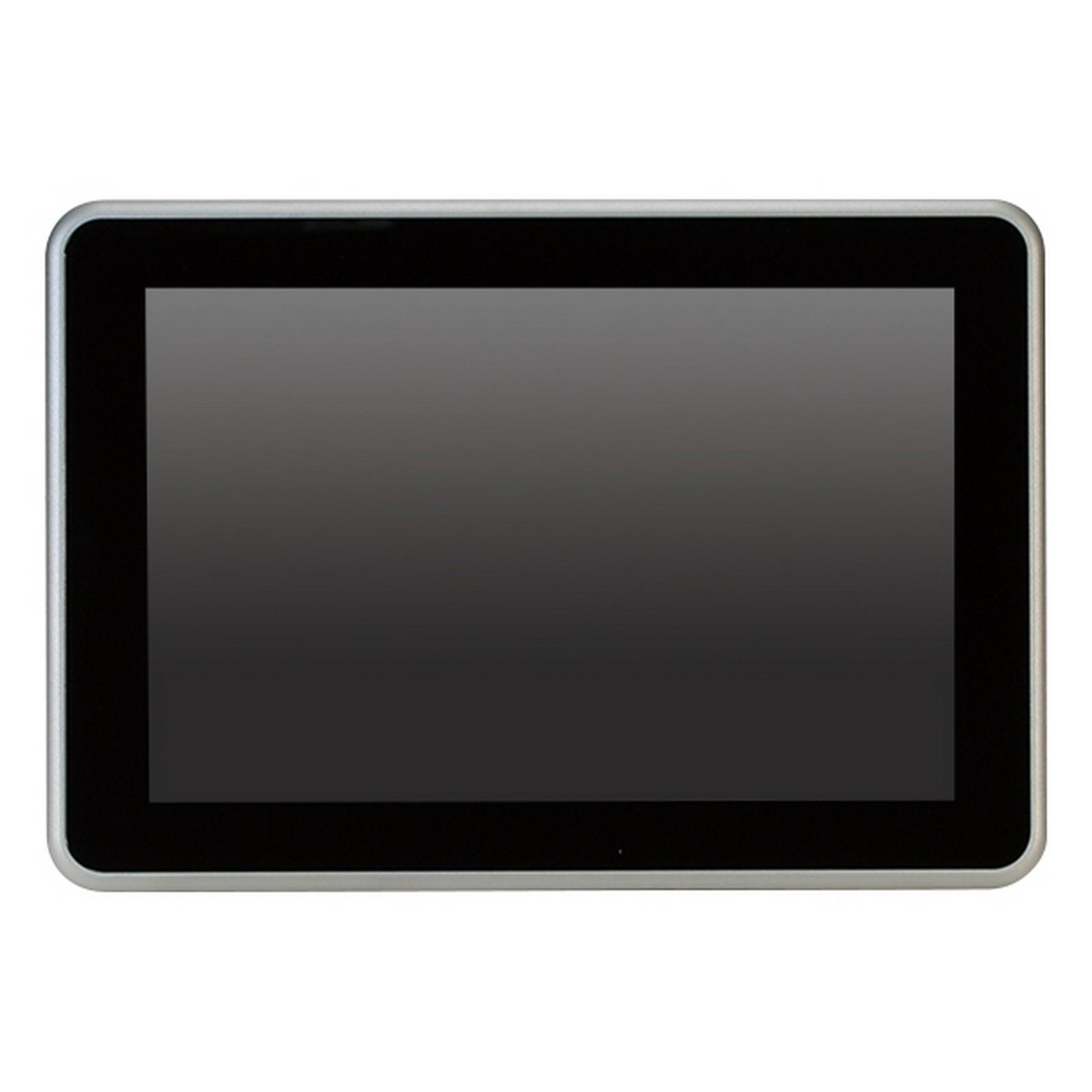

| DISPLAY TYPE | 10.1" TFT-LCD, LED |
| MAX. RESOLUTION | 1280 x 800 |
| MAX. COLORS | 262K colors (6 bit for R,G,B) |
| LUMINANCE | 300 cd/m² |
| VIEWING ANGLE | 170°(H), 170°(V) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | — |
| TOUCHSCREEN | |
| TYPE | P-CAP Touchscreen |
| LIGHT TRANSMISSION | 90% |
| Name | Type | Version | Release Date | |
| ACP-1106,Datasheet | Datasheet | V2.0 | 22 July 2019 |
