UPS-GWS01

Home  >   AAEON  >   UP Boards and UP Systems  >
UP Systems

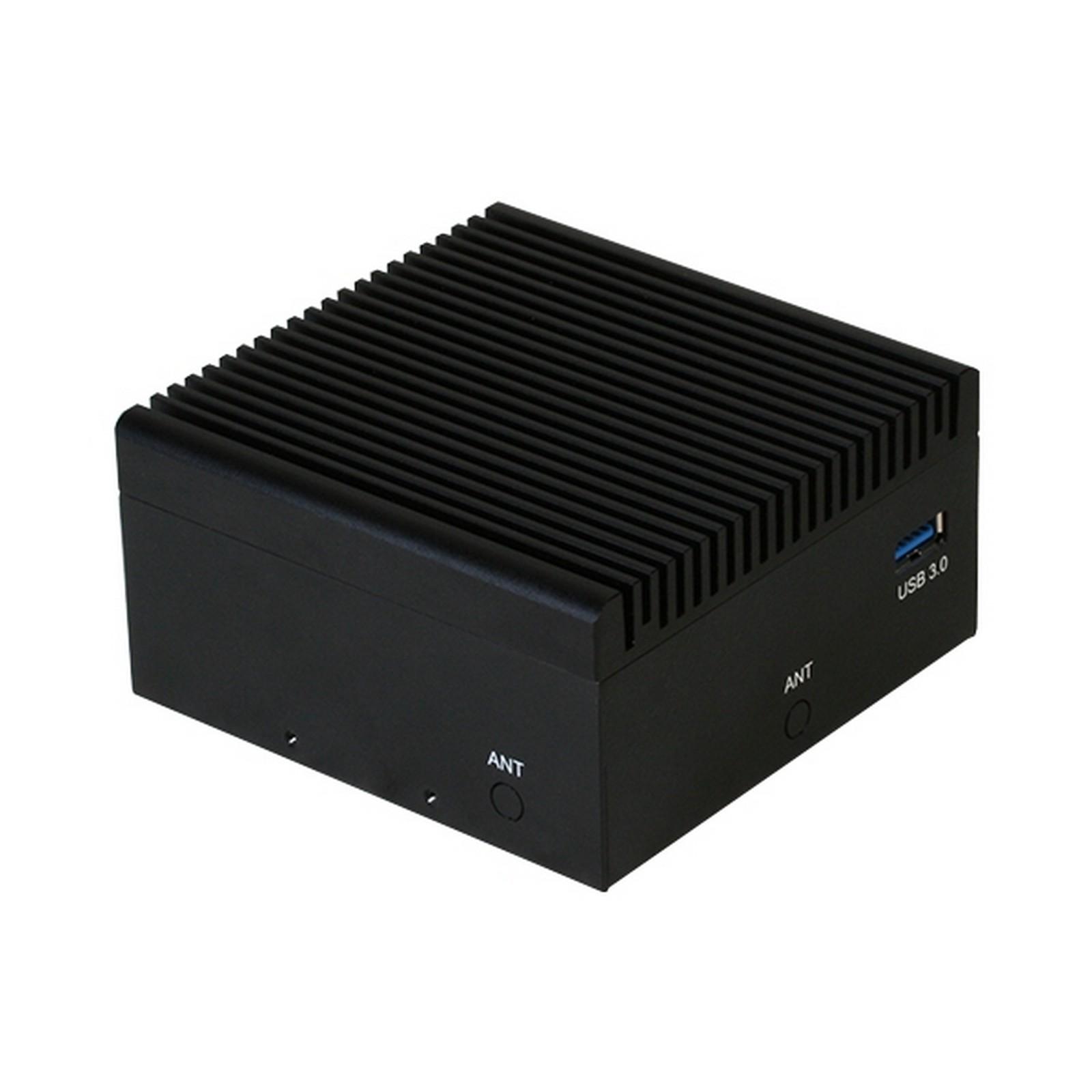

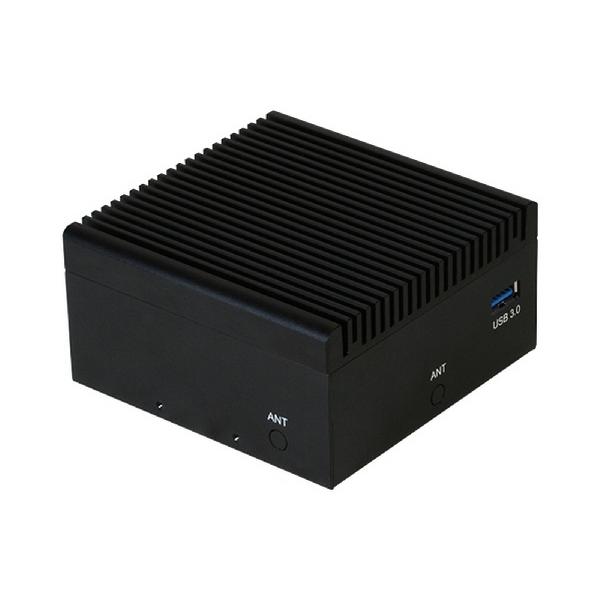

Tiny Gateway System with UP Squared

Product Feature

  • Intel® Pentium® N4200/ Celeron® N3350 Processor SoC/ Atom® E3950
  • Onboard LPDDR4 Memory, eMMC Storage
  • Gigabit LAN x 2
  • HDMI x 1, DP x 1
  • USB 3.0 x 3, USB 3.0 OTG x 1
  • 3G/ WiFi/ BT(Optional)
  • HDMI In x 1 (1920 x 1080p@FPS) (Optional)

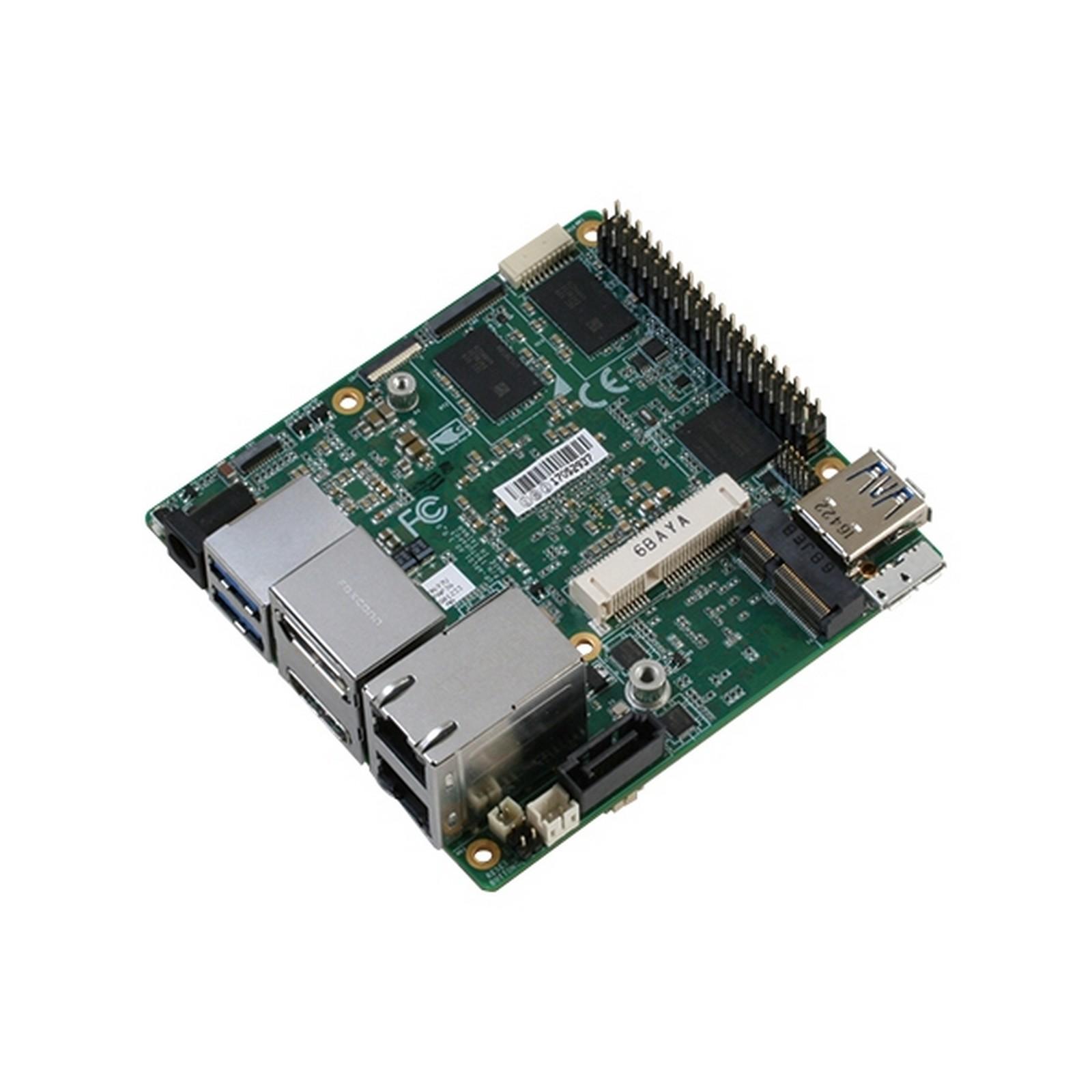

The UP Squared system is a complete system package featuring the powerful and fast UP Squared maker board. Designed for easy deployment in embedded applications from industrial automation to IIoT and AIoT, the UP Squared system brings high-performance in a low-power compact solution.

UP Squared is powered by Intel® Apollo Lake processors, delivering high performance at minimum power consumption. Its small size also makes it perfect for use in mobile applications including drone operations. UP Squared offers flexible OS support including Windows 10, Linux and Android.

UP Squared supports the AI Core X mPCIe module, which features Intel Movidius Myriad X. With speeds up to 105 fps (80 typical) and 1 trillion floating point operations, adding on the AI Core X to UP Squared creates a powerful, compact AI Edge solution. UP Squared with AI Core X has proven real-world performance, used by AAEON partners in applications from license plate recognition to drone-based visual inspections.

If you require a total AI solution, AAEON offers the "UP Squared AI Developer Kit". This kit includes the UP Squared system with the AI Core X and an Ever Focus® USB camera. The "UP Squared AI Developer Kit" comes preloaded with Windows™ 10 and the Intel® OpenVINO™ toolkit. Be sure to inquire about the kit when speaking to your sales representative.

For developers looking for a board-level solution, check out the UP Squared board page.

SYSTEM
CPUIntel® Pentium® N4200/ Celeron® N3350 Processor SoC/ Atom® E3950
MEMORYOnboard Single/ Dual Channel LPDDR4 memory, Max. 8GB
GRAPHICSIntel® Graphics, GEN 9
STORAGEeMMC ver 5.0 x 1, Max. 128G
ETHERNETRealtek® 8111G x 2
WIFI/BT
AUDIOHDMI x 1, DP x 1
USBUSB3.0 x 3
EXPANSION SLOTMinicard (MINI card with SIM) socket x 1

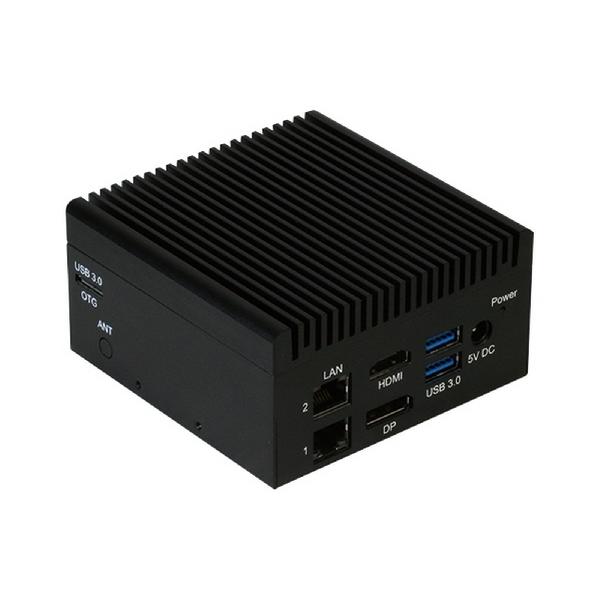

I/O PLACEMENTS
POWERDC-in Jack x 1, Power Button x 1
USBUSB3.0 x 2, USB3.0 OTG x 1/ USB3.0 x 1
DISPLAYPORTHDMI x 1, DP x 1
HDMI In x 1 (1920 x 1080p@FPS) (Optional)
ETHERNETRealtek® 8111G x 2
COM
ENVIRONMENT
POWER5V DC Only
FORM FACTOR3.74” x 3.74” x 1.97” (95mm x 95mm x 50mm)
GROSS WEIGHT
OPERATING TEMPERATURE32°F ~ 113°F (0°C ~ 45°C) Airflow
OPERATING HUMIDITY0% ~ 90% relative humidity non-condensing
CERTIFICATIONCE, FCC Class A, UL
OS SUPPORTWindows® 10, Linux, Android 7.0, Windows® 10 IoT core
Name Type Version Release Date
UPS-GWS01, datasheet Datasheet V1.0 18 September 2017
