BOXER-8250AI

Home  >   AAEON  >   AI Solutions  >
AI@Edge Solutions

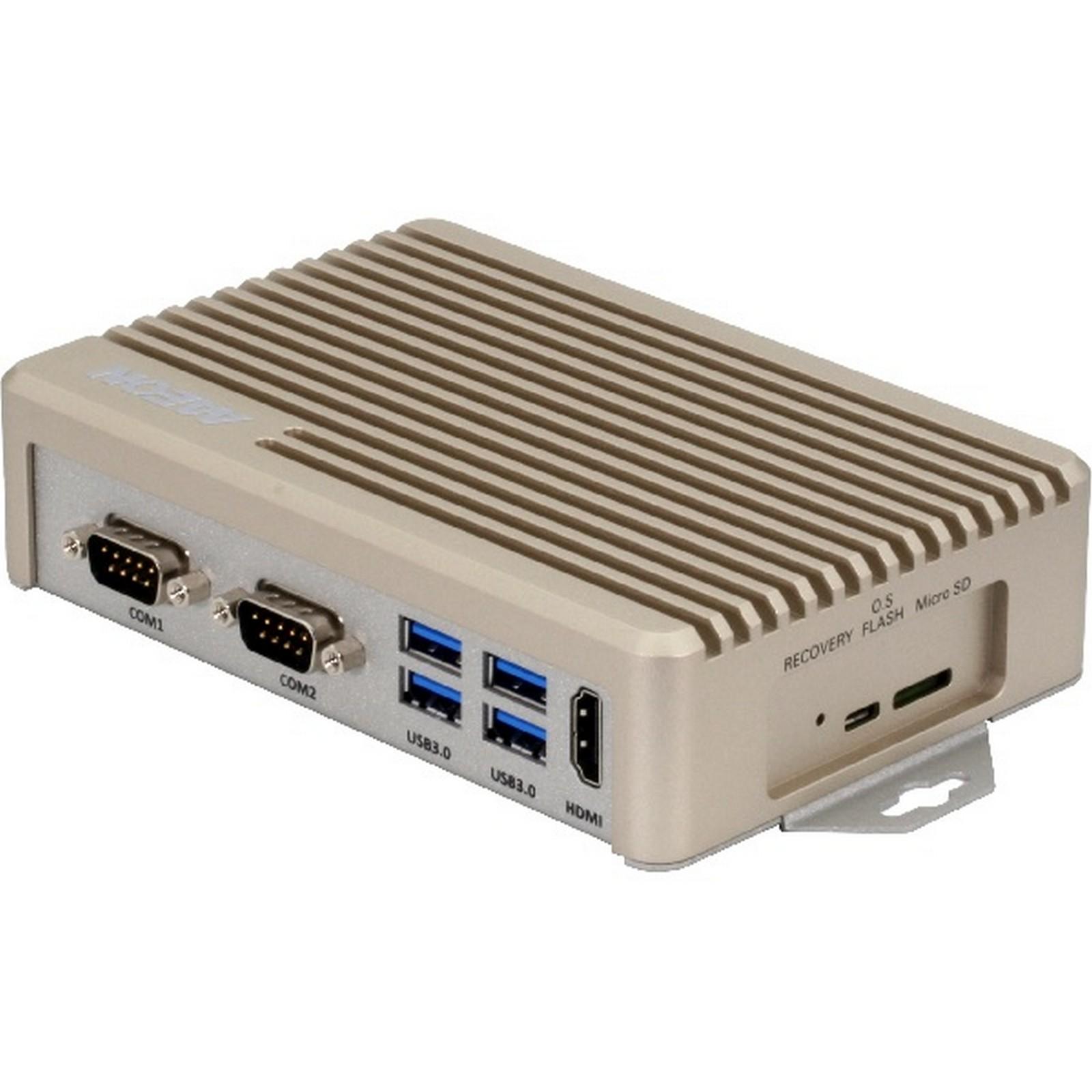

AI@Edge Fanless Embedded Box PC with NVIDIA Jetson Xavier NX, 5 GbE LAN Ports

Product Feature

  • NVIDIA Jetson Xavier NX
  • 6-core NVIDIA Carmel ARM®v8.2 64-bit CP
  • 8GB LPDDR4x + 16GB eMMC + Micro-SD card slot
  • GbE LAN x 5
  • USB 3.2 Gen 1 x 4
  • 10-24Vdc Power input

The BOXER-8250AI embedded AI Edge system brings the power of the NVIDIA® Jetson Xavier™ NX to powering intelligent applications and edge networks. The NVIDIA Jetson Xavier NX SoC features a six-core 64-bit ARM processor, boasting 384 CUDA® cores, 48 Tensor Cores, and two NVDIA engines capable of running multiple neural networks in parallel, delivering accelerated computing performance up to 21 TOPS. Built to bring dedicated AI processing to the edge, the system also features 8GB of LPDDR4 memory and 16GB of onboard eMMC memory that’s expandable through the Micro-SD card slot.

The BOXER-8250AI features a flexible I/O layout with four USB 3.2 Gen 1 ports, five Gigabit LAN ports and two COM ports, allowing deployment with a variety of sensors or cameras. The BOXER-8250AI is built rugged to deploy in a range of environments. Fanless design keeps out dust, allowing for reliable operation; while wide operating temperature range (-10°C ~ 65°C) enables consistent performance wherever it’s deployed.

SYSTEM
AI ACCELERATORNvidia Jetson Xavier NX
CPU6-core NVIDIA Carmel ARM® v8.2 64-bit CP
SYSTEM MEMORY8GB LPDDR4x
STORAGE DEVICE16 eMMC and Micro-SD card slot
DISPLAY INTERFACEHDMI 2.0
ETHERNET10/100/1000Base-TX x 5
I/OUSB 3.2 Gen 1 x 4
GbE LAN x 5
RS-232 x 2
HDMI x 1
Micro-USB for Flash OS x 1
DC Power Input x 1
Power Button x 1
Recovery Button x 1
Micro-SD card slot x 1
EXPANSION
INDICATORPower LED x 1
OS SUPPORTACLinux 4.9 or above (Compatible with Ubuntu 18.04)
POWER SUPPLY
POWER REQUIREMENT10 ~ 24V DC with 2-pin terminal block
MECHANICAL
MOUNTINGWallmount
DIMENSION6.92” x 3.94” x 1.54” (175.8mm x 100.0mm x 39.0mm)
GROSS WEIGHT2.48 Ibs (1.12 kg)
NET WEIGHT1.46 Ibs (0.66 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE14°F ~ 149°F (-10°C ~ 65°C, according to IEC60068-2 with 0.5 m/s AirFlow)
STORAGE TEMPERATURE-40°F ~ 176°F (-40°C ~ 80°C)
STORAGE HUMIDITY95% @ 40°C, non-condensing
ANTI-VIBRATION3.5 Grms/ 5 ~ 500Hz/ operation MicroSD or eMMC
CERTIFICATIONCE/FCC class A
Name Type Version Release Date
BOXER-8250AI,datasheet Datasheet V3.0 18 September 2020
