VPC-3350AI

Home  >   AAEON  >   AI Solutions  >
AI@Edge Solutions

Fanless Network Video Recorder with Intel® Atom™ Processor & Intel® Movidius™ Myriad™ VPU

Product Feature

  • Intel® Atom® x5-E3940 Processor
  • 2 x Intel® Myriad™ X VPU inside
  • Supports DDR3L SODIMM up to 8 GB
  • Supports Two Display by HDMI x1, DP x 1
  • Intel® Giga Ethernet x 5 Ports, including 4 x PoE Ports, 1 x LAN
  • 4-CH DI & 4-CH DO (Isolation, optional )
  • -20 °C to 60 °C fanless operation

The VPC-3350AI is based on a flexible platform powered by Intel® Atom™ x5 E3940 (formerly Apollo Lake) paired with two Intel® Movidius® Myriad™ X VPU modules. Together, these modules provide the VPC-3350AI with processing speeds up to 210 FPS and 8 TOPs as a dedicated neural network accelerator (evaluated by GooLeNet). This configuration of two VPUs with processor allows the VPC-3350AI to support asynchronous processing of AI models, allowing for higher framerates and faster, smoother image processing for AI inferences.

The VPC-3350AI features an innovative thermal solution providing wide temperature operations from -20°C to 60°C, perfect for operating in almost any environment. The VPC-3350AI is designed with an assortment of I/O ports including four POE ports, two COM, and USB 3.2 Gen 1 ports, allowing for flexibility to integrate with any project. AAEON’s industry leading OEM/ODM and manufacturer services provide options for clients to configure the VPC-3350AI to their needs, including providing up to four Intel® Movidius® Myriad™ X VPUs, expanded I/O and functionality for in-vehicle operations.

With Intel® Movidius® Myriad™ X, the VPC-3350AI is a perfect fit for AI and edge computing applications, including license plate and facial recognition. As an in-vehicle AI embedded system, it helps to power driver safety applications such as advanced driver-assist systems (ADAS) or driver monitoring and behavior analysis for heavy vehicle operators.

With flexible design and AI processing powered by Intel® Movidius® Myrad™ X, the VPC-3350AI is the choice for vital embedded applications which rely on processing of visual data. With its flexible design, the VPC-3350AI offers several key advantages as a solution for many of today’s AI and edge computing needs.

SYSTEM
FORM FACTORMobile NVR
PROCESSORIntel® Pentium®/ Celeron®/ Atom™ Processor (Default: E3940; Project base: N4200/N3350, or E3950 w/ customized chassis)
CHIPSET2 x Intel® Myriad™ X, up to 4 Myriad™ X (Project base)
MAIN MEMORYUp to 8GB, DDR3L 204-pin SODIMM
DISPLAYHDMI x 1, DP x 1
ETHERNETIntel® i211 (colay i210)
POE ETHERNET PORT4 ports, sharing 60W of power budget for every four PoE ports
RAID SUPPORT
EXPANSION SLOTSATA x 1
GPS

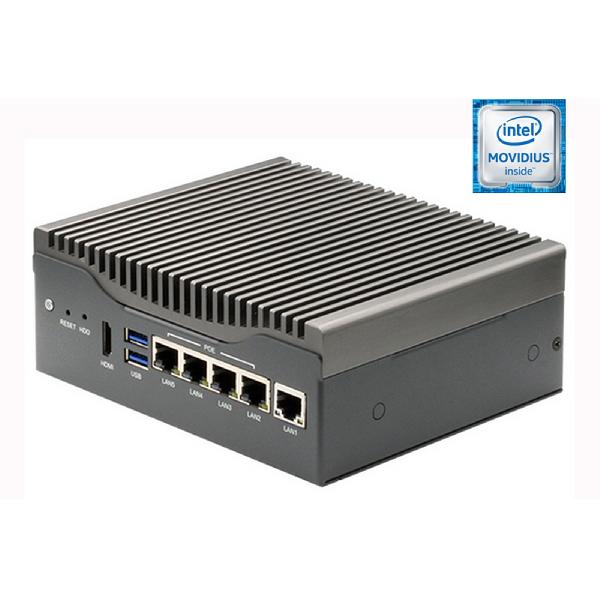

FRONT I/O PANELPower Button x 1
Reset Button x 1
Power/HDD, LED x 2
USB 3.2 Gen 1 x 2
GbE port (RJ-45) x 1
PoE LAN x 4 (IEEE 802.3 at/af)
HDMI x 1

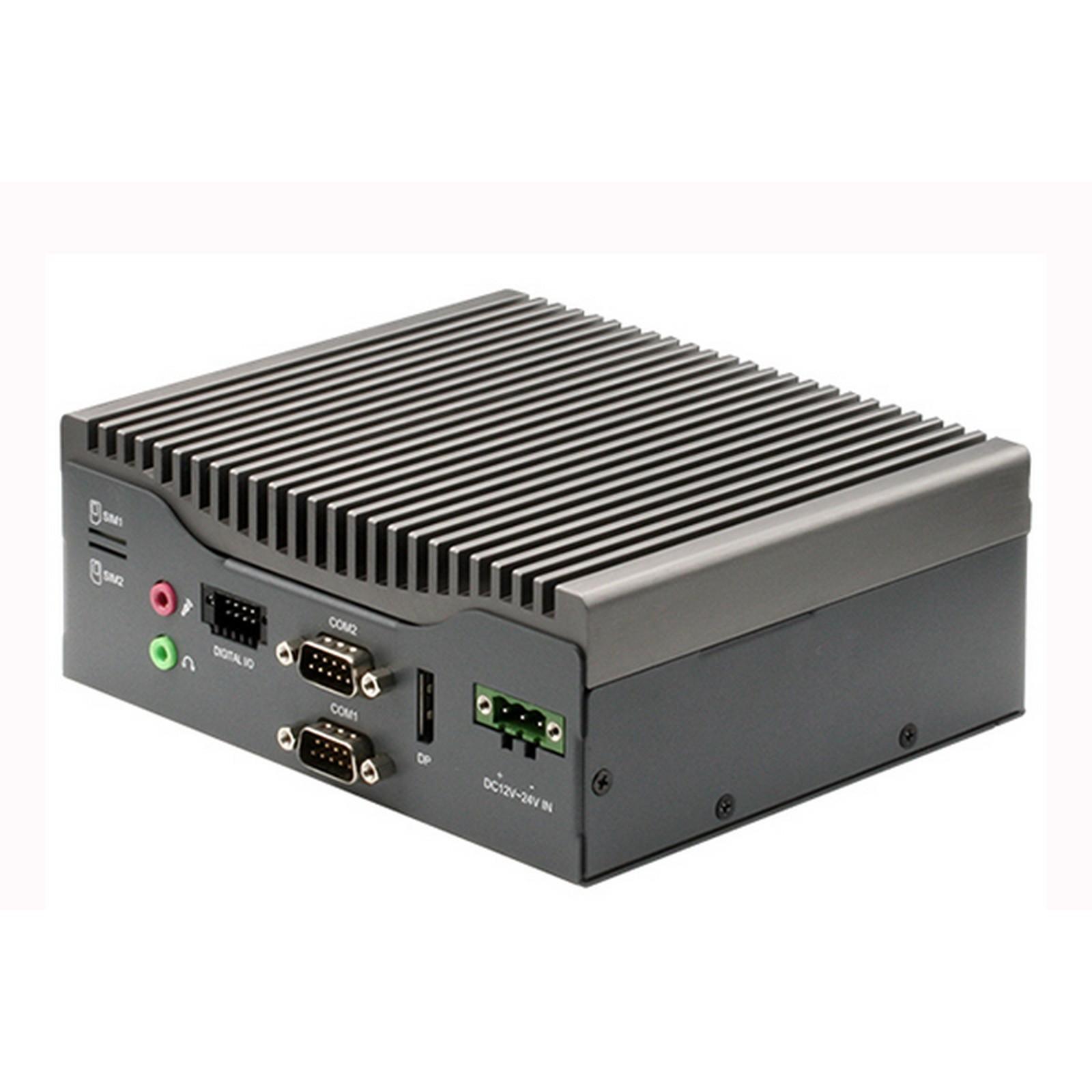

REAR I/O PANELDC-In power x 1
8-bit DIO x 1, 4-ch digital input , 4-ch digital output
RS-232/422/485 x 2
DP x 1
Audio Line-out x 1, Mic-In x 1
Micro SIM slot x 2
STORAGE
HDD2.5” HDD/SSD Bay x 1
CF/CFAST/MSATA
ENVIRONMENTAL
OPERATING TEMPERATURE-4°F ~ 140°F (-20°C ~ 60°C)
STORAGE TEMPERATURE-40°F ~ 185°F (-40°C ~ 85°C)
STORAGE HUMIDITY10%~80% @40°C, non-condensing
VIBRATION/SHOCKMIL-STD-810G
CERTIFICATIONCE & FCC Class A
POWER REQUIREMENT
POWER SUPPLYDC 12-24V
MECHANICAL
REMOVABLE HDD TRAY
INTERNAL SYSTEM HDD BAY
DIMENSION6.3” x 5.28” x 2.44” (160mm x 134mm x 62mm)
GROSS WEIGHT5.07 lb (2.3 kg)
Name Type Version Release Date
VPC-3350AI Datasheet Datasheet V1.0 04 May 2020
