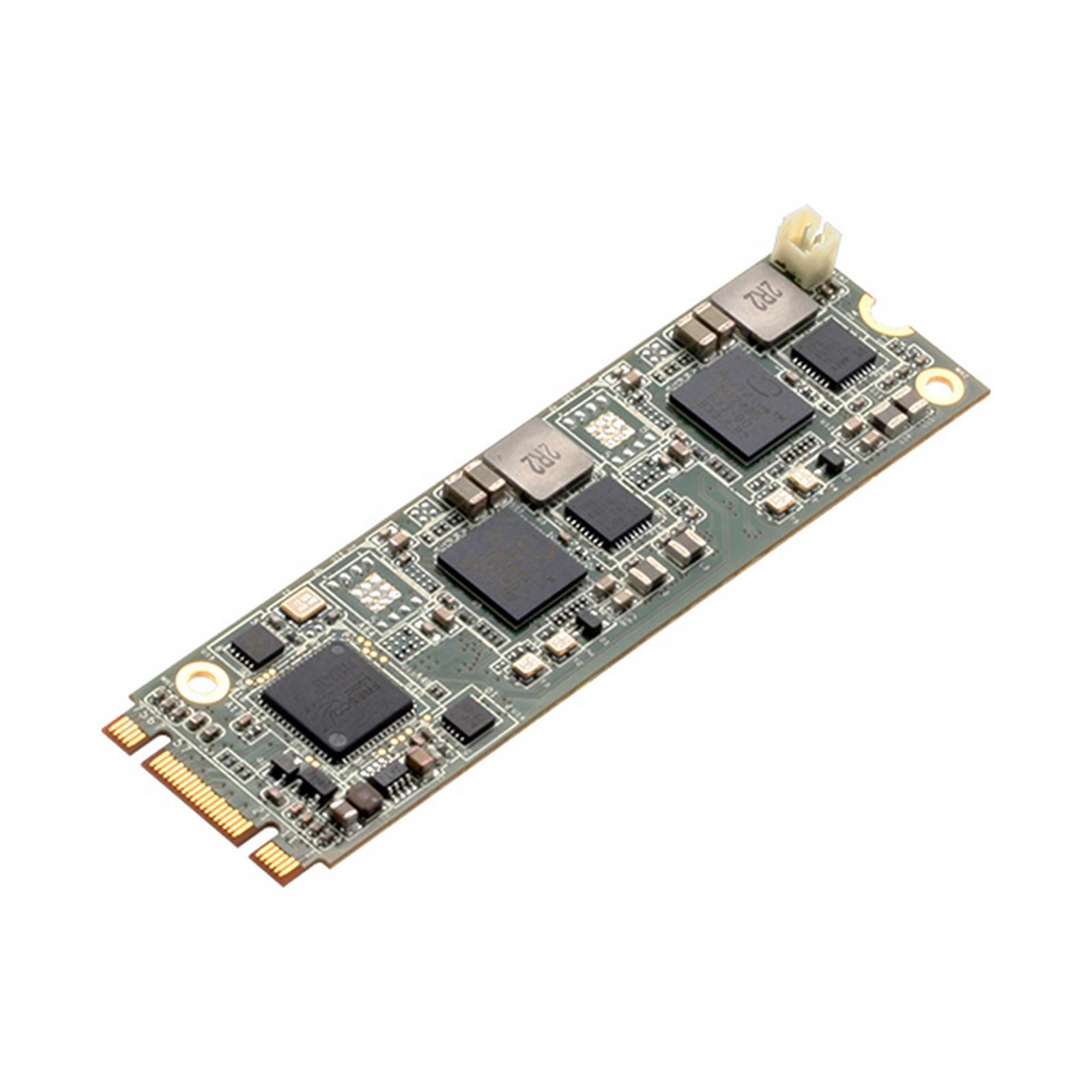

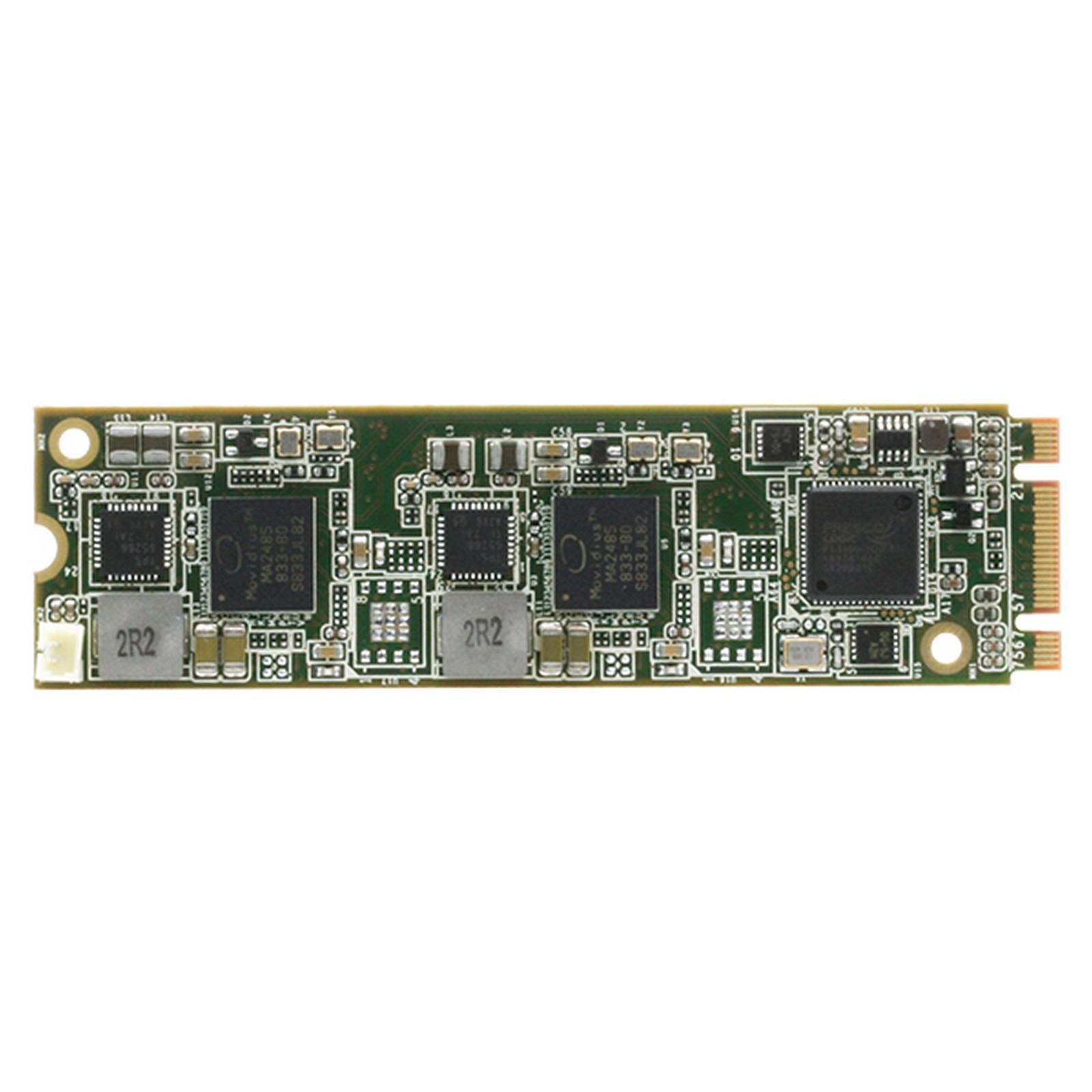

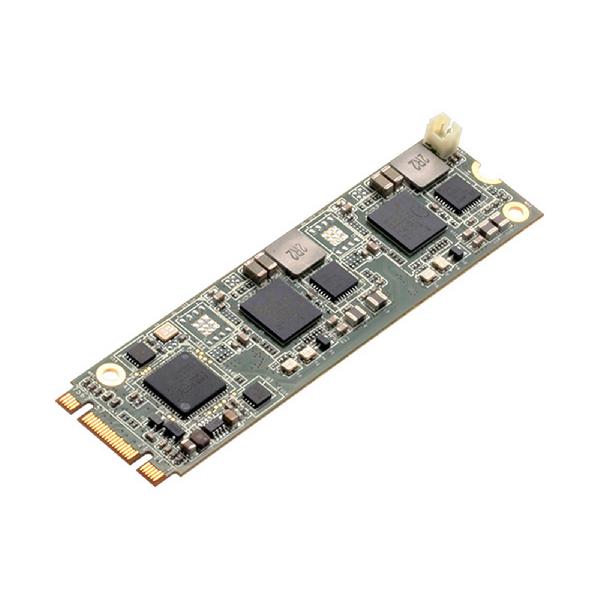

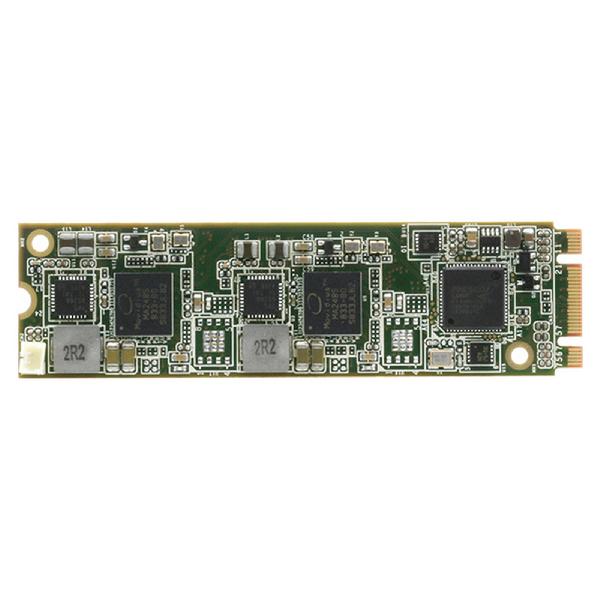

The AI Core XM2280 is a compact m.2 AI module powered by Intel® Movidius™ Myriad™ X. It features two Intel® Movidius™ Myriad™ X VPUs, which together are capable of up to 200 fps (160 fps typical) and over 2 trillion floating point operations per second as a dedicated neural network accelerator. The AI Core XM2280 is compatible with Intel® Distribution of OpenVINO toolkit and supports Tensorflow and Caffe frameworks.
The Intel® Movidius™ Myriad™ X is built to have high performance with low power consumption. Together with the AI Core XM2280’s compact m.2 22x80mm size, the AI Core XM2280 is perfect for applications that are mobile or rely on battery power, such as drones or remote camera sensors.
The AI Core XM2280 is part of AAEON’s package of AI solutions, and can be readily used with UP maker boards such as the Up Extreme, or with a wide range of embedded boards and systems in the AAEON catalogue.
By working closely with Intel, AAEON has developed a wide range of AI solutions powered by Intel® Movidius™ Myriad™ X. Please learn more here.
For more information, please check www.up-board.org, UP Community, UP Shop, or contact us directly.
| SYSTEM | |
| IC | Intel® Movidius™ Myriad™ X VPU x 2, MA2485 |
| SUPPORTED FRAMEWORKS | Tensorflow, Caffe, MXNET |
| OTHERS | |
| FORM FACTOR | M.2 2280 B+M KEY |
| DIMENSION | 3.15" x 0.87" (80 mm x 22 mm) |
| CERTIFICATION | CE/FCC Class A |
| OPERATING TEMPERATURE | 32°F ~ 122°F (0°C ~ 50°C) |
| OPERATING HUMIDITY | 10% ~ 80% relative humidity, non-condensing |
| Name | Type | Version | Release Date | |
| AI Core XM 2280, datasheet | Datasheet | V2.0 | 21 August 2019 |
