PER-C36L

Home  >   AAEON  >   Network Appliance and Video Surveillance  >
Network Interface Module

PCI-Express Gigabit Ethernet Module w/ Intel® i210 Controller

Product Feature

  • Intel® i210 PCI-Express Gigabit Ethernet Module
  • PCI-Express Host Interfaces
  • Fiber Gigabit Ethernet x 4

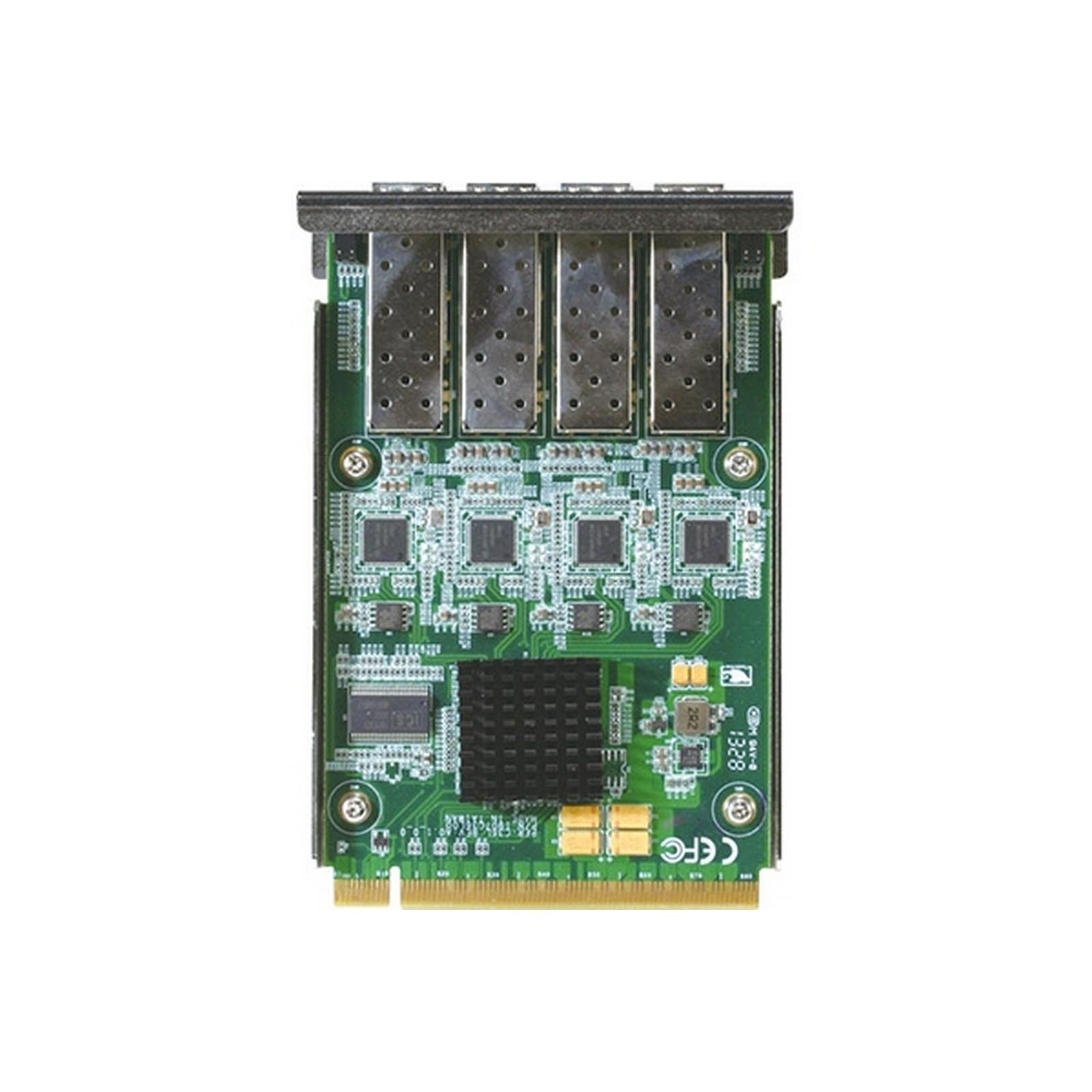

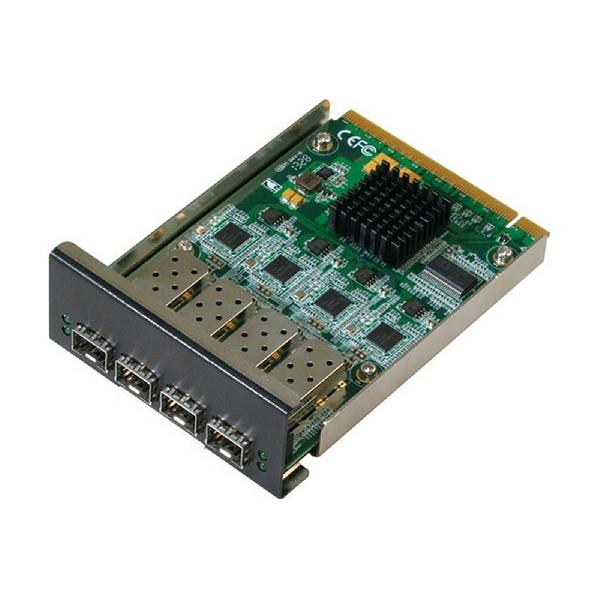

The PER-C36L is an ethernet module powered by Intel®'s Ethernet Controller i210. Usable with the FWS-7811, FWS-7810, and FWS-7400 network appliance, it supports PCI-Express host interfaces and four fiber LAN ports.

MAIN SPECIFICATION
FORM FACTOR1G Fiber Module
MAIN CHIPSETIntel® i210 Ethernet Controller x 4
BYPASS—
HOST INTERFACEPCI-Express [x4]
LAN PORTSFP 1GbE Connector x 4
INDICATORLED x 4 for Active/Link
QUALIFICATIONCE/FCC Class A
OPERATING TEMPERATURE32°F ~ 104°F (0°C ~ 40°C)
DIMENSION5.43" x 3.46" (137.8mm x 88mm)
Name Type Version Release Date
PER-C36L, datasheet Datasheet V1.0 14 June 2016
