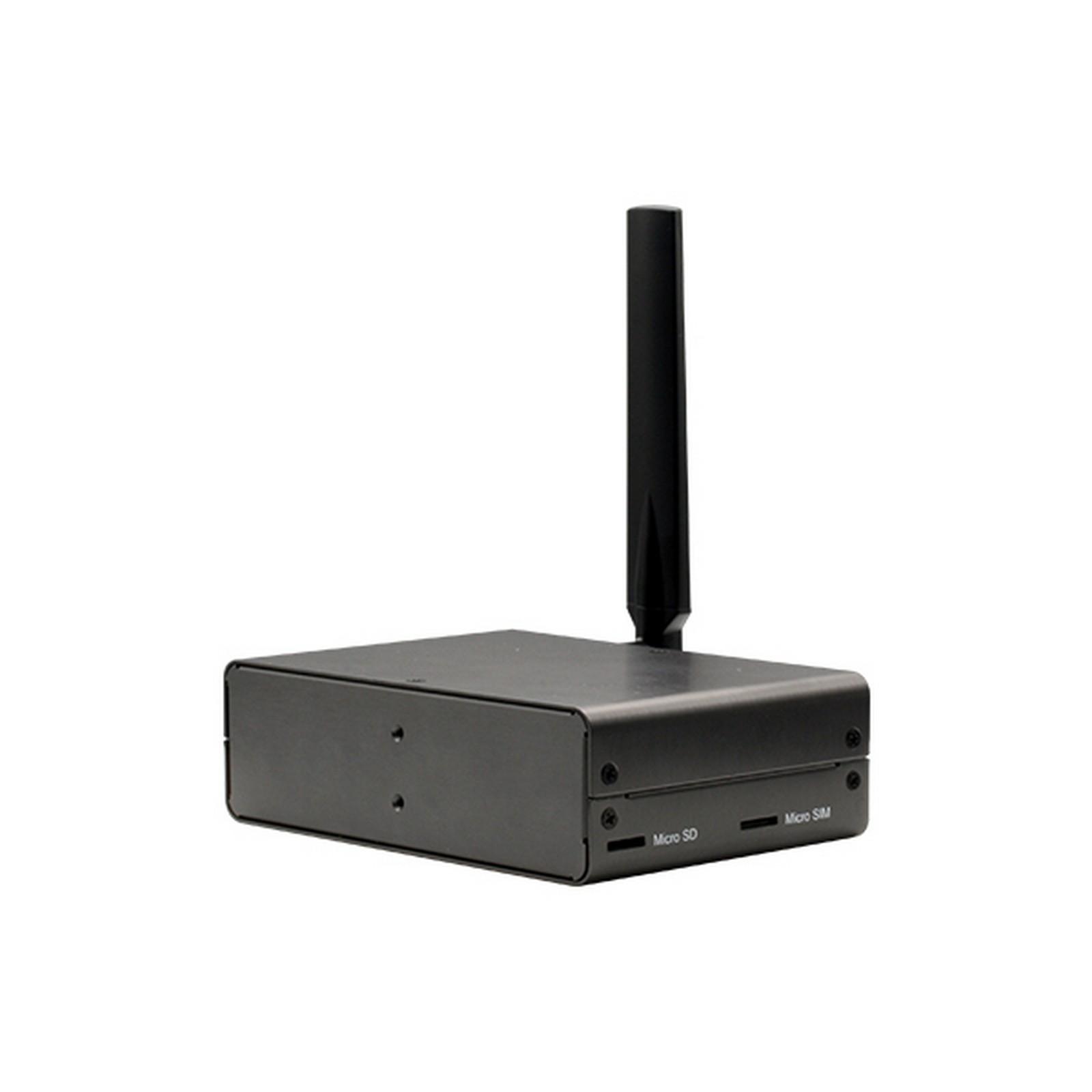

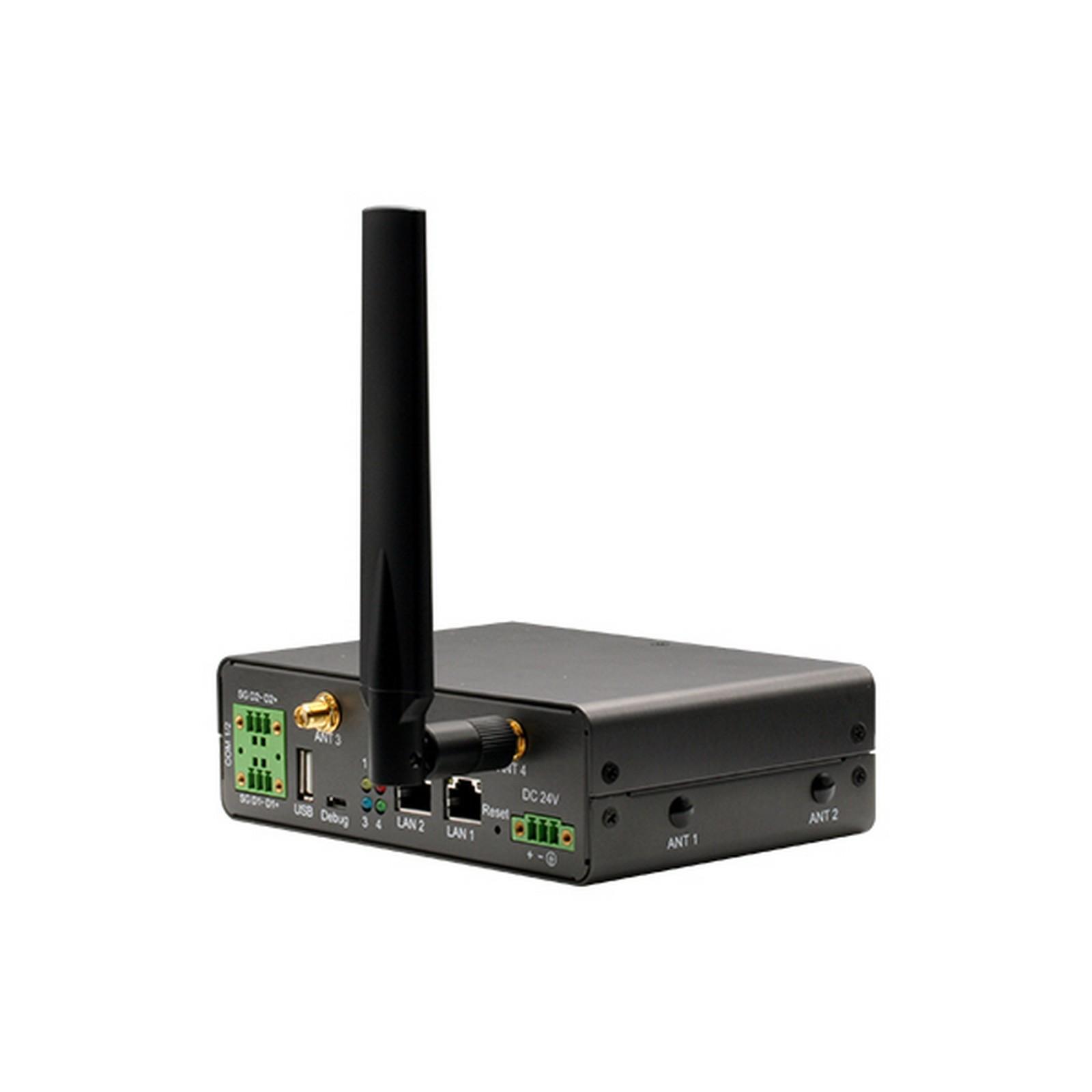

SRG-3352

Home  >   AAEON  >   IoT Gateway Solutions  >
Gateway System

Standard IoT Gateway System with Onboard ARM Cortex-A8 800 MHz RISC Processor

Product Feature

  • ARM Cortex-A8 800 MHz RISC Processor
  • Onboard DDR3L 1 GB
  • eMMC 8G
  • Built-in Micro SD Card Slot x 1
  • 3G/4G LTE mini PCIe connector x 1
  • NB-IoT connector x 1
  • SIM card socket x 1
  • Gigabit Ethernet RJ-45 x 2 LAN port
  • USB2.0 x 2
  • RS-485 x 2
  • 4 LED lights controlled through GPIO
  • Real time clock x 1
  • DC9-30V
  • Option for wall mounting or DIN rail mounting
  • Antenna x 2 (optional)
  • VGA x 1 (optional)

The SRG-3352 from AAEON is powered by the Arm® Cortex-A8 800 MHz RISC processor. This innovative processor reduces the energy requirements, saving electricity and allowing the system to be deployed with solar or battery power. With very little heat output, the system can operate in a wide range of temperatures from 0°C up to 60°C without a loss in performance.

The SRG-3352 provides reliable and cost-effective edge gateway operations, with low upfront cost and reduced maintenance requirements overtime. To connect from edge to cloud, the SRG-3352 supports 3G/4G LTE as well as NB-IoT to help reduce carrier costs.

The SRG-3352 provides flexibility in connecting with edge nodes, supporting Wi-Fi and featuring two Gigabit Ethernet ports, USB 2.0 and RS-485 ports. Optional wall-mount and DIN rail kits ensure the SRG-3352 can be deployed anywhere it’s needed. The SRG-3352 is also compatible with popular cloud services including AWS, Azure, and Arm Pelion, or can be configured to work with a customer’s own cloud platform.

SYSTEM
PROCESSORARM Cortex-A8 800 MHz RISC Processor
SYSTEM MEMORYOnboard DDR3L 1GB
RTCSerial real time clock x 1
EXPANSION INTERFACE3G/4G LTE mini PCIe connector; NB-IoT connector; SIM card socket x 1
BATTERY3V CR2032 Lithium battery for RTC
POWER REQUIREMENTDC9-30V
POWER CONSUMPTION2.28 W
DIMENSION5.67" x 3.94" x 1.73" (144 x 100 x 44mm)
GROSS WEIGHT512 g
OPERATING TEMPERATURE32 °F ~ 140 °F (0 °C ~ 60 °C)
STORAGE TEMPERATURE-40 °F ~ 176 °F (-40 °C ~ 80 °C)
OPERATING HUMIDITY10% ~ 95% relative humidity, non-condensing
MTBF (HOURS)855,890
WIRELESS
I/O
STORAGEeMMC 8G; Micro SD slot
SERIAL PORTRS-485 x 2
LANGigabit Ethernet, RJ-45 x 2
USBUSB 2.0 x 2
GPIO4 LED control
OUTPUT INTERFACE
Name Type Version Release Date
SRG-3352, datasheet Datasheet V2.0 21 August 2019
