AIOT-IP6801

Home  >   AAEON  >   IoT Gateway Solutions  >
Gateway System

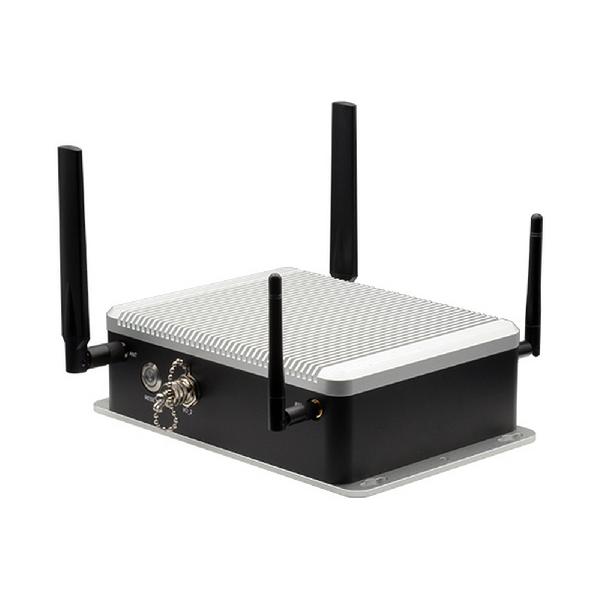

Outdoor IoT Gateway Device with IP68 Rating and Waterproof connectors

Product Feature

  • IP68 Compliance Gateway System
  • Intel® Atom™ E3940 Processor/Celeron® N3350 Processor
  • Onboard 4GB LPDDR4 Memory
  • Onboard 32 GB eMMC
  • Gigabit LAN x 1, HDMI x 1
  • USB3.0 x 1, RS-232 x 2
  • Wi-Fi/Bluetooth Function
  • Optional LORA Function, 3G, 4G LTE

A new generation of tough IoT gateways is allowing applications to move into the field and stay connected – no matter what the conditions. AAEON’s AIOT-IP6801 provides complete protection against dust and water, it can be safely plunged into outdoor environment, and it has an operating temperature range of up to -20°C~70°C. This compact system also features an Intel® Atom™ E3940 CPU or Celeron™ N3350 , up to 4GB LPDDR4 memory/32GB eMMC storage, rich I/O interfaces(Ethernet, COM port, USB3.0, HDMI), Wi-Fi & Bluetooth, and optional PoE function & LoRa Technology .

Connectivity
The AIOT-IP6801 comes with WiFi 802.11ac and Bluetooth 4.0 with dedicated antennas. Optional LoRa, 3G/4G LTE, and IQRF kits are available, and the system can also maintain communication links in high-temperature environments.

Convenience
The AIOT-IP6801 is significantly smaller than competing systems, and AAEON has also helped users by substituting M12 connectors with waterproof attachments for many of its I/O ports. As a result, users won’t have the trouble of needing to get M12 cables custom made for their applications.

SYSTEM
CPUIntel® Atom™ E3940 Processor
Intel® Celeron® N3350 Processor
CHIPSETIntel® System on Chip
MEMORYOnboard 4GB/ 2GB LPDDR4 memory
STORAGE32GB eMMC onboard
DISPLAYHDMI
ETHERNETStandard: Realtek® 8111G x 1
Wide temperature: Intel® i211 x 1
USBUSB 3.0 x 1
COMRS-232/422/485 x 2
DIGITAL I/O
EXPANSION SLOTMini PCIe card x 1
SIM card x 1
INDICATOR
WI-FI801.11ac
BLUETOOTHBT4.0
LORA868/915 MHz (Optional)
POEIEEE802.3 AT Standard, Max 25W Power Supply
OS SUPPORTWindows® 10 (full), Windows® IOT Core, Linux ubilinux, Ubuntu, Yocto
I/O PLACEMENTS

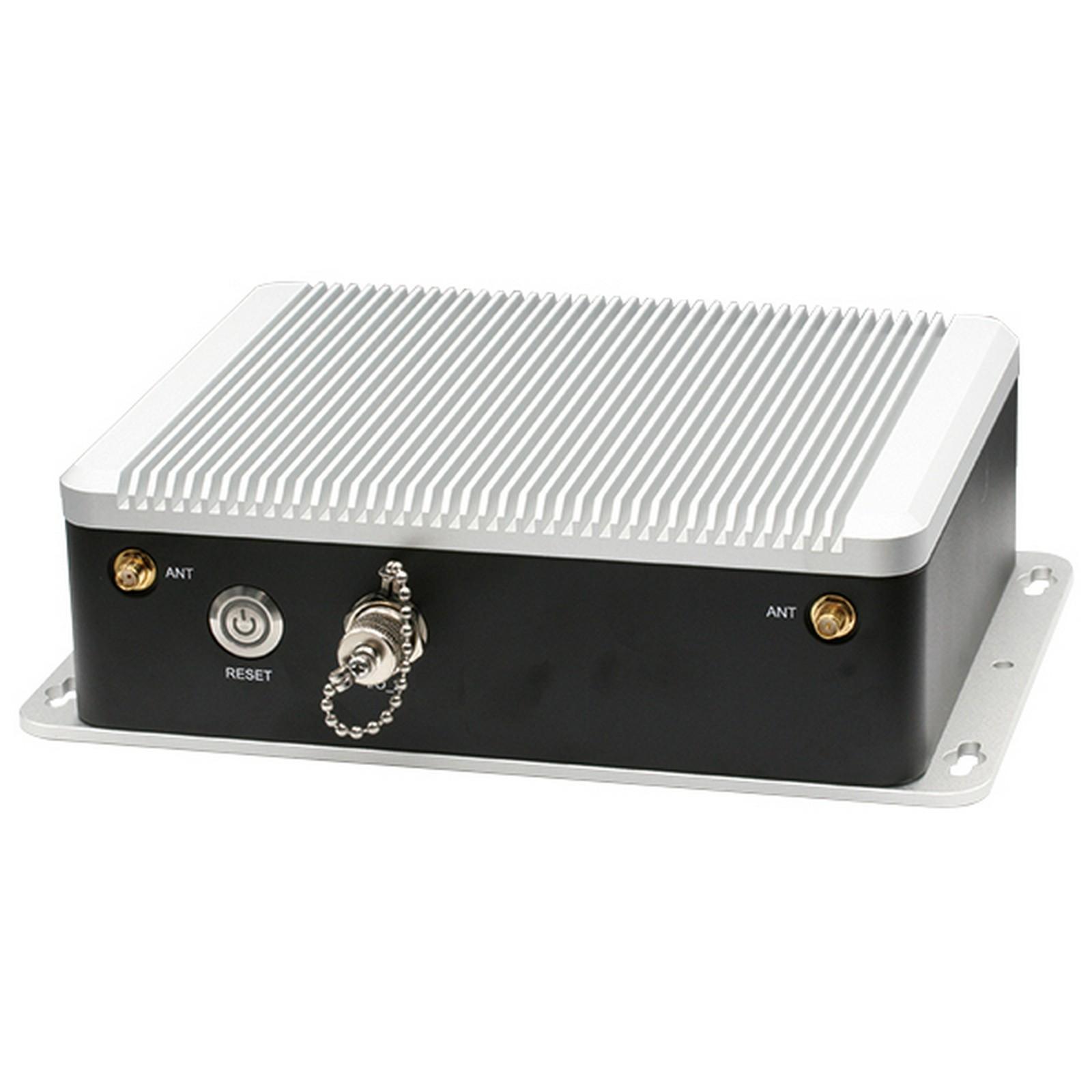

FRONT I/OM12 Connector x 1 (RS-232)
Reset button x 1
GND Screw x 1
Antenna connector x 1
Antenna x 1

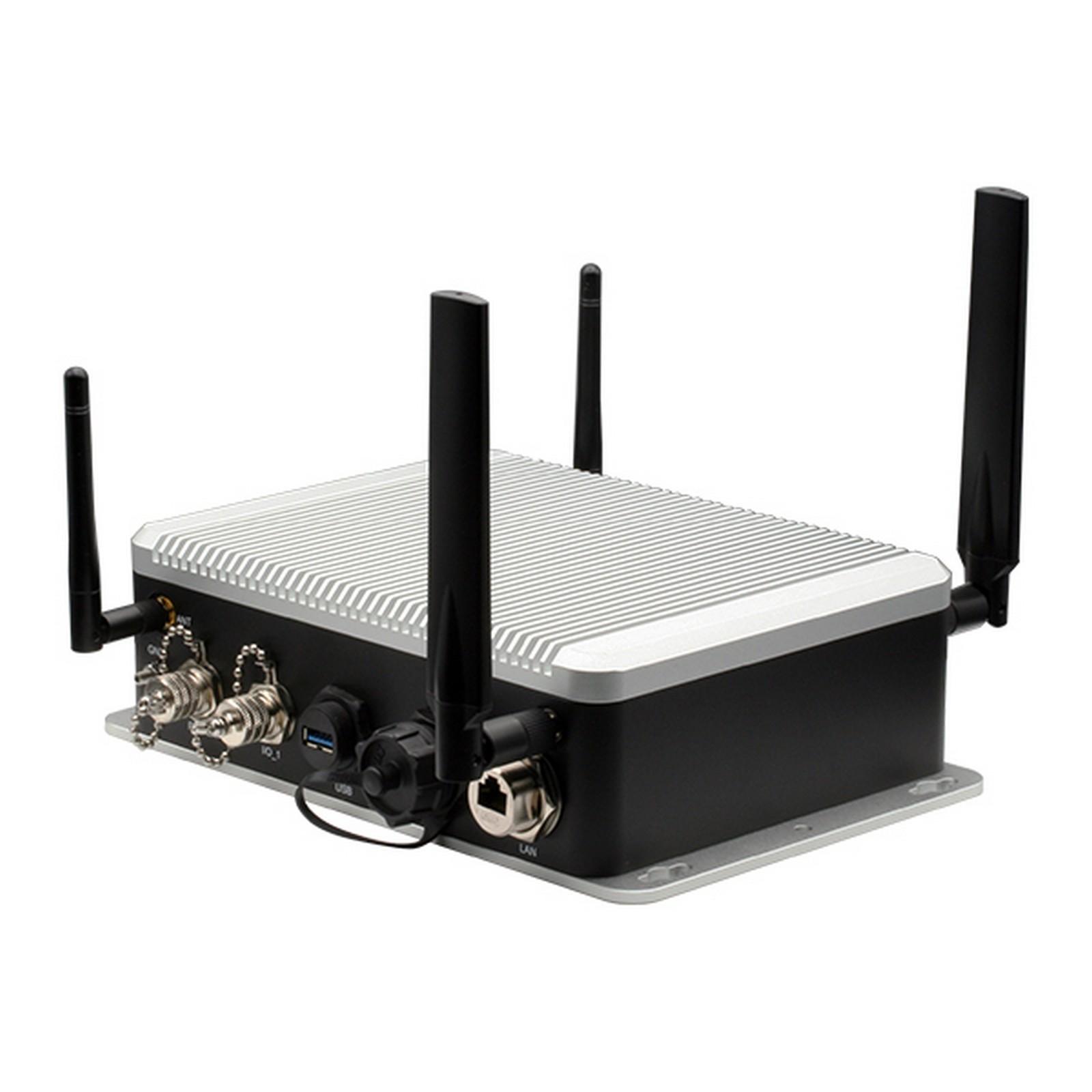

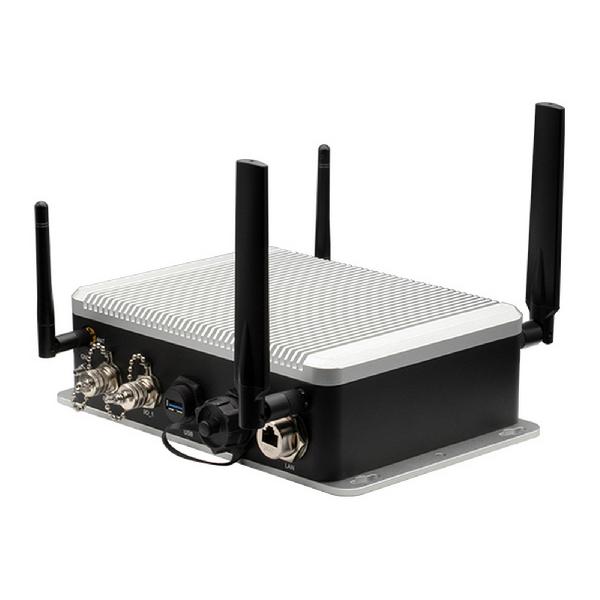

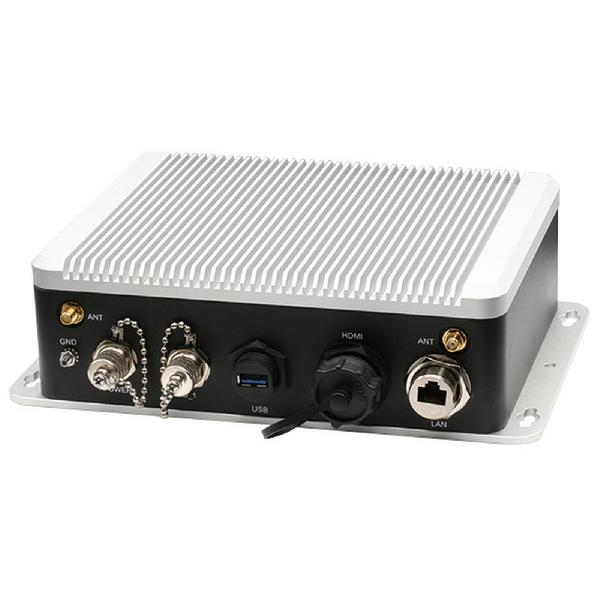

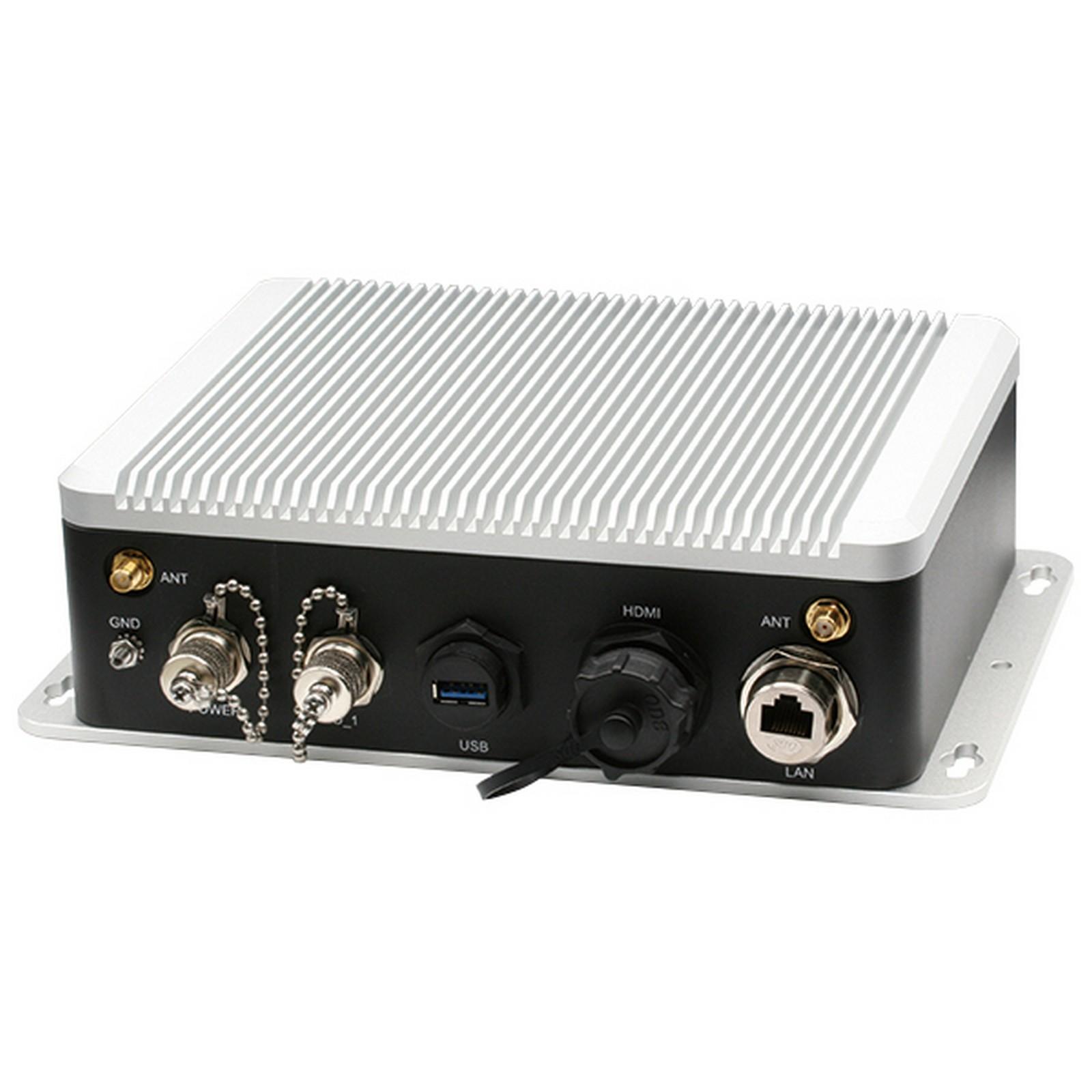

REAR I/ORJ45 Connector x 1
HDMI Connector x 1
USB 3.0 Connector x 1
M12 Connector x 1 (RS-232)
Antenna connector x 1
Antenna x 1
RIGHT SIDE I/O
LEFT SIDE I/O
POWER
POWER REQUIREMENT5V DC in
MECHANICAL
IPIP68
DIMENSION9.43" x 6.28" x 2.73" (239.4 mm x 159.4 mm x 69.4 mm)
MOUNTINGWallmount
GROSS WEIGHT7.8lb (3.5kg)
NET WEIGHT5.6lb (2.5kg)
ENVIRONMENT
OPERATING TEMPERATURE-4°F ~ 158°F (-20°C ~ 70°C) (E3940)
-32°F ~ 122°F (0°C ~ 50°C) (N3350)
STORAGE TEMPERATURE-4°F ~ 158°F (-20°C ~ 70°C)
STORAGE HUMIDITY5~95% @ 40°C, non-condensing
ANTI-VIBRATION3 Grms /5 ~500Hz/Operation
CERTIFICATIONCE, FCC Class A
Name Type Version Release Date
AIOT-IP6801, datasheet Datasheet V1.0 05 November 2018
