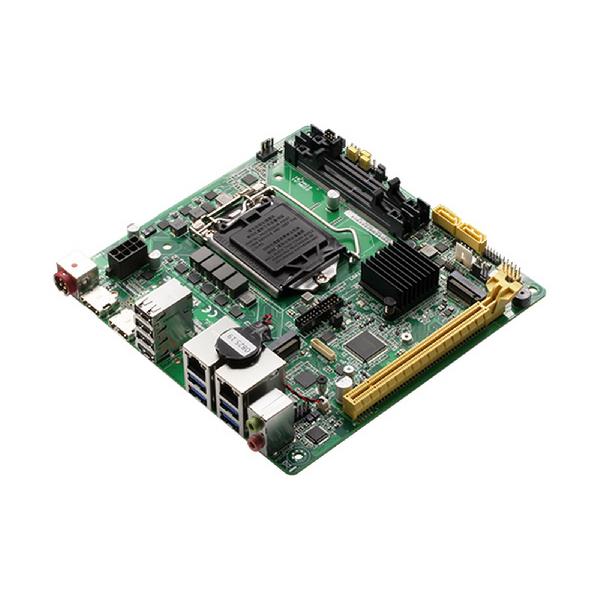

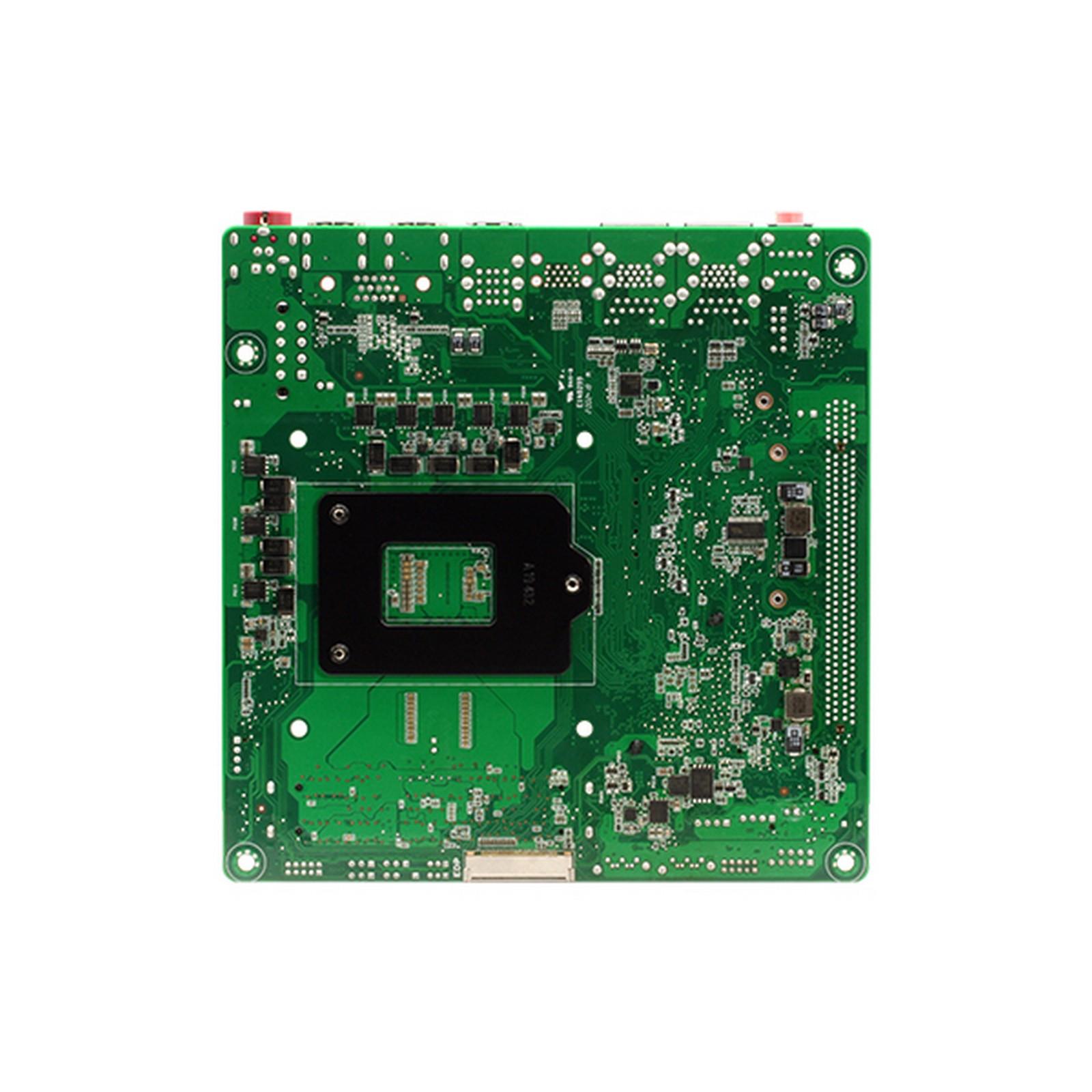

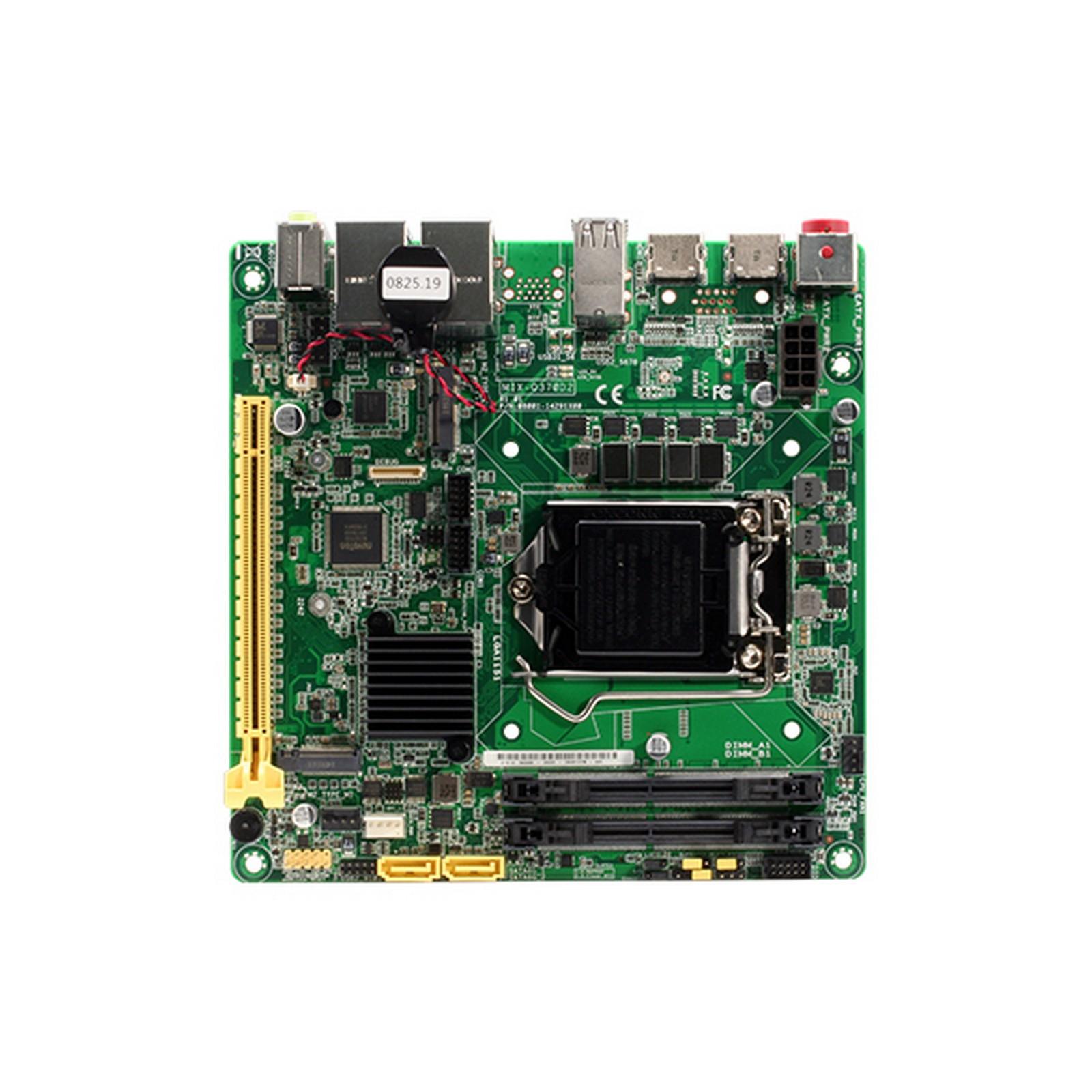

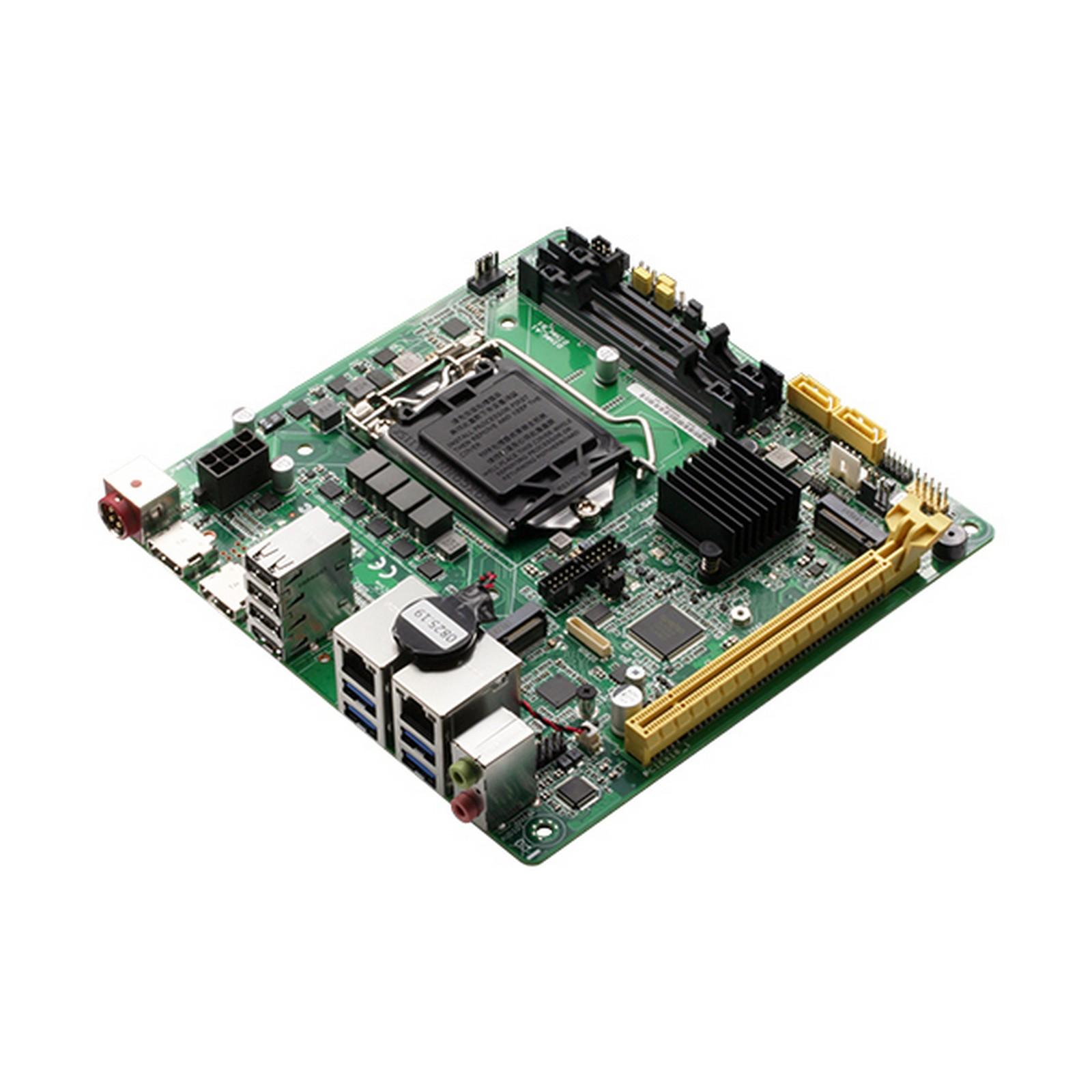

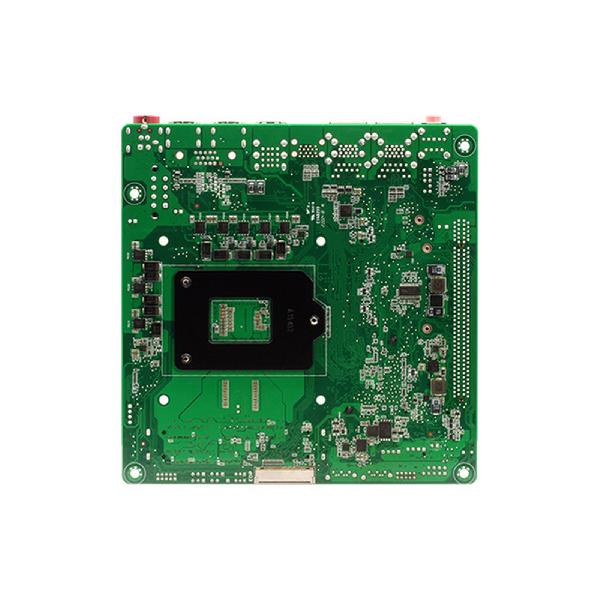

Mini-ITX with Intel® 8th / 9th Generation Core™ LGA1151 Socket Processor, Max. 65W TDPs, USB 3.2 Gen 1 Port x 4, USB 2.0 Port x 5, 12V DC input
| SYSTEM | |
| PROCESSOR | 8th/9th Gen. Intel® Core™ LGA 1151 socket Processor (formerly Coffee Lake-S),Max. 65W TDPs |
| CHIPSET | Intel® H310 Express Chipset |
| MEMORY | DDR4 2666/2400/2133 MHz SODIMM x 2, Up to 64GB, Non-ECC, Un-buffered Memory, Dual channel memory architecture |
| I/O CHIPSET | NCT6793D |
| ETHERNET | Intel® GbE LAN i219V x 1, Intel® GbE LAN i211AT x 1 |
| AUDIO | Realtek® ALC887 |
| TPM | NPCT750AABYX TPM2.0 (default: No) |
| EXPANSION SLOT | PCIe3.0 [x16] x 1 M.2 E-key(22 x 30 mm) x1 for Wireless-wifi module ( PCIe+USB; CNVi) |
| BIOS | 256Mbit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/ Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL / PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® UHD Graphics |
| GRAPHICS MULTI DISPLAY | HDMI+HDMI, HDMI+eDP, HDMI+VGA, VGA+eDP |
| VGA | Up to 1920 x 1200 @ 60 Hz (Optional) |
| DVI | — |
| HDMI | Up to 3840 x 2160 @30 Hz(HDMI 1.4) |
| DISPLAYPORT | — |
| LVDS | — |
| EDP | UP to 4096 x 2304 @ 60Hz |
| BACKLIGHT CONTROL | Support eDP |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 12V DC |
| OPERATING TEMPERATURE | 32°F ~140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0%~90%RH, non-condensing |
| CERTIFICATION | CE & FCC |
| FORM FACTOR | Mini-ITX: 6.7" x 6.7" (170 mm x 170 mm) |
| WEIGHT | 1.1 lb (0.5 kg) |
| MTBF (HOURS) | 373,720 |
| REAR I/O PORTS | |
| USB | USB 3.2 Gen 1 x 4, USB 2.0 x 4 |
| DISPLAY I/O | HDMI x 2, VGA x 1 (Optional) |
| AUDIO I/O | Mic-in x 1, Line-out x 1 |
| LAN I/O | LAN (RJ-45) port x 2 |
| SERIAL PORT | — |
| PS/2 PORT | — |
| OTHERS | 12V DC Jack (max:192W) |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA3.0 (6.0Gb/s) x 2 M.2 M-key (22 x 42/80mm; PCIe) x 1 |
| USB | USB 2.0 (2 x 5-pin, 2.00mm) x 1 port support additional 1 USB |
| DISPLAY I/O | eDP x 1 |
| AUDIO I/O | AAFP x 1 |
| SERIAL PORT | Boxer header for COM (RS-232) x 1; RS-232/422/485 x 1 |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | Digital I/O box header x 1 |
| FAN | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1 |
| POWER | — |
| OTHERS | Front Panel connector x 1, Chassis Intrusion x 1, Buzzer onboard x 1, CMOS jumper x 1, ATX/AT mode select x 1, ME disable x 1, eDP Tcon IC voltage select x 1, eDP panel backlight voltage select x 1, COM RI select jumper x 1, SATA PWR x 1 |
| OS | |
| OS SUPPORT | Windows® 10 64-bit, Linux Ubuntu 18.04.2 |
| Name | Type | Version | Release Date | |
| MIX-H310D2,datasheet | Datasheet | V2.0 | 21 July 2020 |
