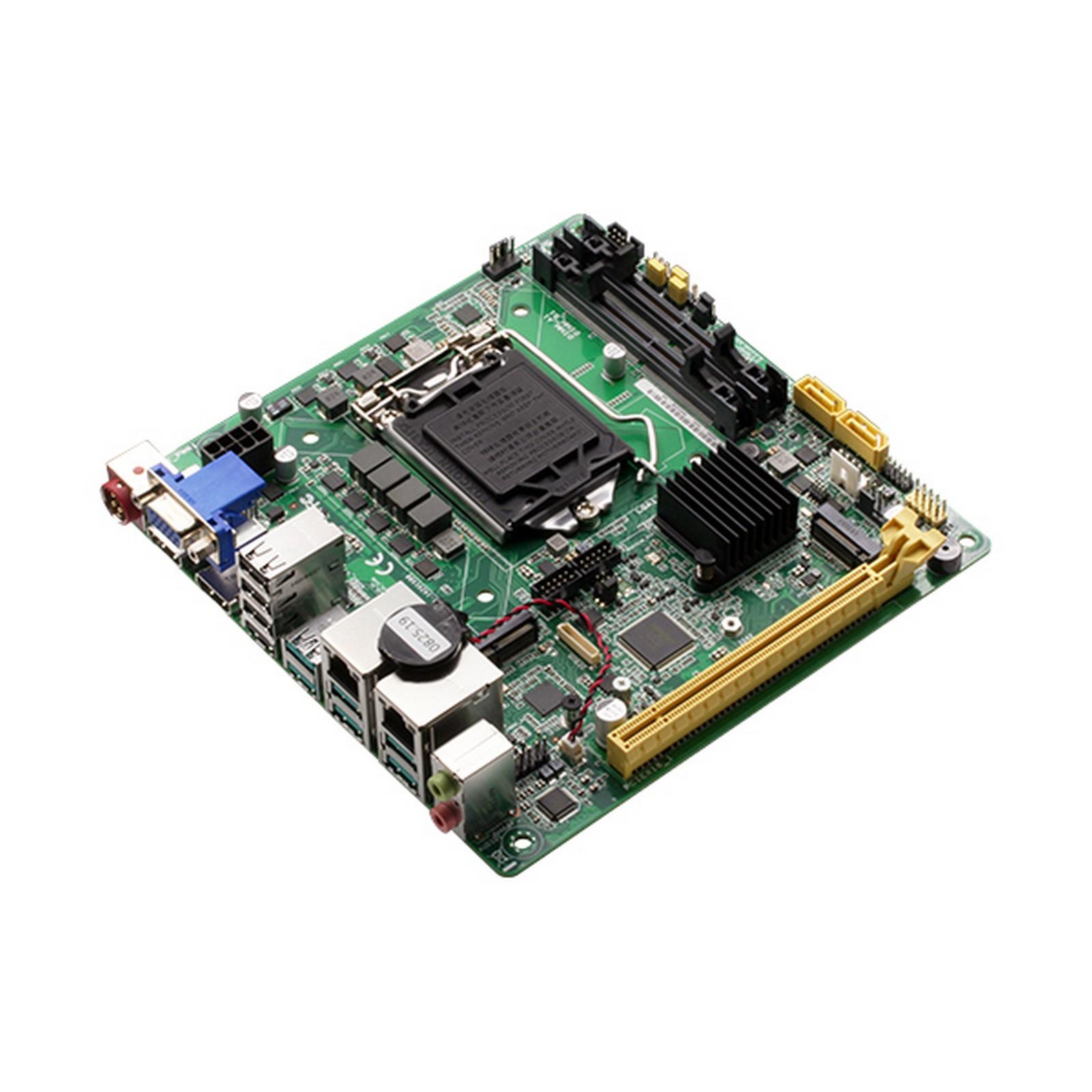

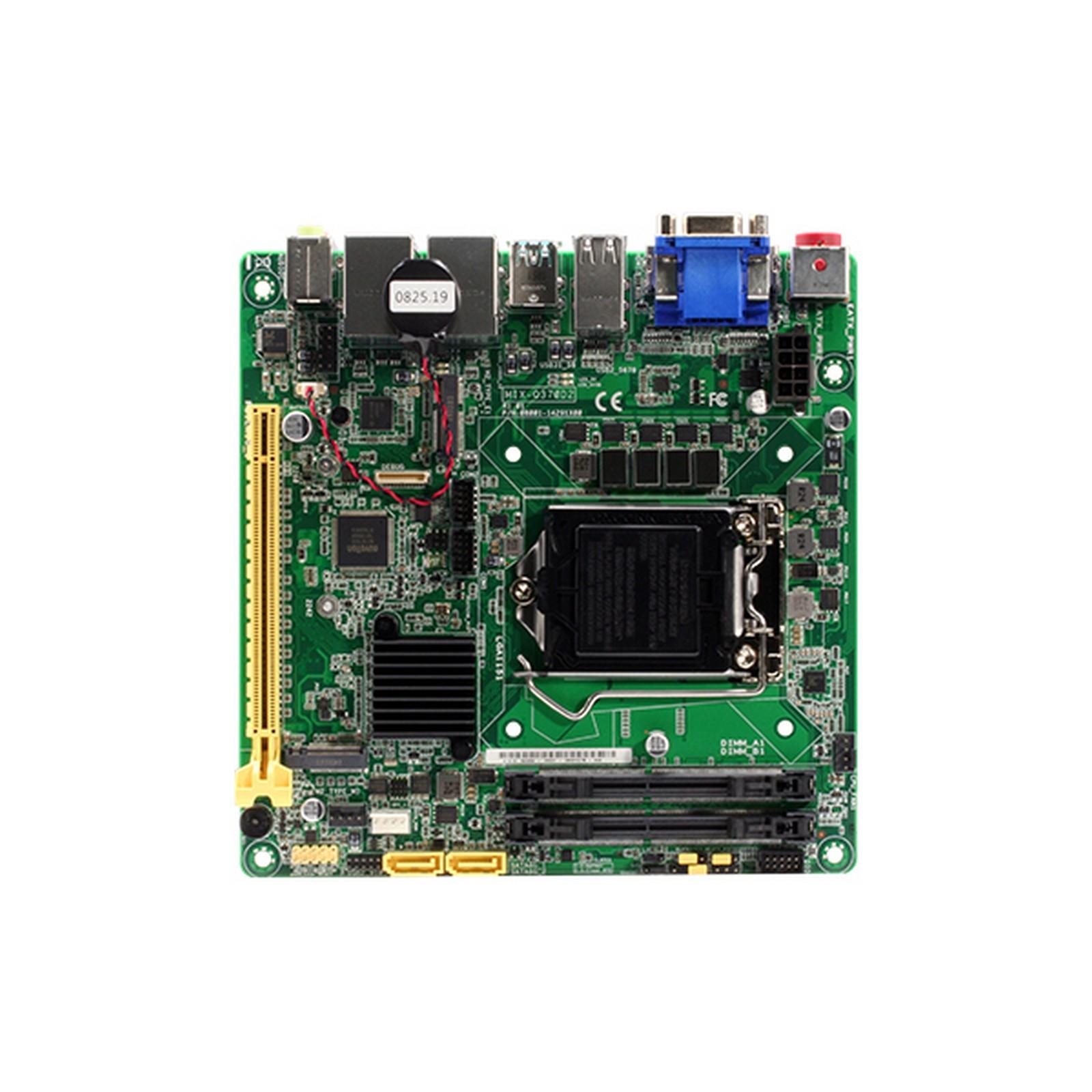

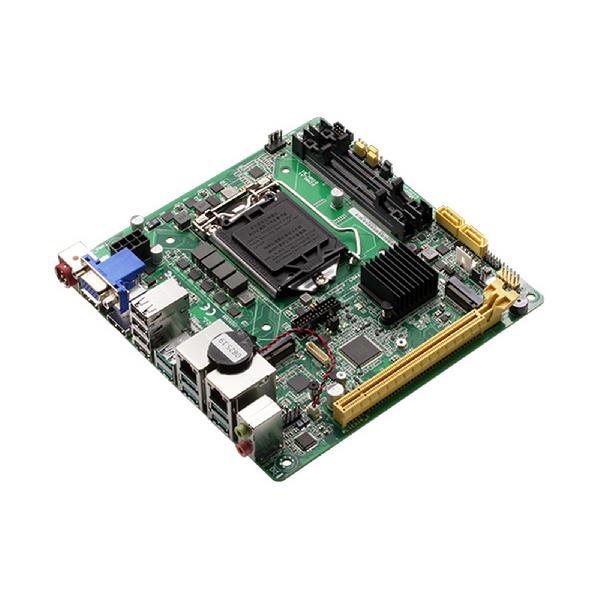

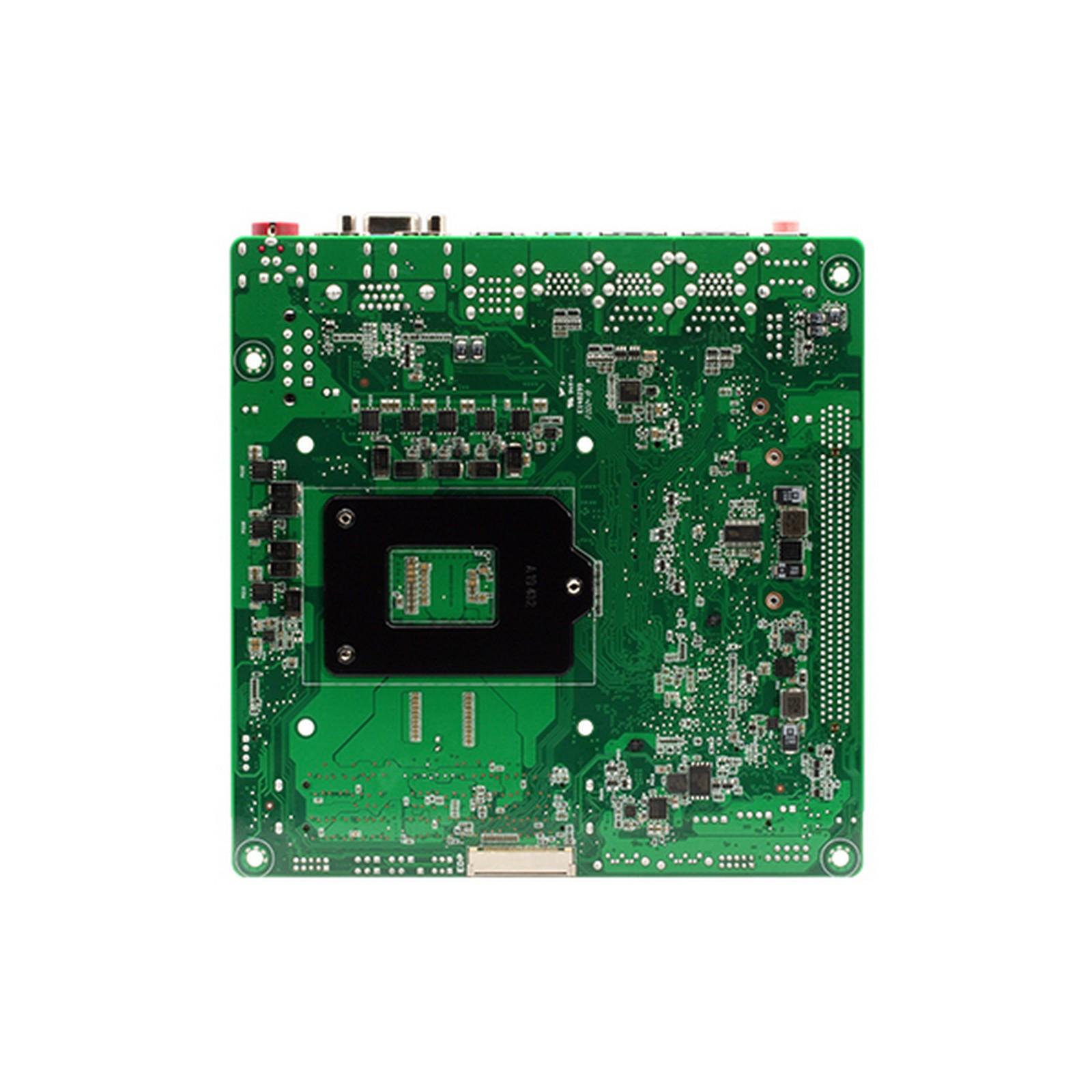

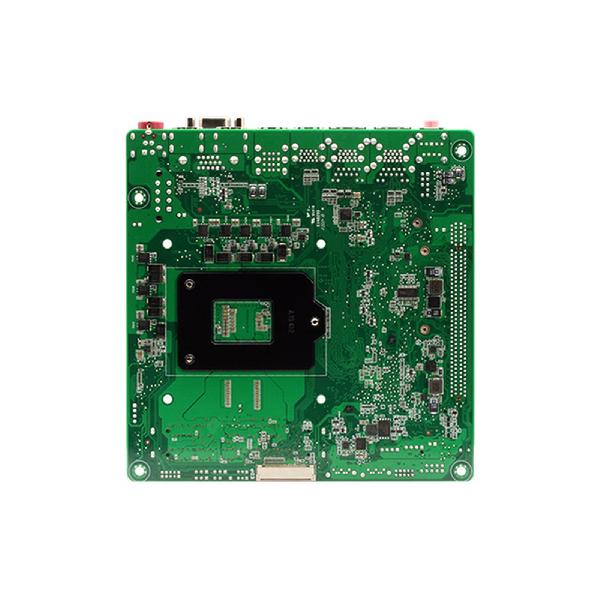

MIX-Q370D2

Home  >   AAEON  >   Embedded Boards  >
Industrial Motherboards  >   Mini-ITX Motherboards

Mini-ITX with Intel® 8th / 9th Generation Core™ LGA1151 Socket Processor, Max. 65W TDPs, USB 3.2 Gen 2 Port x 6, USB 2.0 Port x 6, 12V DC input

Product Feature

  • 8th/9th Gen. Intel® Core™ LGA1151 Processor
  • DDR4 DRAM Support, 2666MHz, Max. 64GB
  • M.2 Slot (M key; NVME/SATA) x 1, M.2 Slot (E key) x 1
  • USB 3.2 Gen 2 Port x 6, USB 2.0 Port x 6
  • Intel® Gigabit Ethernet x 2
  • SATA 6.0 Gb/s x 2
  • PCI-Express [x16] (Gen3) x 1
  • 12VDC input

The MIX-Q370D2 from AAEON combines the power of the 8th and 9th Generation Intel® Core™ processors (formerly Coffee Lake, Coffee Lake Refresh) with a full I/O suite on the flexible Mini-ITX form factor. The MIX-Q370D2 provides users with six USB 3.2 Gen 2 ports, six USB 2.0 ports, and display output from HDMI, VGA and eDP. It also offers M.2 with NVMe to support the fastest storage options available. The MIX-Q370D2 is designed with the features needed to power any industrial computing application.

8th/9th Generation Intel® Core™ MIX-Q370D2 supports the 8th/9th Gen Intel® Core™ i3/i5/i7 processors (formerly Coffee Lake, Coffee Lake Refresh), offering top end CPU performance for any task.

Faster Computing MIX-Q370D2 supports up to 64 GB of DDR4 SODIMM memory to help unlock your processor’s performance. Along with M.2 M-Key (2280/2242) slot with support for NVMe and SATA storage, the MIX-Q370D2 won’t slow down your vital applications.

Full Featured I/O MIX-Q370D2 provides a full suite of I/O ports including six USB 3.2 Gen 2 ports, four USB 2.0, and two Gigabit Ethernet LAN ports. Display support includes two HDMI, one VGA port and eDP.

PCI Express MIX-Q370D2 includes PCIe 3.0 [x16] expansion slot to support VGA graphics cards to power performance demanding AI and edge computing applications. The board also offers an M.2 E-Key (2230) slot for further expansion.

Industrial Applications The MIX-Q370D2 is already proving itself in the real world, powering industrial AI applications including visual inspection of battery production lines, helping to increase safety and accuracy of manufacturing facilities.

SYSTEM
PROCESSOR8th/9th Gen. Intel® Core™ LGA 1151 socket Processor (formerly Coffee Lake-S), Max. 65W TDPs
CHIPSETIntel® Q370 Express Chipset
MEMORYDDR4 2666/2400/2133 MHz SODIMM x 2,
Up to 64GB, Non-ECC, Un-buffered Memory,
Dual channel memory architecture
I/O CHIPSETNCT6793D
ETHERNETIntel® GbE LAN i219V x 1, Intel® GbE LAN i211AT x 1
AUDIORealtek® ALC887
TPMNPCT750AAAYX TPM2.0
EXPANSION SLOTPCIe3.0 [x16] x 1
M.2 E-key(22 x 30 mm) x1 for Wireless-wifi module ( PCIe+USB; CNVi)
BIOS256Mbit Flash ROM, AMI BIOS
H/W MONITORTemperature Monitor on CPU/Chassis,
Voltage Monitor on Vcore/5V/12V,
Fan Monitor on CPU/Chassis
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan/Chassis Fan
WAKE ON LAN/ PXEYes (WOL/PXE)
POWER STATES3, S4, S5
GRAPHICS
GRAPHICS CHIPSETIntel® UHD Graphics
GRAPHICS MULTI DISPLAYHDMI x 2 + VGA + eDP
VGAUp to 1920 x 1200 @ 60 Hz
DVI
HDMIUp to 3840 x 2160 @30 Hz(HDMI 1.4b)
DISPLAYPORT
LVDS
EDPeDP UP to 4096 x 2304 @ 60Hz
BACKLIGHT CONTROLSupport eDP
ENVIRONMENTAL & POWER & ME
BATTERYLithium battery
POWER REQUIREMENT12V DC
OPERATING TEMPERATURE32°F ~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE-40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY0% ~ 90% R/H, non-condensing
CERTIFICATIONCE & FCC
FORM FACTORMini-ITX: 6.7" x 6.7" (170 mm x 170 mm)
WEIGHT1.1 lb (0.5 Kg)
MTBF (HOURS)319,160
REAR I/O PORTS
USBUSB 3.2 Gen2 x 6, USB2.0 x 4
DISPLAY I/OVGA x 1, HDMI x 2
AUDIO I/OMic-in x 1, Line-out x 1
LAN I/OLAN (RJ-45) port x 2
SERIAL PORT
PS/2 PORT
OTHERS12V DC Jack (max:192W)
INTERNAL I/O CONNECTORS
STORAGESATA3.0 (6.0Gb/s) x 2
M.2 M-key (22 x 42/80mm; NVME/SATA) x 1
USBUSB 2.0 (2 x 5-pin, 2.00mm) x 1 port support additional 2 USB
DISPLAY I/OeDP x 1
AUDIO I/OAAFP x 1
SERIAL PORTBoxer header for COM (RS-232) x 1;
RS-232/422/485 x 1
PS/2 PORT
PARALLEL PORT
DIODigital I/O box header x 1
FAN4-pin CPU Fan connector x 1,
4-pin Chassis Fan connector x 1
POWER12V ATX Power Connector x 1
OTHERSFront Panel connector x 1
Chassis Intrusion x 1
Buzzer onboard x 1
CMOS jumper x 1
SATA Power connector x 1
SPI ROM programming header x 1
ATX/AT mode jumper x 1
eDP backlight power jumper x 1
eDP T-con IC power jumper x 1
OS
OS SUPPORTWindows® 10 64-bit,
Linux Ubuntu 18.04.2
Name Type Version Release Date
MIX-Q370D2,datasheet Datasheet V2.0 21 July 2020
