1/2-port RS-232/422/485 IEEE 802.11a/b/g/n wireless device servers with 6 or 12 digital IOs

Product Feature

  • Serial device server with 6 or 12 digital IOs
  • Links serial and Ethernet devices to an IEEE 802.11a/b/g/n network
  • Connects serial/I/O data to the cloud through generic MQTT
  • Supports MQTT connection with built-in device SDKs to Azure/Alibaba Cloud
  • Supports MQTT connection with TLS and certificate in JSON and Raw data format
  • microSD card for configuration backup/duplication and event logs, and data buffering when cloud connection is lost
  • Supports repackaging the serial data size (up to 4K) to save the packet numbers that need to be sent to the cloud platform
  • Supports redundant dual DC power inputs and 1 relay output
  • Secure data access with WEP, WPA, WPA2
  • Wireless Client function for flexible integration
  • 4 kV serial surge protection

Introduction

The NPort IA5000A-I/O serial device servers, which have built-in digital I/Os, provide maximum flexibility when you need to integrate serial equipment in the field with an Ethernet network or cloud platform. The cloud-ready device server can communicate with IIoT applications, using generic MQTT or third-party cloud services, such as Azure and Alibaba Cloud. The combination of digital I/Os makes the device servers well-suited for a variety of industrial data acquisition applications. The DI/Os on the device can be controlled over TCP/IP using the Modbus TCP protocol and can be configured and secured from a web browser. The device can also be installed as a COM Port (patented Real COM) on a Windows/Linux PC to make it compatible with legacy applications.

All models are ruggedly constructed, DIN-rail mountable, and designed with redundant power inputs to ensure uninterrupted operation for industrial applications.

Input/Output Interface

Digital Input Channels6I/O models: 4
12I/O models: 8
Digital Output Channels6I/O models: 2
12I/O models: 4
Isolation3k VDC or 2k Vrms
Alarm Contact ChannelsRelay output with current carrying capacity of 2 A @ 30 VDC

Digital Inputs

Sensor TypeDry contact
Wet contact (NPN or PNP)
Dry ContactOn: short to GND
Off: open
Wet Contact (DI to COM)On: 10 to 30 VDC
Off: 0 to 3 VDC
I/O ModeDI or event counter
Counter Frequency20 Hz
Digital Filtering Time IntervalSoftware configurable

Digital Outputs

I/O ModeDO or pulse output
I/O TypeSink
Over-Current Protection2.6 A per channel @ 25°C
Over-Temperature Shutdown175°C (typical), 150°C (min.)
Over-Voltage Protection45 VDC

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)1
Auto MDI/MDI-X connection
Magnetic Isolation Protection1.5 kV (built-in)

Ethernet Software Features

Industrial ProtocolsMQTT, MTConnect
Configuration OptionsWeb Console (HTTP/HTTPS), Windows Utility, Telnet Console, Serial Console
ManagementDHCP Client, DNS, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, ICMP
Windows Real COM DriversWindows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64),
Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0,
Windows XP Embedded
Linux Real TTY DriversKernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY DriversSCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD,
AIX 5.x, HP-UX 11i, Mac OS X
Android APIAndroid 3.1.x and later
MIBMIB-II

MQTT

ModeAlibaba IoT Platform Device, Azure IoT Hub Device, Publisher/Subscriber of MQTT
Version Supportedv3.1.1
QoS LevelQoS 0-2
Secure TransmissionTLS (1.0, 1.1, 1.2) encryption with user's root CA, Client certificate, Private key
MQTT General FeaturesClean Session, Keep Alive, Last Will Message, Retain Message

Serial Interface

ConnectorDB9 male
No. of PortsNPort IAW5150A Series: 1
NPort IAW5250A Series: 2
Serial StandardsRS-232, RS-422, RS-485
Baudrate50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityNone, Even, Odd, Space, Mark
Flow ControlNone, RTS/CTS, XON/XOFF
Pull High/Low Resistor for RS-4851 kilo-ohm, 150 kilo-ohms
Terminator for RS-485120 ohms
Surge4 kV

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND

WLAN Interface

WLAN Standards802.11a/b/g/n
Receiver Sensitivity for 802.11a
(measured at 5.680 GHz)
Typ. -91 @ 6 Mbps
Typ. -74 @ 54 Mbps
Receiver Sensitivity for 802.11b
(measured at 2.437 GHz)
Typ. -92 dBm @ 1 Mbps
Typ. -84 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g
(measured at 2.437 GHz)
Typ. -91 dBm @ 6 Mbps
Typ. -73 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n
(2.4 GHz; measured at 2.437 GHz)
Typ. -89 dBm @ 6.5 Mbps (20 MHz)
Typ. -71 dBm @ 72.2 Mbps (20 MHz)
Receiver Sensitivity for 802.11n
(5 GHz; measured at 5.680 GHz)
Typ. -89 dBm @ 6.5 Mbps (20 MHz)
Typ. -71 dBm @ 72.2 Mbps (20 MHz)
Typ. -85 dBm @ 13.5 Mbps (40 MHz)
Typ. -67 dBm @ 150 Mbps (40 MHz)
Spread SpectrumDSSS, OFDM
Transmission DistanceUp to 100 meters (in open areas)
Transmission Rate802.11a/g: 54 Mbps
802.11b: 11 Mbps
802.11n: 6.5 to 150 Mbps
Transmitter Power for 802.11b16±1.5 dBm @ 1 Mbps
16±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g16±1.5 dBm @ 6 Mbps
14±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11a15±1.5 dBm @ 6 Mbps
14±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n
(2.4 GHz)
16 dBm @ 1.5 Mbps (6.5 MHz)
12 dBm @ 1.5 Mbps (72.2 MHz)
Transmitter Power for 802.11n
(5 GHz)
15 dBm @ 1.5 Mbps (6.5 MHz)
12 dBm @ 1.5 Mbps (150 MHz)
Wireless SecurityWEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal
WLAN ModesAd-hoc Mode, Infrastructure mode

Antenna Characteristics

Antenna ConnectorsQMA
Antenna TypeOmni-directional

Memory

microSD SlotUp to 32 GB (SD 2.0 compatible)

Power Parameters

ConnectionRemovable terminal block
Input Voltage12 to 48 VDC
Input Current300 mA @ 12 VDC

Reliability

Automatic Reboot TriggerBuilt-in WDT
Alert ToolsBuilt-in buzzer and RTC (real-time clock)

Physical Characteristics

HousingMetal
Dimensions59.6 x 101.7 x 134 mm (2.35 x 4 x 5.28 in)
WeightPackaged:
NPort IAW5150A-6I/O: 940 g (2.07lb)
NPort IAW5250A-6I/O: 960 g (2.12lb)
NPort IAW5150A-12I/O: 960 g (2.12lb)
NPort IAW5250A-12I/O: 980 g (2.16lb)

Product only:
NPort IAW5150A-6I/O: 740 g (1.63lb)
NPort IAW5250A-6I/O: 760 g (1.68lb)
NPort IAW5150A-12I/O: 760 g (1.68lb)
NPort IAW5250A-12I/O: 780 g (1.72lb)
InstallationWall mounting (with optional kit), DIN-rail mounting

Environmental Limits

Operating Temperature0 to 55°C (32 to 131°F)
Storage Temperature
(package included)
-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 61000-6-2/-6-4
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: Ethernet: 2 kV, Serial: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Radio FrequencyEN 300 328, EN 301 893
SafetyEN 60950-1, UL 60950-1

Declaration

Green ProductRoHS, CRoHS, WEEE

MTBF

TimeNPort IAW5150A-6I/O: 282,087 hrs
NPort IAW5150A-12I/O: 277,975 hrs
NPort IAW5250A-6I/O: 237,037 hrs
NPort IAW5250A-12I/O: 234,130 hrs
StandardsTelcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for NPort IAW5000A-I/O Series Datasheet V1.4 08 November 2019

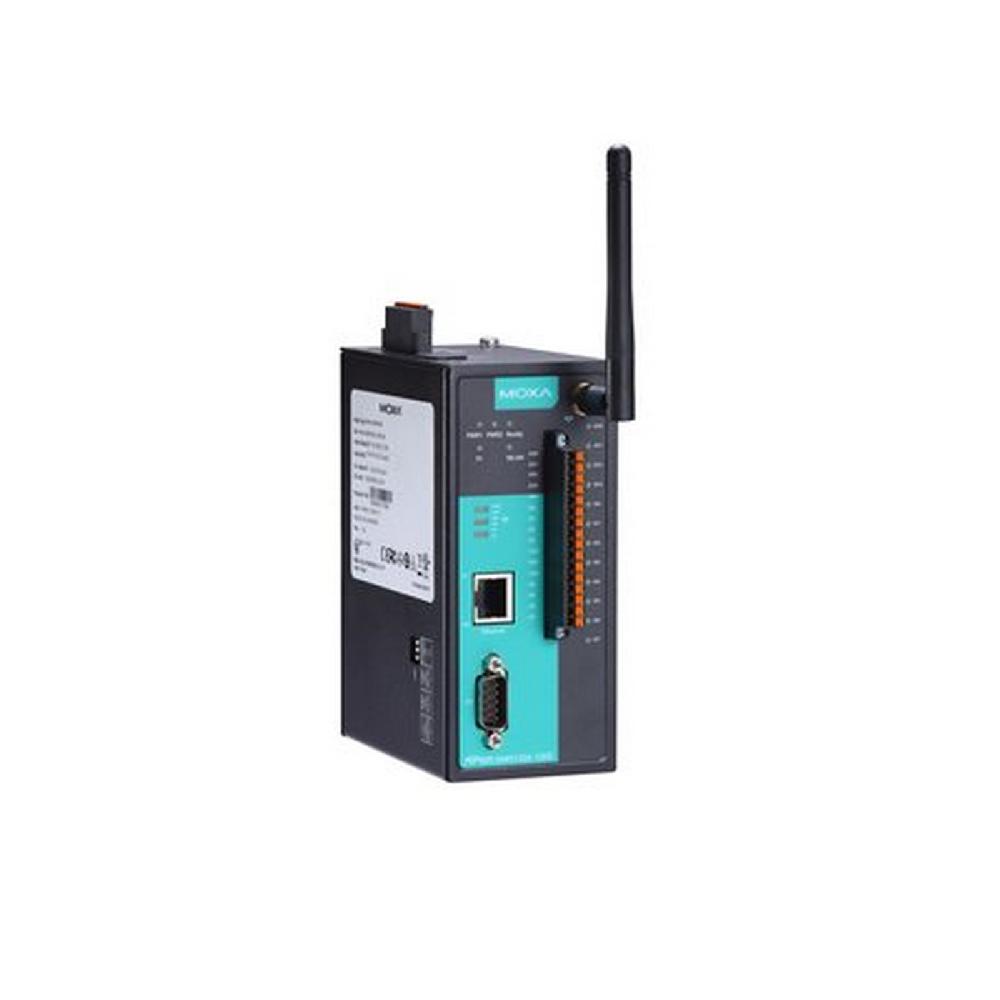

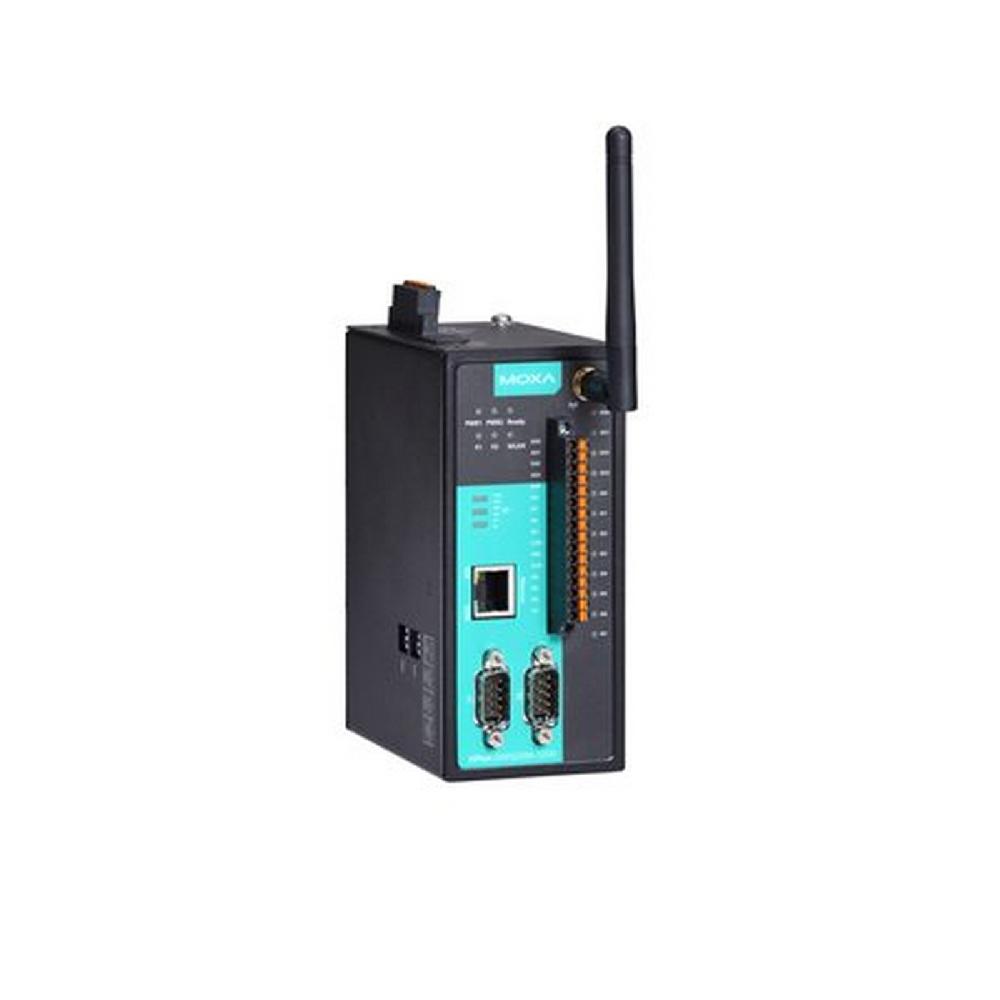

NPort IAW5150A-6I/O

No. of Serial Ports 1
No. of DIs 4
No. of DOs 2
Wi-Fi Standards 802.11a/b/g/n

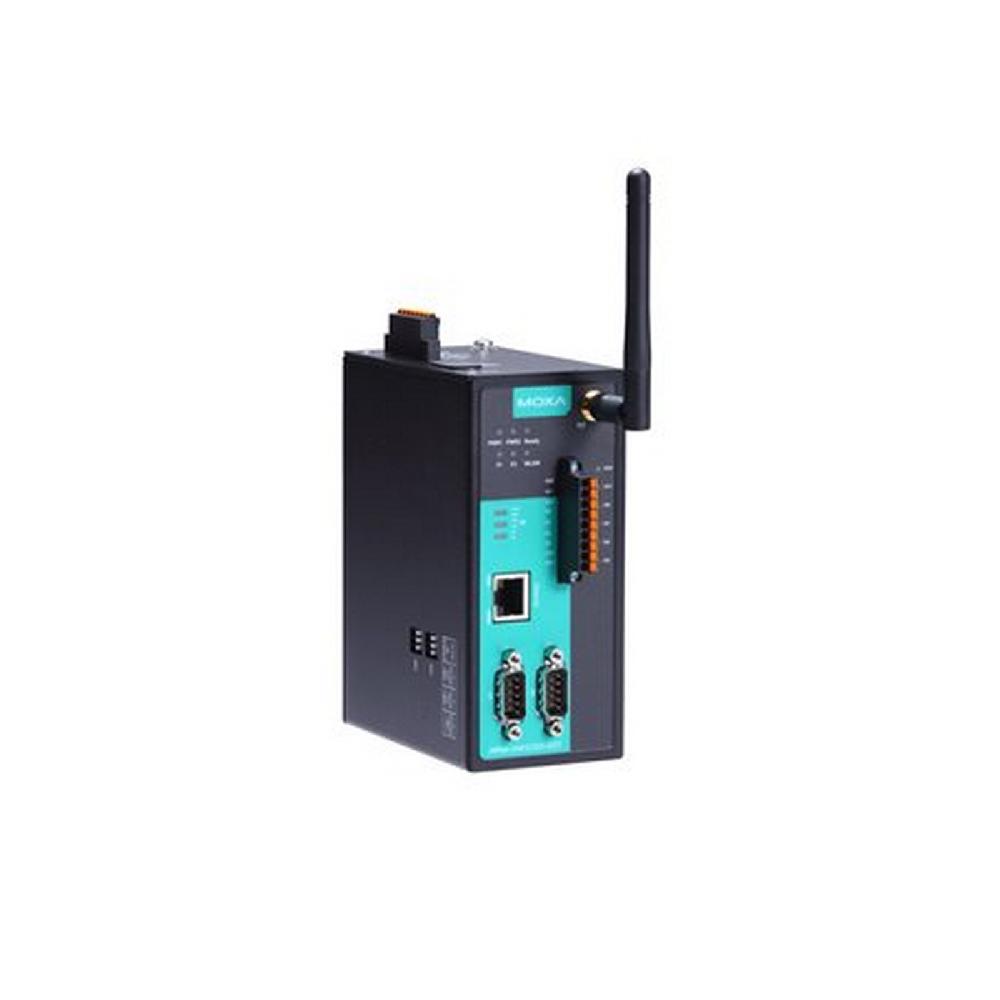

NPort IAW5250A-6I/O

No. of Serial Ports 2
No. of DIs 4
No. of DOs 2
Wi-Fi Standards 802.11a/b/g/n

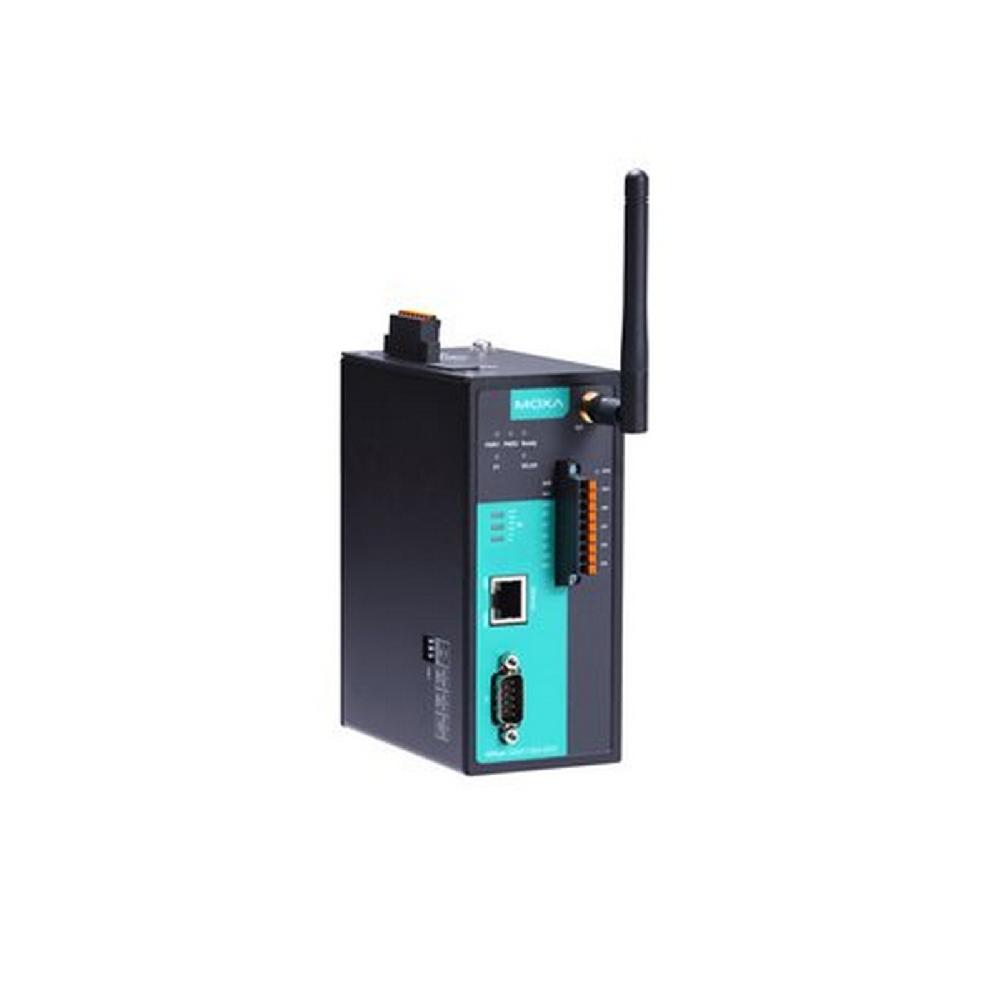

NPort IAW5150A-12I/O

No. of Serial Ports 1
No. of DIs 8
No. of DOs 4
Wi-Fi Standards 802.11a/b/g/n

NPort IAW5250A-12I/O

No. of Serial Ports 2
No. of DIs 8
No. of DOs 4
Wi-Fi Standards 802.11a/b/g/n
