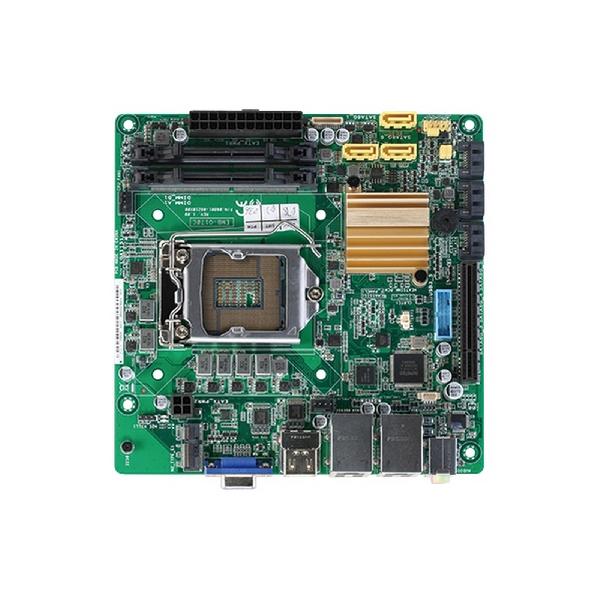

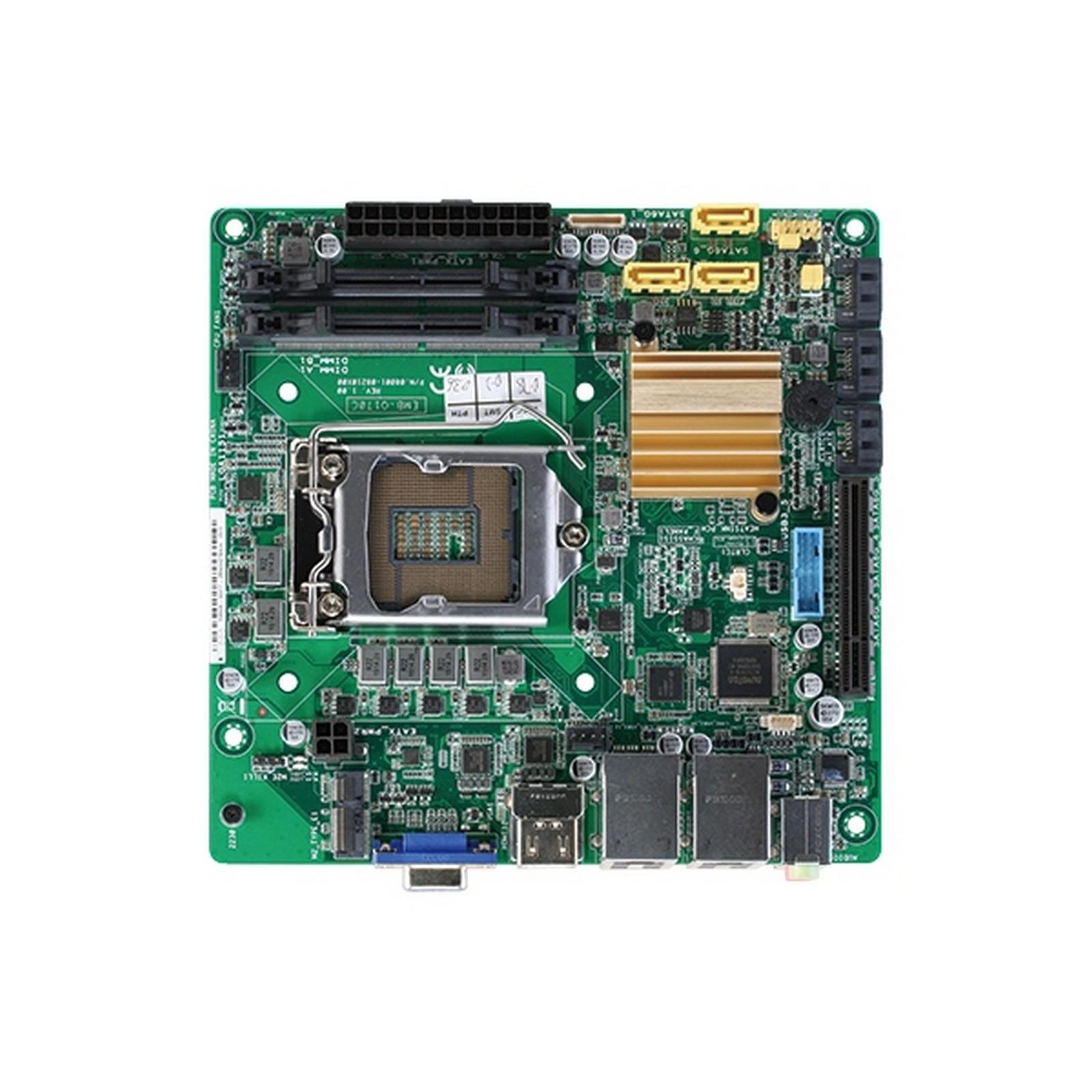

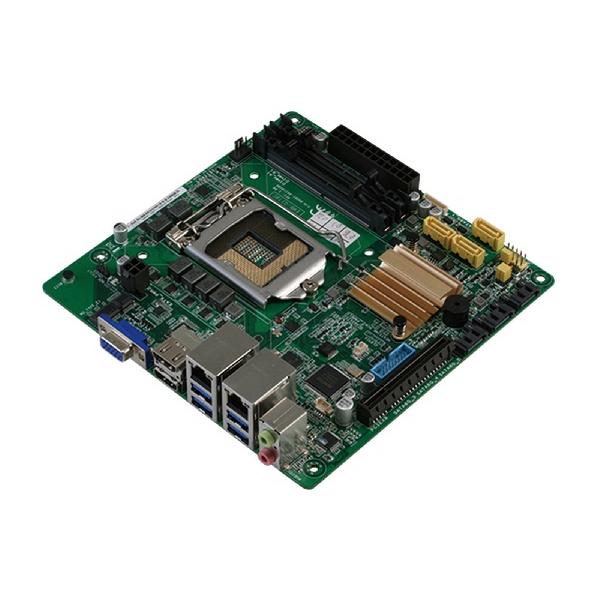

EMB-Q170C, a dynamic and high-performing industrial motherboard for Intel® 6th Generation Core™ i Series, which fulfills a full range of industrial applications, such as NAS (Network Attached Storage), Industrial Control, ATM and Digital Signage.
The EMB-Q170C offers a wealth of options for storage, far exceeding that of its predecessors, sporting six 6.0Gb/s SATA ports and providing support for up to 6 USB ports. Featuring the latest M.2 E-key connector, the EMB-Q170C provides faster network data transfer, eliminating bottlenecks and transmission impediments.
The EMB-Q170C preempts both vertical and horizontal scalability, with additional offerings of VGA and HDMI connectivity, which come together by providing a faster, more enhanced enclosure for storage space. Users will therefore be able to enjoy maximum flexibility that adheres to current and future system requirements with a wide range of independent display options.
Operational at temperatures from 0°C ~ 60°C, the EMB-Q170C is fully equipped to handle rugged industrial environments, lowering maintenance and turnover costs, and ensuring longevity, stability and reliability.
AAEON’s EMB-Q170C is the latest offering for NAS, Industrial Control and ATM clients managing large amounts of data storage and retrieval. In the ever-changing landscape of network configuration management, time and accessibility is of the essence. Designed for speedy and seamless integration within multiple systems, the EMB-Q170C is therefore the perfect choice for consolidating data management and transferability in a timely and efficient manner.
| SYSTEM | |
| PROCESSOR | 6th/7th Generation Intel® Core™ i7/ i5 /i3, LGA 1151 socket Processor, Max. 65W TDPs |
| CHIPSET | Intel® Q170 |
| MEMORY | DDR4 2133/1867 MHz SODIMM x 2, Up to 32GB, Non-ECC, Un-buffered Memory, Dual channel memory architecture |
| I/O CHIPSET | NCT6791D |
| ETHERNET | Intel® PCIe Gb LAN 219LM for vPro x 1, Intel® PCIe Gb LAN i211AT x 1 |
| AUDIO | Realtek® ALC887 with Amp. |
| TPM | Infineon SLB9665 TT 2.0 (optional) |
| EXPANSION SLOT | PCIe3.0 [x8] x 1, M.2 E-key (22x30mm) for PCIe x 1 |
| BIOS | 128Mbit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL/PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® HD Graphics |
| GRAPHICS MULTI DISPLAY | VGA + HDMI + HDMI |
| VGA | Up to 1920 x 1200 @ 60 Hz |
| DVI | — |
| HDMI | Up to 4096 x 2160 @24 Hz ; 3840 x 2160 @60 Hz, with Digital Audio |
| DISPLAYPORT | — |
| LVDS | — |
| EDP | — |
| BACKLIGHT CONTROL | — |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | ATX |
| OPERATING TEMPERATURE | 32°F ~140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0%~90% R/H, non-condensing |
| CERTIFICATION | CE & FCC |
| FORM FACTOR | Mini-ITX 6.7" x 6.7" (170mm x 170mm) |
| WEIGHT | 1.1 lb (0.5 Kg) |
| MTBF (HOURS) | 282,880 |

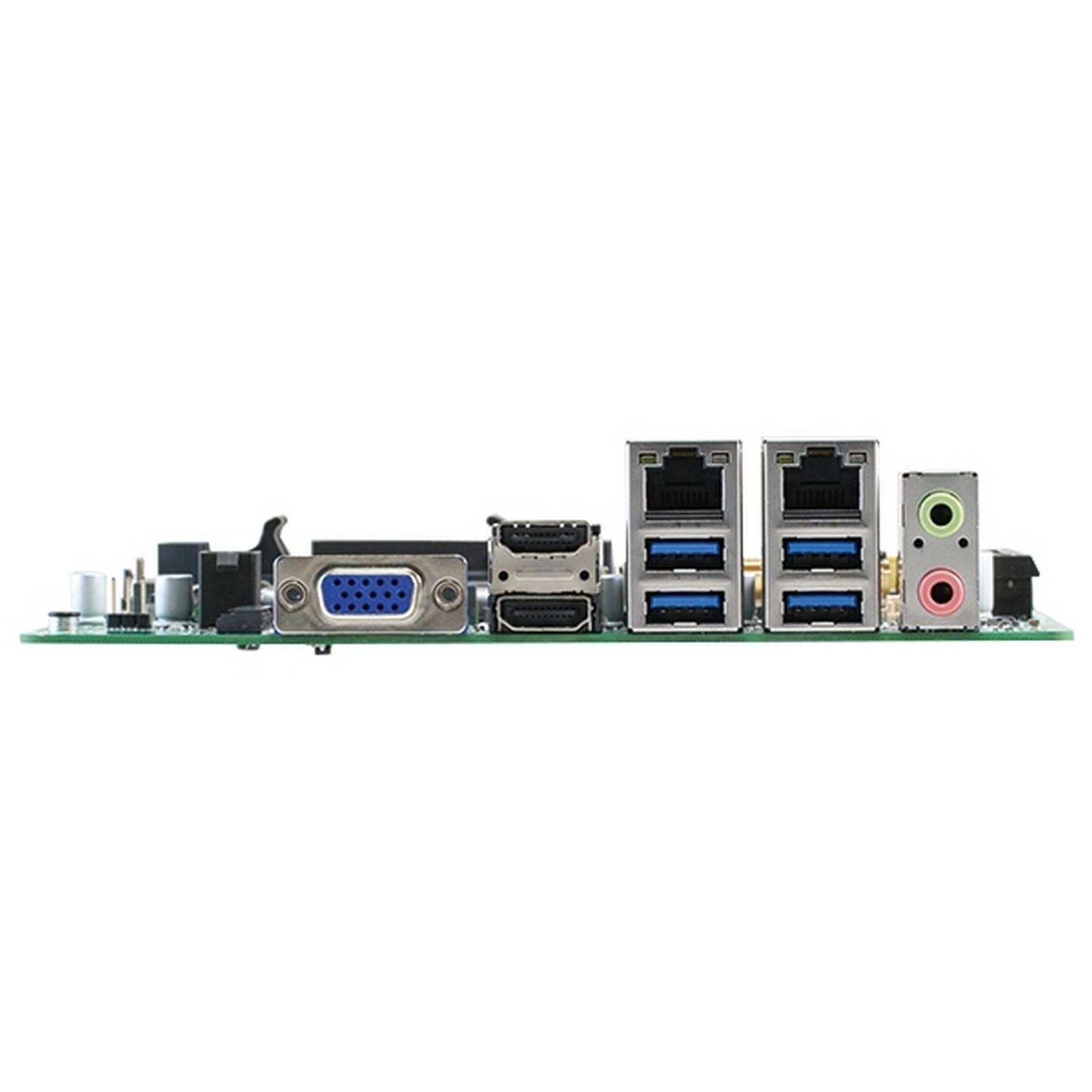

| REAR I/O PORTS | |
| USB | USB 3.2 Gen 1 (5 Gbps) x 4 |
| DISPLAY I/O | VGA x 1, HDMI x 2 |
| AUDIO I/O | Mic-in x 1, Line out x 1 |
| LAN I/O | LAN (RJ45) port x 2 |
| SERIAL PORT | — |
| PS/2 PORT | — |
| OTHERS | — |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA3 (6.0Gb/s) x 6, SATA power connector x 1 |
| USB | USB 3.2 Gen 1 (2x10-PIN, 2.00mm) x 1 port supports additional 2 USB |
| DISPLAY I/O | — |
| AUDIO I/O | Speaker x 1 |
| SERIAL PORT | — |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | — |
| FAN | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1 |
| POWER | 12V AUX Power Connector x 1, AT/ATX mode select jumper (optional) x 1 |
| OTHERS | M.2 E-key(22x30mm) for PCIe x 1, Front Panel connector x 1, Chassis Intrusion x 1, Buzzer onboard x 1, CMOS jumper x 1, |
| OS | |
| OS SUPPORT | Windows® 7 32/64-bit Windows® 8.1 64-bit Windows® 10 64-bit Ubuntu16.04.02/Kernel4.8.0 |
| Name | Type | Version | Release Date | |
| EMB-Q170C Datasheet | Datasheet | V1.0 | 14 September 2016 |
