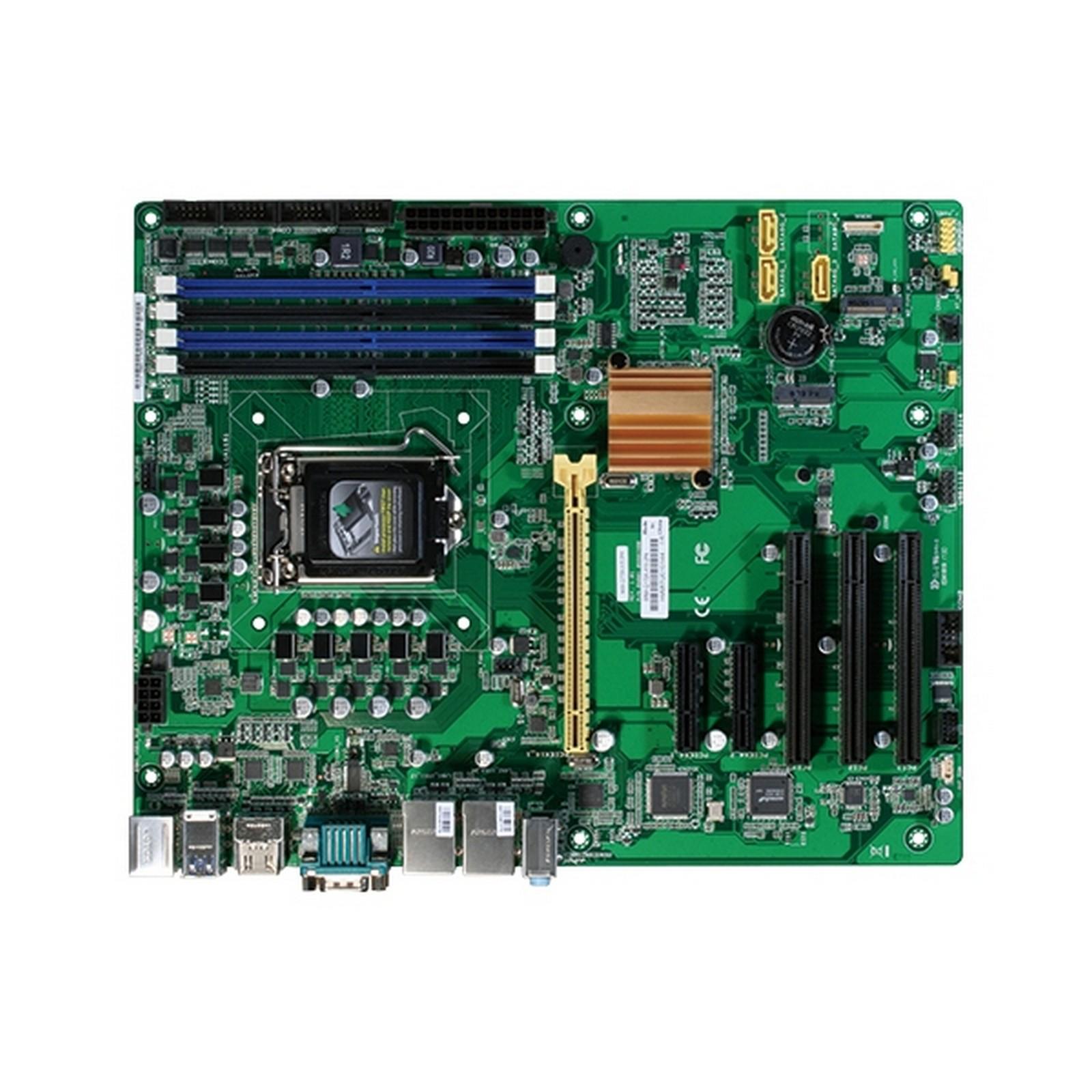

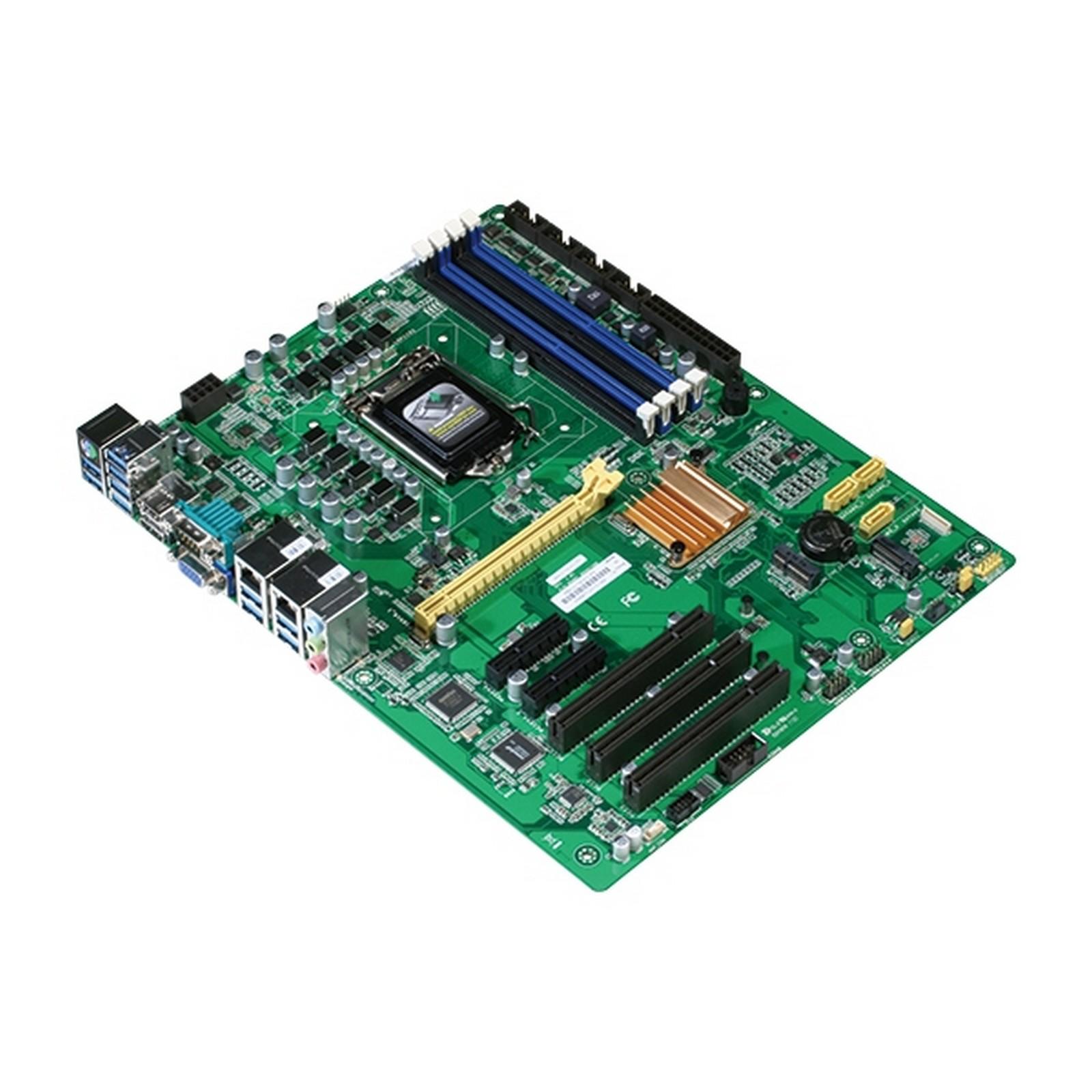

IMBA-Q170A

Home  >   AAEON  >   Embedded Boards  >
Industrial Motherboards  >   ATX Motherboards

ATX with 7th/6th Generation Intel® Core™ Processor, DDR4 DRAM, USB x 14, Supports iAMT 11.0

Product Feature

  • 7th/6th Generation Intel® Core™ LGA1151 Processor
  • DDR4 DRAM Support, 2400 MHz, Max. 64GB
  • Three Independent Display: HDMI x 2, VGA x 1
  • Dual Intel® Gigabit Ethernet, LAN1 Supports iAMT 11.0
  • PCIe [x16] x 1, PCIe [x4] x 2, PCI x 3
  • M.2 Slot (M key) x 1, M.2 Slot (E key) x 1
  • USB 3.2 Gen 1 Port x 10, USB 2.0 Port x 3

The IMBA-Q170A supports RAID 0/1/5/10, enabling higher storage volumes and facilitating faster data transferability and transmission, allowing the user to enjoy smoother overall performance whilst eliminating bottlenecks.

A Temperature Monitor is available on the CPU/Chassis, along with a Fan Monitor and a Voltage Monitor, supporting an output of Vcore/5V/3.3V/12V. Powered with an Intel® HD Graphics chipset, support for VGA output is provided at 60Hz/1920 x 1200. The IMBA-Q170A provides 3 independent displays. As such, the board is naturally ideal for uses in digital signage.

SYSTEM
PROCESSORIntel® 7th/ 6th Generation(Kaby Lake-S/ Skylake-S) Core™ i7/i5/i3/Pentium®/ Celeron® 14nm LGA1151 Socket Processor
CHIPSETIntel® Q170
MEMORY288-pin DIMM x 4, max. 64GB, DDR4 2400/2133/1867, Dual-channel
I/O CHIPSETNCT6791D, F81216HD
ETHERNETLAN1: Intel® PHY I219LM Gb LAN (supports iAMT 11.0), LAN2: Intel® I211AT Gb LAN
AUDIORealtek® ALC887 (Colay with ALC886)
TPMNuvoton NPCT6xx TPM2.0 (Optional)
EXPANSION SLOTSKU1: PCIe [x16] x 1, PCIe [x4] (open edge) x 2, PCI x 3, M.2 E key (22 x 30mm) x 1, M.2 M key (22 x 80mm, for SATA) x 1
SKU2: PCIe [x16] x 1, PCIe [x4] (open edge) x 1, PCI x 3, M.2 E key x 1, M.2 M key (for SATA & PCIex4) x 1
BIOS128M bit Flash ROM x 1, AMI BIOS
H/W MONITORTemperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on CPU/Chassis
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan x1, Chassis Fan x 2
WAKE ON LAN/ PXEYes (WOL/PXE)
POWER STATES3, S4, S5
GRAPHICS
GRAPHICS CHIPSETIntel® HD Graphics
GRAPHICS MULTI DISPLAYVGA+HDMI, HDMI+HDMI, VGA+HDMI+HDMI
VGAUp to 1920 x 1200 @60Hz
DVI
HDMIHDMI 1.4 up to 4096 x 2304 @24Hz
DISPLAYPORT
LVDS
BACKLIGHT CONTROL
ENVIRONMENTAL & POWER & ME
BATTERYLithium battery
POWER REQUIREMENT24-pin ATX connector x 1, 8-pin ATX 12V Power connector x 1
OPERATING TEMPERATURE32°F ~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE-40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY0% ~ 90% RH, non-condensing
CERTIFICATIONCE & FCC Class A
FORM FACTORATX, 12" x 9.6" (305 mm x 244 mm)
WEIGHT1.76 lb (0.8 Kg)
MTBF (HOURS)219970

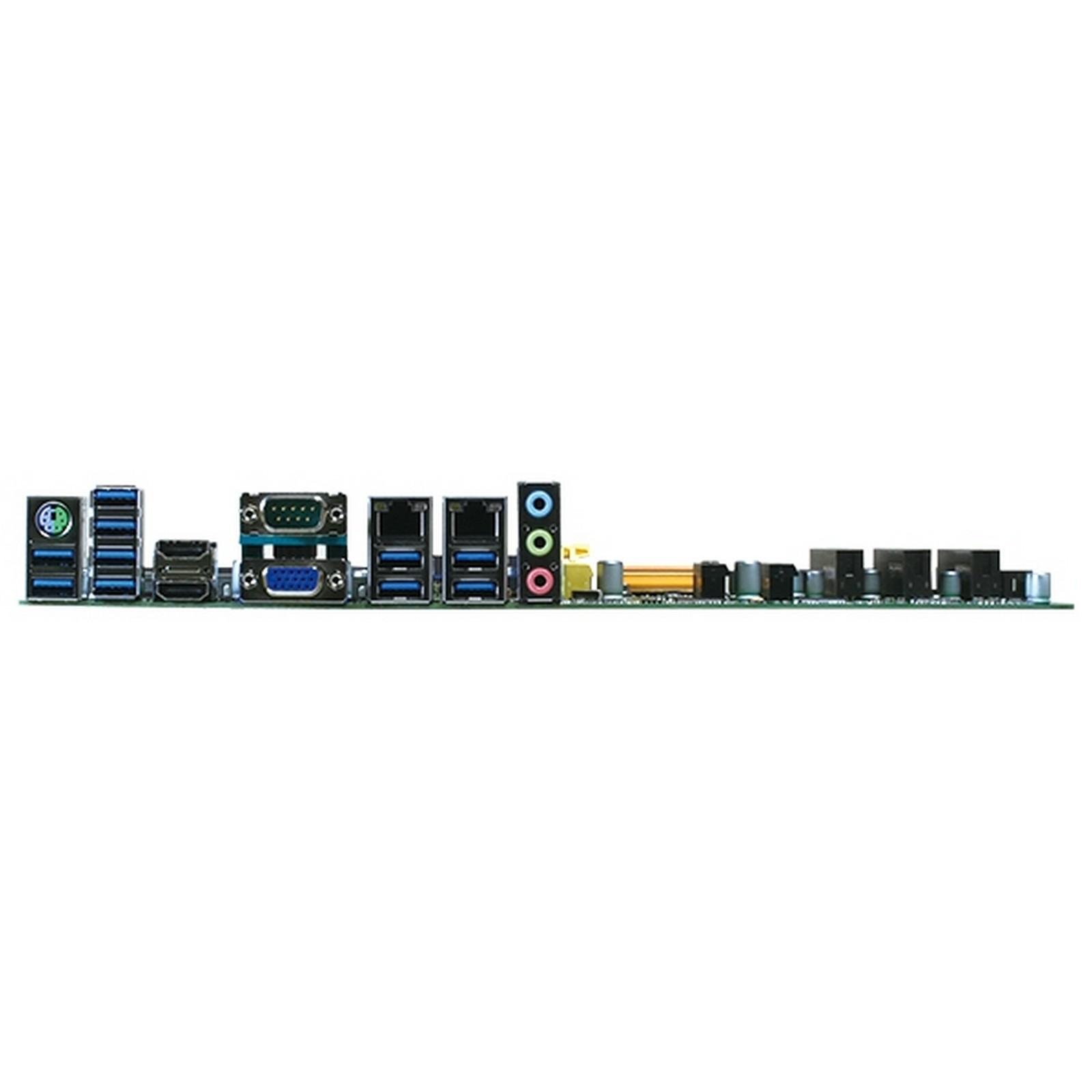

REAR PANEL I/O PORTS
USBUSB 3.2 Gen 1 x 10
DISPLAY I/OHDMI x 2, VGA x 1
AUDIO I/OLine-in, Mic-in, Line-out
LAN I/ORJ-45 x 2
SERIAL PORTDB-9 COM x 1 (supports RS-232/422/485, 5V/12V/RI)
PS/2 PORTStack Port (Keyboard & Mouse) x 1
INTERNAL I/O CONNECTORS
STORAGESupports RAID 0/1/5/10
SKU1: SATA 6.0Gb/s x 3, M.2 M key (SATA) x 1 SKU2: SATA 6.0Gb/s x 4, M.2 M key (PCIex4) x 1
USBUSB 2.0 x 3
DISPLAY I/O
SERIAL PORTRS-232 header x 5
PARALLEL PORT
DIO8-bit DIO x 1 (In/Out programmable)
FAN4-pin CPU Fan x 1, 4-pin Chassis Fan x 2
POWER
OTHERSFront panel header x 1, Clear CMOS jumper x 1, BIOS flash header (2[x4]P p=1.27mm) x 1, Chassis Intrusion x 1, AT/ATX mode select jumper x 1
OS
OS SUPPORTWindows® 7 32/64-bit (not supported when a Kaby Lake processor is used)
Windows® 8.1 64-bit (not supported when a Kaby Lake processor is used)
Windows® 10 64-bit
Linux Fedora 64bit
Name Type Version Release Date
IMBA-Q170A Datasheet Datasheet V2.0 02 September 2020
