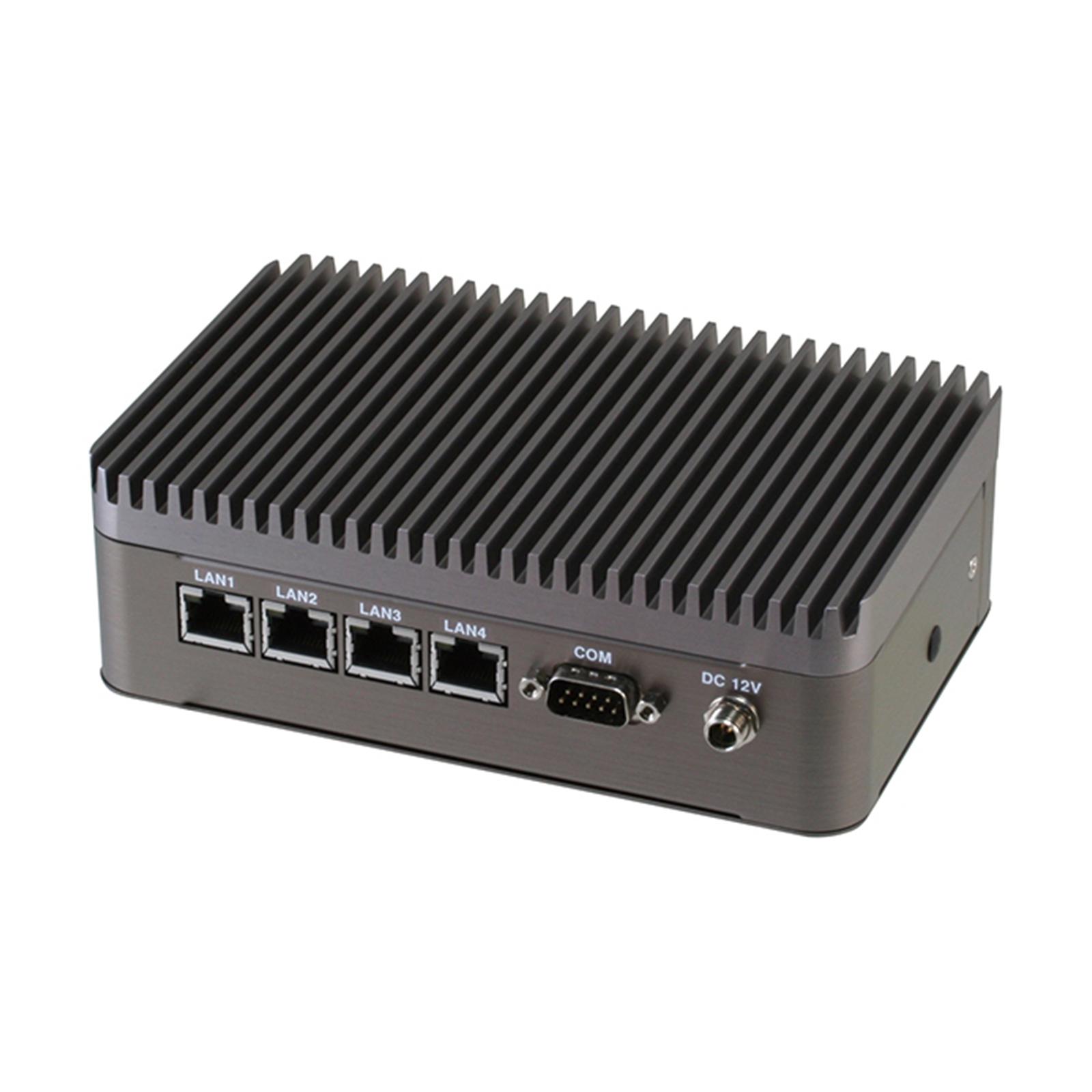

Wide Temperature Compact Embedded Box PC with LAN x 4, HDMI x 2, Intel® Celeron® J1900/N2807 Processor SoC
system | |
| CPU | Intel® Celeron® J1900, 2.0 GHz Intel® Celeron® N2807, 1.58 GHz |
| Chipset | Intel® System on Chip |
| System Memory | DDR3L 1333 SODIMM slot x 1, up to 8 GB (J1900) or 4 GB (N2807) |
| Display Interface | HDMI |
| Storage Device | CFast™, HDD/SSD |
| Ethernet | Intel® I211, 10/100/1000Base-TX x 4 |
| I/O | RS-232 x 1 USB 2.0 x 2 USB 3.2 Gen 1 x 1 HDMI x 2 LAN x 4 CFast slot x 1 Antenna hole x 1 Power button Power input |
| Expansion | Full-size Mini-Card (USB interface only) x 1 |
| Indicator | Power LED on power button |
| OS support | Windows® 10, Windows® 8.1, Window mbedded 8, Windows® Embedded 7, Linux Fedora |
power supply | |
| Power Requirement | 12V - 24V with lockable DC jack |
mechanical | |
| Mounting | VESA (Mounting kit is optional) DIN rail (Mounting kit is optional) |
| Dimensions (W x H x D) | 6.53" x 4.20" x 2.05" (166mm x 106.6mm x 52mm) |
| Gross Weight | 3.81 lb (1.73 kg) |
| Net Weight | 2.8 lb (1.27 kg) |
environmental | |
| Operating Temperature | -22°F ~ 167°F (-30°C ~ 75°C) with wide temperature CFast™ card (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices) |
| Storage Temperature | -22°F ~ 176°F (-30°C ~ 80°C) |
| Storage Humidity | 95% @ 40°C, non-condensing |
| Anti-Vibration | 5 Grms/ 5 ~ 500Hz/ operation –CFast™ card or SSD 1 Grms/ 5 ~ 500Hz/ operation –HDD |
| Certification | CE/FCC class A |
