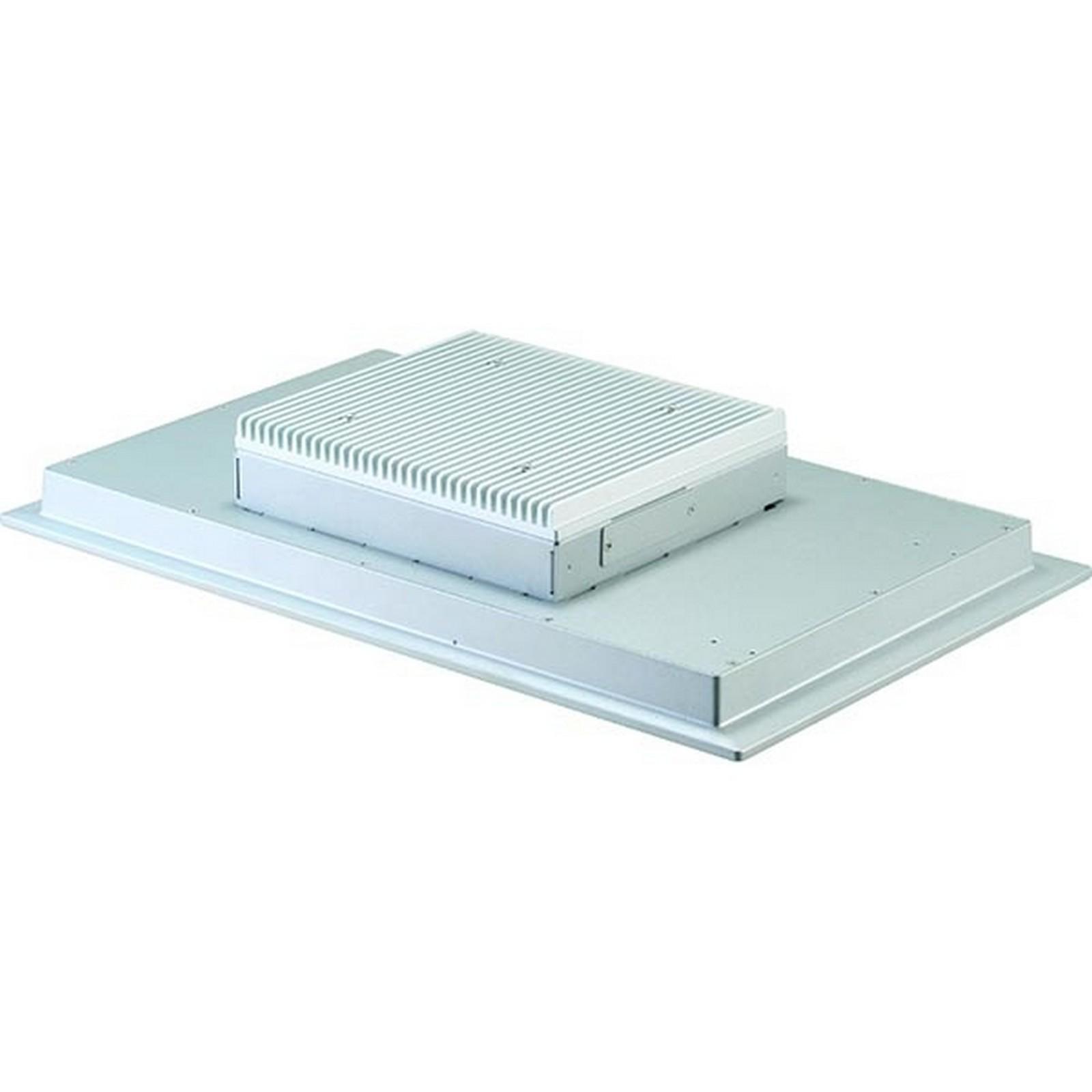

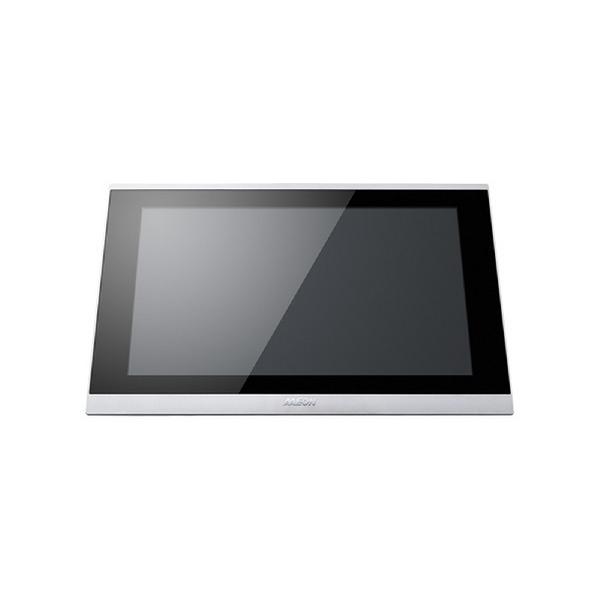

15.6” Modular HMI Panel PC with 6th Generation Intel® Core™ i5-6300U/ Celeron® 3955U Processor

Product Feature

  • 15.6” (1366 x 768) TFT LCD Display
  • Intel® 6th Generation i5-6300U/C-3955U Processor
  • P-CAP or Resistive Touch Screen Support
  • Aluminum Design
  • IP65 Compliant Front Bezel
  • Fanless Operation
  • Power Input Protection: Over-Voltage Protection, Low-Voltage Protection, Reverse-Voltage Protection

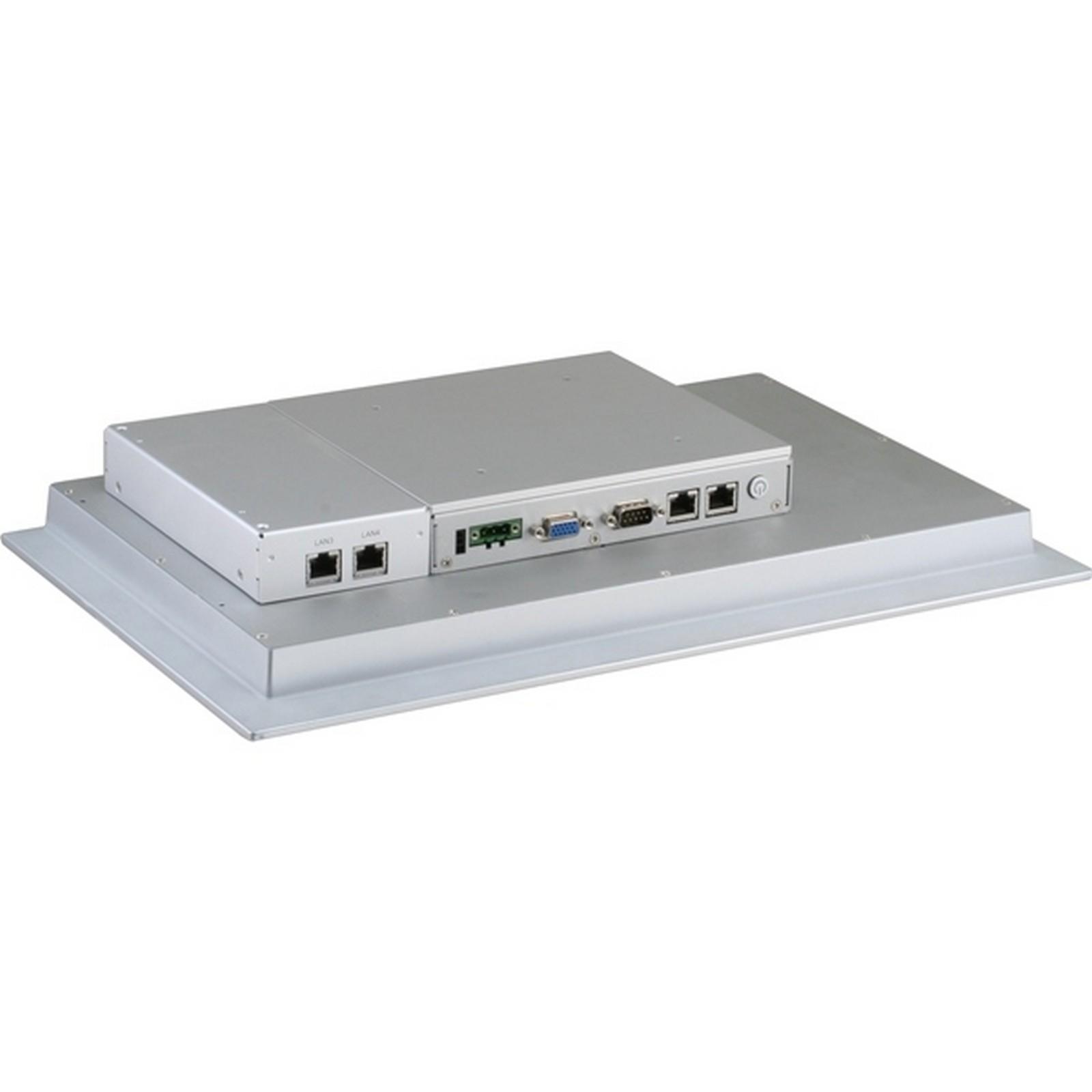

  • Easily Expandable I/O by AAEON OMNI I/O Modules

15.6” Modular HMI Panel PC with Intel® 6th Generation i5-6300U/ Celeron® 3955U Processor

SYSTEM
PROCESSORIntel® i5-6300U processor, 2.4 GHz
Intel® Celeron® 3955U processor, 2.0 GHz
SYSTEM MEMORY260-pin DDR4 SODIMM x 1, up to 16 GB
LCD/CRT CONTROLLERIntegrated in processor
ETHERNETIntel® I211, 10/100/1000Base-TX x 1

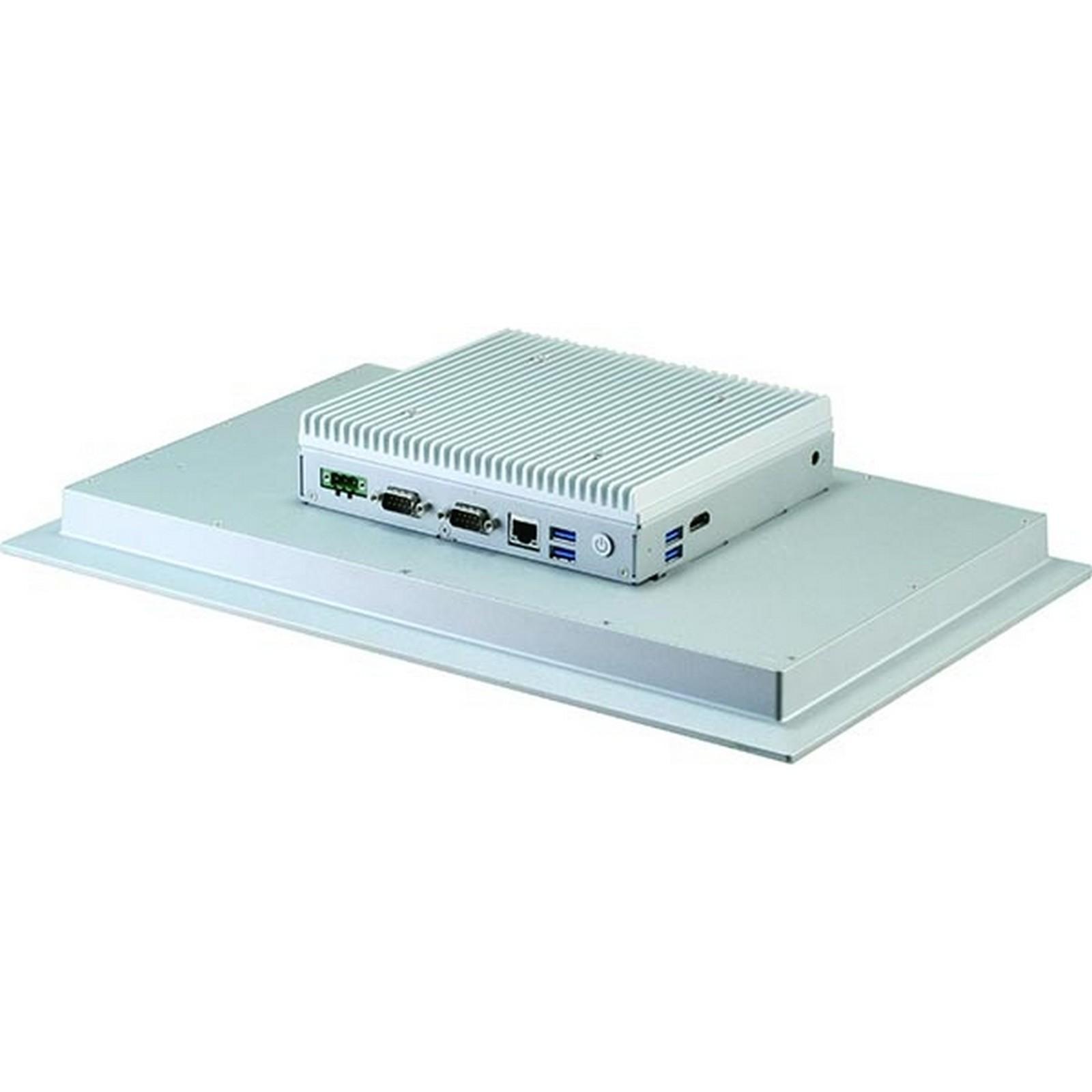

I/O PORTUSB 3.2 Gen 1 Type A x 4
SMA Antenna hole x 1
HDMI x 1
DB-9 Type RS-232/422/485 x 2
RJ-45 Type 10/100/1000 Base-TX x 1
3-pin terminal block x1 for 9~30 Vdc power input
LED Power on/off switch x1 (Power on = Orange, Power off =N/A)
STORAGE DISK DRIVE2.5" SATA HDD bay x 1
EXPANSION SLOTFull Size Mini card x 1 SIM card x 1
OMNI I/O connector x 1
OS SUPPORTWindows® 8.1
Windows® 10 (64 bit) Linux Kernal 2.6.x or higher
MECHANICAL
CONSTRUCTIONAluminum design (IP65 Front Frame)
MOUNTINGVESA 100 / Panel Mount
DIMENSION16.54” x 10.43” x 2.87” (420 mm x 265 mm x 73 mm)
GROSS WEIGHT14.96 lb (6.8 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE-4°F ~ 131°F (-20°C ~ 55°C) with 0.5 m/s airflow (Industrial Grade HDD)
STORAGE TEMPERATURE-4°F ~ 158°F (-20°C ~ 70°C)
STORAGE HUMIDITY90% @40°C; non-condensing
ANTI-VIBRATION1 Grms/ 5~ 500Hz/ operation – with HDD
ANTI-SHOCK15 G peak acceleration (11 msec. duration) – with HDD
CERTIFICATIONCE/FCC class A
POWER SUPPLY
DC INPUTDC 9 (min.) ~ 30 (max.) V w/3-pin terminal block, ATX Power function
LCD
DISPLAY TYPE15.6" TFT-LCD, LED
MAX. RESOLUTION1366(H) x 768( V)
MAX. COLORS16.7M (8 bit/color)
LUMINANCE400 cd/m²
VIEWING ANGLE160 (H), 140 ( V)
BACK LIGHTLED
BACK LIGHT MTBF (HOURS)50000
TOUCHSCREEN
TYPEP-CAP/ 5-wire resistive
LIGHT TRANSMISSIONP-CAP (90% ± 3%), 5-wire Resistive (80% ± 2%)
