The 6-slot AMC-262 wallmount chassis sports one 5.25" and one 3.5" external drive bays, two internal drive bays, and support for the standard PS2 power supply.
| SYSTEM | |
| CONSTRUCTION | Heavy-duty steel |

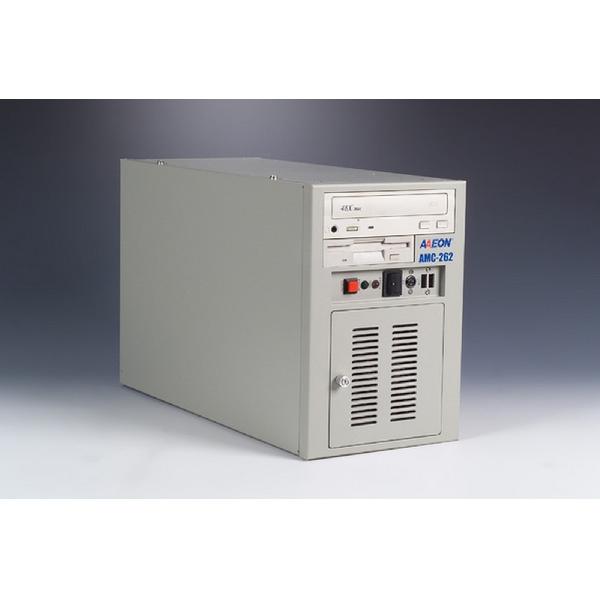

| FRONT PANEL | Power ON/OFF Switch x 1 Reset Button x 1 Power LED x 1 HDD Active LED x 1 PS/2 Keyboard Connector x 1 USB Port x 2 |

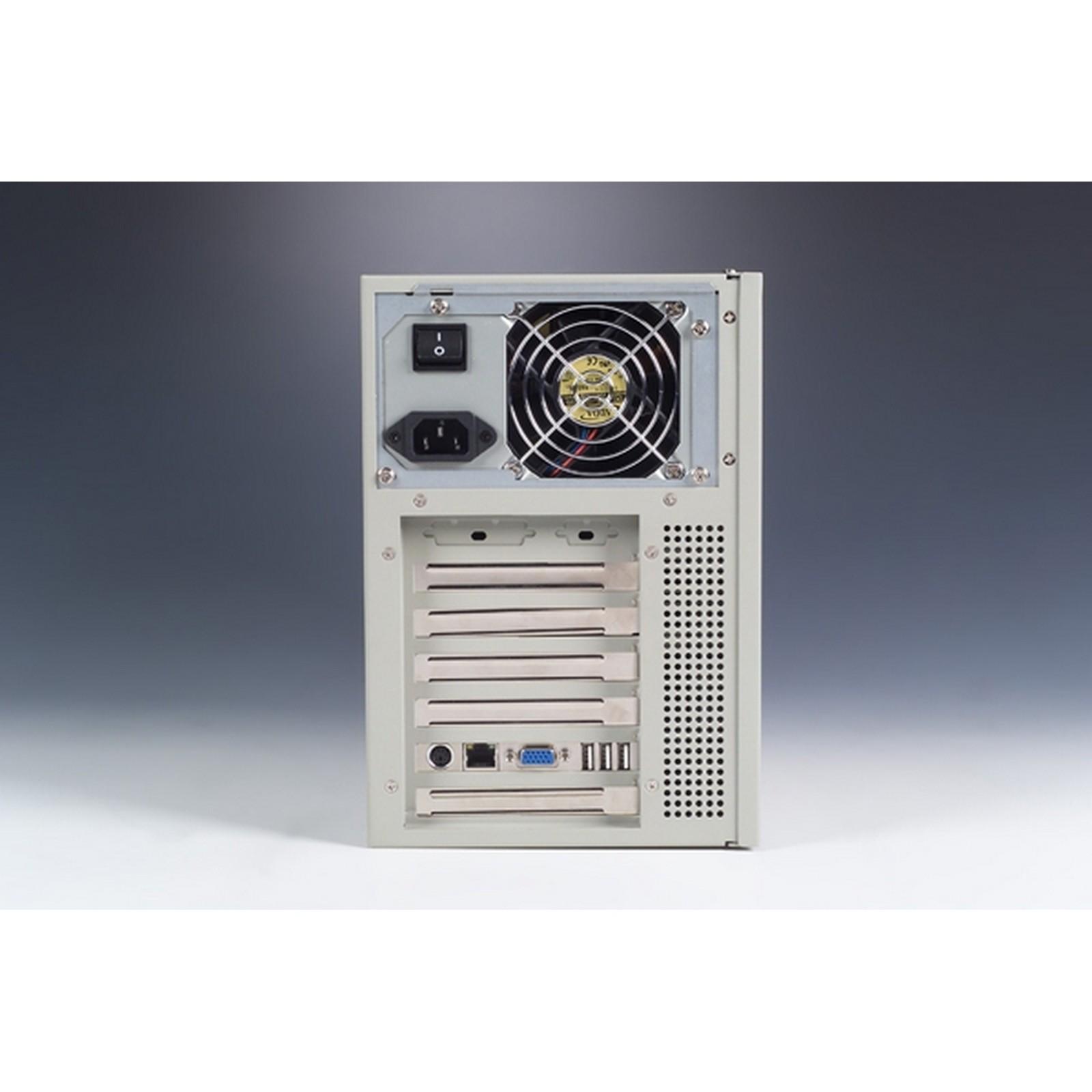

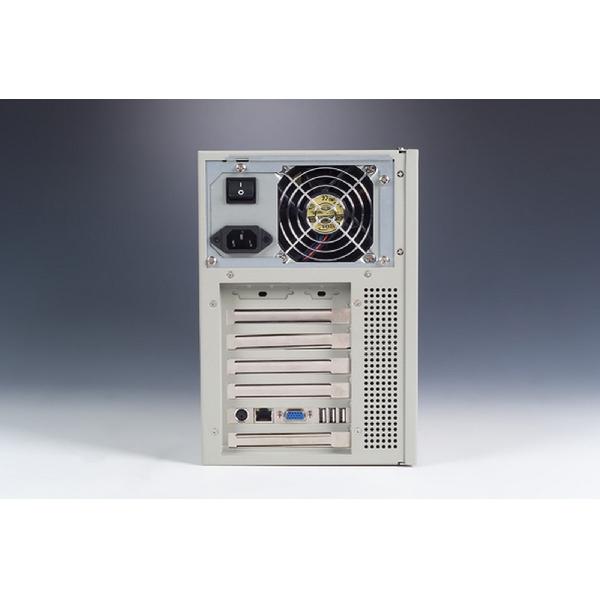

| REAR PANEL | Reserved Cut-out for DB-25 Connector x 1 Reserved Cut-out for DB-9 Connector x 1 6 slots (including system slot), supports max. 339 mm (length) for expansion card |
| COLOR | White |
| DIMENSION (W X D X H) | 6.9" (W) x 16.1" (D) x 10" (H) (175mm x 405mm x 254mm) |
| CARTON DIMENSION | 12.4" (W) x 14.37" (D) x 20.47" (H) (315mm x 365mm x 520mm) |
| NET WEIGHT | 12.1 lb (5.5 kg) |
| GROSS WEIGHT | 13.9 lb (6.3 kg) |
| STORAGE | External: 3.5” Drive Bay x 1 5.25” Drive Bay x 1 Internal: 3.5” Drive Bay x 2 |
| SYSTEM FAN | 12cm Ball Bearing Fan with Removable Filter x 1 |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 32°F ~ 122°F (0°C ~ 50°C) |
| STORAGE TEMPERATURE | -4°F ~ 176°F (-20°C ~ 80°C) |
| STORAGE HUMIDITY | 10 ~ 80% @ 40°C, non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz/ operation 1.5 Grms/ 5 ~ 500Hz/ non operation |
| SHOCK | 15 G peak acceleration (11 m sec. duration), operation 30 G peak acceleration (11 m sec. duration), non operation |
| EMC | CE/FCC Class A |
| Name | Type | Version | Release Date | |
| AMC-262, datasheet | Datasheet | V1.0 | 12 Febuary 2015 |
