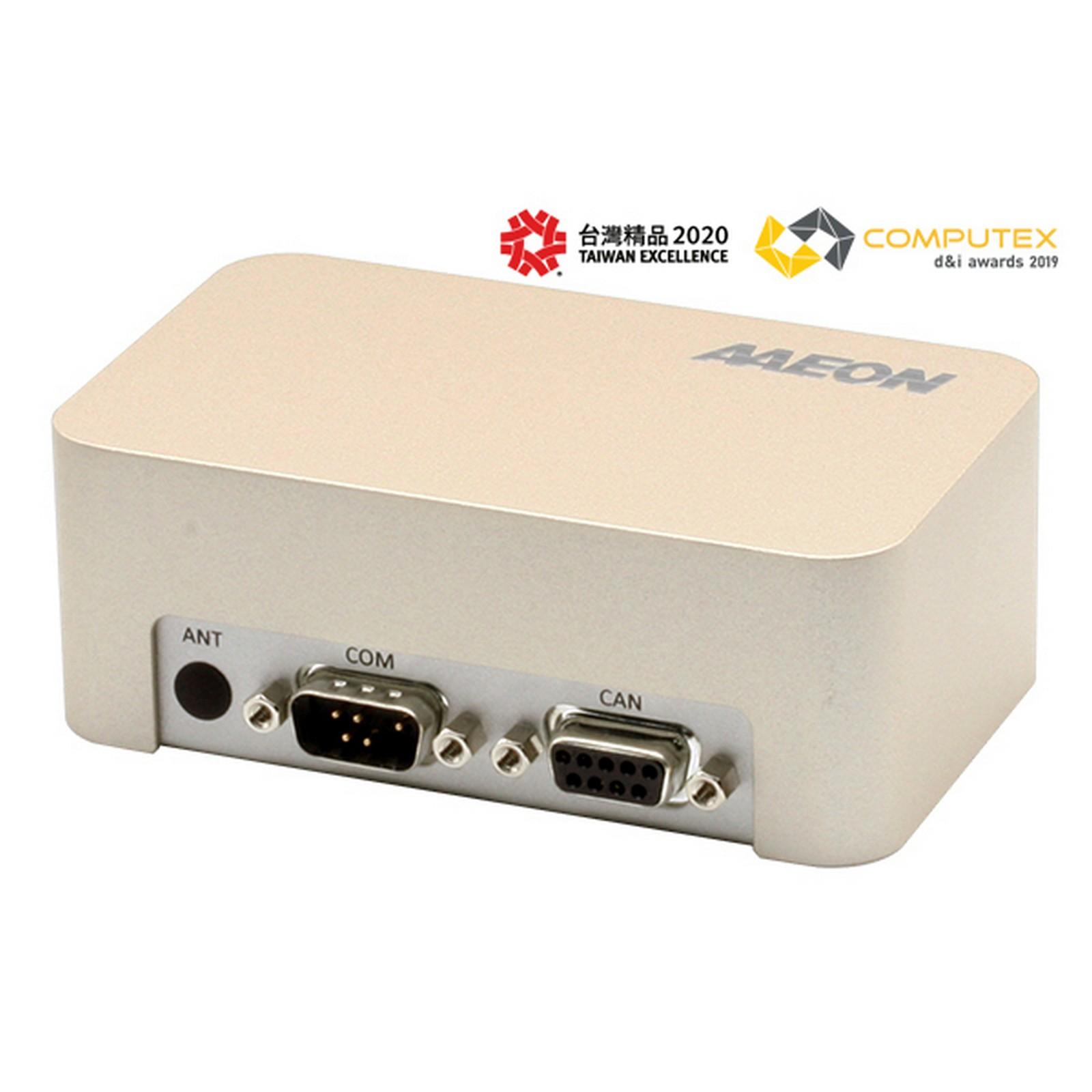

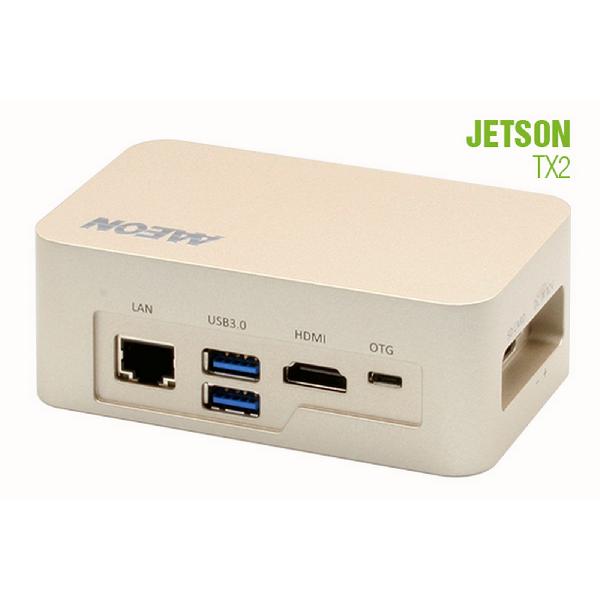

The BOXER-8110AI is fitted with the NVIDIA Jetson TX2, it supports 256 CUDA cores and a range of AI frameworks including Tensorflow, Caffe2, and Mxnet, and in addition, users can install the device with their own AI inference software. These features make the BOXER-8110AI perfect for edge AI applications.
The BOXER-8110AI’s CANbus and rugged design features (anti-dust measures, aluminum chassis, wide operating temperature range) mean it can support industrial automation and in-vehicle applications. With its powerful processor and cost-effective design, this is one AI platform you’ll be able to install anywhere.
| SYSTEM | |
| AI ACCELERATOR | Nvidia Jetson TX2 |
| CPU | HMP Dual Denver 2 + Quad ARM A57 |
| SYSTEM MEMORY | 8GB LPDDR4 |
| STORAGE DEVICE | 32GB eMMC 5.1,MicroSD |
| DISPLAY INTERFACE | HDMI 2.0 |
| ETHERNET | 10/100/1000Base-TX x 1 |
| I/O | USB 3.2 Gen 1 x 2 HDMI x 1 LAN x 1 MicroSD x 1 OTG x 1 Antenna Hole x 1 DC Power Input x 1 2 channel CANBUS x 1 DB-9 RS-232 x 1 |
| EXPANSION | — |
| INDICATOR | — |
| OS SUPPORT | AAEON ACLinux 4.9, Compliance with Ubantu 18.04 |
| POWER SUPPLY | |
| POWER REQUIREMENT | 12V with 2-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSION | 4.33" x 1.57" x 2.56" (110mm x 40mm x 65 mm) |
| GROSS WEIGHT | 2.20 lb (1kg) |
| NET WEIGHT | 1.10 lb (0.5kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 122°F(-20°C ~ 50°C, according to IEC60068-2 with 0.5 m/s AirFlow; with Industrial Device) |
| STORAGE TEMPERATURE | -49°F ~176°F (-45°C ~ 80°C) |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation – eMMC |
| ANTI-SHOCK | - |
| CERTIFICATION | CE/FCC class A |
| Name | Type | Version | Release Date | |
| BOXER-8110AI, datasheet | Datasheet | V2.0 | 26 August 2020 |
