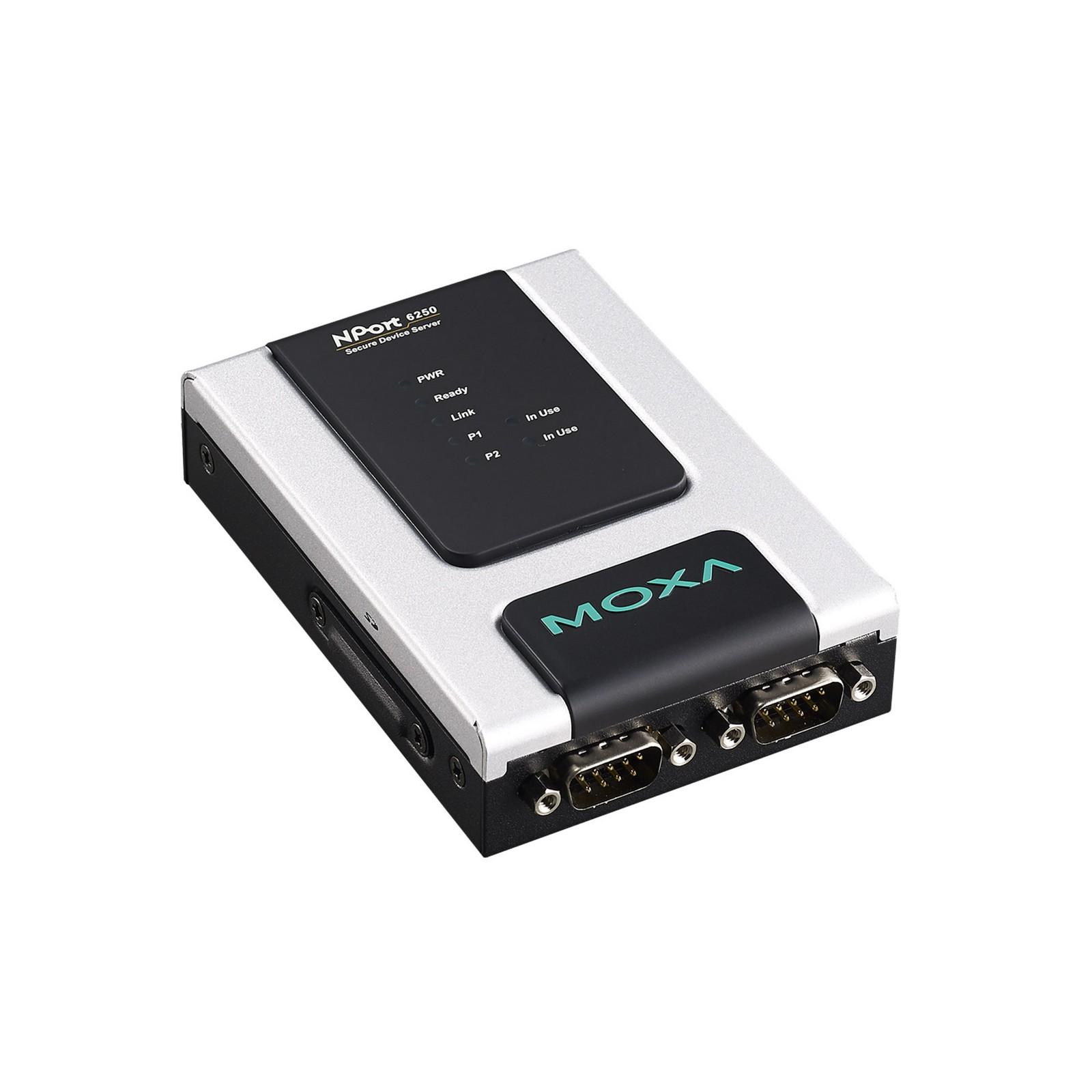

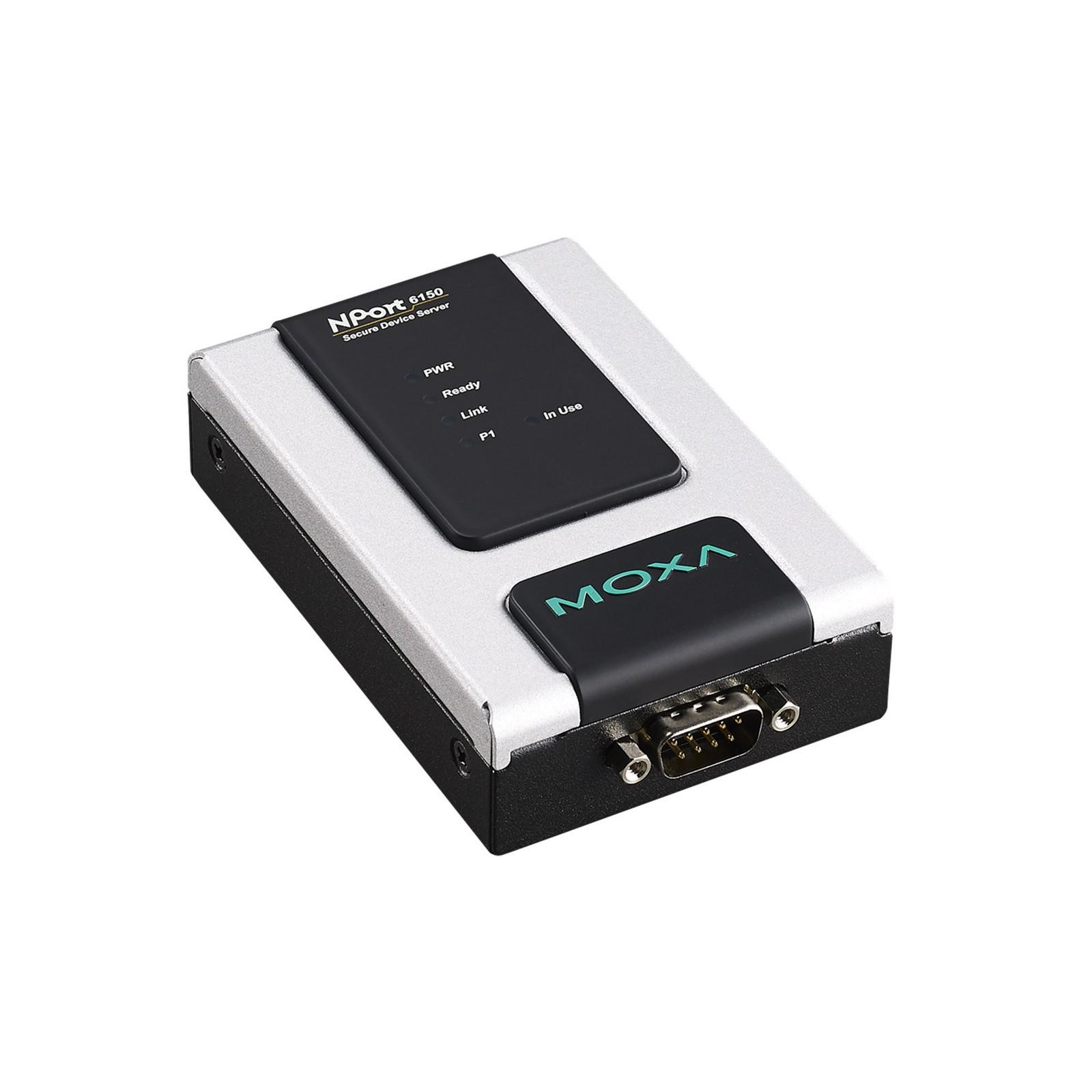

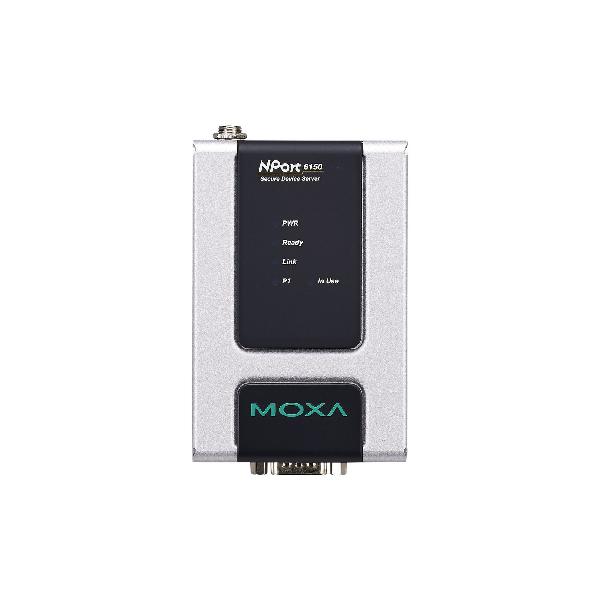

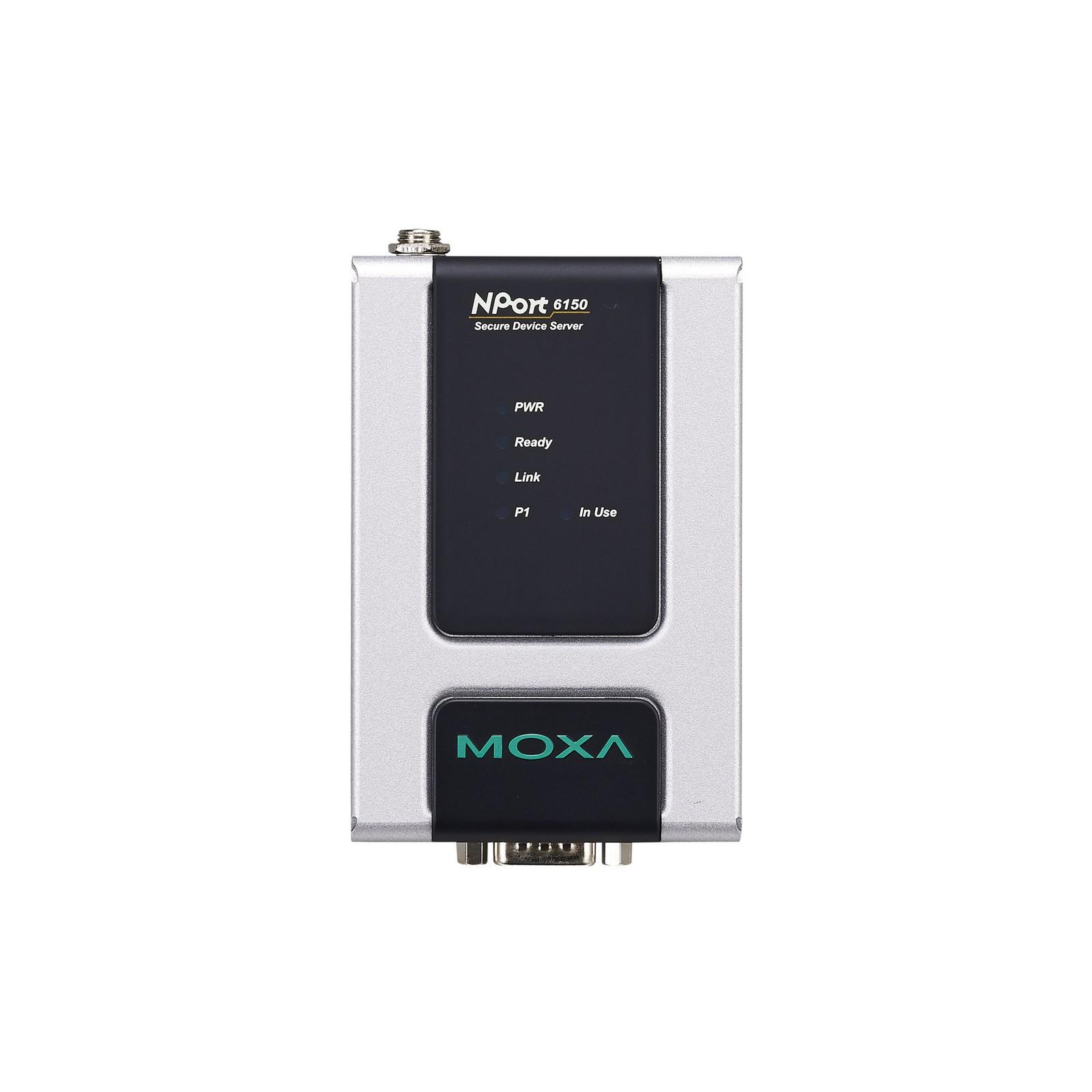

1/2-port RS-232/422/485 secure terminal servers

Product Feature

  • Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
  • Supports nonstandard baudrates with high precision
  • NPort 6250: Choice of network medium: 10/100BaseT(X) or 100BaseFX
  • Enhanced remote configuration with HTTPS and SSH
  • Port buffers for storing serial data when the Ethernet is offline
  • Supports IPv6
  • Generic serial commands supported in Command-by-Command mode
  • Security features based on IEC 62443

Introduction

The NPort® 6000 device servers use the SSL and SSH protocols to transmit encrypted serial data over Ethernet. The NPort® 6000’s 3-in-1 serial port supports RS-232, RS-422, and RS-485, with the interface selected from an easy-to-access configuration menu. The NPort® 6000 2-port device servers are available for connecting to a 10/100BaseT(X) copper Ethernet or 100BaseT(X) fiber network. Both single-mode and multi-mode fiber are supported.



Secure Data Transmission

For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6000 supports the SSL and SSH protocols, which work by encrypting data before sending it over the network. With the NPort® 6000, users can rest assured that serial data is transmitted securely over both private and public networks.



Zero Data Loss If Ethernet Connection Fails

The NPort® 6250 device servers help guarantee reliability by providing users with secure serial-to-Ethernet data transmission and a customer-oriented hardware design. If the Ethernet connection fails, the NPort® 6250 will queue all serial data in its internal 64 KB port buffer. When the Ethernet connection is re-established, the NPort® 6250 will immediately release all of the data in the buffer in the order that it was received. Users can increase the port buffer size by installing an SD card.

Memory

SD SlotNPort 6200 Series: Up to 32 GB (SD 2.0 compatible)

Ethernet Interface

10/100BaseT(X) Ports (RJ45
connector)
NPort 6150/6150-T: 1
NPort 6250/6250-T: 1
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC
connector)
NPort 6250-M-SC Series: 1
100BaseFX Ports (single-mode SC
connector)
NPort 6250-S-SC Series: 1
Magnetic Isolation Protection1.5 kV (built-in)

Ethernet Software Features

Configuration OptionsWeb Console (HTTP/HTTPS), Serial Console, Telnet/SSH Console,
Windows Utility
ManagementARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, PPPOE, SMTP,
SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP
Windows Real COM DriversWindows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10
(x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows
Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY DriversKernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY DriversSCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10,
FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android APIAndroid 3.1.x and later
MIBMIB-II
Time ManagementSNTP Client
Unicast RoutingRIPV1/V2, Static Route
AuthenticationLocal Account Accessibility, RADIUS, TACACS+

Serial Interface

ConnectorDB9 male
No. of PortsNPort 6150 Series: 1
NPort 6250 Series: 2
Serial StandardsRS-232, RS-422, RS-485
Secure Operation ModesReverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP
Client, Secure TCP Server, SSH
Standard Operation ModesDisabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM,
Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP
Baudrate50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
Flow ControlRTS/CTS, DTR/DSR, XON/XOFF
ParityNone, Even, Odd, Space, Mark
Pull High/Low Resistor for RS-4851 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction ControlADDC® (automatic data direction control)
Terminator for RS-485120 ohms

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND

Power Parameters

Input CurrentNPort 6150/6150-T : 12-48 Vdc, 285 mA
NPort 6250/6250-T: 12-48 Vdc, 430 mA
NPort 6250-M-SC/6250-M-SC-T: 12-48 Vdc, 430 mA
NPort 6250-S-SC/6250-S-SC-T: 12-48 Vdc, 430 mA
Input Voltage12 to 48 VDC

Reliability

Automatic Reboot TriggerBuilt-in WDT
Alert ToolsBuilt-in buzzer and RTC (real-time clock)

Physical Characteristics

HousingMetal
Dimensions (with ears)NPort 6150 Series: 90 x 100.4 x 29 mm (3.54 x 3.95 x 1.1 in)
NPort 6250 Series: 89 x 111 x 29 mm (3.50 x 4.37 x 1.1 in)
Dimensions (without ears)NPort 6150 Series: 67 x 100.4 x 29 mm (2.64 x 3.95 x 1.1 in)
NPort 6250 Series: 77 x 111 x 29 mm (3.30 x 4.37 x 1.1 in)
WeightNPort 6150 Series: 190 g (0.42 lb)
NPort 6250 Series: 240 g (0.53 lb)
InstallationDesktop, DIN-rail mounting (with optional kit), Wall mounting

Environmental Limits

Operating TemperatureStandard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package
included)
-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/35
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
IEC 61000-4-11
Traffic ControlNEMA TS2
VibrationIEC 60068-2-6
FreefallIEC 60068-2-34
SafetyUL 60950-1, UL 62368-1

Declaration

Green ProductRoHS, CRoHS, WEEE

MTBF

TimeNPort 6150/6150-T: 1,934,102 hrs
NPort 6250/6250-T: 1,606,182 hrs
NPort 6250-M-SC/6250-M-SC-T: 1,526,091 hrs
NPort 6250-S-SC/6250-S-SC-T: 1,526,091 hrs
StandardsTelcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for NPort 6100/6200 Series Datasheet V1.3 23 June 2020

NPort 6150

Ethernet Interface RJ45
No. of Serial Ports 1
SD Card Support -
Operating Temp. 0 to 55°C
Traffic Control Certificates NEMA TS2
Power Supply Included

NPort 6150-T

Ethernet Interface RJ45
No. of Serial Ports 1
SD Card Support -
Operating Temp. -40 to 75°C
Traffic Control Certificates NEMA TS2
Power Supply Included -

NPort 6250

Ethernet Interface RJ45
No. of Serial Ports 2
SD Card Support Up to 32 GB (SD 2.0 compatible)
Operating Temp. 0 to 55°C
Traffic Control Certificates NEMA TS2
Power Supply Included

NPort 6250-M-SC

Ethernet Interface Multi-mode SC fiber connector
No. of Serial Ports 2
SD Card Support Up to 32 GB (SD 2.0 compatible)
Operating Temp. 0 to 55°C
Traffic Control Certificates NEMA TS2
Power Supply Included

NPort 6250-S-SC

Ethernet Interface Single-mode SC fiber connector
No. of Serial Ports 2
SD Card Support Up to 32 GB (SD 2.0 compatible)
Operating Temp. 0 to 55°C
Traffic Control Certificates NEMA TS2
Power Supply Included

NPort 6250-T

Ethernet Interface RJ45
No. of Serial Ports 2
SD Card Support Up to 32 GB (SD 2.0 compatible)
Operating Temp. -40 to 75°C
Traffic Control Certificates NEMA TS2
Power Supply Included -

NPort 6250-M-SC-T

Ethernet Interface Multi-mode SC fiber connector
No. of Serial Ports 2
SD Card Support Up to 32 GB (SD 2.0 compatible)
Operating Temp. -40 to 75°C
Traffic Control Certificates NEMA TS2
Power Supply Included -

NPort 6250-S-SC-T

Ethernet Interface Single-mode SC fiber connector
No. of Serial Ports 2
SD Card Support Up to 32 GB (SD 2.0 compatible)
Operating Temp. -40 to 75°C
Traffic Control Certificates NEMA TS2
Power Supply Included -
